Product 説明

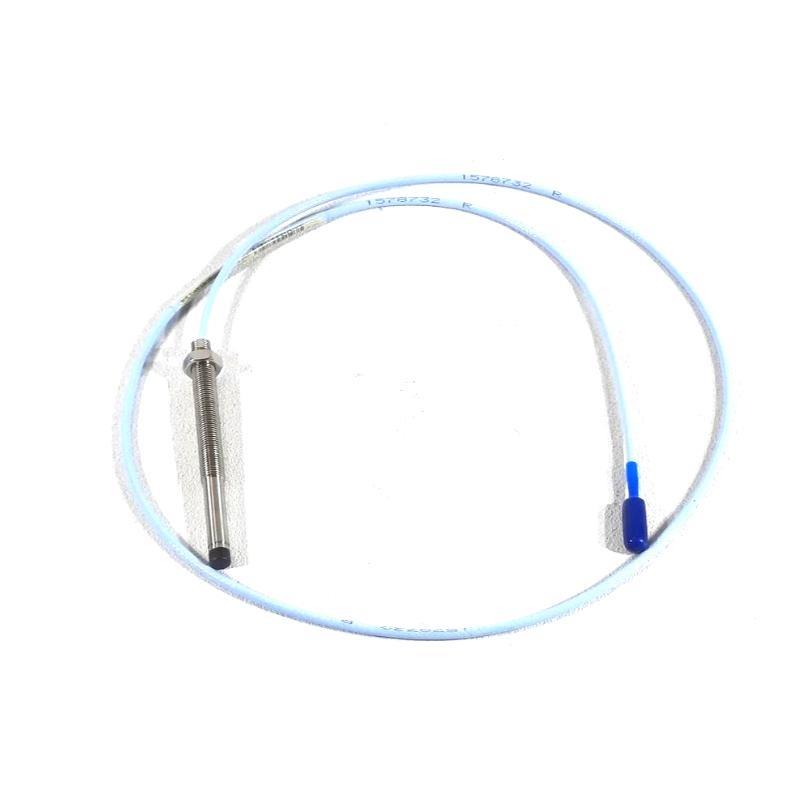

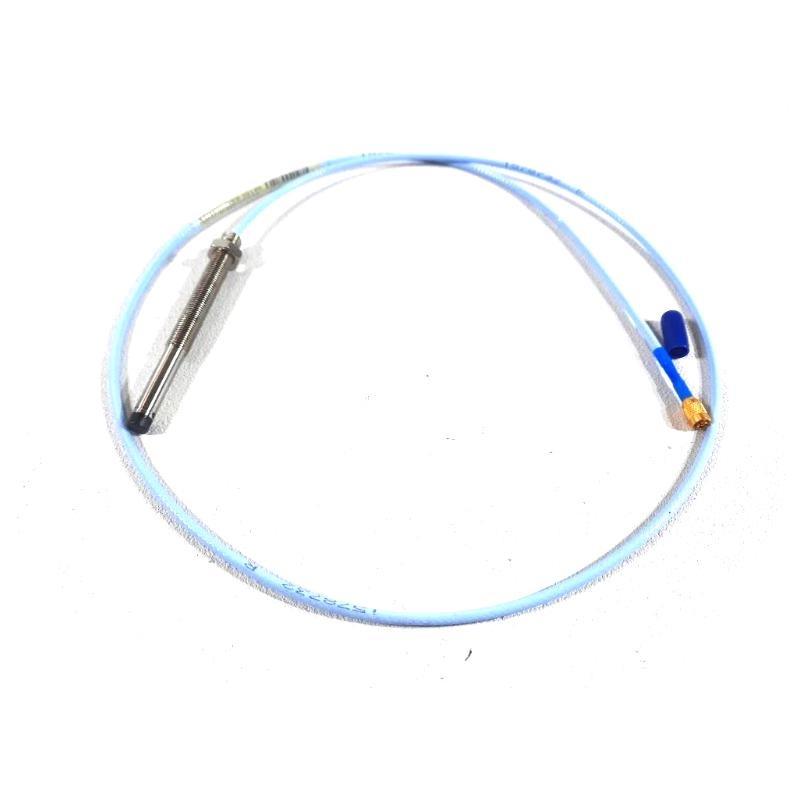

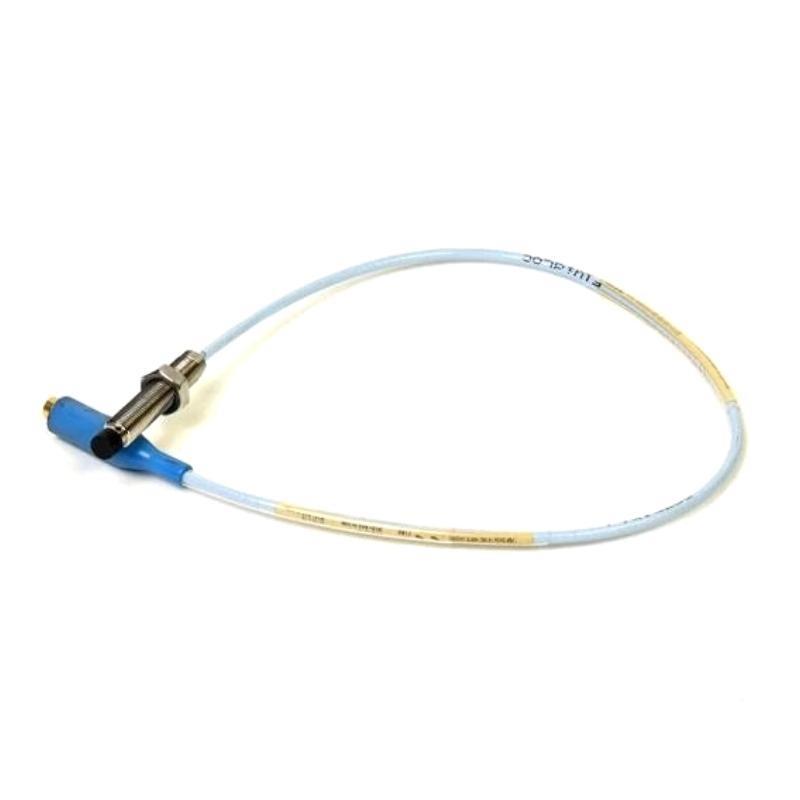

The Bently Nevada 330101-16-28-10-12-05 is part / the 3300 XL 8 mm Proximity Transducer System. It measures the distance between the probe tip and a conductive surface, delivering accurate static (position) and dynamic (vibration) measurements. It is designed for fluid-film bearing machines, keyphasor reference, and speed measurement applications. The 3300 XL series ensures high accuracy, robustness, and compliance with API 670 standards, with components fully interchangeable for ease / maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Minimum Shaft Diameter | 50.8 mm (recommended 76.2 mm) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connectors | Gold-plated ClickLoc, finger-tightened |
| Tensile Strength (Probe to Cable) | 330 N (75 lbf) |
Applications
-
Vibration and position monitoring on rotating machinery
-
Keyphasor reference signal generation
-
Overspeed protection systems
-
Monitoring / fluid-film bearing machines
-
Installation in harsh industrial environments with high EMI imm台y
Advantages
-
Complies with API 670 for mechanical and performance standards
-
Fully interchangeable components for easy replacement
-
優良 temperature and EMI imm台y
-
Robust, reliable ClickLoc connectors
-
Oil-resistant FluidLoc cable option
-
High pull strength and durable probe design
FAQ
Q1: What is the linear measurement range / this probe?
A1: It has a linear range / 2 mm (80 mils).
Q2: Can this probe be used in high-temperature environments?
A2: Yes, it supports up to +177°C for standard probes.
Q3: Is the probe tip material suitable for harsh conditions?
A3: Yes, the PPS material ensures durability and chemical resistance.
Q4: Do I need to calibrate individual components?
A4: No, all components are interchangeable without individual calibration.
Q5: What is the recommended shaft diameter for accurate measurement?
A5: Minimum recommended shaft diameter is 76.2 mm.
Q6: Does it meet API 670 standards?
A6: Yes, the system fully complies with API 670 specifications.
Q7: Are special tools required to connect the cables?
A7: No, the ClickLoc connectors only require finger-tightening.
Q8: Can it be used for both position and vibration monitoring?
A8: Yes, it provides accurate static and dynamic measurements.
Q9: What is the maximum pull strength / the probe-to-cable connection?
A9: The connection withstands up to 330 N (75 lbf).
Q10: Are the cables oil-resistant?
A10: Yes, the FluidLoc option prevents oil leakage through cables.
Recommended Similar or Related モデルs
| モデル | Total Length | 重量 | Features |
|---|---|---|---|
| 330101-00-08-10-02-05 | 1.0 m | 0.323 kg | Standard unarmored |
| 330102-00-20-10-02-00 | 2.0 m | 0.346 kg | Armored version |
| 330105-02-12-10-02-00 | 1.0 m | 0.330 kg | Reverse mount |
| 330191-00-12-10-02-00 | 1.0 m | 0.335 kg | Extended Temperature Range |
| 330140-00-20-10-02-00 | 2.0 m | 0.340 kg | Smooth case, unarmored |
| 330103-00-04-10-02-00 | 1.0 m | 0.323 kg | Metric thread M10 x 1 |
Popular Bently Nevada モデルs
| モデル | Total Length | 重量 | Features |
|---|---|---|---|
| 3300/42M-01-00 | – | 0.6 kg | Proximitor Seismic Monitor |
| 3500/42M-01-00 | – | 0.7 kg | 3500 Series Seismic Monitor |
| 330180-91-CN | 1.0 m | 0.246 kg | Proximitor Sensor |
| 330104-00-06-10-02-00 | 1.0 m | 0.323 kg | 8mm Metric Threaded Probe |
| 3500/44M | – | 0.65 kg | Aeroderivitive Vibration Monitor |
| 3300 XL 5mm Proximity Probe | 1.0 m | 0.320 kg | For tight installation spaces |
