Product Overview

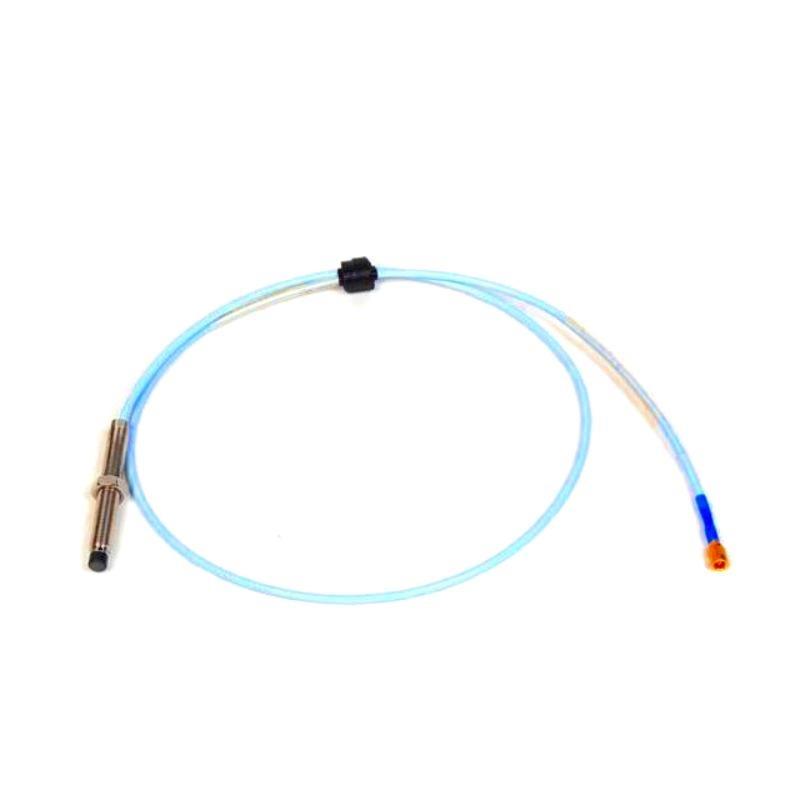

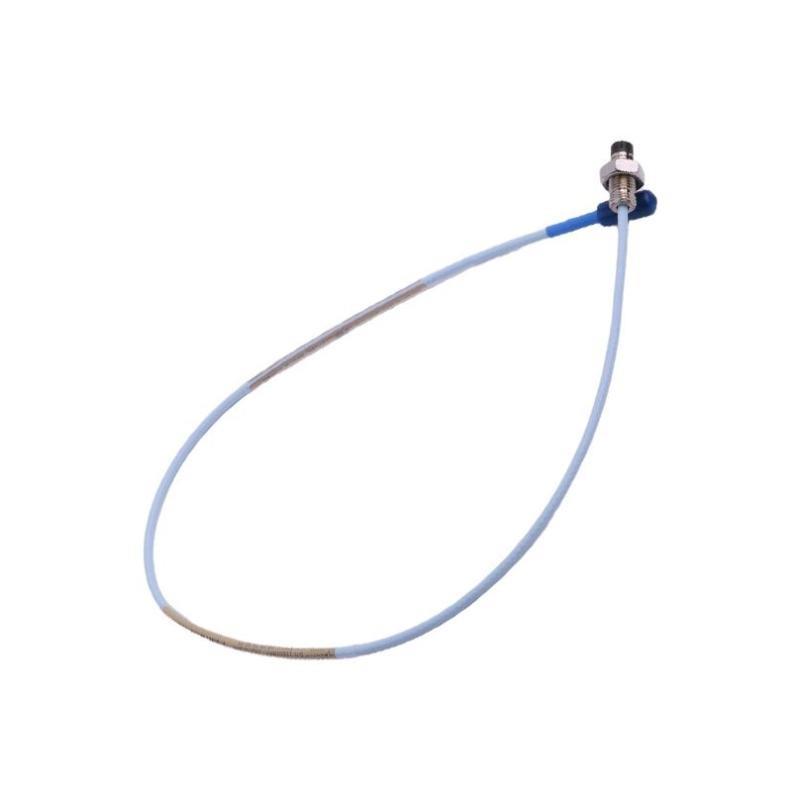

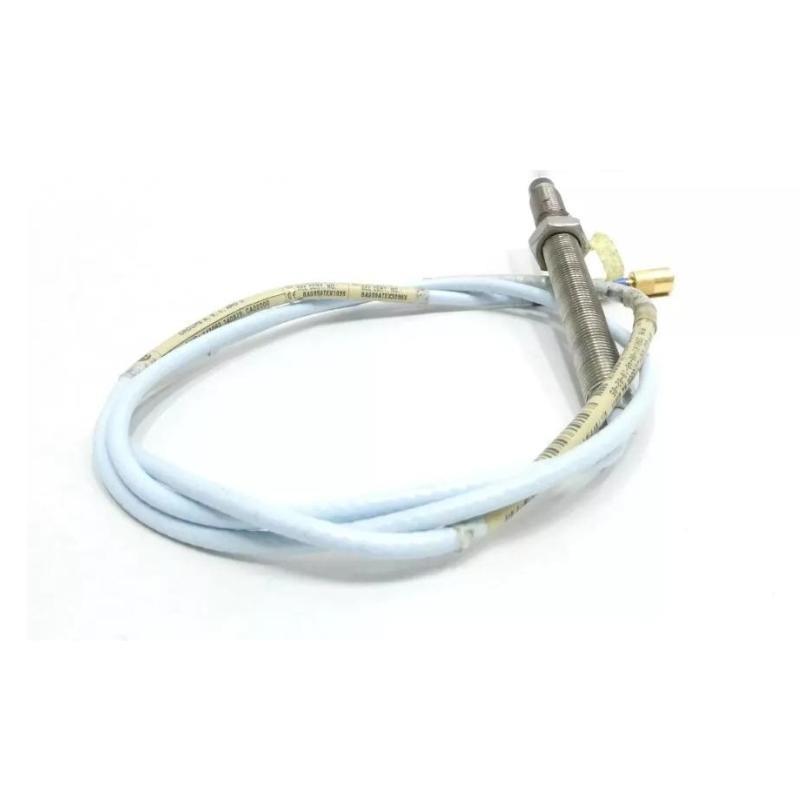

The Bently Nevada 330101-02-78-05-02-00 is a high-performance 8 mm proximity probe designed for precise, reliable vibration and position measurements in industrial rotating machinery. It is part / the trusted 3300 XL series, known for durability and extended system compatibility.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | 330101-02-78-05-02-00 |
| Series | 3300 XL 8 mm |
| Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Connector Type | Miniature coaxial |
| Thread Type | 3/8-24 UNF |
| Case Material | AISI 304 Stainless Steel |
| Sensing Range | 2 mm (80 mils) typical |
| Operating Temperature | -35°C to +177°C |
| 重量 | 0.162 kg |
| Extension Cable | Required (typically 330130 series) |
Applications
-
Steam and gas turbines
-
Compressors
-
Pumps
-
Gearboxes
-
Motors
-
Fans
Used in critical machinery for monitoring shaft vibration, axial thrust, and radial position.
Advantages
-
Enhanced mechanical stability and corrosion resistance
-
Compatible with API 670 machinery protection systems
-
Sealed design for harsh environments
-
Field-proven performance and long-term reliability
-
Easy integration with Bently Nevada monitoring systems
FAQ
Q1: What is the sensing range / the 330101-02-78-05-02-00 probe?
A1: It typically measures up to 2 mm (80 mils).
Q2: What type / cable is used with this probe?
A2: It uses a 330130 extension cable.
Q3: Is the probe suitable for high-temperature environments?
A3: Yes, it operates from -35°C to +177°C.
Q4: What is the thread type for mounting?
A4: The probe uses a 3/8-24 UNF thread.
Q5: Can this probe be used in wet or dusty areas?
A5: Yes, it is sealed and built for harsh environments.
Q6: What material is used for the case?
A6: The housing is made / AISI 304 stainless steel.
Q7: What systems is this probe compatible with?
A7: It is designed for Bently Nevada 3300 and 3500 systems.
Q8: How accurate is the probe?
A8: It /fers high accuracy for industrial vibration measurements.
Q9: What is the weight / the probe?
A9: The probe weighs 0.162 kg.
Q10: Is this a direct replacement for older Bently probes?
A10: Yes, it supports backward compatibility within the 3300 series.
Related モデルs (Same Series or Similar)
| モデル Number | Tip Diameter | Cable Length | Thread Type | 重量 |
|---|---|---|---|---|
| 330101-00-10-10-02-00 | 8 mm | 1.0 m | 3/8-24 UNF | 0.172 kg |
| 330101-00-60-10-02-00 | 8 mm | 6.0 m | 3/8-24 UNF | 0.220 kg |
| 330101-00-05-10-02-00 | 8 mm | 0.5 m | 3/8-24 UNF | 0.160 kg |
| 330101-02-12-10-02-00 | 8 mm | 1.2 m | 3/8-24 UNF | 0.175 kg |
| 330101-02-50-05-02-00 | 8 mm | 5.0 m | 3/8-24 UNF | 0.210 kg |
| 330101-00-20-10-02-00 | 8 mm | 2.0 m | 3/8-24 UNF | 0.185 kg |
Popular モデルs from Bently Nevada
| モデル Number | 説明 | Application | 重量 |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor Module | Vibration monitoring | 0.45 kg |
| 330130-040-00-00 | Extension Cable 4.0 m | Probe signal extension | 0.25 kg |
| 3300 XL 5 mm Probe | Smaller tip probe for tight spaces | Compact machinery | 0.150 kg |
| 3500/22M | Transient Data Interface Module | Dynamic data collection | 0.50 kg |
| 330104-00-06-10-11 | 8 mm Probe with reverse mount | Specialized installations | 0.170 kg |
| 330400 | Velocity Sensor | Low-frequency vibration | 0.350 kg |
