Product Overview

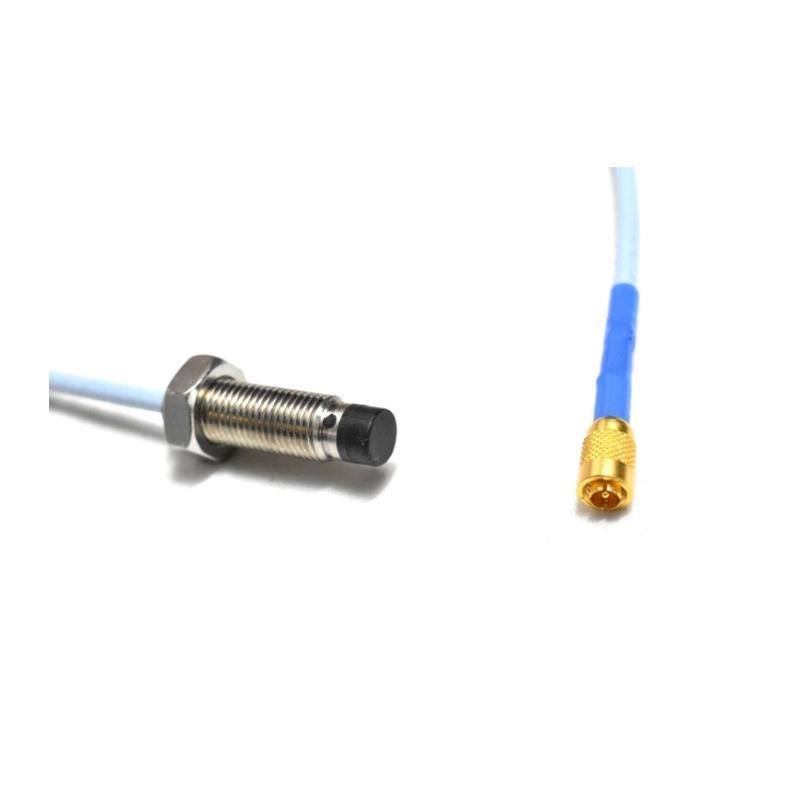

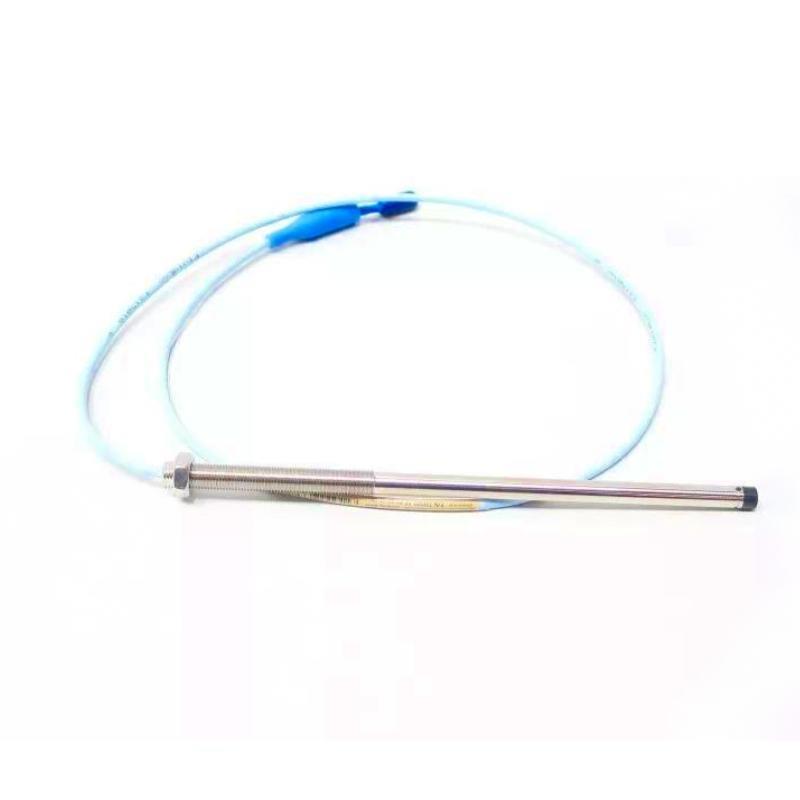

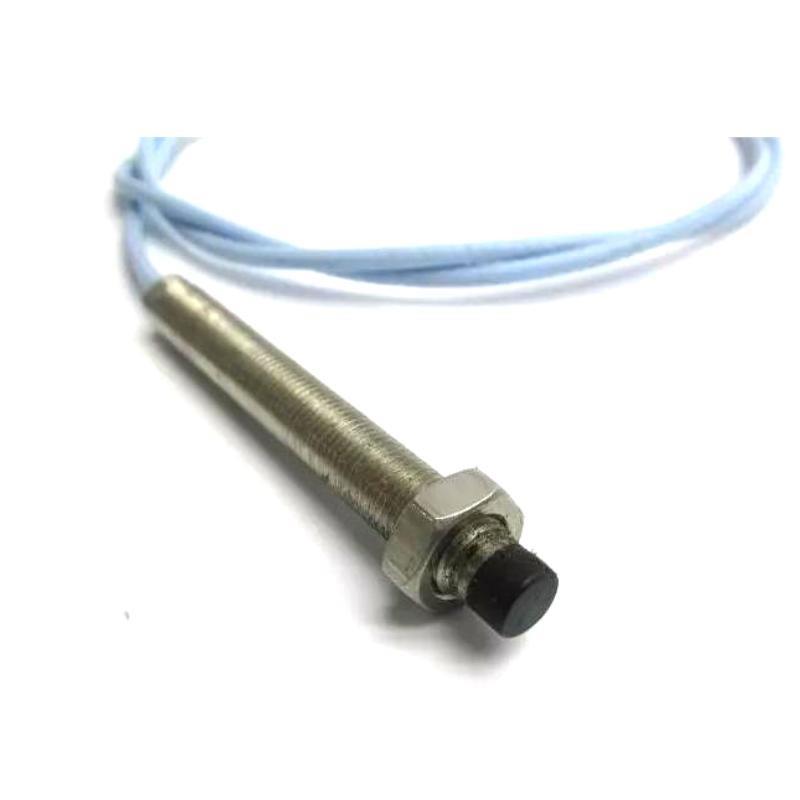

The Bently Nevada 330101-00-45-10-11-00 is part / the 3300 XL 8 mm Proximity Transducer System. It is engineered for accurate static and dynamic measurements in rotating machinery. This model features a 1.0-meter total probe length with high durability and performance under demanding conditions. It includes patented TipLoc and CableLoc technology, providing secure mechanical bonding and high pull strength.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 330101-00-45-10-11-00 |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Standard FEP insulated, ClickLoc connector |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| ISF (Incremental Scale Factor) | 7.87 V/mm (200 mV/mil) ±5% |
| Temperature Range | -52°C to +177°C (standard) |
| Pressure Seal | Viton® O-ring (not factory pressure tested) |
| Total Length | 1.0 meter |
| Total 重量 | Approx. 0.323 kg |
| Output | -24 Vdc, 10 kΩ load, proportional voltage |
| Mounting Thread | 3/8-24 UNF |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Environmental Rating | EMC compliant, CE certified, RoHS compliant |
Applications
-
Steam and gas turbines
-
Compressors
-
Centrifugal pumps
-
Gearboxes
-
Keyphasor reference and speed detection
-
Shaft vibration and axial thrust measurements
-
Machinery health monitoring systems
Advantages
-
Complies with API 670 mechanical and performance standards
-
Fully interchangeable with other 3300 XL components
-
Robust design with patented TipLoc and CableLoc for durability
-
Gold-plated, corrosion-resistant ClickLoc connectors
-
Highly immune to RFI/EMI interference
-
DIN or panel mount options for flexibility
-
Extended temperature and pressure tolerance options available
よくある質問 (FAQ)
Q1: What does the part number 330101-00-45-10-11-00 specify?
A1: It indicates a 3300 XL 8 mm probe with 4.5 in. case length, 1.0 meter cable, FluidLoc cable with connector protector, and agency approvals.
Q2: What is the main use / this proximity probe?
A2: It is used for measuring vibration, displacement, and shaft position in fluid-film bearing machines.
Q3: Is this probe compatible with non-XL 3300 systems?
A3: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: Does the probe require calibration?
A4: No manual matching or bench calibration is needed; components are factory-matched.
Q5: What is the probe’s linear measurement range?
A5: It operates linearly between 0.25 mm to 2.3 mm (10 to 90 mils).
Q6: Can this model be used in high temperature applications?
A6: Standard probes support up to 177°C. For higher, use the ETR version rated up to 218°C.
Q7: How strong is the connection between probe and cable?
A7: CableLoc design ensures 330 N (75 lbf) tensile strength for secure connections.
Q8: What environmental standards does it comply with?
A8: It meets CE, FCC, and RoHS requirements and is certified for hazardous area usage.
Q9: Is there any oil sealing feature?
A9: The optional FluidLoc cable prevents oil leakage through the cable interior.
Q10: What is the minimum shaft diameter for accurate reading?
A10: Recommended shaft diameter is at least 76.2 mm (3 inches).
Related モデルs (Same Series)
| モデル Number | 説明 | Length | Cable Type | 重量 |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | Standard Probe, 0.8 in. case | 1.0 m | Standard | 0.32 kg |
| 330101-00-20-10-02-05 | Extended case length | 2.0 m | FluidLoc + Armor | 0.45 kg |
| 330101-00-30-10-02-05 | Long probe version | 3.0 m | FluidLoc + Armor | 0.50 kg |
| 330102-00-20-10-02-00 | Armored probe | 2.0 m | Armored | 0.50 kg |
| 330103-00-05-10-02-00 | Metric thread M10 | 1.0 m | Standard | 0.32 kg |
| 330104-00-06-10-02-00 | Metric thread with armor | 1.0 m | Armored | 0.45 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Application Type | Key Feature | 重量 |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Machinery Monitoring | Modbus TCP/Serial Communication | 0.7 kg |
| 3500/42M | Proximitor Seismic Monitor | Vibration Monitoring | 4-channel proximity + vibration | 0.9 kg |
| 3500/15 | Power Supply Module | System Power Supply | Universal AC/DC input | 0.8 kg |
| 3500/25 | Keyphasor Module | Speed and phase reference | Dual-channel | 0.75 kg |
| 330180-91-CN | Proximitor Sensor | Proximity Probe Interface | China-localized version | 0.25 kg |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | General Machinery Monitoring | Metric thread, armored | 0.45 kg |
