製品紹介

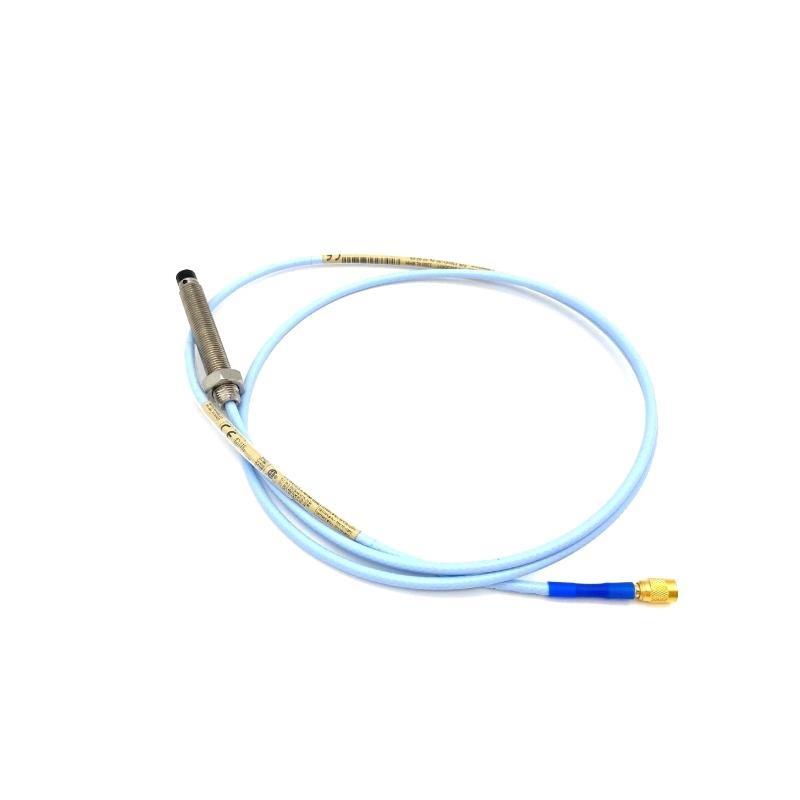

The Bently Nevada 330101-00-34-10-02-05 3300 XL 8mm Proximity Probe is part / the highly reliable 3300 XL Series—an industry-leading proximity sensing system designed to deliver precise, accurate vibration and position measurements for rotating machinery. This model, configured with an 8 mm tip and optimized for industrial environments, /fers exceptional stability and performance in both static and dynamic measurements.
With proven design heritage and extensive field application in industries such as power generation, petrochemical, and manufacturing, the 3300 XL 8mm series is one / the most trusted and deployed proximity transducer systems in the world. The model 330101-00-34-10-02-05 ensures long-term accuracy even in harsh conditions, /fering an extended temperature range, enhanced vibration imm台y, and resistance to electrical noise.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 330101-00-34-10-02-05 |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | Polyphenylene Sulfide (PPS), glass reinforced |
| Body Thread Size | 3/8-24 UNF |
| Total Length | 1 meter |
| Extension Cable Type | Armor Protected (Optional) |
| System Power Consumption | 5.5 mA typical |
| Output Voltage Range | -24 VDC to +24 VDC |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linearity | ±0.25% / full-scale |
| Frequency Range (Dynamic) | 0 to 10 kHz (-3 dB) |
| Temperature Range (Operating) | -51 °C to +177 °C (-60 °F to +350 °F) |
| Vibration Limit | 50 g peak |
| Shock Limit | 5000 g peak |
| EMI/RFI Imm台y | 優良 |
| Housing Material | Stainless Steel |
| Environmental Protection Rating | IP68 |
| 重量 | 0.323 kg |
| Compliance Certifications | CE, ATEX, CSA, RoHS |
Applications
The Bently Nevada 330101-00-34-10-02-05 proximity probe is engineered for critical machinery monitoring applications across multiple industries:
-
Turbomachinery Vibration Monitoring
Installed in turbines, compressors, pumps, and motors to monitor shaft vibration and relative movement. -
Rotating Equipment Positioning
Tracks shaft position to detect misalignment, thrust wear, and thermal expansion. -
状態 Monitoring Systems
Integrated into condition-based maintenance systems to detect faults before failures occur. -
Oil & Gas
Used in refineries and /fshore platforms for continuous vibration measurement. -
Power Generation
Applied in steam, gas, and hydro turbines for monitoring shaft dynamics and bearing conditions. -
Manufacturing & Pulp & Paper
Used on high-speed rollers, gearboxes, and spindles to optimize machine health.
Advantages
-
Proven Reliability
The 3300 XL series is the industry benchmark, known for decades / reliable service. -
Wide Temperature Range
Operates effectively in both cryogenic and high-temperature environments up to 177 °C. -
High Sensitivity and Linearity
Provides precise, linear output across a broad range / dynamic and static applications. -
Durable Construction
Rugged stainless steel housing with sealed design for superior resistance to harsh environments. -
Noise Imm台y
Superior EMI/RFI imm台y, ensuring signal integrity even in electrically noisy environments. -
Ease / Installation
Designed for compatibility with Bently Nevada drivers and monitors, with simple configuration. -
Extended Cable Options
対応可能 with armored extension cables for harsh field installations. -
Low Power Consumption
Energy-efficient operation reduces heat load on electronic cabinets. -
Global Certifications
Certified for international use, including CE, ATEX, CSA, and RoHS compliance. -
Backed by GE-Baker Hughes サポート
Comprehensive technical support and service from a global leader in condition monitoring.
FAQ
1. What is the standard output / the Bently Nevada 330101-00-34-10-02-05?
The probe provides 200 mV/mil (7.87 mV/μm) sensitivity.
2. Is this probe compatible with other Bently Nevada systems?
Yes, it is compatible with 3300 XL drivers and monitors as well as System 1 monitoring s/tware.
3. What is the maximum operating temperature?
It operates up to +177 °C (+350 °F).
4. Can the probe withstand high vibration?
Yes, it handles up to 50 g vibration and 5000 g shock.
5. What is the environmental protection rating?
Rated IP68, providing complete protection against dust and water immersion.
6. Is the cable armored?
An armored extension cable is available as an option for demanding environments.
7. What certifications does it have?
Certified to CE, ATEX, CSA, and RoHS standards.
8. What is the linearity / the probe output?
Linearity is within ±0.25% / full scale.
9. How is it typically mounted?
Threaded body allows secure mounting into machinery housings using 3/8-24 UNF thread.
10. How heavy is the complete probe with cable?
0.323 kg.
Related モデルs (Same Series or Similar)
| モデル Number | 説明 |
|---|---|
| 330101-00-12-10-02-05 | 3300 XL 8mm Probe, 12 in. length |
| 330101-00-25-10-02-05 | 3300 XL 8mm Probe, 25 in. length |
| 330101-00-50-10-02-05 | 3300 XL 8mm Probe, 50 in. length |
| 330104-00-12-10-02-05 | 3300 XL 11mm Probe, 12 in. length |
| 330130-040-00 | 3300 XL Extension Cable, 4 m |
| 330180-91-05 | 3300 XL Proximitor Sensor |
Popular Bently Nevada 製品 (Same ブランド)
| モデル Number | 説明 |
|---|---|
| 3300 XL Proximitor Sensor 3300/16 | Universal vibration monitor |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/20 | Rack Interface Module |
| 3500/25 | Keyphasor Module |
| 1900/65A | Compact Machinery Protection System |
