製品紹介

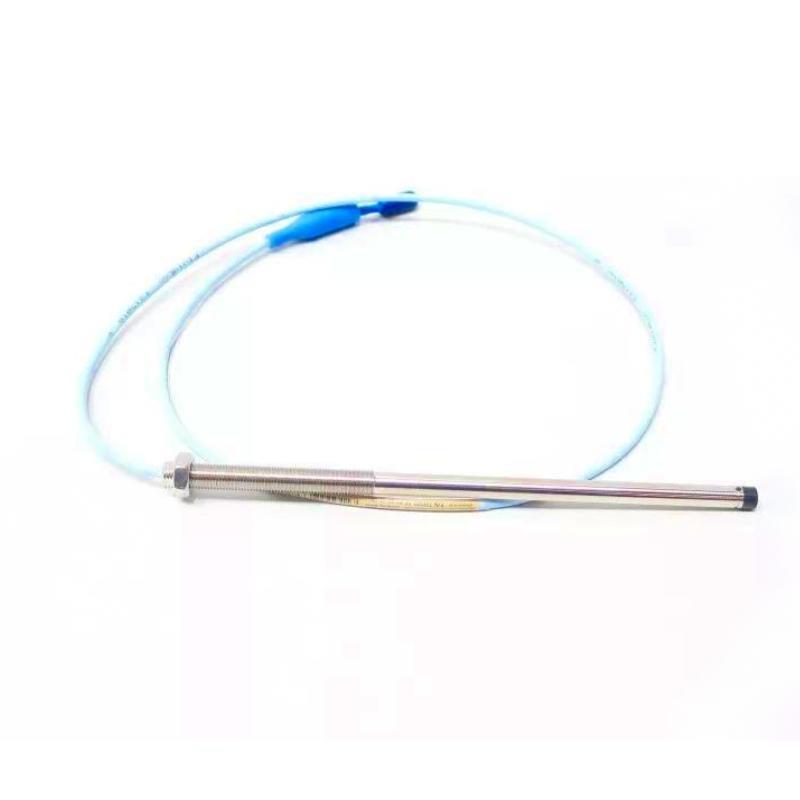

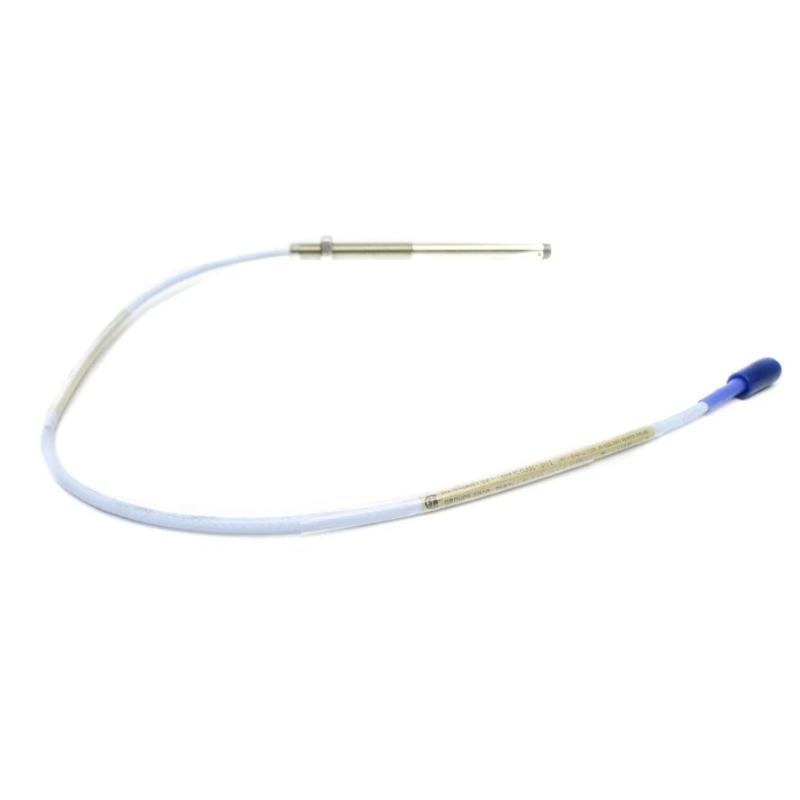

The Bently Nevada 330101-00-20-20-02-00 3300 XL 8mm Proximity Probe is a high-performance eddy current sensor designed for precise vibration and position measurements in rotating machinery. As part / the 3300 XL 8 mm series, it provides reliable operation under harsh industrial conditions, ensuring long-term stability and compliance with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | 3300 XL 8 mm Proximity Probe |
| モデル Number | 330101-00-20-20-02-00 |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 2.0 m (6.6 ft) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Operating Temperature | –51 °C to +177 °C (–60 °F to +351 °F) |
| Storage Temperature | –51 °C to +177 °C (–60 °F to +351 °F) |
| 重量 | 0.646 kg |
| Approvals | None |
| Ruggedization Features | TipLoc molding, CableLoc reinforcement, ClickLoc locking connector |
Product Applications
-
Vibration Monitoring: Continuous shaft vibration measurement in turbines, compressors, and motors.
-
Position Measurement: Shaft axial and radial position monitoring for fluid-film bearing machines.
-
Keyphasor Applications: Accurate phase reference and rotational speed measurement.
-
状態 Monitoring Systems: Used with 3300 XL extension cables and Proximitor sensors in machinery protection systems.
-
Harsh Environments: Designed for areas with high temperature fluctuations and mechanical stress.
Product Advantages
-
Full Interchangeability: Compatible with any 3300 XL 8 mm system without calibration.
-
Durability: PPS encapsulation and reinforced CableLoc design enhance probe life under stress.
-
Secure Connections: ClickLoc gold-plated connectors resist loosening and ensure stable signal transmission.
-
API 670 Compliance: Meets international standards for machinery protection.
-
High Accuracy: Stable and repeatable measurements even in severe operating conditions.
-
Backward Compatibility: Can be used with non-XL 3300 systems (performance defaults to non-XL limits).
FAQ
Q1: What is the main function / the 330101-00-20-20-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery using eddy current technology.
Q2: What is the total cable length / this probe?
A2: The total cable length is 2.0 meters (6.6 ft).
Q3: What environmental conditions can it operate in?
A3: It can operate and be stored in –51 °C to +177 °C environments.
Q4: Does this probe comply with API 670 requirements?
A4: Yes, it fully meets API 670 standards for proximity transducer systems.
Q5: How is the probe tip secured against mechanical stress?
A5: It uses TipLoc molding and CableLoc reinforcement for increased pull strength and stability.
Q6: Is calibration required when replacing components in the system?
A6: No, all 3300 XL 8 mm system components are interchangeable without recalibration.
Q7: What connector type does this probe use?
A7: It uses a gold-plated ClickLoc miniature coaxial connector with a locking mechanism.
Q8: Can it be used for Keyphasor applications?
A8: Yes, it is suitable for speed and phase reference measurements.
Q9: What is the weight / this probe?
A9: The weight is approximately 0.646 kg.
Q10: Is this model compatible with older 3300 systems?
A10: Yes, but performance will be limited to non-XL specifications when mixed with older system components.
Related モデルs in the Same Series
| モデル Number | 説明 | Cable Length | Case Length | 重量 |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 3300 XL 8 mm Probe, 1.0 m cable | 1.0 m | 2.0 in | 0.520 kg |
| 330101-00-20-05-02-00 | 3300 XL 8 mm Probe, 0.5 m cable | 0.5 m | 2.0 in | 0.430 kg |
| 330101-00-20-30-02-00 | 3300 XL 8 mm Probe, 3.0 m cable | 3.0 m | 2.0 in | 0.720 kg |
| 330101-00-20-50-02-00 | 3300 XL 8 mm Probe, 5.0 m cable | 5.0 m | 2.0 in | 0.890 kg |
| 330101-00-25-20-02-00 | 3300 XL 8 mm Probe, 2.0 m cable, 2.5 in case | 2.0 m | 2.5 in | 0.670 kg |
| 330101-00-32-20-02-00 | 3300 XL 8 mm Probe, 2.0 m cable, 3.2 in case | 2.0 m | 3.2 in | 0.690 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Application Focus |
|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe, extended configuration | General vibration monitoring |
| 330104-00-06-50-01-00 | 3300 XL 8 mm Proximity Probe | Long cable applications |
| 330180-91-CN | 3300 XL Proximitor Sensor | Compatible with 8 mm probes |
| 330500-01-00 | Velomitor Piezo-velocity Sensor | Velocity measurement in rotating machines |
| 3500/42M | Proximitor/Seismic Monitor Module | Multi-channel vibration monitoring |
| 3500/22M | Transient Data Interface (TDI) Module | System communication and diagnostics |
