Product 説明

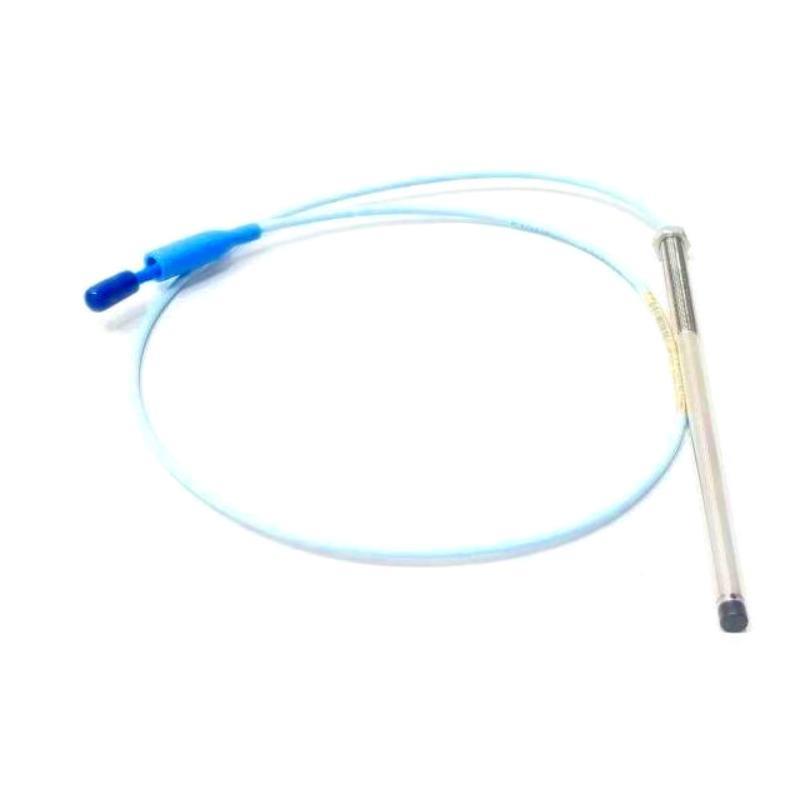

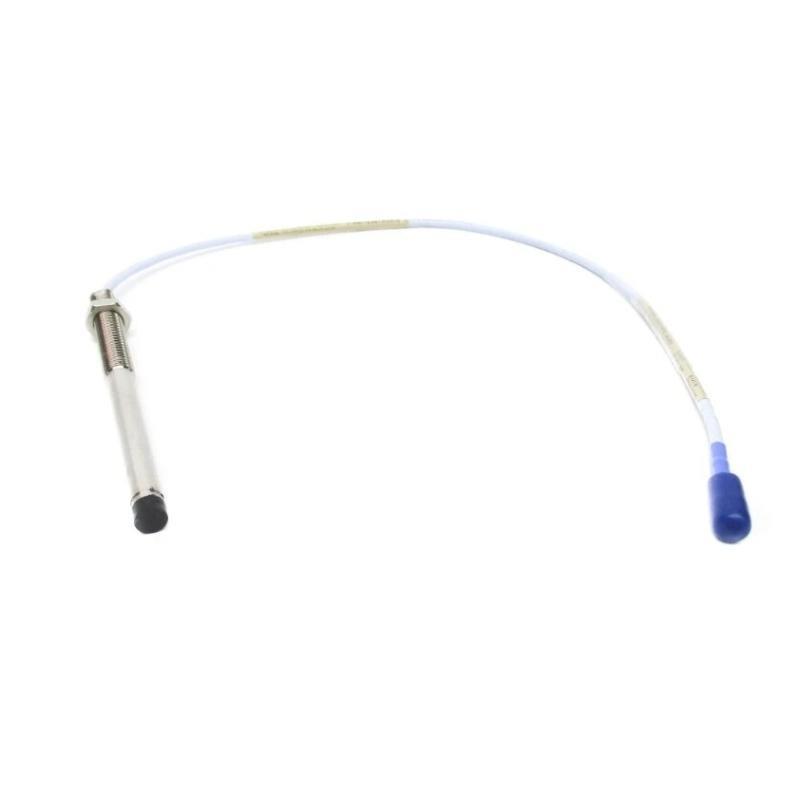

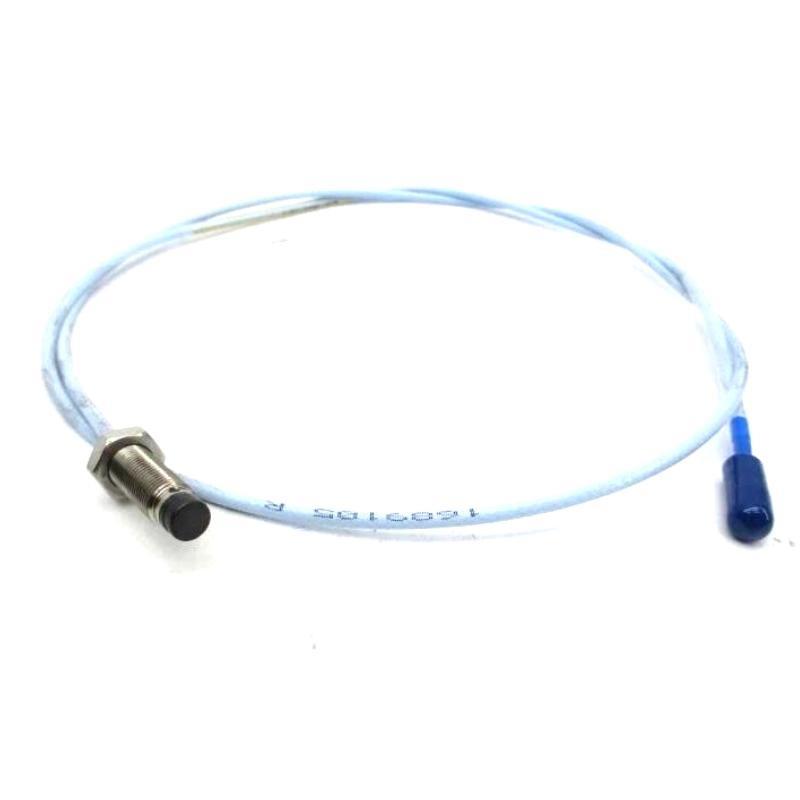

The Bently Nevada 330101-00-20-10-12-00 belongs to the 3300 XL 8mm Proximity Transducer System, engineered for high reliability in critical rotating machinery monitoring. It delivers accurate static and dynamic displacement measurements and complies with API 670 standards. The probe utilizes ClickLoc connectors with FluidLoc cable protection, ensuring stable performance even in harsh oil-rich environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | 330101-00-20-10-12-00 |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Case Length | 2.0 in |
| Total Length | 1.0 m |
| 重量 | 0.323 kg |
| Connector Type | Miniature Coaxial ClickLoc |
| Cable Type | FluidLoc protection |
| Agency Approvals | None |
| Compliance | API 670 |
| Application Range | Static position, vibration, phase/speed monitoring |
Product Applications
-
Vibration and shaft displacement monitoring in turbines, compressors, and pumps
-
Keyphasor signal referencing for phase and speed detection
-
Suitable for high-temperature and oil-laden environments due to FluidLoc design
-
Machine protection systems requiring API 670 compliance
Product Advantages
-
High Reliability: Engineered for long-term stability in industrial environments.
-
FluidLoc Cable: Prevents oil ingress, ensuring measurement accuracy.
-
ClickLoc Connector: Secure, gold-plated connection resistant to loosening.
-
Compatibility: Fully interchangeable with earlier 5 mm and 8 mm probes.
-
Mechanical Robustness: TipLoc molding and CableLoc design provide excellent durability.
-
Precision Monitoring: Meets stringent API 670 linearity and accuracy standards.
FAQ
Q1: What is the measuring principle / the 330101-00-20-10-12-00 probe?
A1: It operates on eddy current technology, outputting a voltage proportional to shaft-to-probe distance.
Q2: Can this probe be used interchangeably with older 8 mm probes?
A2: Yes, it is fully compatible with non-XL 8 mm and 5 mm series probes.
Q3: What advantage does the FluidLoc cable provide?
A3: It prevents oil penetration into the cable, enhancing long-term reliability in lubricated machinery.
Q4: What environments is this probe best suited for?
A4: High-vibration, high-temperature, and oil-rich machinery environments such as turbines and compressors.
Q5: What compliance standards does this probe meet?
A5: It meets API 670 requirements for machine protection.
Q6: What connector type is used?
A6: A miniature coaxial ClickLoc connector with a secure locking design.
Q7: What is the weight / this probe?
A7: Approximately 0.323 kg.
Q8: What is the function / TipLoc and CableLoc technologies?
A8: TipLoc secures the probe tip during molding; CableLoc increases cable pull strength, ensuring durability.
Q9: Can the probe provide both static and dynamic signals?
A9: Yes, it measures static shaft position and dynamic vibration simultaneously.
Q10: Does this probe require special approvals?
A10: No, this model is supplied without agency approvals.
Related モデルs (Same Series or Variants)
| モデル Number | Probe Diameter | Case Length | Total Length | Connector Type | 重量 |
|---|---|---|---|---|---|
| 330101-00-20-10-02-00 | 8 mm | 2.0 in | 1.0 m | Miniature Coaxial ClickLoc (Std Cable) | 0.320 kg |
| 330101-00-25-10-02-00 | 8 mm | 2.5 in | 1.0 m | Miniature Coaxial ClickLoc | 0.330 kg |
| 330101-00-15-05-02-00 | 8 mm | 1.5 in | 0.5 m | Miniature Coaxial ClickLoc | 0.310 kg |
| 330101-00-20-15-02-00 | 8 mm | 2.0 in | 1.5 m | Miniature Coaxial ClickLoc | 0.340 kg |
| 330101-00-25-15-02-00 | 8 mm | 2.5 in | 1.5 m | Miniature Coaxial ClickLoc | 0.350 kg |
| 330101-00-20-20-02-00 | 8 mm | 2.0 in | 2.0 m | Miniature Coaxial ClickLoc | 0.360 kg |
