Product 説明

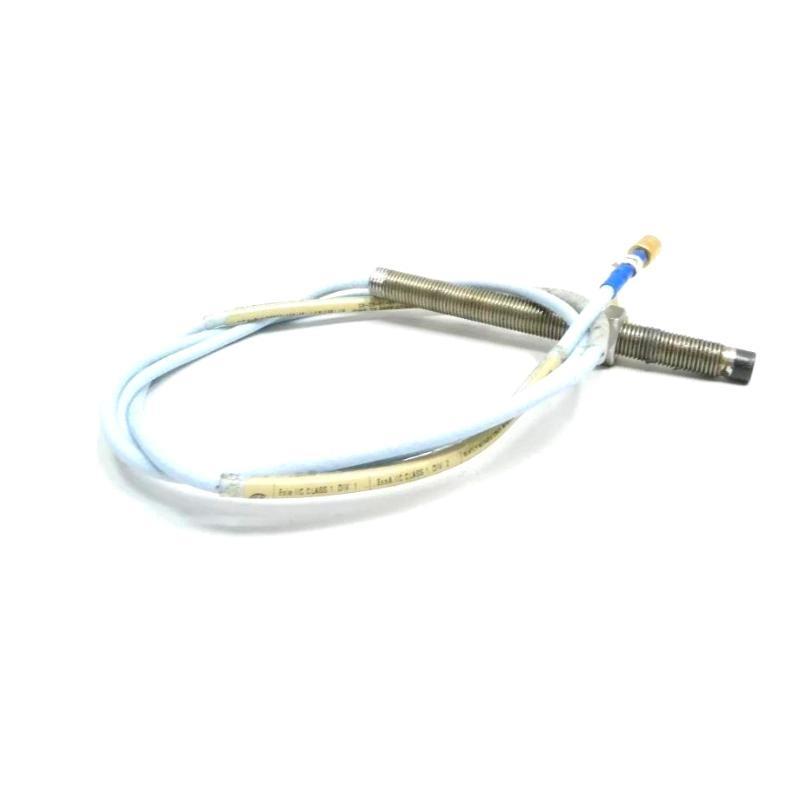

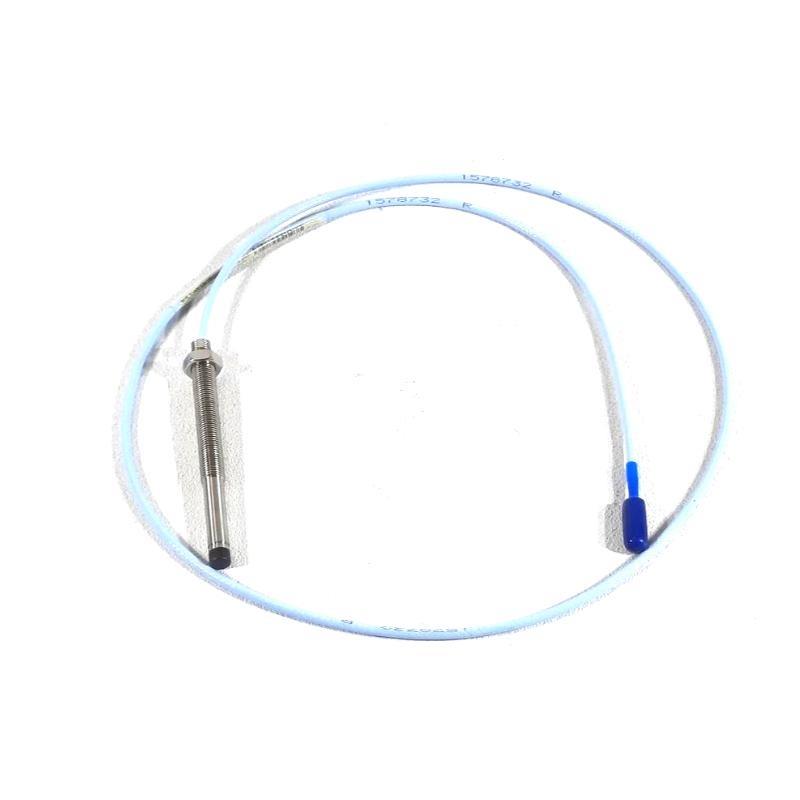

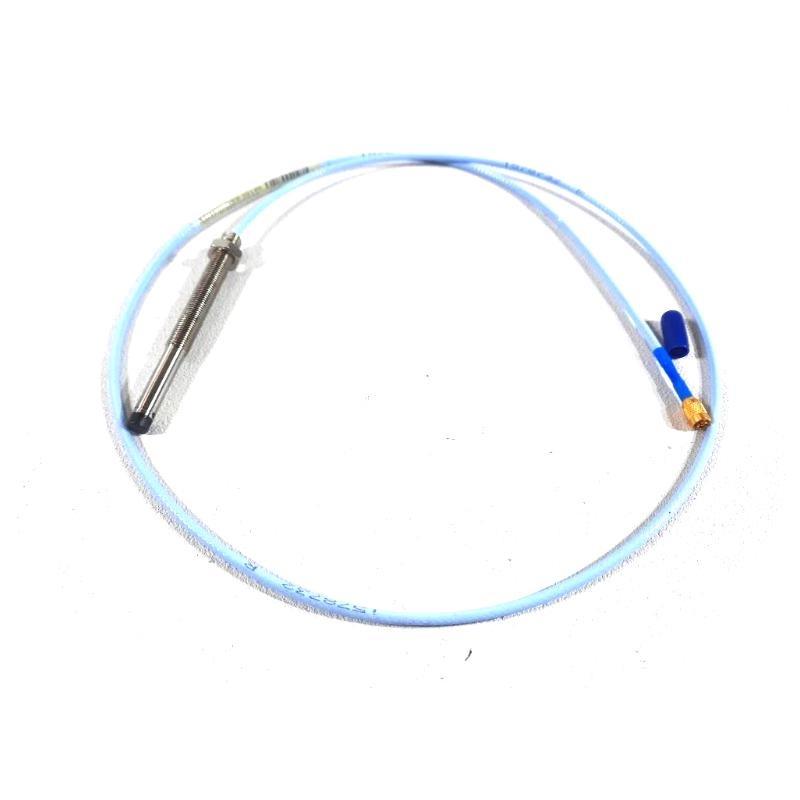

The Bently Nevada 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probe is a highly reliable eddy-current sensor designed for vibration and position monitoring in rotating machinery. It provides a precise voltage output proportional to the distance between the probe tip and the conductive surface. It is part / the 3300 XL transducer system, fully compliant with API 670 standards and backward compatible with earlier 3300 series components.
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position and Keyphasor speed measurements
-
Overspeed protection and radial/axial displacement detection
Advantages
-
Fully compliant with API 670 standard
-
Backward compatible and interchangeable
-
Rugged construction with TipLoc and CableLoc enhancements
-
Optional FluidLoc cable prevents oil leakage
-
優良 imm台y to RFI/EMI for reliable operation
-
Easy installation with ClickLoc connectors
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Length | Total length: 1.0 meter |
| 重量 | Approx. 0.323 kg |
| Operating Temperature | -52°C to +177°C (standard probe) |
| Linear Range | 0.25–2.3 mm |
| Frequency Response | 0–10 kHz |
| Recommended Shaft Diameter | ≥76.2 mm |
| Minimum Target Diameter | 15.2 mm |
| Connector Type | Miniature coaxial ClickLoc |
FAQ
Q1: What is the primary use / the 330101-00-10-10-12-05 probe?
A1: It is mainly used for vibration and position monitoring on rotating machinery.
Q2: Is it compatible with older 3300 series systems?
A2: Yes, it is fully backward compatible and interchangeable with 3300 5 mm and 8 mm components.
Q3: Does it comply with API standards?
A3: Yes, it meets the API 670 standard for mechanical configuration and accuracy.
Q4: What is the typical operating temperature range?
A4: Standard probe operation is from -52°C to +177°C.
Q5: How is the connector secured?
A5: The ClickLoc connector clicks into place and resists loosening without special tools.
Q6: What is the recommended gap setting?
A6: Approximately 1.27 mm (50 mils), corresponding to a -9 Vdc output.
Q7: Can it withstand high vibration environments?
A7: Yes, its robust construction and superior encapsulation ensure durability.
Q8: Is the cable oil-resistant?
A8: Optional FluidLoc cables are available to prevent oil leaks through the cable.
Q9: What is the minimum target diameter?
A9: The minimum recommended flat target diameter is 15.2 mm.
Q10: Does it require calibration?
A10: It comes factory-calibrated to AISI 4140 steel; calibration for other materials is available on request.
Recommended Related モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-05-10-12-05 | 3300 XL 8 mm Proximity Probe | 0.5 m | 0.3 kg |
| 330101-00-15-10-12-05 | 3300 XL 8 mm Proximity Probe | 1.5 m | 0.33 kg |
| 330101-00-20-10-12-05 | 3300 XL 8 mm Proximity Probe | 2.0 m | 0.35 kg |
| 330102-00-10-10-12-05 | 3300 XL 8 mm Proximity Probe with Armor | 1.0 m | 0.34 kg |
| 330103-00-10-10-12-05 | 3300 XL 8 mm Metric Thread Probe | 1.0 m | 0.323 kg |
| 330105-02-12-10-12-05 | 3300 XL 8 mm Reverse Mount Probe | 1.0 m | 0.32 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330104-00-10-10-12-05 | 3300 XL 8 mm Metric Thread Probe with Armor | 1.0 m | 0.34 kg |
| 330106-05-30-10-12-05 | 3300 XL 8 mm Reverse Mount Metric Thread | 1.0 m | 0.32 kg |
| 330140-00-10-10-12-05 | 3300 XL 8 mm Smooth Case Probe | 1.0 m | 0.323 kg |
| 330191-00-10-10-12-05 | 3300 XL 8 mm Extended Temperature Range Probe | 1.0 m | 0.323 kg |
| 330180-10-05 | 3300 XL Proximitor Sensor Panel Mount | 1.0 m | 0.25 kg |
| 330130-030-00-05 | 3300 XL Extension Cable | 3.0 m | 0.1 kg |
