Product Overview

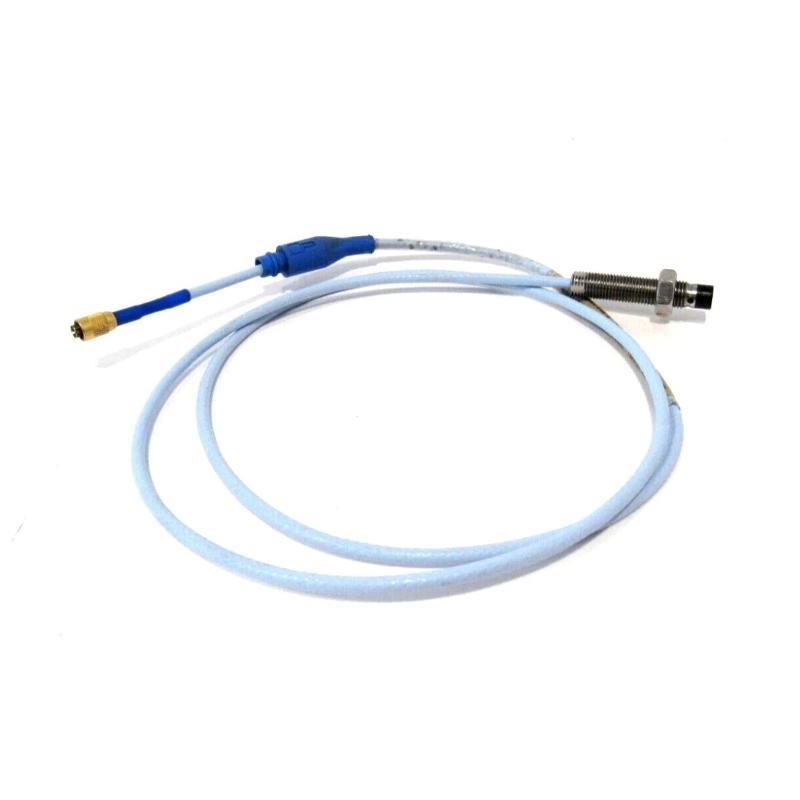

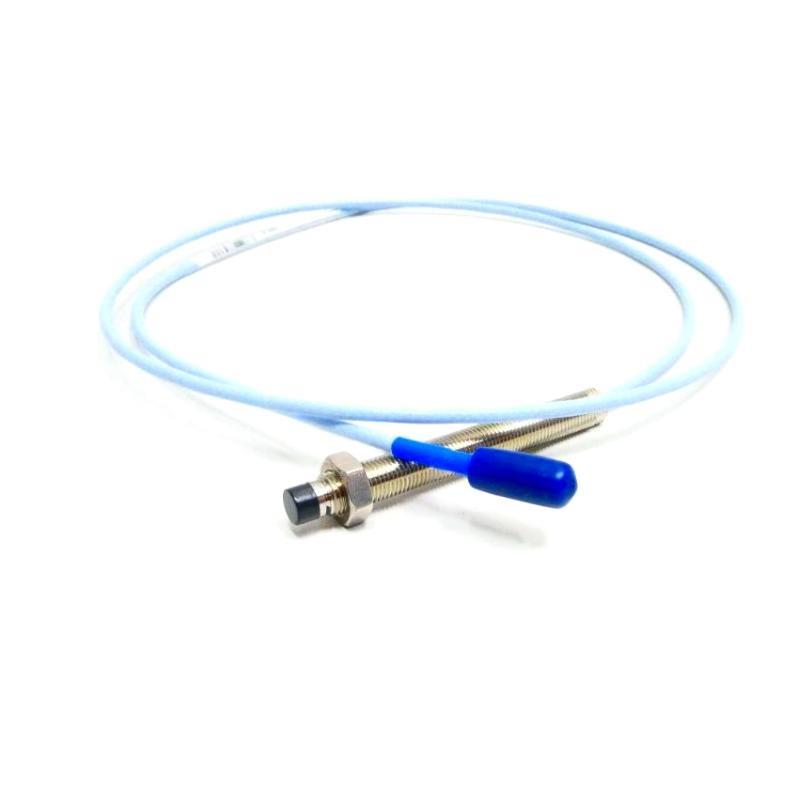

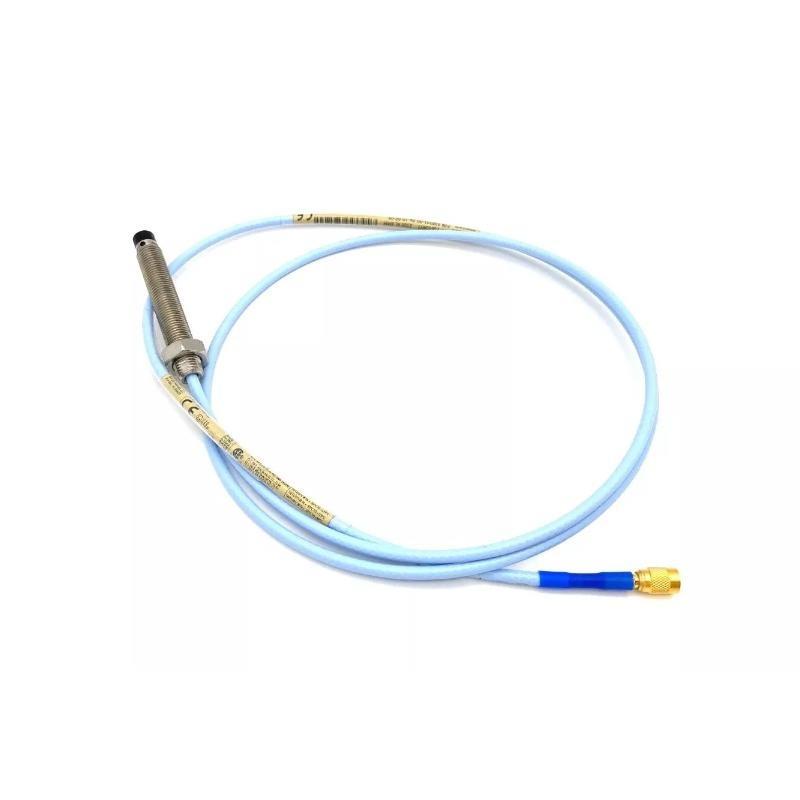

The Bently Nevada 330101-00-08-05-12-05 3300 XL 8mm Proximity Probe is designed for high-precision vibration and position monitoring in industrial machinery. It is part / the 3300 XL series, ensuring robust performance under extreme temperature and mechanical conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Total Length | 0.5 meter |
| 重量 | 0.162 kg |
| Probe Material | Polyphenylene Sulfide (PPS) tip, Stainless Steel Case (AISI 303/304) |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Extension Cable | Fluoroethylene Propylene (FEP) insulation |
| Connector | Gold-plated ClickLoc |
| Electrical Length Matching | Required for probe and cable with Proximitor sensor |
| Compliance | API 670 4th Edition |
Applications
-
Vibration and position monitoring on fluid-film bearing machines
-
Speed measurements and Keyphasor® reference
-
Machinery requiring high-temperature stability and precise mechanical configuration
Advantages
-
High measurement accuracy and linearity
-
Robust mechanical design for harsh industrial environments
-
Corrosion-resistant materials for long service life
-
Flexible system configurations due to component interchangeability
FAQ
1. What is the maximum operating temperature / the probe?
The probe operates reliably up to 177°C (351°F).
2. Can the probe be used with non-XL 3300 series systems?
Yes, the probe is interchangeable with compatible 3300 series components.
3. What is the probe material?
The probe tip is PPS, and the case is stainless steel (AISI 303 or 304).
4. How is the probe connected to the Proximitor sensor?
It uses gold-plated ClickLoc connectors for secure, tool-free installation.
5. What is the purpose / electrical length matching?
Ensures optimal performance and accurate measurement when connecting the probe and extension cable to the Proximitor sensor.
6. Is this probe suitable for high-speed machinery?
Yes, it provides accurate speed and position measurements in high-speed industrial equipment.
7. Can the probe withstand corrosive environments?
Yes, the stainless steel case and corrosion-resistant connector design ensure durability.
8. How long is the standard probe cable?
The standard total length / the probe with cable is 0.5 meters.
9. What is the weight / the probe?
The probe weighs 0.162 kg.
10. Does it comply with industry standards?
Yes, it meets API 670 4th Edition requirements for vibration monitoring systems.
Related and Recommended モデルs
| モデル | Probe Diameter | Total Length | 重量 | Notes |
|---|---|---|---|---|
| 330101-00-08-05-12-06 | 8 mm | 0.5 m | 0.162 kg | XL series variant |
| 330101-00-08-10-12-05 | 8 mm | 1.0 m | 0.320 kg | Extended length |
| 330104-00-06-10-11-00 | 8 mm | 0.5 m | 0.162 kg | Standard 8 mm probe |
| 330104-00-06-50-01-00 | 8 mm | 0.5 m | 0.162 kg | High-temperature version |
| 330105-02-12-10-02-00 | 8 mm | 0.5 m | 0.162 kg | Includes ClickLoc connector |
| 330180-91-CN | – | – | – | Proximitor sensor compatible with 3300 XL probes |
Popular Bently Nevada モデルs
| モデル | 説明 | Dimensions | 重量 | Notes |
|---|---|---|---|---|
| 3300 XL 8 mm Proximity Probe | Standard XL probe | 8 mm | 0.162 kg | High-precision monitoring |
| 3300 XL 5 mm Probe | Smaller probe for tight spaces | 5 mm | 0.120 kg | XL series |
| 3300 XL Proximitor Sensor | Sensor for probe interface | – | 0.5 kg | Tool-free installation |
| 3300 XL Vibration Transducer | Vibration measurement | – | 0.250 kg | Compatible with XL probes |
| 3301 XL 8 mm Probe | Similar XL probe | 8 mm | 0.162 kg | Alternative model |
| 3300 XL Speed Probe | Speed monitoring | 8 mm | 0.165 kg | Keyphasor reference |
