製品紹介

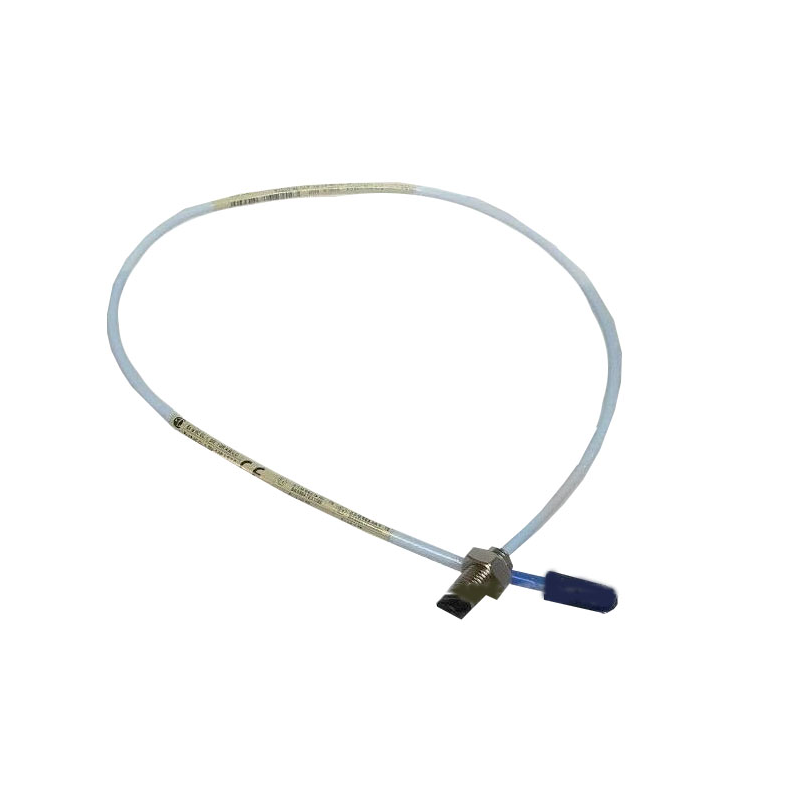

The Bently Nevada 330101-00-08-05-02-05 is a high-precision proximity probe from the 3300 XL 8 mm series, designed for non-contact vibration and position measurements in rotating machinery. This model features a 0.8-inch case length, 0.5-meter cable, and a miniature coaxial ClickLoc™ connector. It is engineered to provide accurate and reliable measurements in harsh industrial environments, making it suitable for critical machinery monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 330101-00-08-05-02-05 |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches (0 mm) |
| Case Length | 0.8 inches (20.3 mm) |
| Total Length | 0.5 meters (1.6 feet) |
| Connector Type | Miniature coaxial ClickLoc™ connector, standard cable |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Frequency Range | DC to 10 kHz |
| Linear Range | 0 to 2 mm (80 mils) |
| Output Sensitivity | 7.87 mV/μm (200 mV/mil) |
| 重量 | 0.162 kg |
| Ingress Protection | IP67 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Agency Approvals | CSA, ATEX, IECEx approvals |
| Country / Origin | ユニットed 州s / America |
Applications
The 330101-00-08-05-02-05 proximity probe is utilized in various industries for monitoring and diagnostic purposes:
-
Oil and Gas: Monitoring compressors, turbines, and pumps for vibration and position.
-
Petrochemical: Ensuring the integrity / rotating equipment in processing plants.
-
Power Generation: Assessing the condition / generators and turbines.
-
Municipal Engineering: Monitoring equipment in water treatment and distribution systems.
-
Manufacturing: Ensuring machinery operates within specified vibration limits.
Advantages
-
High Accuracy: Provides precise measurements with a linear range suitable for various applications.
-
Robust Construction: Built with high-quality materials to withstand harsh industrial environments.
-
Temperature Resilience: Operates effectively across a wide temperature range, ensuring reliability.
-
Ease / Installation: Features a ClickLoc™ connector for secure and straightforward connections.
-
Compliance with Standards: Meets API 670 requirements, ensuring industry-standard performance.
-
Interchangeability: Compatible with other components in the 3300 XL series without the need for individual matching.
よくある質問 (FAQs)
-
What is the primary function / the 330101-00-08-05-02-05 probe?
-
It measures the vibration and position / rotating machinery components, aiding in predictive maintenance.
-
-
Can this probe be used in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -51°C to +177°C.
-
-
Is the probe compliant with industry standards?
-
Yes, it complies with the API 670 (4th Edition) standard.
-
-
What materials are used in the construction / the probe?
-
The probe tip is made / Polyphenylene sulfide (PPS), and the case is constructed from AISI 303 or 304 stainless steel.
-
-
What is the significance / the IP67 rating?
-
It indicates that the probe is dust-tight and protected against temporary immersion in water.
-
-
Can the probe be used with other components in the 3300 XL series?
-
Yes, it is designed for full interchangeability with other 3300 XL series components.
-
-
What is the weight / the probe?
-
The probe weighs 0.162 kg.
-
-
What is the length / the probe cable?
-
This specific model comes with a 0.5-meter (1.6 feet) cable.
-
-
Is the probe suitable for use in corrosive environments?
-
Yes, its stainless steel construction provides resistance to corrosion.
-
-
How is the probe installed?
-
It features a 3/8-24 UNF thread for secure mounting and a ClickLoc™ connector for easy electrical connection.
-
Related モデルs in the Same Series
| モデル Number | 説明 |
|---|---|
| 330101-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe, 1.2-inch case length, 1.0-meter cable |
| 330103-00-05-10-02-05 | 3300 XL 8 mm Proximity Probe with armor, 0.5-inch case length, 1.0-meter cable |
| 330101-00-50-10-02-05 | 3300 XL 8 mm Proximity Probe, 5.0-inch case length, 1.0-meter cable |
| 330101-00-55-05-02-00 | 3300 XL 8 mm Proximity Probe, 5.5-inch case length, 0.5-meter cable |
| 330101-00-22-10-02-05 | 3300 XL 8 mm Proximity Probe, 2.2-inch case length, 1.0-meter cable |
| 330101-00-18-10-02-00 | 3300 XL 8 mm Proximity Probe, 1.8-inch case length, 1.0-meter cable |
