製品紹介

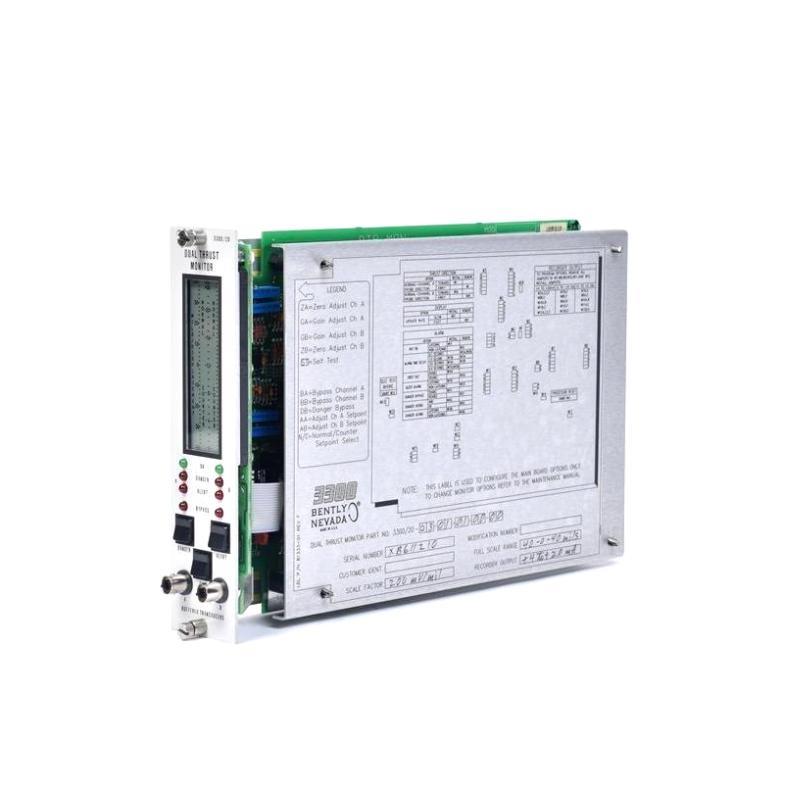

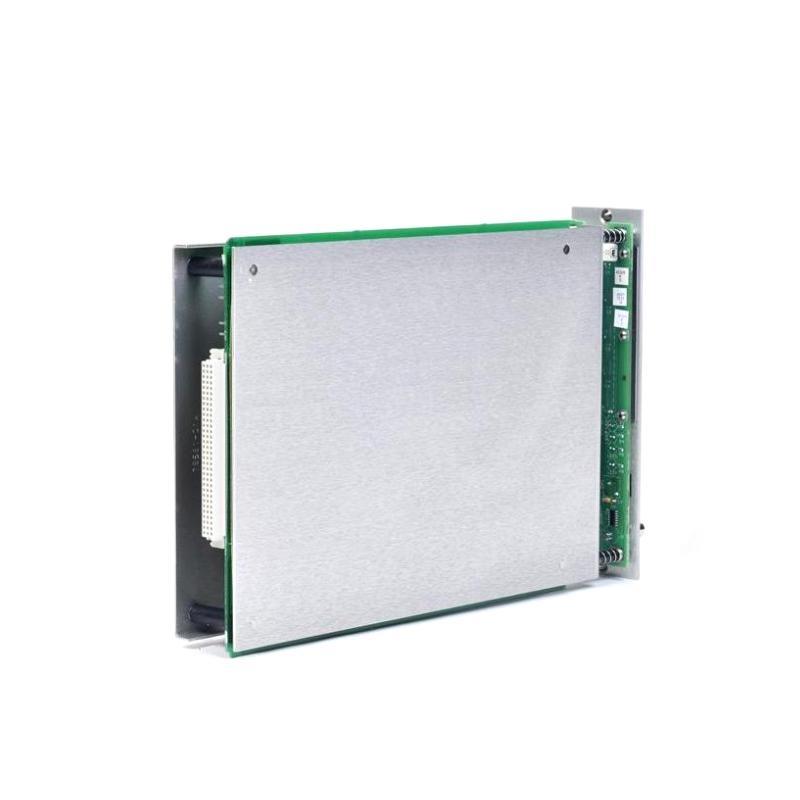

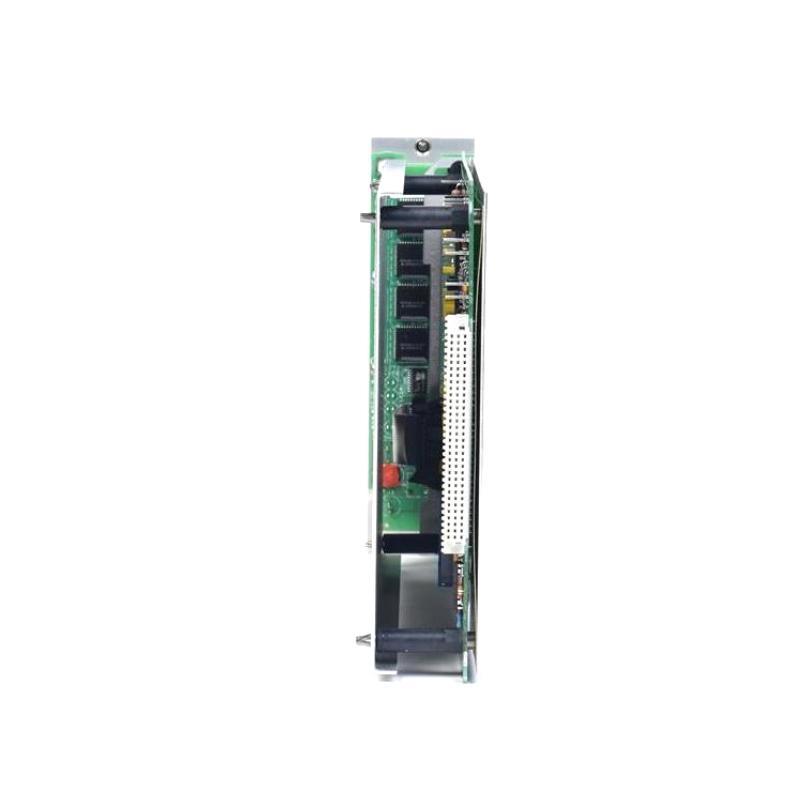

The Bently Nevada 3300/20-03-01-01-00-00 Dual Thrust Position Monitor is an advanced monitoring system designed for axial position measurement in rotating machinery. This monitor provides continuous and precise tracking / the shaft’s axial position relative to the thrust bearing clearance, helping operators detect bearing wear or failure before severe damage occurs. By integrating dual-channel monitoring, it ensures redundancy and enhances the reliability / critical assets in industries such as power generation, oil and gas, petrochemicals, and manufacturing.
Equipped with alarm and relay functions, the 3300/20-03-01-01-00-00 ensures that any deviations beyond preset limits trigger alerts, allowing for proactive maintenance. Its robust design ensures high durability in harsh environments, making it a trusted solution for industrial machinery protection.
製品仕様
| Specification | Details |
|---|---|
| モデル Number | 3300/20-03-01-01-00-00 |
| Function | Dual Thrust Position Monitoring |
| Full-Scale Range | 25-0-25 mils |
| Transducer Compatibility | Compatible with 3300 or 7200 Proximitor Systems, 200 mV/mil |
| Alarm Relay Type | Epoxy-Sealed |
| Agency Approvals | CSA/NRTL/C, ATEX, CE |
| Safety Barrier Option | None |
| Power Requirements | +24 VDC nominal (range: +18 VDC to +32 VDC) |
| Power Consumption | 6 watts maximum |
| Operating Temperature | -20°C to +65°C (-4°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Vertical Dimension | 83 mm |
| 重量 | 1 kg |
| Mounting Type | Rack-mounted |
| Compliance Standards | API 670, CE, CSA, ATEX |
Product Applications
The Bently Nevada 3300/20-03-01-01-00-00 Dual Thrust Position Monitor is used in various industries to ensure the reliability and performance / rotating machinery. Some key applications include:
- Power Plants: Monitors axial movement in turbines to prevent thrust bearing failures.
- Oil & Gas Facilities: Ensures real-time shaft position monitoring in compressors and pumps.
- Petrochemical Industry: Provides early detection / bearing wear in critical rotating equipment.
- Heavy Manufacturing: Used in large fans, blowers, and gearboxes for misalignment detection.
- Marine Sector: Assists in maintaining propulsion system integrity by tracking shaft movements.
Product Advantages
- Dual-Channel Monitoring – Independently tracks two axial position channels, enhancing reliability and redundancy.
- Early Warning System – Detects potential thrust bearing failures before major breakdowns occur.
- Seamless Compatibility – Works with Bently Nevada 3300 and 7200 Proximitor Systems for flexible sensor integration.
- Industrial-Grade Durability – Designed to operate in harsh conditions with temperature and humidity resistance.
- Regulatory Compliance – Meets API 670 standards and carries ATEX, CSA, and CE certifications.
- Low Power Consumption – Efficient energy usage with a maximum / 6W power consumption.
- Scalability – Easily integrates with existing condition monitoring systems for expanded functionality.
- User-Friendly Operation – Equipped with clear indicators and configurable alarms for simple maintenance.
Latest News Titles
- Bently Nevada Enhances Machinery Protection with 3300/20 Series Monitors
- Oil & Gas Industry Adopts Advanced Thrust Monitoring for Predictive Maintenance
- Reducing Downtime: How 3300/20-03-01-01-00-00 Prevents Critical Failures
- New Innovations in Axial Position Monitoring for Industrial Applications
- Case Study: Power Plant Increases Reliability with Bently Nevada 3300 Monitors
- Why API 670 Compliance Matters in Rotating Machinery Protection
- The Future / 状態 Monitoring: How Bently Nevada Stays Ahead
- Marine Propulsion Systems: The Role / Axial Position Monitoring
- Optimizing Maintenance Strategies with Real-Time Thrust Position Data
- Bently Nevada 3300 Series: A Benchmark in Industrial Machine Safety
よくある質問 (FAQ)
-
What is the purpose / the Bently Nevada 3300/20-03-01-01-00-00?
- It continuously monitors shaft axial position, detecting thrust bearing wear and failure before critical damage occurs.
-
Is this monitor compatible with other Bently Nevada systems?
- Yes, it is compatible with Bently Nevada 3300 and 7200 Proximitor Systems.
-
What is the maximum operating temperature / the device?
- The device operates effectively up to +65°C (+149°F).
-
Does the monitor have built-in alarms?
- Yes, it has epoxy-sealed alarm relays for alerting abnormal conditions.
-
What industries typically use this monitor?
- Power generation, oil & gas, petrochemicals, manufacturing, and marine industries.
-
How does this monitor improve maintenance practices?
- It provides early fault detection, allowing maintenance teams to address issues before major failures occur.
-
What are the dimensions and weight / the device?
- The monitor vertical dimension is 83 mm and weighs 1 kg.
-
Is the 3300/20-03-01-01-00-00 rack-mounted?
- Yes, it is designed for easy rack-mounted installation.
-
Does it meet API 670 standards?
- Yes, it complies with API 670, ensuring reliability in industrial applications.
-
Can it be integrated into existing control systems?
- Yes, it can seamlessly integrate with Bently Nevada’s monitoring platforms.
