製品紹介

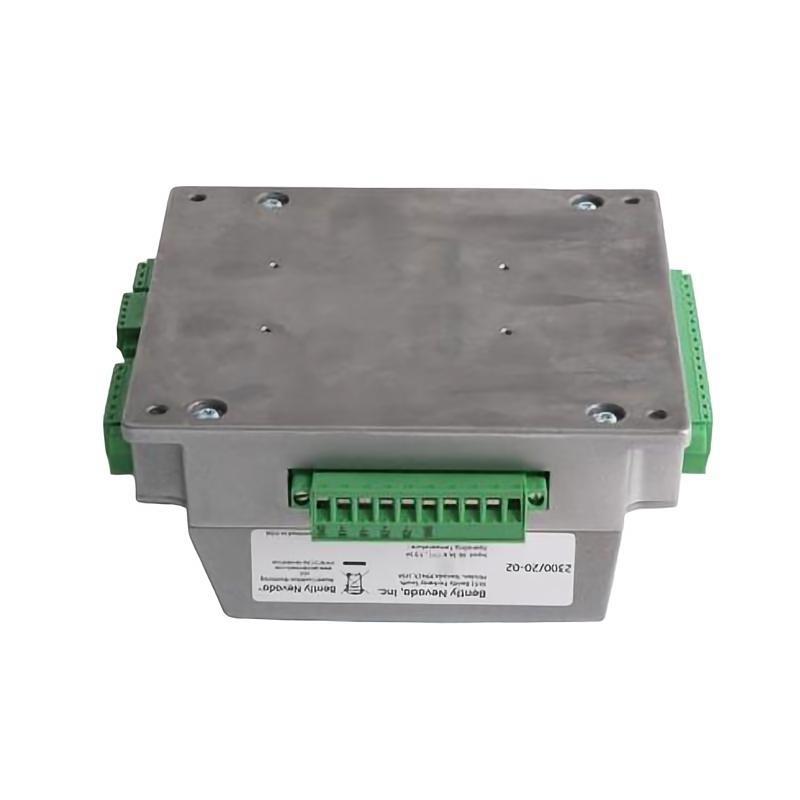

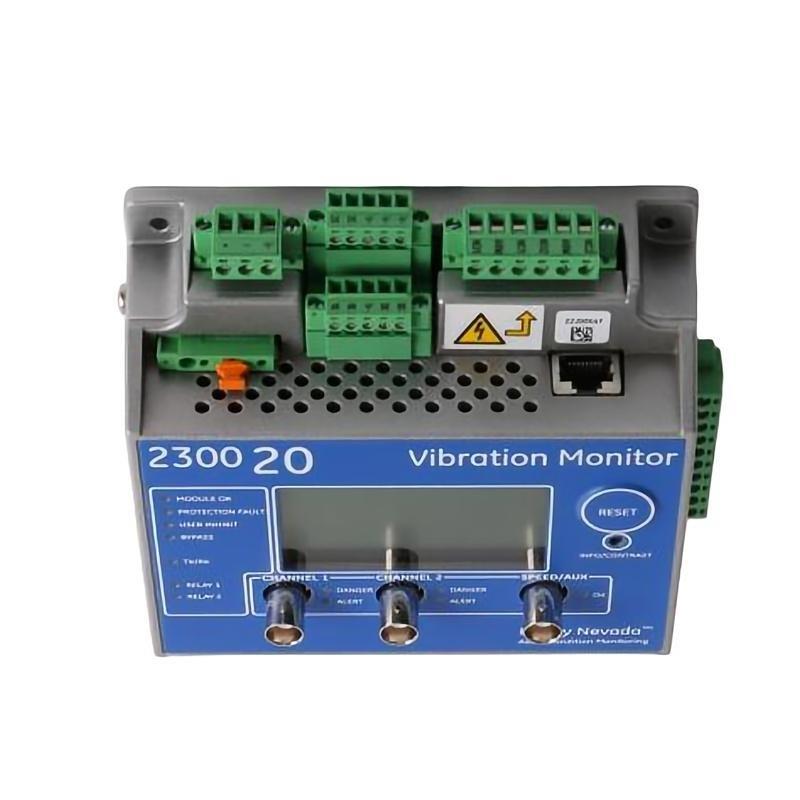

The Bently Nevada 2300/20-02 Vibration Monitor is a reliable, advanced monitoring device engineered for continuous machinery protection and condition monitoring. As part / the Bently Nevada 2300 series, this monitor provides high-accuracy vibration measurement and diagnostic capabilities for critical rotating equipment such as motors, pumps, compressors, and fans. Designed with dual-channel functionality, the 2300/20-02 /fers superior monitoring flexibility, ensuring early detection / mechanical faults like imbalance, misalignment, bearing wear, and resonance.
The 台 integrates seamlessly with modern control systems through Modbus protocols and features configurable relay outputs for alarms and machine protection. With its rugged design, the monitor is well-suited for harsh industrial environments such as power generation, petrochemical plants, and manufacturing sectors.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | Vibration Monitor |
| モデル Number | 2300/20-02 |
| Monitoring Channels | 2 Independent Channels (Proximity or Velocity) |
| Input Types | Proximity Probes, Velocity Sensors, Accelerometers |
| Measurement Parameters | Vibration, Shaft Position, Speed (optional) |
| Frequency Response | 0.5 Hz to 10 kHz (sensor dependent) |
| Alarm Outputs | 4 Configurable Relay Outputs |
| Communication Protocol | Modbus TCP/IP and Modbus RTU |
| Power Supply | 24 VDC (±10%) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Enclosure Rating | IP30 |
| Mounting Type | Panel Mount |
| Dimensions | 127 x 127 x 76.2 mm |
| 重量 | 1.03 kg |
Applications
The Bently Nevada 2300/20-02 is widely adopted across multiple industries where machinery uptime and reliability are critical:
-
Power Generation: Continuous monitoring / turbines and auxiliary machinery to prevent costly downtime.
-
Oil & Gas: Protects pumps, compressors, and fans operating in hazardous and high-load environments.
-
Petrochemical Plants: Ensures operational integrity / critical rotating equipment under severe conditions.
-
Industrial Manufacturing: Facilitates predictive maintenance strategies for motors, blowers, and gearboxes.
-
Pulp & Paper Industry: Protects heavy-duty rotating assets, minimizing production disruptions.
-
Water Treatment Plants: Monitors pumps and agitators for vibration anomalies.
Product Advantages
-
Dual-Channel Monitoring: Simultaneously tracks two independent vibration signals for comprehensive machine health assessment.
-
Flexible Sensor Compatibility: Works with proximity probes, velocity sensors, and accelerometers for versatile monitoring.
-
Advanced Communication: Equipped with Modbus TCP/IP and Modbus RTU for seamless integration into control systems.
-
Customizable Alarm Configuration: Four programmable relay outputs for alarm and trip conditions.
-
Robust Design: Operates reliably in harsh industrial environments with wide temperature tolerance.
-
サポートs Predictive Maintenance: Enables trend analysis and early fault detection to prevent unscheduled outages.
-
Compact Footprint: Ideal for panel-mounted installations in control cabinets.
FAQ
-
What types / input signals can the 2300/20-02 monitor accept?
It supports proximity probes, velocity sensors, and accelerometers. -
Does the monitor provide real-time vibration analysis?
Yes, it provides continuous real-time monitoring / vibration parameters. -
Can the monitor store historical vibration data?
Yes, it can log vibration trend data for analysis and predictive maintenance. -
Is it possible to integrate the monitor into a DCS or SCADA system?
Yes, using Modbus TCP/IP or Modbus RTU protocols. -
What is the frequency range supported by this monitor?
Typically 0.5 Hz to 10 kHz, depending on the connected sensor type. -
How many alarm relays does the monitor have?
It provides four configurable relay outputs for alarms and trips. -
Can the 2300/20-02 detect imbalance and misalignment?
Yes, it detects mechanical faults such as imbalance, misalignment, and bearing issues. -
What is the power supply requirement for this model?
It requires 24 VDC with a ±10% tolerance. -
Is the device suitable for hazardous area applications?
Yes, with the correct installation and certified components, it can be used in hazardous zones. -
Does the monitor support temperature monitoring?
Yes, it supports temperature measurement when paired with compatible sensors.
Related モデルs (Same Series or Compatible)
| モデル Number | 説明 |
|---|---|
| 2300/20-00-01 | Dual-Channel Vibration Monitor with Modbus |
| 2300/20-01 | Vibration Monitor with Alternate I/O Configuration |
| 2300/25-00-01 | Dual-Channel Vibration and Speed Monitor |
| 2300/35-00-01 | Vibration & Temperature Monitoring System |
| 2300/05-00-01 | Single-Channel Vibration Monitor |
| 2300/40-00-01 | Advanced Machine 状態 Monitoring ユニット |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3500/42M | Proximitor® Monitor for machinery protection |
| 3500/22M | Transient Data Interface Module |
| 3500/92 | Communication Gateway for system integration |
| 3500/50M | Tachometer Module for speed measurements |
| 330103-00-08-05-02 | 8 mm Proximity Probe |
| 330130-040-00 | Extension Cable for Proximity Probe |
