Product 説明

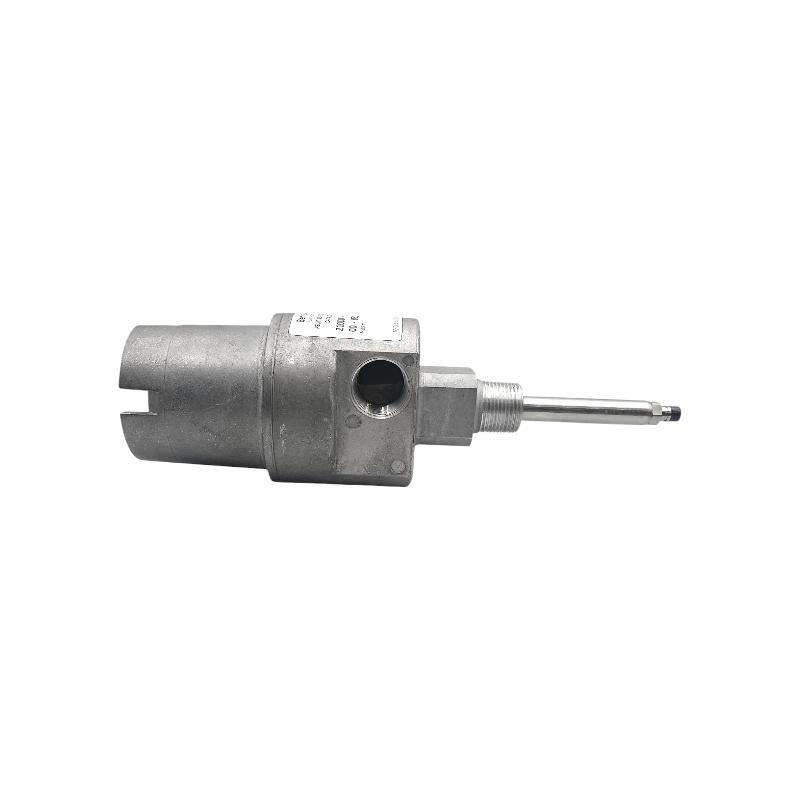

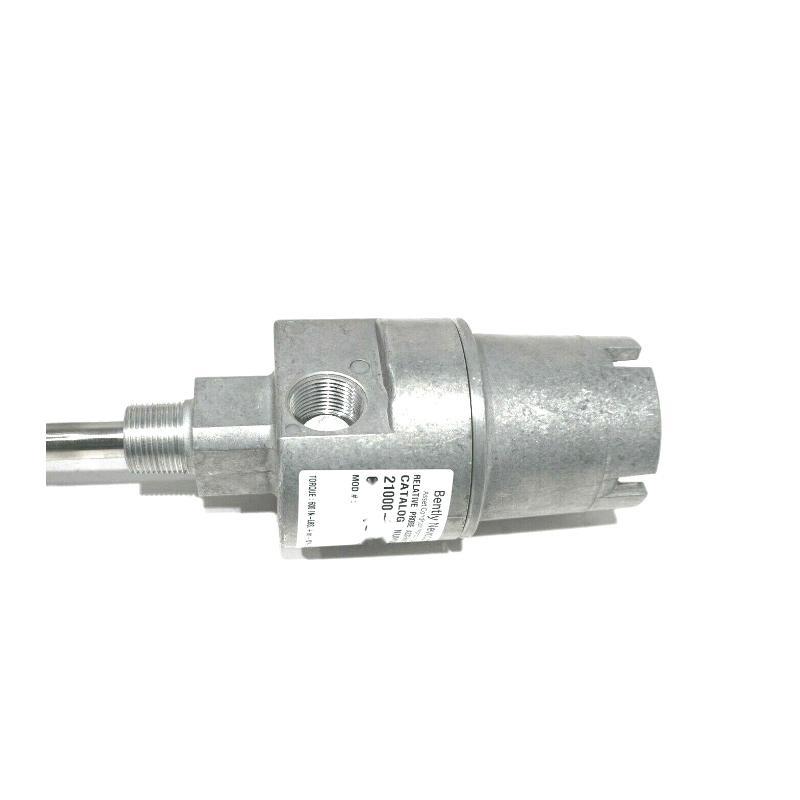

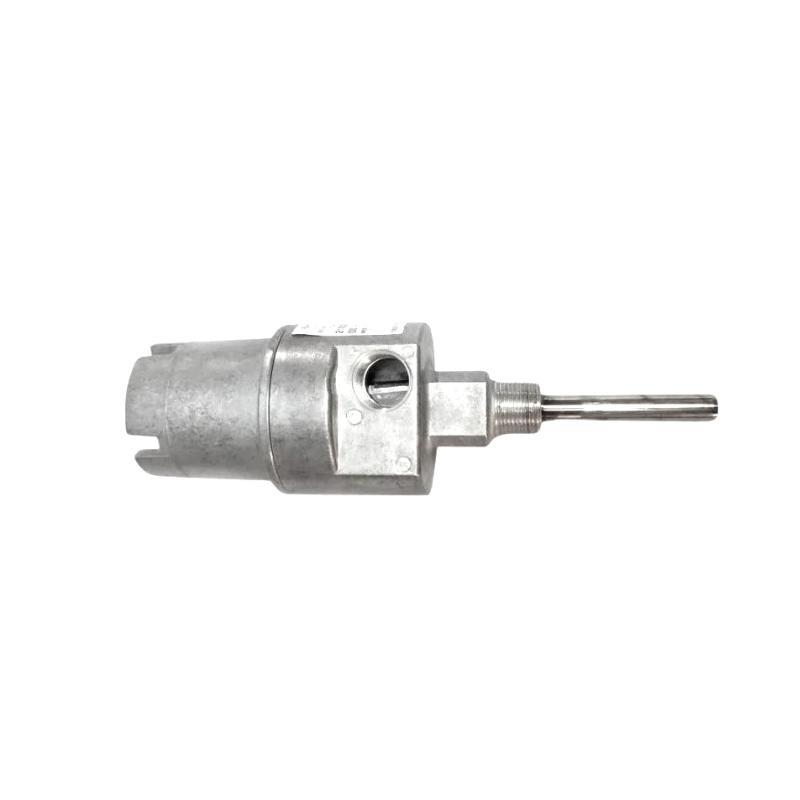

The Bently Nevada 21000-28-05-00-065-00-02 is a rugged aluminum proximity probe housing designed for external mounting / proximity transducers in industrial environments. It is explosion-pro/ rated and CSA-certified, ensuring reliable operation in hazardous conditions. This model supports various 3300 XL series probes and includes robust mechanical protection with sealed threading and optional fittings for conduit connections.
Product Features
-
Aluminum body with stainless steel probe sleeve
-
CSA-certified for explosion-pro/ applications
-
Designed per API 670 standards
-
Compatible with 3300 XL 8mm, 11mm, and NSv probes
-
対応可能 with stand/f adapters and flexible sleeve lengths
-
サポートs high vibration environments
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 21000-28-05-00-065-00-02 |
| Material | Aluminum body with 304 stainless steel sleeve |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Environmental Rating | CSA Type 4 (Explosion-pro/) |
| Compliance | RoHS, API 670 |
| Housing Body Diameter | 83.3 mm |
| Housing Length | 161.6 mm |
| 重量 | 1.1 kg |
| Mounting Thread | 3/4-14 NPT |
| Probe Compatibility | 3300 XL 8mm, 11mm, NSv series |
Applications
-
Rotating machinery monitoring
-
Turbomachinery protection
-
Compressors, pumps, and turbines
-
Oil & gas and petrochemical plants
-
Power generation 台s
-
Intrinsically safe and hazardous area environments
Product Advantages
-
Robust construction for harsh environments
-
CSA explosion-pro/ certification ensures safety
-
Complies with API 670 for industry-standard reliability
-
Modular design allows flexible configuration
-
Compatible with a wide range / probes and cable lengths
-
Optional stand/f adapters and fittings available
FAQ
Q1: What probe types are supported with the 21000 housing?
A1: It supports 3300 XL 8mm, 11mm, and NSv reverse mount probes.
Q2: Is the 21000 housing explosion-pro/?
A2: Yes, it is CSA-certified for explosion-pro/ applications (Class I Div 1 & 2, Class II, and Class III).
Q3: What is the material composition / the housing?
A3: The 21000 housing has an aluminum body and a 304 stainless steel sleeve.
Q4: What is the environmental rating?
A4: CSA Type 4 enclosure, suitable for outdoor and hazardous environments.
Q5: Can the probe sleeve be customized?
A5: Yes, sleeve lengths can be specified up to 742 mm depending on the probe length.
Q6: What is the weight / the housing without fittings?
A6: Approximately 1.1 kg (2.4 lbs).
Q7: Does the 21000 housing support conduit fittings?
A7: Yes, threaded ports support various NPT fittings as per configuration.
Q8: Is the 21000 housing compliant with API 670?
A8: Yes, it fully complies with API 670 standards for proximity probe mounting.
Q9: Can it be used in high vibration environments?
A9: Yes, it is designed for use in such conditions with support for long sleeve stabilization.
Q10: Are optional accessories like oil seals available?
A10: Yes.
Related モデルs in the Same Series
| モデル Number | 説明 | Material | Diameter | 重量 |
|---|---|---|---|---|
| 21000-16-10-15-035-03-02 | Housing with 3300 XL 8mm Probe | Aluminum | 83.3 mm | 1.1 kg |
| 21000-28-05-00-065-00-02 | Housing with Hazardous Area 8mm Probe | Aluminum | 83.3 mm | 1.1 kg |
| 21000-30-10-15-094-01-02 | Housing with 3300 XL 11mm Probe | Aluminum | 83.3 mm | 1.1 kg |
| 21000-27-10-15-094-02-02 | Housing with NSv Probe | Aluminum | 83.3 mm | 1.1 kg |
| 21000-33-10-15-120-01-02 | Housing with Connector Protector | Aluminum | 83.3 mm | 1.1 kg |
| CA21000-36-10-15-090-01-02 | CSA-Certified, 11mm Probe with Protector | Aluminum | 83.3 mm | 1.1 kg |
Popular モデルs from Bently Nevada
| モデル Number | 説明 | Application | 重量 |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Vibration monitoring | 0.45 kg |
| 3500/22M-01-01-00 | Transient Data Interface (TDI) | System rack interface | 0.5 kg |
| 330104-00-06-10-11-00 | 8mm Proximity Probe | Shaft vibration monitoring | 0.2 kg |
| 330180-91-CN | XL Proximitor Sensor | Displacement measurement | 0.3 kg |
| 3500/93-02-01-00 | Display Module | Rack display interface | 0.6 kg |
| 3500/15-05-01-00 | Power Supply Module | 3500 series racks | 0.8 kg |
