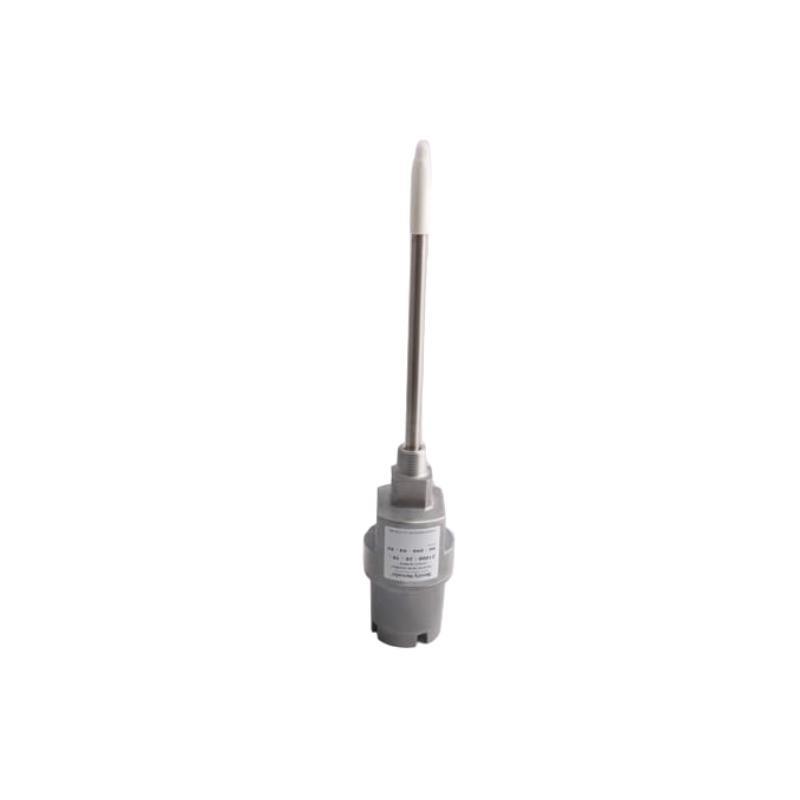

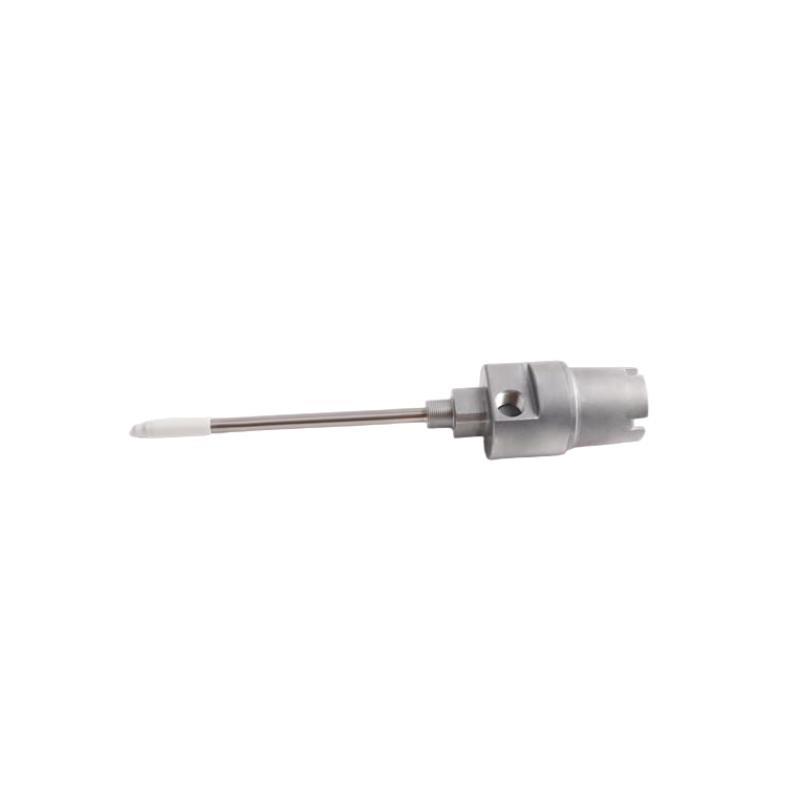

The Bently Nevada 21000-16-10-00-102-03-02 Proximity Probe Housing Assembly is engineered to provide robust protection and secure mounting for proximity probes used in vibration and shaft position monitoring on industrial rotating equipment. Designed as part / the trusted 21000 Series, this housing assembly ensures the integrity / proximity transducer signals by shielding the sensor and cables from harsh environmental conditions.
Manufactured primarily from corrosion-resistant 316L stainless steel, the assembly is built to withstand demanding environments encountered in power plants, petrochemical facilities, and heavy manufacturing. The 21000-16-10-00-102-03-02 model /fers a proven solution for maintaining stable measurement signals, which are critical for accurate machinery health diagnostics and preventing unexpected equipment failures.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 21000-16-10-00-102-03-02 |
| Series | Bently Nevada 21000 Series |
| Product Type | Proximity Probe Housing Assembly |
| Material | 316L Stainless Steel |
| Mounting Style | Threaded body mount |
| Cable Entry | ½” NPT side entry |
| Ingress Protection | IP65 standard, upgradeable to IP67 |
| Operating Temperature | -55°C to +200°C (-67°F to +392°F) |
| Probe Compatibility | Bently Nevada 3300 XL, 7200 series and similar proximity probes |
| Vibration Resistance | 10 to 2000 Hz, up to 20 g peak |
| Sealing Method | O-ring sealing with epoxy potting option |
| Certifications | Optional ATEX, IECEx, CSA hazardous area certifications available |
| Housing Body Diameter | 83.3 mm |
| 重量 | 1.1 kg |
Product Applications
This housing assembly is commonly utilized in a variety / industrial environments where reliable vibration and shaft displacement monitoring are crucial:
-
Steam and Gas Turbines: Provides stable probe mounting for turbine shaft vibration analysis.
-
Compressors: Enables continuous condition monitoring to avoid costly downtime.
-
Pumps and Electric Motors: Protects probes in environments exposed to dust, moisture, and vibration.
-
Hydro Turbines and Generators: Offers water-resistant sealing suitable for hydroelectric plants.
-
Petrochemical and Chemical Plants: Compatible with hazardous area installation, /fering explosion-pro/ options.
-
Gearboxes and Blowers: Safeguards sensor components from mechanical shocks and contamination.
Product Advantages
-
Robust Construction: Crafted from high-grade 316L stainless steel, it resists corrosion, ensuring longevity even in harsh environments.
-
Versatile Mounting: Threaded body design allows flexible and secure installation in multiple orientations.
-
Environmental Protection: Sealing options provide IP65 or enhanced IP67 protection, preventing ingress / dust and water.
-
Certified Safety: 対応可能 with certifications such as ATEX and IECEx, suitable for use in classified hazardous zones.
-
Vibration Endurance: Engineered to tolerate significant vibration loads typical / rotating machinery.
-
Easy Maintenance: Designed for straightforward access during inspection and replacement without compromising system integrity.
-
Universal Compatibility: サポートs a wide range / Bently Nevada proximity probes for seamless integration.
-
Signal Integrity: Ensures mechanical stability, reducing signal noise for more accurate condition monitoring.
よくある質問 (FAQ)
-
What probes can be used with this housing?
Compatible with Bently Nevada 3300 XL, 7200, and other similar proximity probes. -
Is this housing suitable for explosive atmospheres?
Yes, versions with ATEX and IECEx certifications are available. -
What material is the housing made from?
The standard housing is constructed / 316L stainless steel for corrosion resistance. -
What type / environmental protection does it provide?
IP65 protection as standard, with options for IP67 sealing for more demanding conditions. -
What temperature range can this housing operate in?
It operates effectively between -55°C and +200°C (-67°F to +392°F). -
How does the housing protect against vibration?
It is designed to withstand vibrations up to 20 g in the frequency range 10–2000 Hz. -
What are the housing dimensions and weight?
Diameter is 50 mm (1.97 in),weight 1.1 kg. -
Can the housing be mounted in any position?
Yes, the threaded mounting design supports flexible orientation. -
Is epoxy sealing necessary for all installations?
Not always. O-ring sealing is standard; epoxy potting is optional depending on environmental demands. -
Can this housing be customized?
Yes. Cable entry options, sealing types, and certifications can be tailored to customer needs.
Related モデルs (Same Series / Similar Functionality)
| モデル Number | 説明 |
|---|---|
| 21000-16-10-00-101-03-02 | Proximity Probe Housing with slightly shorter length |
| 21000-16-10-00-090-04-02 | Standard housing with alternate cable entry |
| 21000-18-20-00-120-02-01 | Dual cable entry version for complex installations |
| 21000-16-10-00-102-03-03 | Vibration-isolated housing assembly |
| 21000-20-20-00-101-05-01 | Heavy-duty housing for extreme environments |
| 21000-16-10-00-100-01-01 | Simplified design with fewer entry options |
Popular Bently Nevada モデルs
| モデル Number | Product Type | Primary Application |
|---|---|---|
| 3300 XL 5mm Probe | Proximity Probe | Shaft vibration and position monitoring |
| 3500/42M | Vibration Monitor Module | Multi-channel vibration monitoring |
| 3500/22M | Data Interface Module | Transient data acquisition |
| 3701/40 | Machinery Health Monitor | Plant-wide rotating equipment monitoring |
| 7200 5mm Probe | Legacy Proximity Probe | Proven vibration and proximity sensing |
| 330104-00-10-10-02-00 | Probe Extension Cable | Reliable probe to monitor signal cabling |
