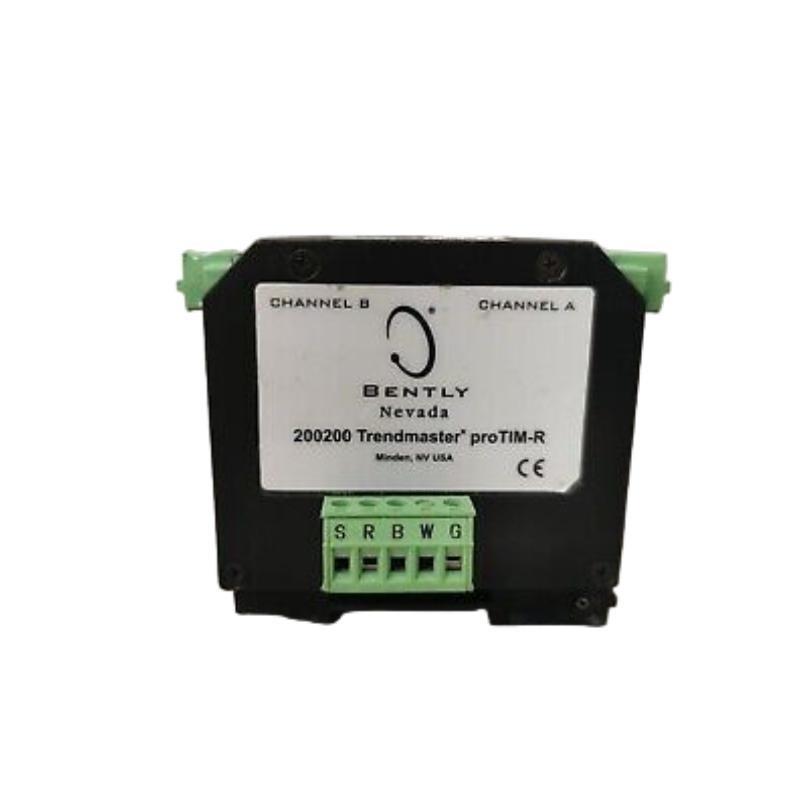

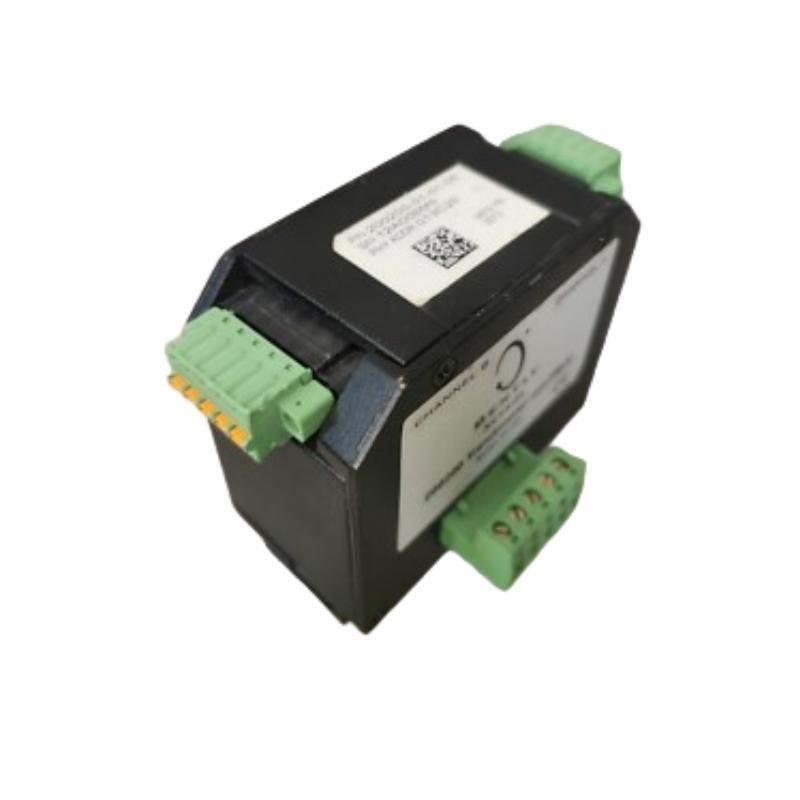

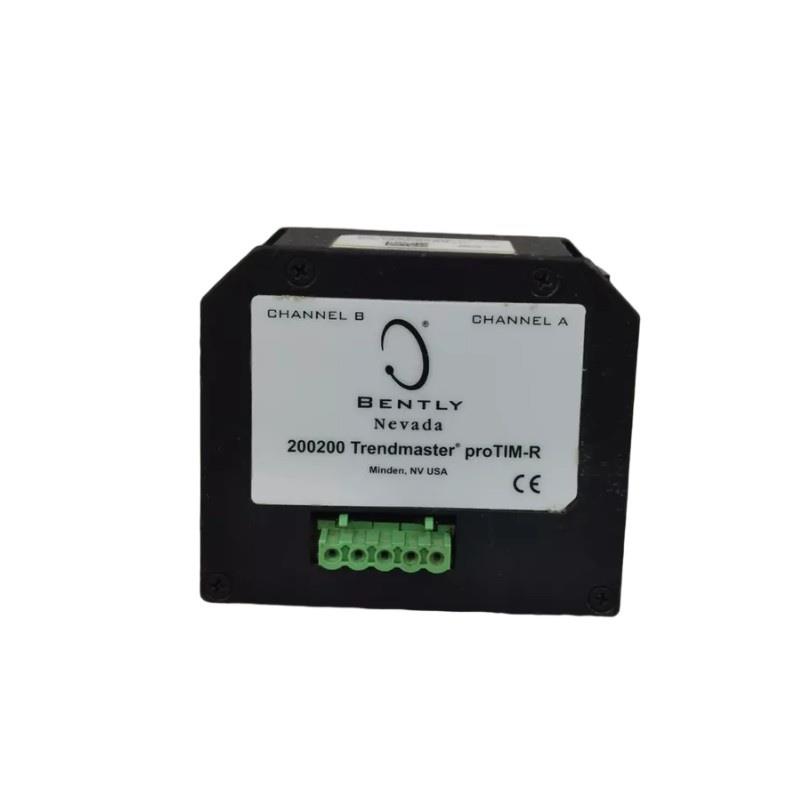

The Bently Nevada 200200-01-01-05 Trendmaster ProTIM-R Dual Input Module is a high-performance monitoring module designed for industrial machinery protection systems. It functions as a critical interface for receiving analog and digital signals from sensors and transmitting processed data to monitoring systems. The module is engineered to provide reliable input signal conditioning, fault detection, and accurate monitoring / machinery vibrations, temperatures, and other key parameters. Its compact and durable design makes it suitable for installation in control cabinets in demanding industrial environments.
Product Advantages
-
High Reliability: Engineered for 24/7 operation in harsh industrial environments.
-
Versatile Signal Input: サポートs a variety / input types, including analog and digital signals.
-
Precision Monitoring: Ensures accurate signal acquisition and minimal noise interference.
-
Compact Design: Small footprint allows installation in space-limited control panels.
-
Compatibility: Seamlessly integrates with Bently Nevada 3500 series systems.
-
Ease / Maintenance: Modular design enables quick replacement without system downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 200200-01-01-05 |
| Type | Trendmaster ProTIM-R Dual Input Module |
| Input Types | Analog, Digital |
| Signal Processing | High-precision conditioning |
| Mounting Type | DIN Rail / Rack Mount |
| Dimensions | 100.9 x 52.9 x 86.2 mm |
| 重量 | 0.545 kg |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24 VDC |
| Communication Interface | Compatible with Bently Nevada monitoring systems |
Product Applications
-
Industrial Machinery Monitoring: Continuous monitoring / turbines, compressors, pumps, and generators.
-
Vibration Analysis: Acquisition / vibration signals for condition-based maintenance.
-
Temperature Monitoring: Integration with sensors for thermal monitoring / critical machinery.
-
Plant Automation: Interface with distributed control systems (DCS) and SCADA for real-time data acquisition.
-
Safety Systems: Acts as an input module for alarms and fault detection in machinery protection systems.
FAQ
Q1: What types / input signals does the 200200-01-01-05 support?
A1: It supports both analog and digital input signals, including 4–20 mA current loops and voltage signals.
Q2: Can this module interface with the 3500 series monitoring system?
A2: Yes, it is fully compatible with Bently Nevada 3500 series systems.
Q3: What is the operating temperature range / this module?
A3: The module operates reliably between -40°C and +70°C.
Q4: Does it provide any internal signal conditioning?
A4: Yes, the module includes high-precision signal conditioning to minimize noise and interference.
Q5: How is the module mounted?
A5: It can be mounted on a DIN rail or within a rack-mounted chassis.
Q6: What power supply does the module require?
A6: The module operates on a 24 VDC power supply.
Q7: Can this module trigger alarms directly?
A7: While it primarily acquires input signals, it interfaces with the monitoring system which handles alarm generation.
Q8: Is the module suitable for continuous 24/7 operation?
A8: Yes, it is designed for continuous industrial operation.
Q9: How do I replace this module without disrupting the system?
A9: Its modular design allows hot-swappable replacement in most configurations when system permits.
Q10: Does it support both voltage and current input ranges?
A10: Yes, it supports standard voltage and current ranges used in industrial sensor systems.
Related / Same-Series モデルs
| モデル Number | 説明 |
|---|---|
| 200201-01-01-05 | Input Module with extended input options |
| 200202-01-01-05 | Dual-channel input module |
| 200203-01-01-05 | High-speed input module |
| 200204-01-01-05 | Input module with enhanced filtering |
| 200205-01-01-05 | Temperature-focused input module |
| 200206-01-01-05 | Analog-only input module |
Popular モデルs from Bently Nevada
| モデル Number | 説明 |
|---|---|
| 3500/22 | Vibration Transducer |
| 3500/42 | Keyphasor Tachometer |
| 3300/01 | Proximity Probe |
| 3300/05 | Proximitor Sensor |
| 3300/10 | Vibration Monitor |
| 7200/10 | Data Acquisition Module |
| 7200/20 | Signal 状態ing Module |
| 7200/30 | Remote Input Module |
