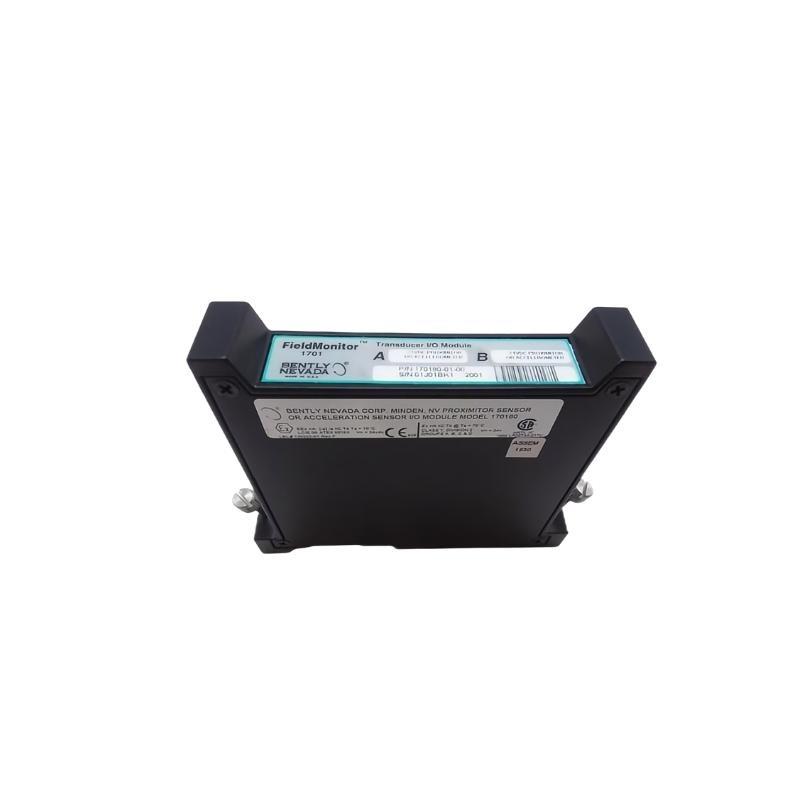

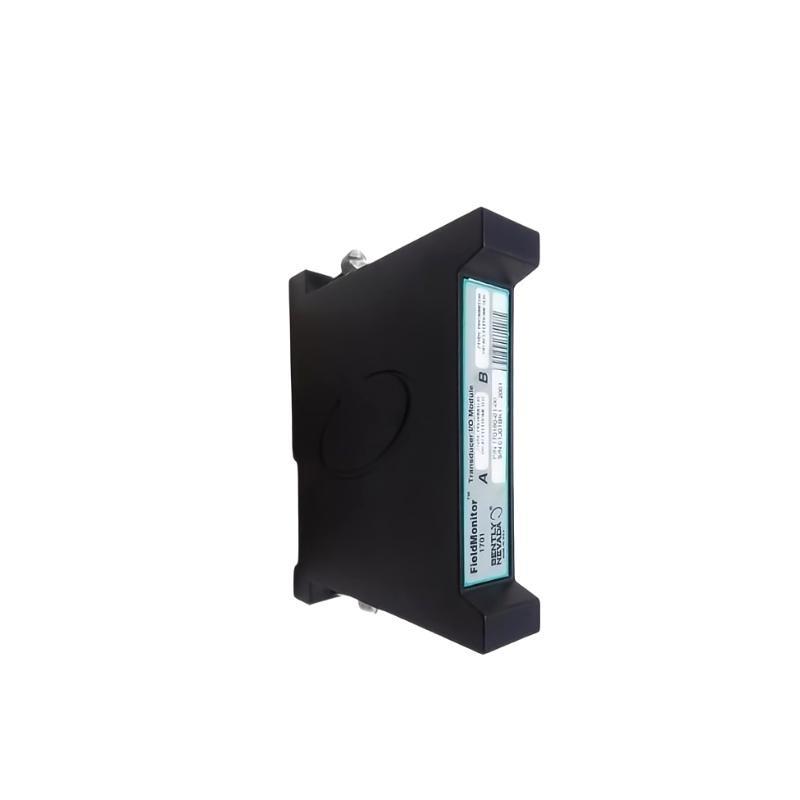

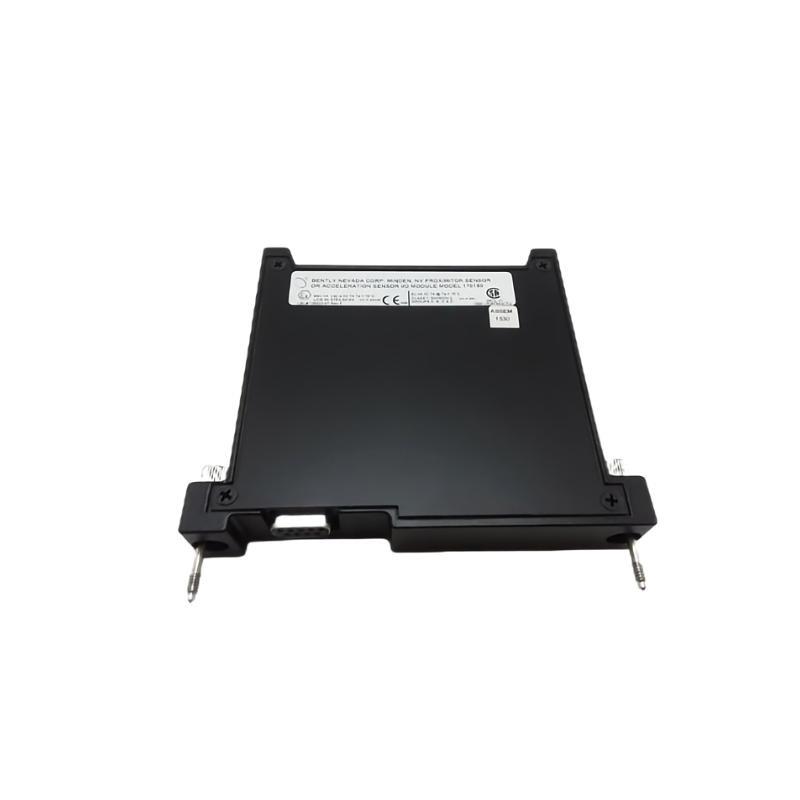

The Bently Nevada 170180-01-00 External Transducer I/O Module is a precision-engineered component designed to serve as the interface between external transducers and Bently Nevada monitoring systems. This module plays a vital role in signal conditioning, power supply, and signal routing in industrial machinery condition monitoring applications. Manufactured by Baker Hughes under the Bently Nevada brand, the 170180-01-00 delivers outstanding reliability in demanding environments, particularly in turbomachinery protection and condition monitoring systems.
Used extensively in the energy, oil & gas, petrochemical, and heavy industrial sectors, the 170180-01-00 module ensures the integrity and accuracy / vibration, speed, or proximity sensor data by handling and processing these signals for further analysis and diagnostics by Bently Nevada monitoring platforms.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | 170180-01-00 |
| Product Type | External Transducer I/O Module |
| Function | Transducer power and signal interface |
| Input Channels | 1 to 4 (depending on system configuration) |
| Power Supply | Supplied via monitoring rack |
| Signal Types サポートed | Vibration, axial position, speed sensors |
| Isolation | Galvanic isolation between input/output |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | EN 61000 series |
| Shock Resistance | 30g peak, 11 ms half sine |
| Vibration Endurance | 5–2000 Hz, 0.5 g |
| Dimensions (H x W x D) | 105.3 x 126.9 x 21.6 mm |
| 重量 | 0.277 kg |
| Enclosure Rating | IP20 (when installed in enclosure) |
| Compatibility | Bently Nevada 3500/70M, 3300 XL, and others |
| Connector Type | Screw terminal / pluggable connector |
Applications
The Bently Nevada 170180-01-00 External Transducer I/O Module is ideally suited for the following industrial applications:
-
Turbomachinery Monitoring – Gas and steam turbines, compressors, and generators require continuous condition monitoring.
-
Rotating Equipment Protection – Monitors critical rotating assets to prevent unplanned downtime.
-
Pumps and Motors – Interfaces with transducers measuring vibration and position for early fault detection.
-
Oil & Gas Sector – Used extensively in upstream, midstream, and downstream processing facilities.
-
Petrochemical Plants – Ensures reliable sensor data transmission in high-risk environments.
-
Power Generation – サポートs predictive maintenance strategies in thermal and hydro power plants.
Advantages
-
High Reliability: Designed for continuous operation in harsh industrial environments.
-
Precision Signal Handling: Provides clean signal transmission, minimizing noise and interference.
-
Modular Design: Easy to install, replace, and configure for different system requirements.
-
Compatibility: Works seamlessly with Bently Nevada monitoring systems such as the 3500 series.
-
Compact Form Factor: 保存s space in control cabinets and monitoring racks.
-
Isolation Protection: Galvanic isolation enhances safety and protects equipment.
-
Durability: Built to withstand mechanical shock, vibration, and temperature extremes.
-
Compliance with Industry Standards: Ensures integration with certified industrial control systems.
よくある質問 (FAQ)
-
What is the main function / the 170180-01-00 module?
It acts as a signal interface between transducers and the monitoring system, conditioning and isolating signals. -
Which transducers are compatible with this module?
It supports Bently Nevada vibration, proximity, and speed sensors such as 3300 XL series. -
Can this module be used in outdoor environments?
It must be installed inside a suitable enclosure (minimum IP54) to operate in outdoor conditions. -
Does the 170180-01-00 require an external power supply?
No, it receives power from the connected monitoring rack or host system. -
How is the module installed?
It is mounted on a DIN rail or panel inside the monitoring enclosure. -
Is this module hot-swappable?
No, it should be replaced with the system powered down to ensure safety. -
What monitoring systems does this module support?
It is compatible with Bently Nevada 3500 series and related platforms. -
Is the signal output analog or digital?
It typically handles analog signal processing and conditioning. -
How /ten does this module need maintenance?
It is maintenance-free under normal operating conditions. -
Can it be used with third-party monitoring systems?
While possible, optimal performance and compatibility are achieved with Bently Nevada systems.
Related モデルs (Same Series or Functionality)
| モデル Number | 説明 | Signal Type | Mounting | Dimensions (mm) |
|---|---|---|---|---|
| 170180-01-02 | External Transducer I/O Module with 2 channels | Vibration/Speed | DIN Rail | 115 x 25 x 90 |
| 170181-01-00 | Isolated I/O Module for 3300 Series | Vibration/Position | Rack Mount | 115 x 25 x 90 |
| 330180-91-00 | External Sensor I/O for 3300 XL Systems | Proximity | Panel Mount | 120 x 25 x 100 |
| 3500/42M | Dynamic Signal 状態ing Module | Vibration/Thrust | Rack Mount | 241 x 24 x 241 |
| 3500/92 | Communication Gateway Module | Digital Data Interface | Rack Mount | 241 x 24 x 241 |
| 3300/16-13-01-01-00 | External I/O for eddy current transducers | Eddy Current | Panel Mount | 100 x 25 x 80 |
Popular モデルs from Bently Nevada (ブランド-wide Selection)
| モデル Number | Product Name | Function | System Compatibility | 重量 |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Data acquisition | 3500 Series Monitoring System | 420g |
| 3300 XL 8mm | Proximity Probe | Vibration/Position Monitoring | 3300 XL Series | 80g |
| 330730-040-00-00 | Proximity Sensor Extension Cable | Signal Transmission | 3300 XL | 180g |
| 3500/42M | Vibration Monitor Module | Vibration Analysis | 3500 Series | 480g |
| 330780-91-05 | Proximitor Sensor | Non-contact displacement | 3300 XL | 250g |
| 3500/25 | Keyphasor Module | Rotational Speed Monitoring | 3500 Series | 350g |
