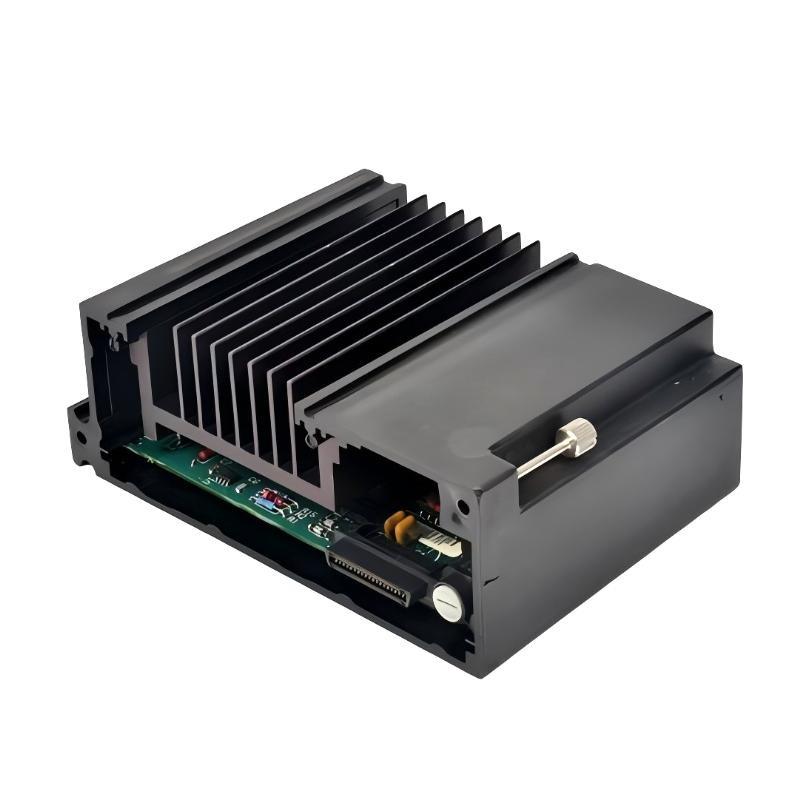

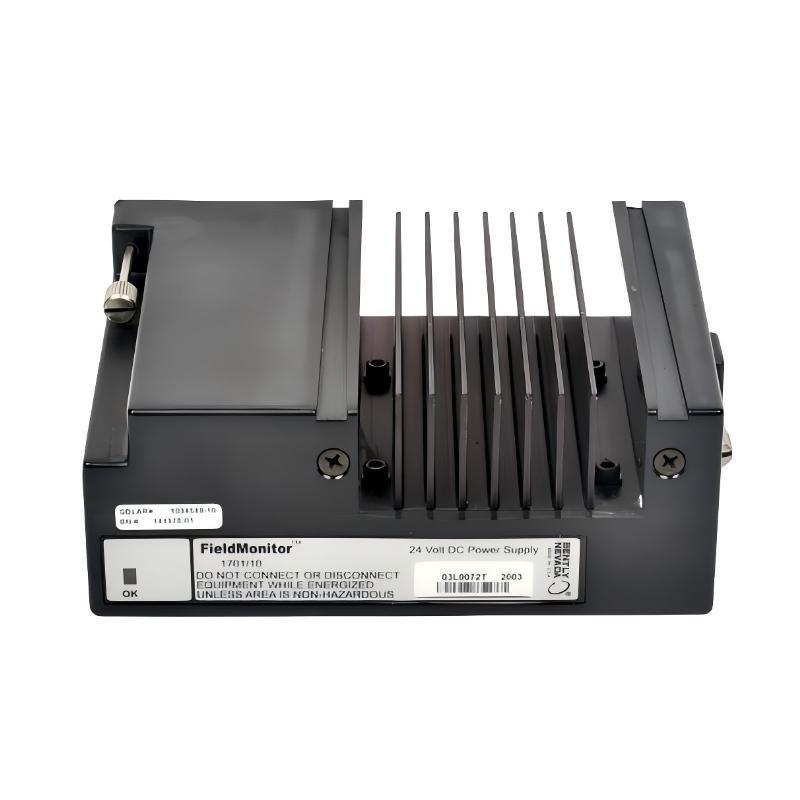

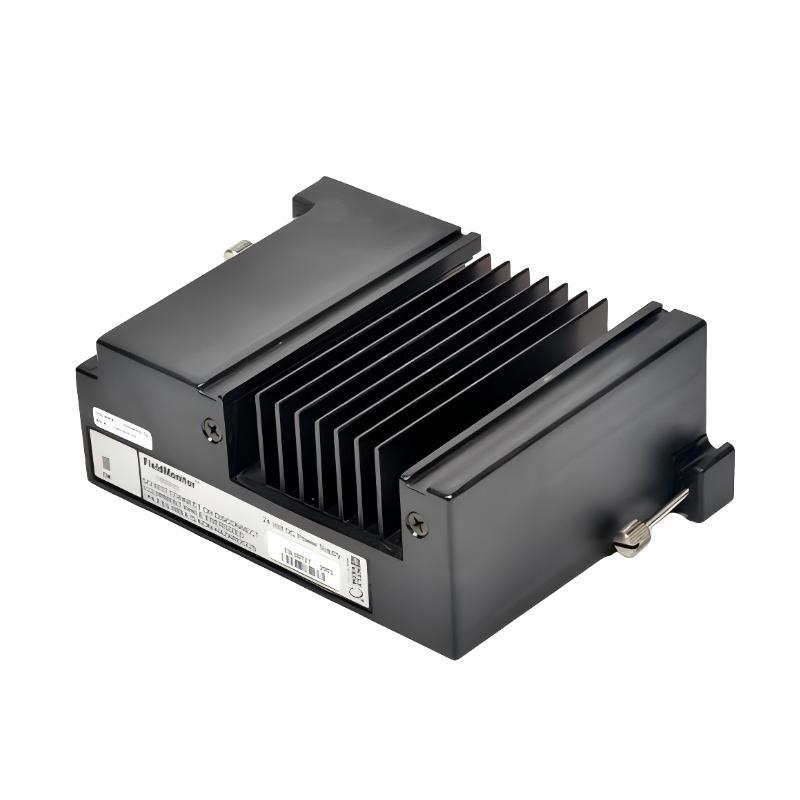

The Bently Nevada 1701/10 1034549-10 24-Volt DC Power Supply is designed to provide reliable DC power for industrial monitoring and control systems. Engineered for high-performance and durability, it ensures consistent operation in demanding environments. Its robust design allows for secure integration into machinery monitoring setups, particularly within vibration monitoring systems, condition monitoring platforms, and critical industrial control systems.
The 24-Volt DC output provides sufficient power to drive connected sensors and modules, making it suitable for both centralized and distributed installations. The 台 incorporates protection features such as over-voltage protection, high inrush current tolerance, and primary-to-chassis isolation, ensuring the safety / both the device and connected equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage Range | +18 V to +36 V DC |
| Inrush Current | 30 Amp pk nominal |
| Fusing | 250 V, 3 Amp, SB |
| Isolation Voltage | 850 V DC, primary to chassis, 1 minute |
| Over Voltage Protection | No damage to 50 V DC |
| Input Conductor Size | 14 to 26 AWG |
| Dimensions (H x W x D) | 150 x 105 x 56 mm |
| 重量 | 0.57 kg |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Humidity | 5% to 95% non-condensing relative humidity |
Applications
-
Powering vibration monitoring and condition-based maintenance systems.
-
Supplying DC power to sensors and signal processing modules in industrial plants.
-
Integration into machinery protection systems for rotating equipment such as turbines, pumps, and compressors.
-
Providing reliable power in high-vibration or harsh environmental conditions.
-
サポートing both centralized control cabinets and distributed sensor networks.
Advantages
-
High Reliability: Designed for continuous operation in industrial environments.
-
Wide Input Range: Operates effectively with input voltages from 18 V to 36 V DC.
-
Over-Voltage Protection: Protects connected equipment against voltage spikes.
-
Compact and Lightweight: Easy to mount in tight control cabinets or panels.
-
Thermal Tolerance: Operates across a broad temperature range, supporting extreme industrial conditions.
-
Easy Integration: Standard input conductor sizing allows for straightforward wiring with existing systems.
FAQ
-
What happens if the input voltage exceeds 36 V DC?
The 台 is designed for input voltages up to 36 V DC. Exceeding this range may trigger protective mechanisms, but continuous operation above 36 V is not recommended. -
Can this power supply handle inrush currents higher than 30 A?
The nominal inrush current is 30 A. Short-term spikes above this value may be tolerated, but sustained inrush beyond 30 A could damage the device. -
How is over-voltage protection implemented?
The supply protects connected circuits from voltages up to 50 V DC without damage. It is not designed for prolonged exposure above this limit. -
What wire gauge is recommended for input connections?
The input conductor size should be between 14 and 26 AWG. Thicker wires improve current handling and reduce voltage drop. -
Is the 台 isolated from chassis ground?
Yes, the primary circuit is isolated from the chassis with a withstand voltage / 850 V DC for one minute. -
Can it operate in high humidity environments?
Yes, it supports 5% to 95% non-condensing relative humidity. Care should be taken to avoid condensation directly on terminals. -
What are the storage conditions for long-term reliability?
Storage temperatures should remain between -40°C to +85°C (-40°F to +185°F) to maintain component integrity. -
Does the power supply require external fuses?
Internal fusing is provided (250 V, 3 A, SB). Additional external fuses may be added based on system-level safety requirements. -
Is this power supply suitable for mobile or rotating equipment?
Yes, its compact size, low weight, and robust construction allow use in vibration-prone environments, but mounting should minimize excessive mechanical stress. -
Can multiple 台s be connected in parallel?
The device is primarily designed for standalone operation. Parallel connection requires careful load sharing and protection considerations.
Recommended Related モデルs
| モデル | Voltage | Output Type | 重量 | Dimensions (H x W x D) |
|---|---|---|---|---|
| 1701/11 | 24 V DC | Single Output | 0.55 kg | 105 x 150 x 56 mm |
| 1701/12 | 24 V DC | Dual Output | 0.60 kg | 105 x 150 x 56 mm |
| 1701/14 | 24 V DC | Single Output | 0.58 kg | 105 x 150 x 56 mm |
| 1701/15 | 24 V DC | Dual Output | 0.62 kg | 105 x 150 x 56 mm |
| 1701/16 | 24 V DC | Redundant Output | 0.65 kg | 105 x 150 x 56 mm |
| 1701/18 | 24 V DC | Single Output | 0.57 kg | 105 x 150 x 56 mm |
Popular Bently Nevada モデルs
| モデル | Function | Voltage | 重量 | Dimensions (H x W x D) |
|---|---|---|---|---|
| 1701/20 | DC Power Supply | 24 V DC | 0.58 kg | 105 x 150 x 56 mm |
| 1701/30 | AC/DC Converter | 120 V AC | 0.70 kg | 120 x 160 x 60 mm |
| 3300 XL | Vibration Monitor | 24 V DC | 1.2 kg | 200 x 150 x 60 mm |
| 3500/42 | Proximitor | 24 V DC | 0.8 kg | 105 x 150 x 56 mm |
| 1701/50 | DC Power Supply | 48 V DC | 0.60 kg | 105 x 150 x 56 mm |
| 1701/60 | Redundant Power Supply | 24 V DC | 0.65 kg | 105 x 150 x 56 mm |
