製品紹介

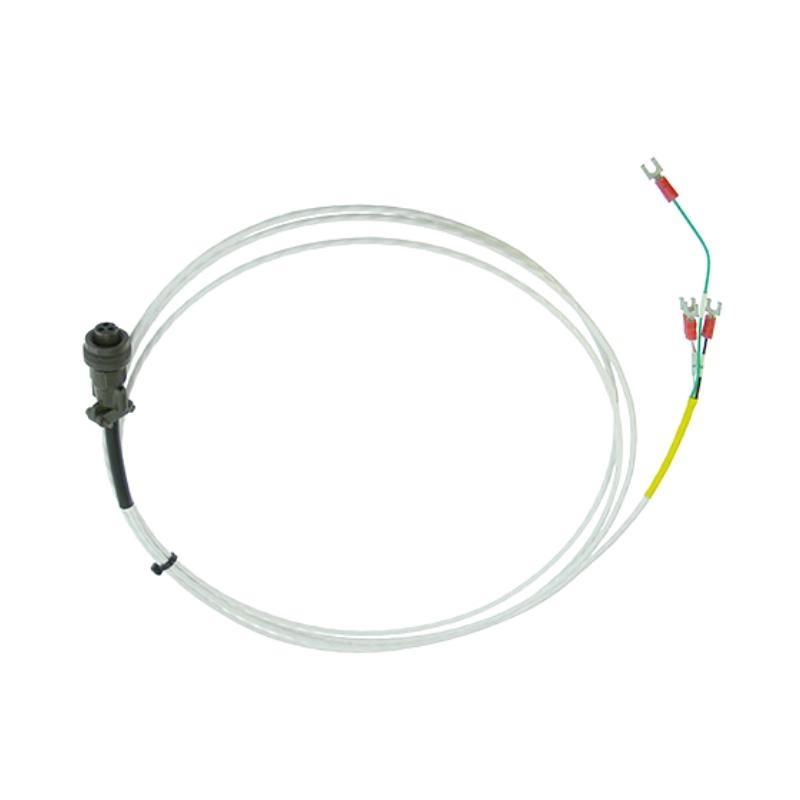

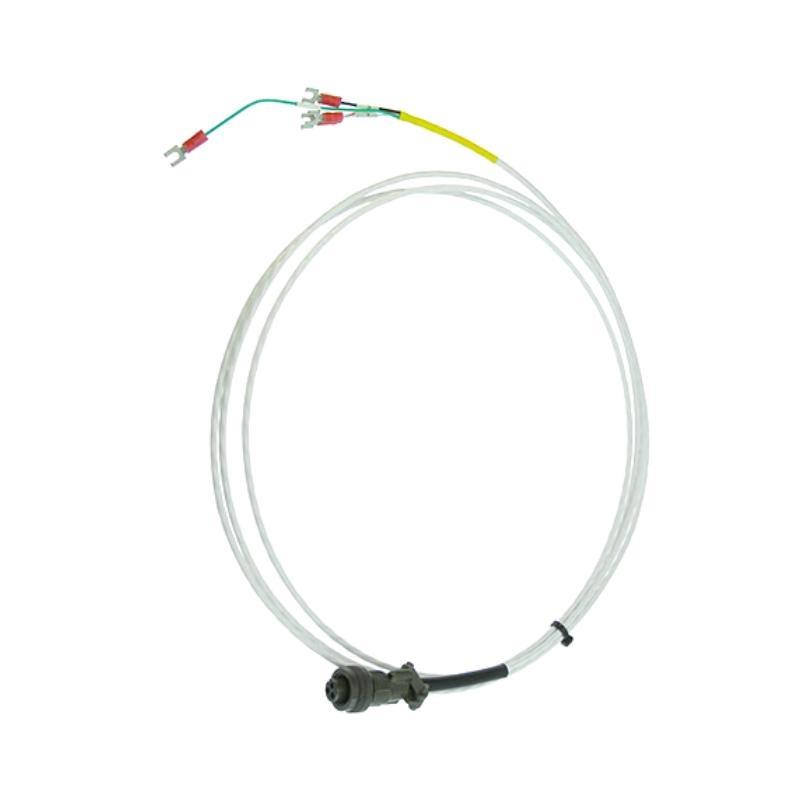

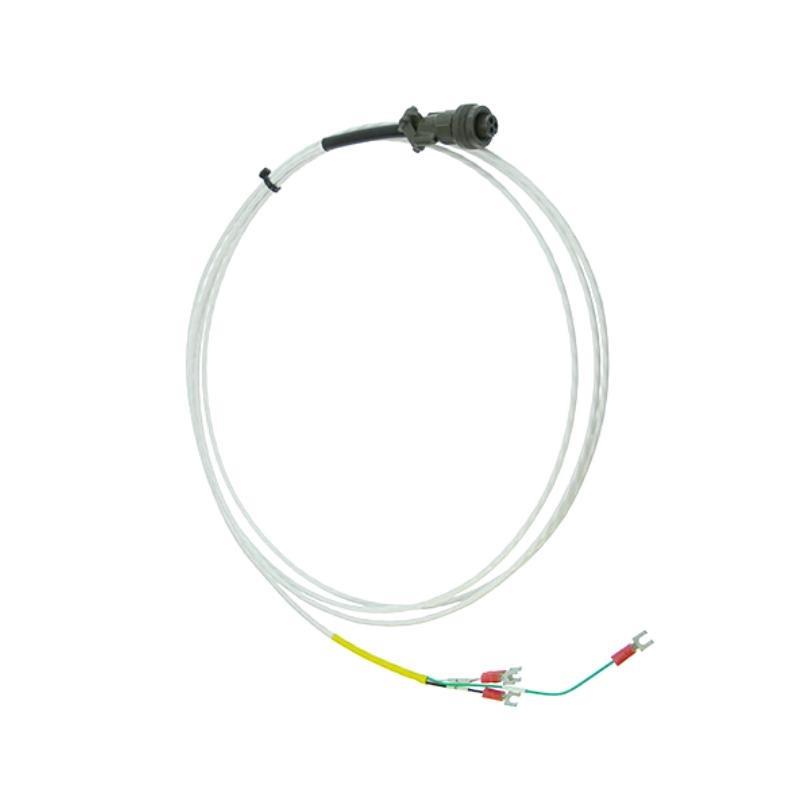

The Bently Nevada 16710-06 Interconnect Cable is a precision-engineered industrial-grade cable designed for reliable connectivity between monitoring modules, sensors, and system racks within Bently Nevada machinery protection and condition monitoring platforms. This cable provides dependable electrical signal transmission with low noise, minimal interference, and robust shielding, ensuring accurate communication between vibration probes, monitoring systems, and diagnostic equipment.
With its 6-foot length, durable jacket, and ruggedized construction, the 16710-06 Interconnect Cable is widely used in critical industries such as oil & gas, power generation, petrochemical plants, and heavy machinery applications. It is engineered to meet stringent requirements for electrical integrity, electromagnetic compatibility, and mechanical durability, making it a preferred choice for long-term field installations.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 16710-06 |
| Type | Interconnect Cable |
| Function | Signal transmission between probes, monitors, and racks |
| Cable Length | 6 ft (1.83 m) |
| Conductor Type | Multi-strand copper, shielded |
| Connector Type | Factory-molded, keyed for orientation |
| Insulation | High-grade thermoplastic elastomer |
| Shielding | Braided shield with >90% coverage |
| Electrical Resistance | < 0.1 Ω per meter |
| Capacitance | < 50 pF/ft |
| Voltage Rating | 300 V (maximum operating) |
| Temperature Range | -29°C to +90°C |
| Flame Resistance | Meets UL and IEC industrial standards |
| Dimensions | Cable Ø ≈ 10 mm |
| 配送 重量 | 3 kg |
| Certifications | CE, RoHS compliant, CSA/ATEX where applicable |
Product Applications
-
Machinery 状態 Monitoring – Provides secure signal transmission from vibration sensors to Bently Nevada monitoring racks.
-
Industrial Protection Systems – Used in 3300 and 3500 series racks to interconnect modules and probes.
-
Oil & Gas Facilities – Deployed in /fshore rigs, refineries, and pipelines where reliability is critical.
-
Power Generation – サポートs turbine, generator, and compressor monitoring systems.
-
Petrochemical Plants – Ensures uninterrupted vibration monitoring in high-noise environments.
-
General Industrial Machinery – Connects transducers and monitoring equipment in pumps, motors, and gearboxes.
Product Advantages
-
High Signal Integrity – Shielded design minimizes electromagnetic interference.
-
Durable Construction – Rugged insulation for industrial environments.
-
Optimized Compatibility – Fully designed for Bently Nevada monitoring systems.
-
Plug-and-Play Design – Factory-molded connectors simplify installation.
-
Stable Electrical Properties – Low resistance and capacitance ensure reliable data transmission.
-
Thermal Endurance – Operates effectively across a wide temperature range.
-
Mechanical Strength – Resistant to abrasion, bending stress, and vibration.
-
Field-Proven Reliability – Extensively deployed in mission-critical industries.
-
Regulatory Compliance – Meets global electrical safety and EMC standards.
-
Reduced Downtime – Ensures continuous and accurate monitoring signals.
FAQ
-
What type / electrical signals can the 16710-06 Interconnect Cable carry?
It carries low-level vibration signals and system communication signals between probes and monitoring racks. -
Is the cable shielded to prevent electromagnetic interference?
Yes, it features a high-coverage braided shield for superior EMI protection. -
What is the recommended maximum voltage rating for this cable?
The cable is rated for up to 300 V. -
Does the cable have specific orientation in connectors?
Yes, it uses factory-molded keyed connectors to ensure correct orientation. -
What is the electrical resistance per 台 length?
Less than 0.1 ohm per meter. -
Can this cable be used in hazardous area installations?
Yes, it is certified for CSA/ATEX compliance when deployed with approved systems. -
What is the capacitance specification / the cable?
It is less than 50 pF per foot. -
Does it require special grounding?
Shield grounding at the monitoring rack end is recommended for optimal performance. -
What kind / insulation material is used?
High-grade thermoplastic elastomer, resistant to heat and abrasion. -
Is it backward compatible with older Bently Nevada systems?
Yes, it is designed for use with legacy 3300 systems as well as modern 3500 platforms.
Recommended Related モデルs (Same Series or Type)
| モデル | 説明 |
|---|---|
| 16710-04 | Interconnect Cable, 4 ft length |
| 16710-08 | Interconnect Cable, 8 ft length |
| 16710-10 | Interconnect Cable, 10 ft length |
| 16715-02 | High-temperature interconnect cable |
| 16720-05 | Heavy-duty armored interconnect cable |
| 16725-06 | Low-noise interconnect cable for sensitive probes |
Popular Bently Nevada モデルs (その他 Families)
| モデル | 説明 |
|---|---|
| 330103-00-08-05-02-00 | 3300 XL Proximity Probe |
| 330104-00-10-10-02-05 | 3300 XL Extension Cable |
| 330130-040-00 | 3300 XL Proximitor Sensor |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitoring Module |
| 3500/15 | Universal Power Supply Module |
