製品紹介

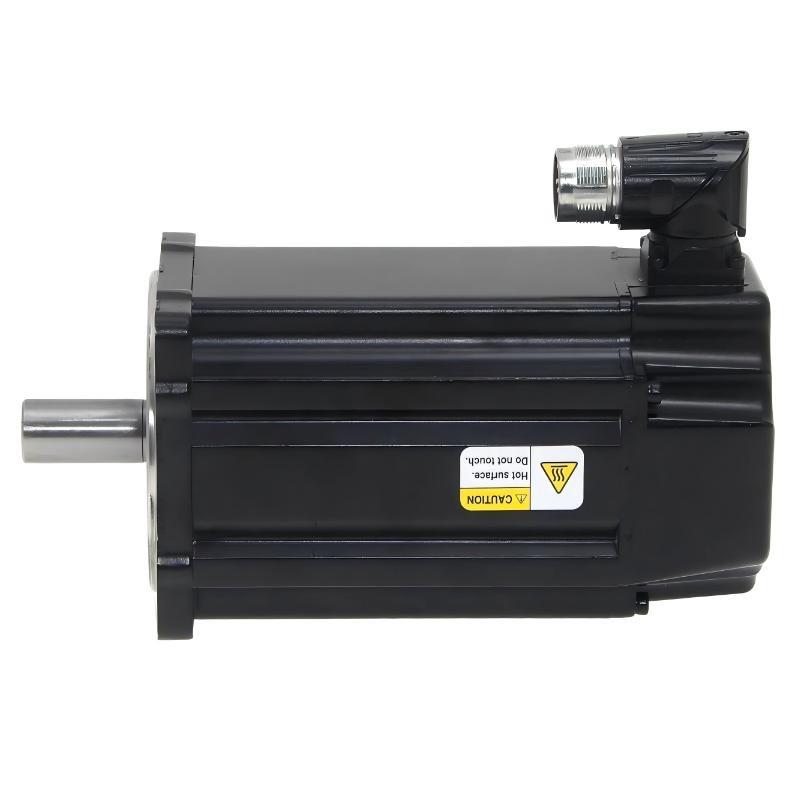

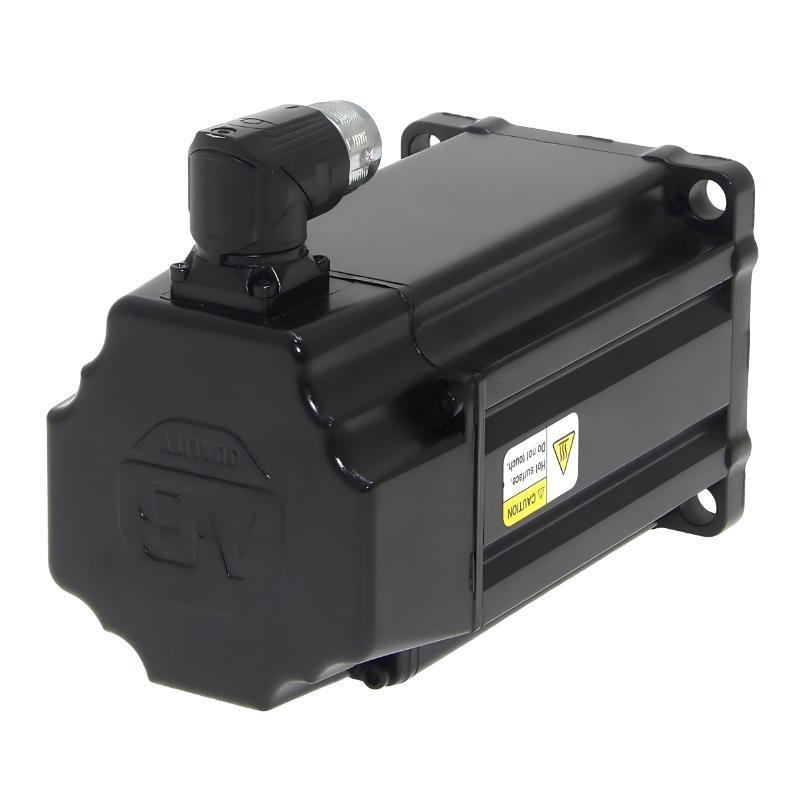

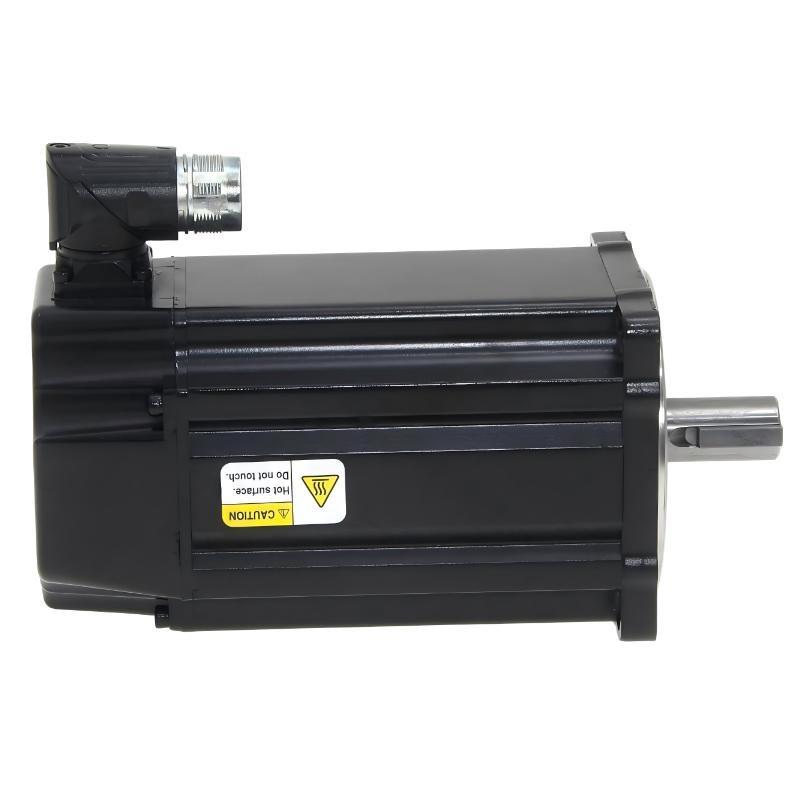

The Allen Bradley VPL-B1651F-CK12AA is a high-performance Kinetix VP low-inertia servo motor designed for precise motion control in demanding industrial automation applications. Optimized for use with Kinetix 5500 drives, this permanent magnet rotary motor provides rapid acceleration and deceleration, exceptional dynamic response, and smooth positioning for high-speed processes.
This servo motor features an 18-bit absolute single-turn digital encoder (Hiperface DSL protocol) for precise feedback, a smooth shaft, and a rotatable right-angle SpeedTec DIN connector for flexible cabling. Its compact 81 mm diameter and low-inertia design make it suitable for applications requiring fast and accurate motion control in tight spaces.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | Kinetix VP Low Inertia Servo Motor |
| モデル Number | VPL-B1651F-CK12AA |
| Motor Series | VP – Permanent magnet rotary servo motors optimized for Kinetix 5500 drives |
| Series Type | L – Low inertia |
| Voltage Class | B – 400V solid state outputs |
| Frame Size / Bolt Circle Diameter (BCD) | 165 mm |
| Magnet Stack Length | 1 stack |
| Rated Speed | 4500 rpm |
| Feedback | 18-bit absolute single-turn digital encoder (Hiperface DSL) |
| Shaft Type | Smooth shaft |
| Connector | Single SpeedTec DIN, right-angle, 325° rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Frame Size | 165 mm |
| 重量 | 15.3 kg |
Product Applications
The VPL-B1651F-CK12AA servo motor is suitable for high-speed, high-precision applications in industrial automation, including:
-
CNC machines and robotic arms requiring fast positioning
-
Packaging and assembly line machinery
-
Conveyors and material handling systems with high dynamic load
-
Automated inspection and test equipment
-
Applications requiring low-inertia motors for rapid acceleration and deceleration
Its low-inertia design, high-speed capability, and precise feedback make it ideal for motion control systems demanding responsiveness and repeatability.
Product Advantages
• Low Inertia Design
Enables rapid acceleration and deceleration, improving cycle times and dynamic performance.
• High-Speed Operation
Rated speed / 4500 rpm ensures fast positioning for high-performance automation.
• Precise Feedback
Equipped with an 18-bit absolute single-turn encoder (Hiperface DSL) for accurate position tracking and motion control.
• Flexible Connectivity
Single SpeedTec DIN connector, rotatable 325°, simplifies wiring and installation.
• Compact & Robust Construction
81 mm diameter and IEC metric mounting flange allow easy integration in constrained spaces.
• Optimized for Kinetix 5500 Drives
Designed to maximize performance and efficiency when paired with Kinetix 5500 drive systems.
• Maintenance-Free Operation
No brake and standard factory options reduce complexity and improve reliability.
