製品紹介

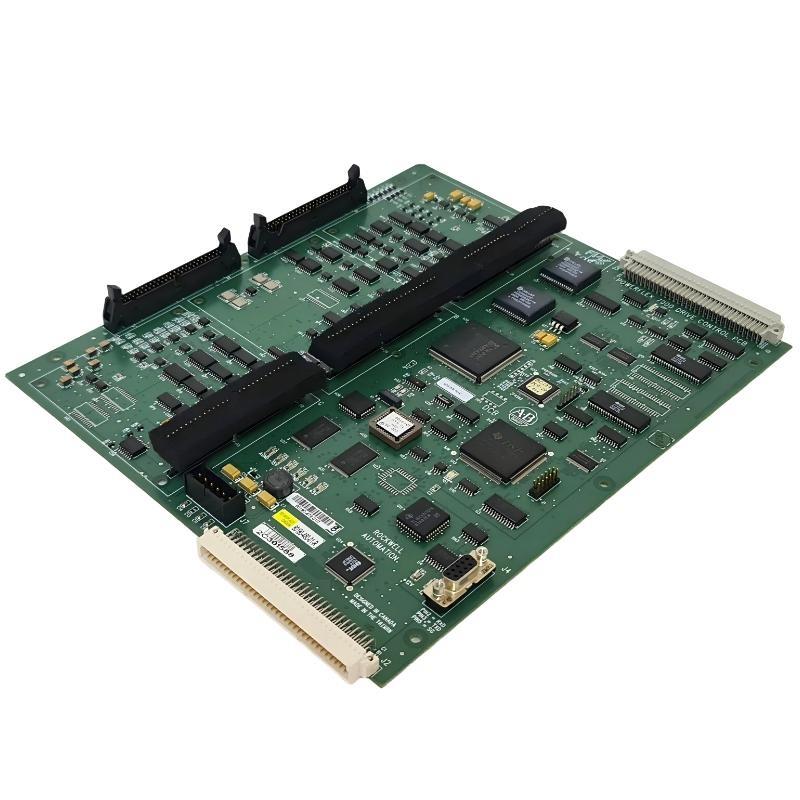

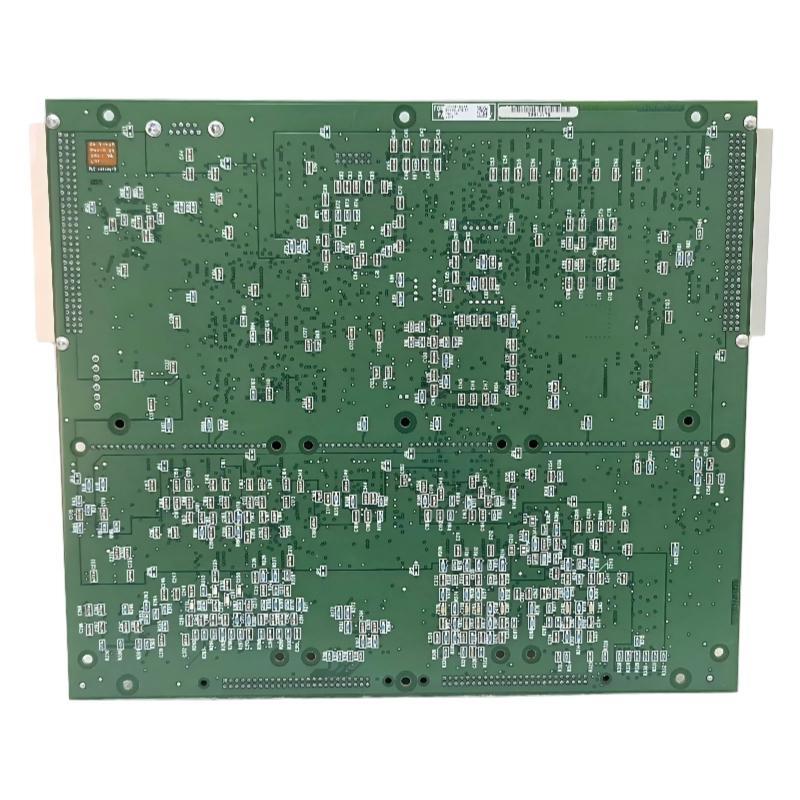

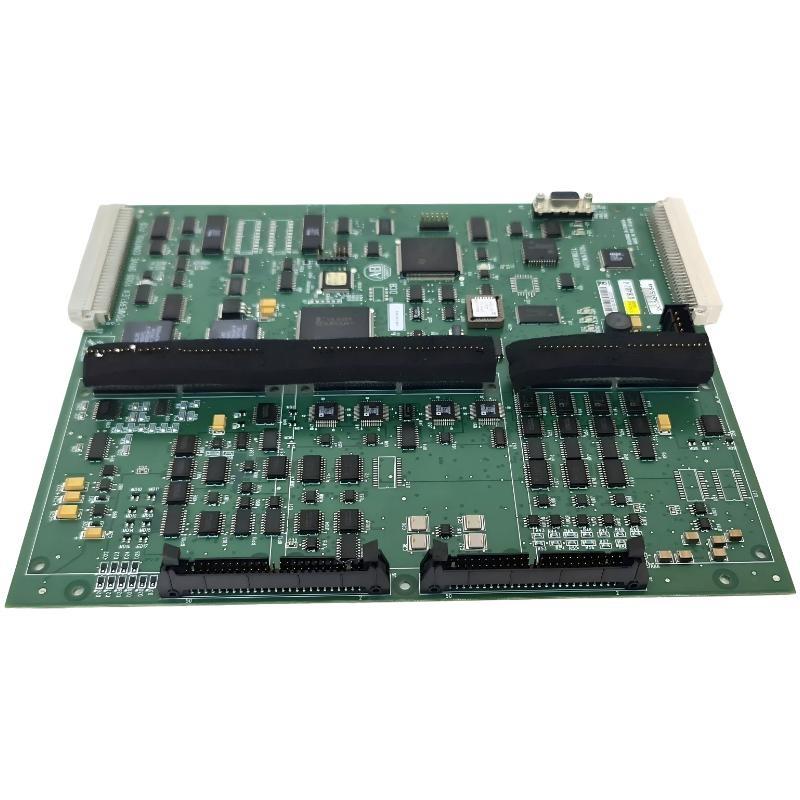

The Allen-Bradley 80190-480-01-R Drive Control Board is a dedicated industrial drive control module designed for multi-motor coordination and precise automation control. Developed by Rockwell Automation under the well-known Allen-Bradley product line, this control board is engineered for integration into medium-power motor drive systems operating at 480 VAC.
This module serves as the central control 台 in drive systems, managing signal processing, motor coordination, and I/O communication. With support for up to four motors, it is particularly suitable for applications requiring synchronized or independent multi-axis control. The board features a robust digital I/O structure, allowing seamless interfacing with sensors, actuators, and higher-level PLC or DCS systems.
Its compact design and stable architecture make it ideal for retr/itting existing drive cabinets or integrating into new industrial automation systems. The board is optimized for reliability in demanding industrial environments, ensuring consistent performance under varying load and electrical conditions.
製品仕様
| Parameter | Value |
|---|---|
| モデル | 80190-480-01-R |
| Product Type | Drive Control Board |
| Input Voltage | 480 VAC |
| Rated Current | 15 A |
| Power Rating | 7.2 kW |
| Motor Capacity | Up to 4 Motors |
| Digital Inputs | 16 Channels |
| Digital Outputs | 16 Channels |
| Control Function | Multi-motor drive control |
| Communication Interface | Digital I/O Interface |
| Mounting Type | Panel/Drive Cabinet Integration |
| Operating Environment | Industrial |
| Dimensions | 180 × 25 × 150 mm |
| 重量 | 0.42 kg |
Applications
• Multi-motor drive systems — Enables coordinated control / up to four motors in conveyor lines, packaging systems, and assembly equipment.
• Industrial automation lines — Integrates easily with PLC-controlled systems for synchronized process control and signal management.
• Material handling systems — Suitable for conveyor belts, sorting systems, and automated logistics setups requiring precise motor sequencing.
• Process control environments — Used in manufacturing sectors such as chemical, food processing, and light industry for controlled motor operations.
• Retr/itting legacy systems — Provides a reliable upgrade path for older drive systems needing enhanced I/O and control capability.
Advantages
• Flexible multi-motor control capability — サポートs up to four motors, reducing the need for multiple control modules and simplifying system architecture.
• High I/O density — Equipped with 16 digital inputs and 16 digital outputs, allowing extensive field device connectivity without additional expansion modules.
• Stable performance under 480 VAC systems — Designed specifically for industrial high-voltage environments, ensuring consistent and safe operation.
• Compact and lightweight design — Facilitates easy installation within limited cabinet space and improves system layout efficiency.
• Reliable industrial-grade construction — Built to withstand electrical noise, vibration, and temperature variations typical in industrial settings.
• Cost-effective integration — Combines control and I/O functions into a single board, reducing overall system cost and wiring complexity.
