製品紹介

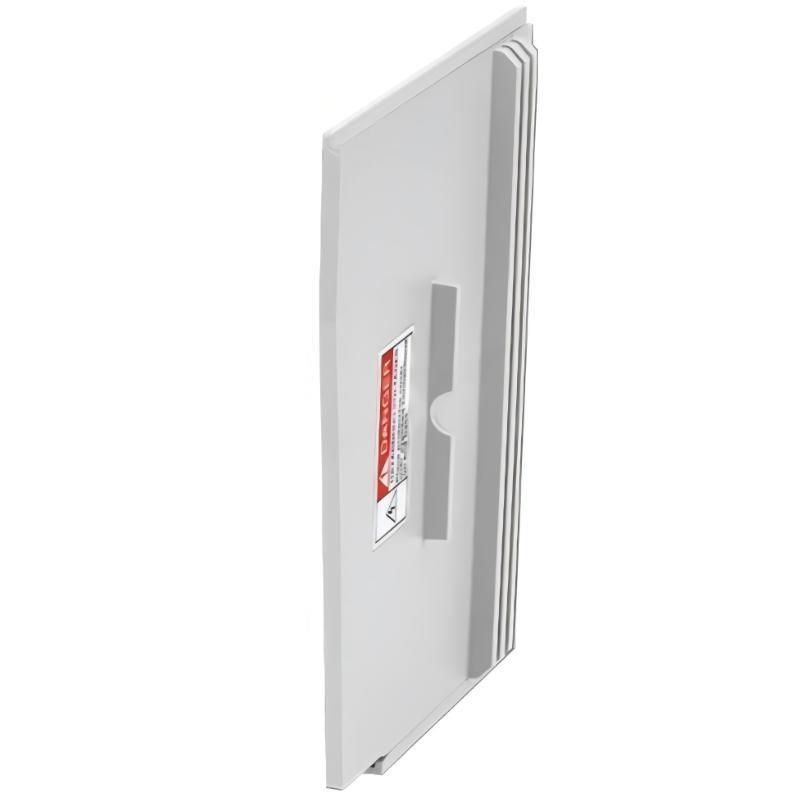

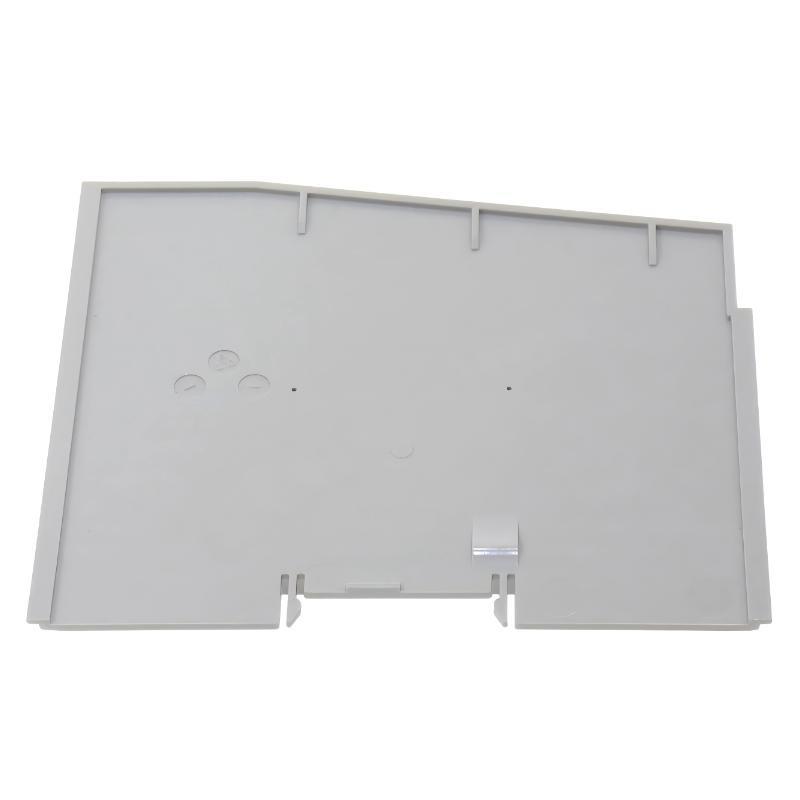

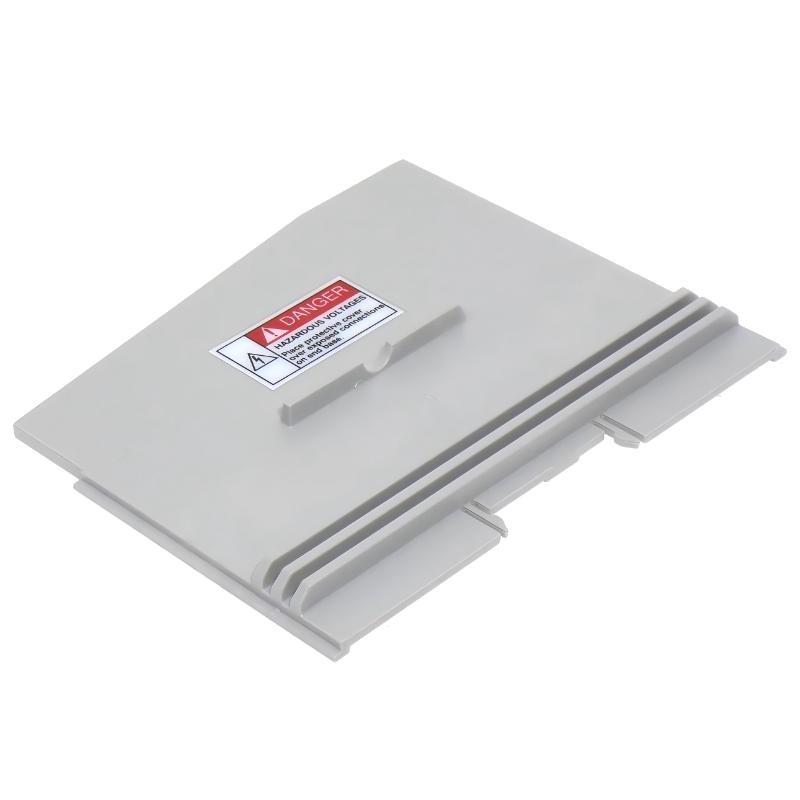

The Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap is an essential termination module designed for Compact 5000 I/O systems and CompactLogix 5380 automation platforms. Installed at the right end / a local Compact 5000 I/O assembly, the module completes the backplane connection and ensures stable communication and power distribution across the I/O system.
Designed for modern high-performance industrial automation architectures, the 5069-ECR supports high-speed backplane communication for faster data transfer between controllers and connected I/O modules. It is engineered to support systems with up to 31 local Bulletin 5069 I/O modules, making it suitable for scalable automation environments requiring efficient distributed control.
The module incorporates embedded power distribution functionality, supplying field power to connected I/O modules while simplifying system wiring. Integrated diagnostic capabilities, including a scrolling display for system health monitoring, help improve troubleshooting efficiency and maintenance visibility. The CompactLogix 5380 platform also supports embedded 1 Gigabit switch technology for Device Level Ring (DLR) and linear Ethernet topologies, enabling reliable industrial network communication and flexible system configuration.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | 5069-ECR |
| Series | CompactLogix 5380 |
| Product Type | Right End Cap |
| Compatible Platform | Compact 5000 I/O |
| サポートed I/O Modules | Up to 31 Local 5069 I/O Modules |
| Backplane Type | High-Speed Backplane |
| Power Function | Embedded Field Power Distribution |
| Diagnostic Feature | Scrolling System Display |
| Network Technology | Embedded 1Gb Switch Technology |
| サポートed Topologies | DLR / Linear Topology |
| Communication Architecture | Industrial Ethernet |
| Mounting Type | DIN Rail Mounting |
| Application Type | Industrial Automation Systems |
| Cooling Method | Passive Cooling |
| Dimensions | 136.81 × 20 × 123 mm |
| 重量 | 0.1 kg |
Applications
• CompactLogix Automation Systems: Completes local Compact 5000 I/O assemblies in industrial control systems.
• Distributed I/O Architectures: サポートs scalable distributed automation networks with multiple I/O modules.
• Manufacturing Automation: Used in high-speed industrial production and process control applications.
• Packaging and Material Handling: Suitable for automated conveyors, packaging lines, and machine control systems.
• OEM Equipment Integration: Ideal for machine builders using CompactLogix 5380 control architectures.
Advantages
• High-Speed Backplane Communication: Enables fast data transfer between controllers and I/O modules.
• サポートs Large I/O Configurations: Handles up to 31 local Bulletin 5069 I/O modules.
• Integrated Power Distribution: Provides field power to connected I/O modules, reducing wiring complexity.
• Enhanced Diagnostics: Scrolling display improves visibility / system health and troubleshooting information.
• Advanced Ethernet サポート: Embedded 1Gb switch technology supports DLR and linear network topologies.
• Compact DIN Rail Design: 保存s cabinet space and simplifies installation.
