製品紹介

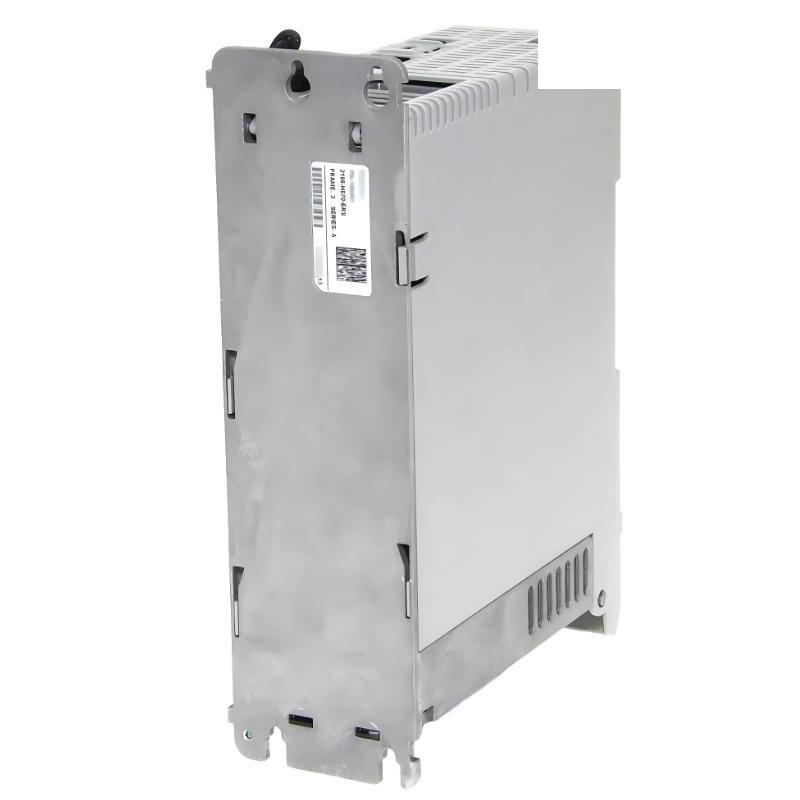

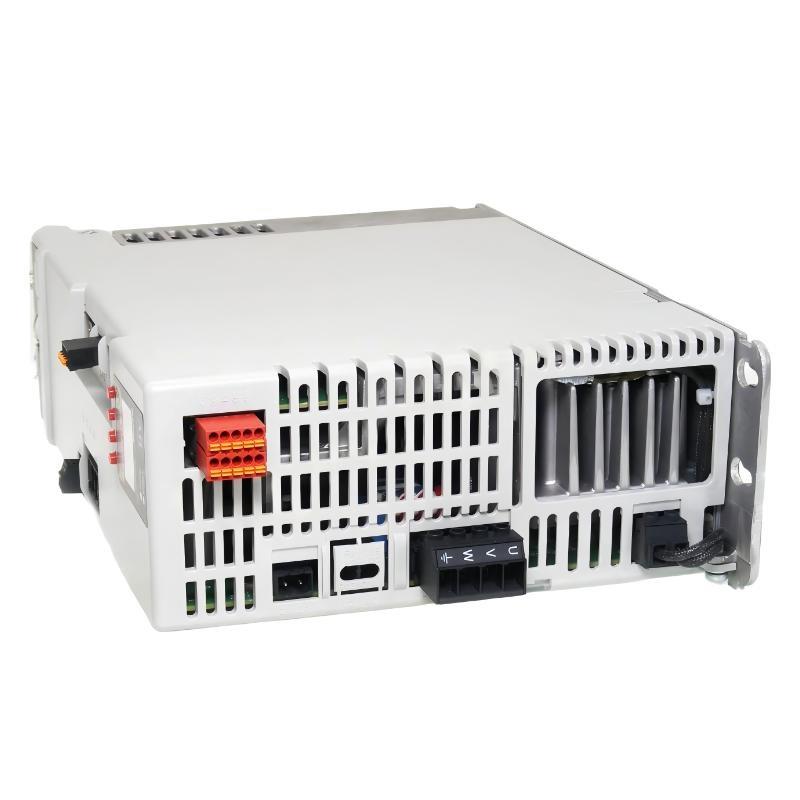

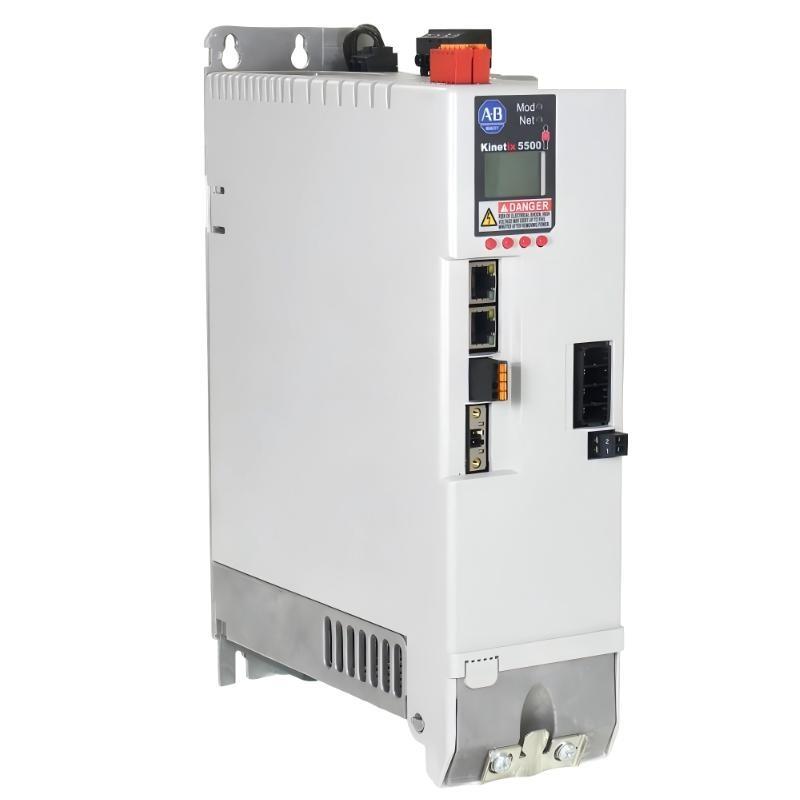

The Allen Bradley 2198-H070-ERS is a high-power, industrial-grade servo drive from the Kinetix 5500 series developed by Rockwell Automation. Engineered for demanding applications, this drive delivers precise, high-torque motion control for medium- to large-scale industrial automation systems.
The 2198-H070-ERS supports a wide input voltage range / 190–528 VAC across three phases, allowing flexible integration into global power environments. With peak current output up to 57.5 A, it is capable / driving high-load applications with rapid acceleration and deceleration while maintaining precise positioning and repeatability.
This servo drive is compatible with both 230 VAC and 480 VAC systems, delivering 7.0 kW and 14.6 kW / output power, respectively, ensuring optimal performance for high-demand machines. Its robust construction, efficient thermal design, and EtherNet/IP communication support make it suitable for multi-axis coordination, complex automation lines, and high-performance manufacturing environments.
製品仕様
| Parameter | Value |
|---|---|
| モデル | 2198-H070-ERS |
| Series | Kinetix 5500 |
| Input Voltage Range | 190–528 VAC |
| Number / Phases | 3 Phase |
| Output Power | 7.0 kW @ 230 VAC, 14.6 kW @ 480 VAC |
| Peak Current Output | 57.5 A |
| Communication Interface | EtherNet/IP |
| Control Mode | Servo Control |
| Cooling Method | Air Cooling |
| Mounting Type | Panel Mount |
| Application Level | High-power Motion Systems |
| Dimensions | 294 x 88.2 x 200 mm |
| 重量 | 4.1 kg |
Applications
● Heavy-duty CNC machines requiring precise motion and high torque for cutting, milling, or turning operations
● Robotics and automated assembly lines handling large payloads with fast, repeatable positioning
● Packaging and material handling systems for high-speed, high-load production processes
● Industrial presses and forming machines requiring stable power delivery and dynamic response
● Multi-axis coordinated motion systems where high power and precision are essential
● Process automation in industries like automotive, metalworking, and large-scale manufacturing
Advantages
● High peak current (57.5 A) enables operation under extreme dynamic loads and rapid acceleration
● Wide voltage compatibility (190–528 VAC) allows installation across various industrial power environments
● High output power / 14.6 kW at 480 VAC supports demanding industrial machinery
● EtherNet/IP integration allows real-time multi-axis coordination and communication
● Robust construction ensures reliability in high-power, high-performance environments
● Efficient thermal management with air cooling prevents overheating and maintains performance under heavy loads
