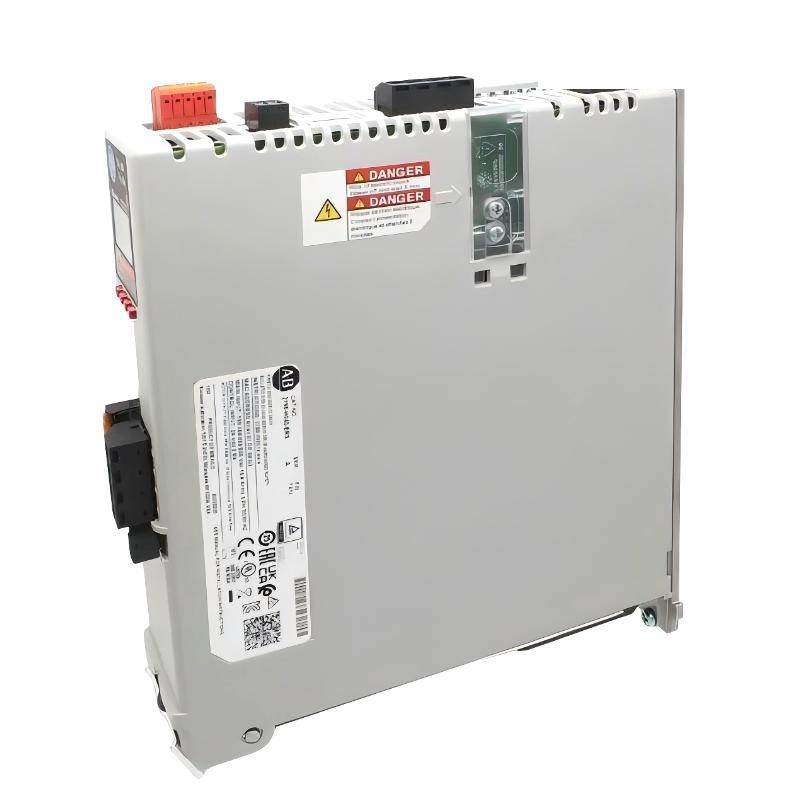

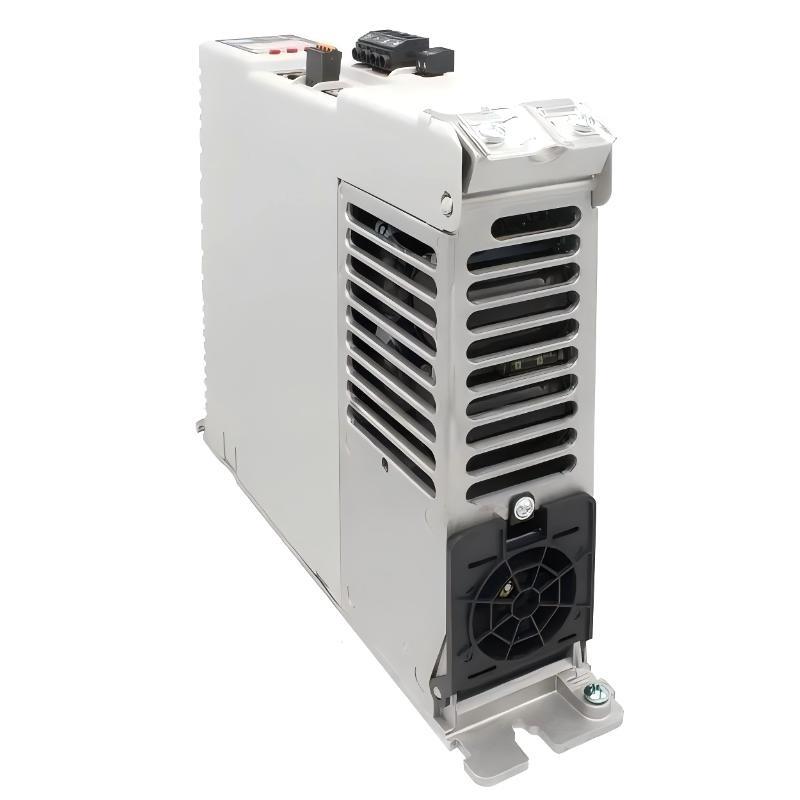

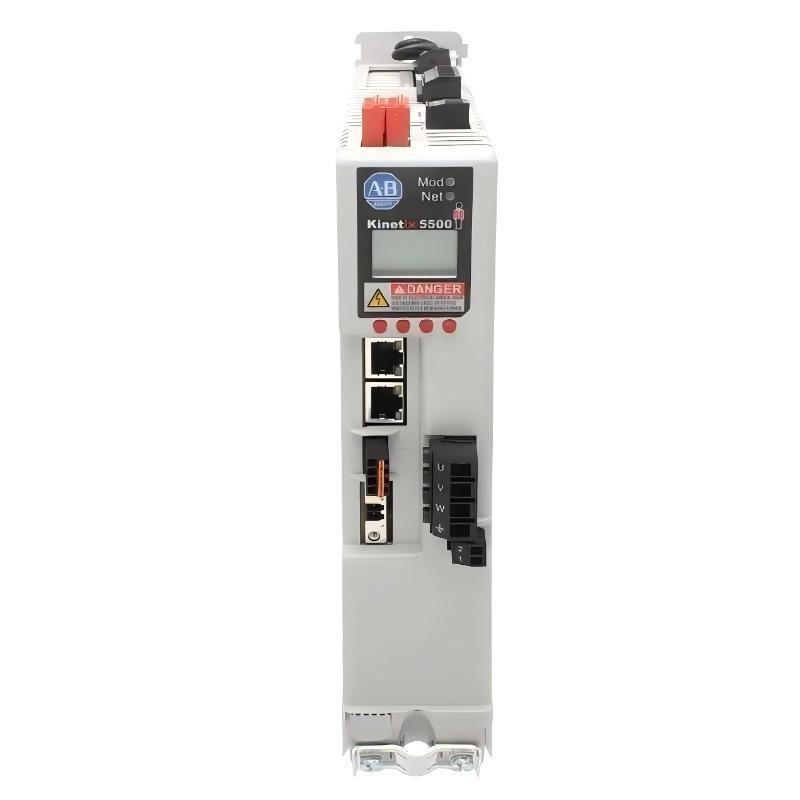

The Allen Bradley 2198-H040-ERS Kinetix 5500 Servo Drive is a high-performance industrial servo drive designed for precise and dynamic motion control in demanding automation systems. Part / the Kinetix 5500 series, it delivers accurate speed, torque, and position control for single-axis applications, making it ideal for factory automation, robotics, packaging, and process machinery.
This drive operates on a 3-phase input voltage / 190–528 VAC and provides a peak current output / 32.5 Amps. It features a 24 VDC control input and an open-style design for flexible installation in panels or enclosures. With advanced servo control capabilities, the 2198-H040-ERS is well-suited for applications that demand high-speed motion, precise torque, and repeatable performance.
It is commonly used in conveyors, robotic pick-and-place systems, and material handling equipment where accuracy, reliability, and dynamic response are critical.
製品仕様
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 2198-H040-ERS |
| Product Type | Kinetix 5500 Servo Drive |
| Series | Kinetix 5500 |
| Motor Type | AC Servo Motor |
| Input Voltage | 190–528 VAC, 3 Phase |
| Control Input | 24 VDC |
| Peak Current Output | 32.5 Amps |
| Mounting | Open Style |
| Protection | Panel or Enclosure Required |
| Enhanced Control | Yes |
| Feedback | Required via servo motor encoder |
| 重量 | 2.3 kg |
Applications
• Single-Axis Motion Control
Provides high-precision positioning and speed regulation for servo-driven machinery.
• Factory Automation
Controls conveyors, robotic pick-and-place systems, and automated assembly lines.
• Packaging Machinery
Ensures smooth and accurate motion for filling, labeling, and sealing operations.
• Material Handling Systems
Integrates with high-speed conveyors and robotic systems requiring repeatable accuracy.
• Process Equipment
Ideal for motors requiring fast dynamic response and precise torque control.
• Medium- to High-Power Servo Applications
サポートs servo motors with peak currents up to 32.5 Amps in industrial environments.
Advantages
• High-Performance Servo Control
サポートs fast, precise, and dynamic motion for demanding industrial tasks.
• Wide Input Voltage Range
Operates on 190–528 VAC, making it suitable for diverse industrial power supplies.
• Open Style Design
Flexible installation options for panels or enclosures.
• 24 VDC Control Input
Provides easy integration with standard industrial control systems.
• Kinetix 5500 Integration
Fully compatible with Kinetix 5500 motion control systems for streamlined setup.
• Accurate Torque and Speed Control
Ensures repeatable and smooth motion in high-performance applications.
