製品紹介

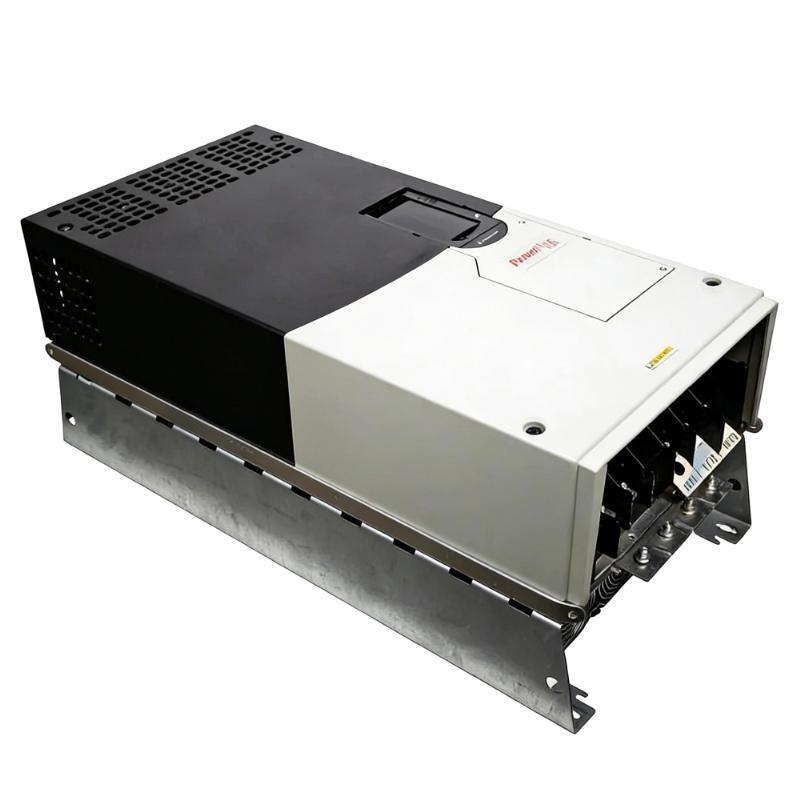

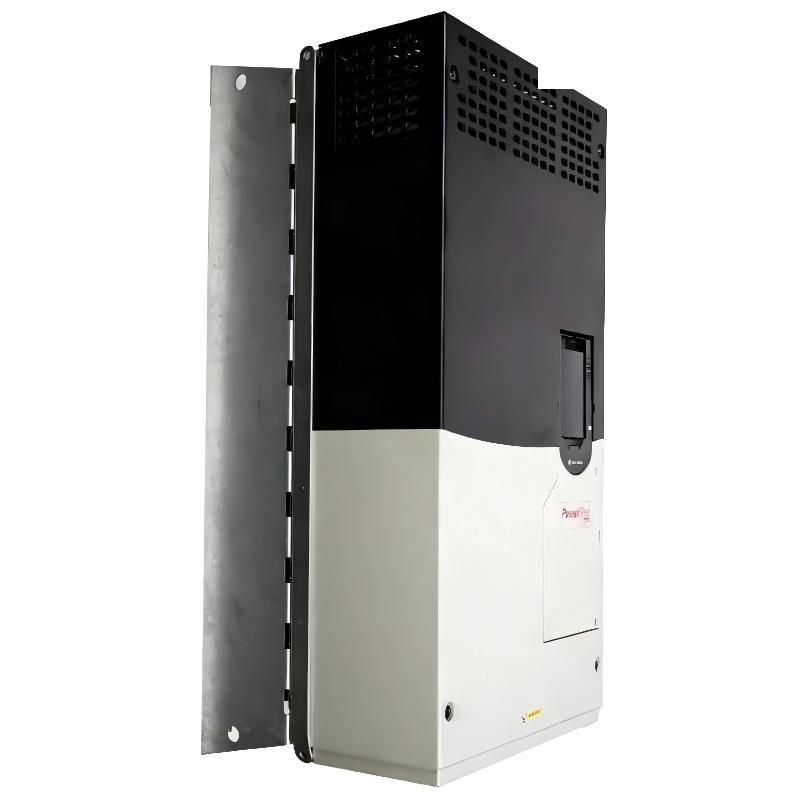

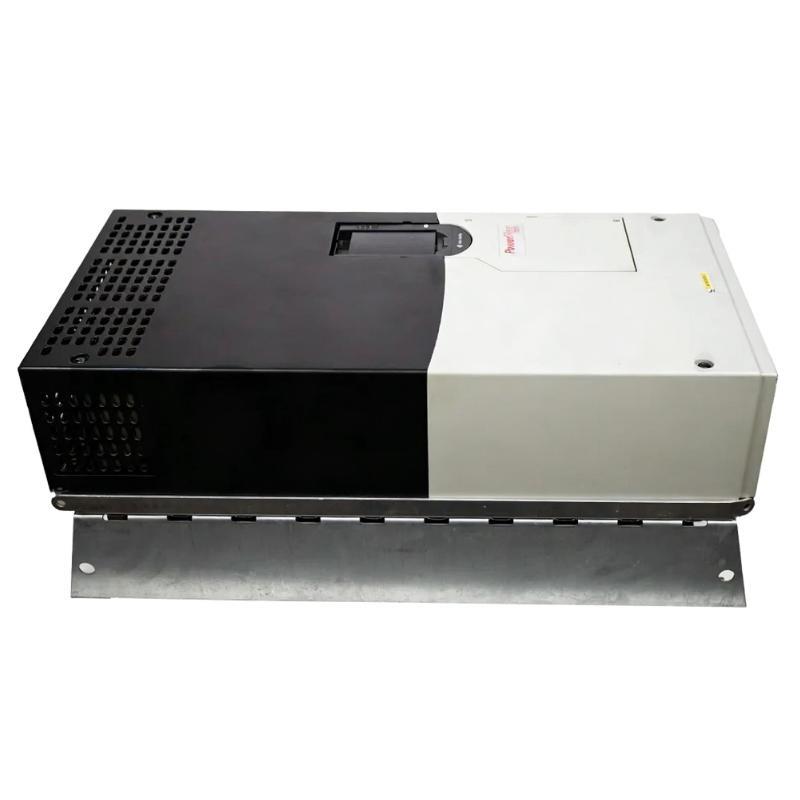

The Allen-Bradley 20F1AGC302JN0NNNNN PowerFlex 753 AC Drive is a high-performance industrial AC drive designed for heavy-duty motor control applications requiring precise speed regulation, high reliability, and robust power handling. Part / the PowerFlex 753 family by Rockwell Automation, this model is engineered to manage large motors with demanding operational requirements.
This drive supports 400 VAC input and 540 VDC DC bus, delivering an impressive 160 kW (215 HP) output and 302 A continuous current. Its air-cooled design, combined with integrated filtering and precharge functionality, ensures safe startup, minimal electrical stress, and reliable operation in industrial environments. Featuring IP54 and NEMA Type 12 protection, it is suitable for harsh conditions where dust and moisture are present. The 台 does not include an internal transistor or HIM, allowing flexible system integration and external interface selection.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | 20F1AGC302JN0NNNNN |
| Series | PowerFlex 753 |
| Cooling Method | Air Cooled |
| Input Type | AC Input with Precharge |
| Input Voltage | 400 VAC / 540 VDC |
| Power Rating | 160 kW / 215 HP |
| Output Current | 302 A |
| Enclosure Type | Open Type |
| Protection Level | IP54 / NEMA Type 12 |
| Filtering | Integrated Filtering |
| Internal Components | No Internal Transistor |
| Jumper | Installed |
| Operator Interface | No HIM |
| Control Capability | Advanced Motor Control |
| Mounting Type | Panel / Floor Mount |
| Dimensions | 1614 × 464.7 × 609.4 mm |
| 重量 | 162 kg |
Applications
• Large Pumps and Compressors – Ensures precise speed control and energy-efficient operation in heavy industrial pumping systems.
• Industrial Fans and Ventilation Systems – Provides stable airflow control for large-scale HVAC and manufacturing environments.
• Conveyor Systems and Material Handling – サポートs synchronized motion and heavy load handling in large industrial processes.
• Process Industry Equipment – Delivers consistent torque and speed regulation for mixers, crushers, and processing machinery.
• High-Power Manufacturing Machines – Suitable for applications requiring robust, high-capacity motor drives under continuous duty.
Advantages
• High Power Capacity – Rated at 160 kW / 215 HP, ideal for heavy-duty industrial motor applications.
• Flexible Input Operation – サポートs both 400 VAC AC input and 540 VDC DC bus for versatile deployment.
• Enhanced Protection – IP54 and NEMA Type 12 rating ensures resistance to dust and moisture, suitable for harsh industrial environments.
• Precharge Functionality – Limits inrush current at startup, protecting internal components.
• Integrated Filtering – Reduces electromagnetic interference and enhances system reliability.
• Customizable Integration – No internal transistor or HIM allows external modules or networked interfaces to be implemented as needed.
• Air-Cooled Design – Efficient thermal management for continuous heavy-duty operation.
