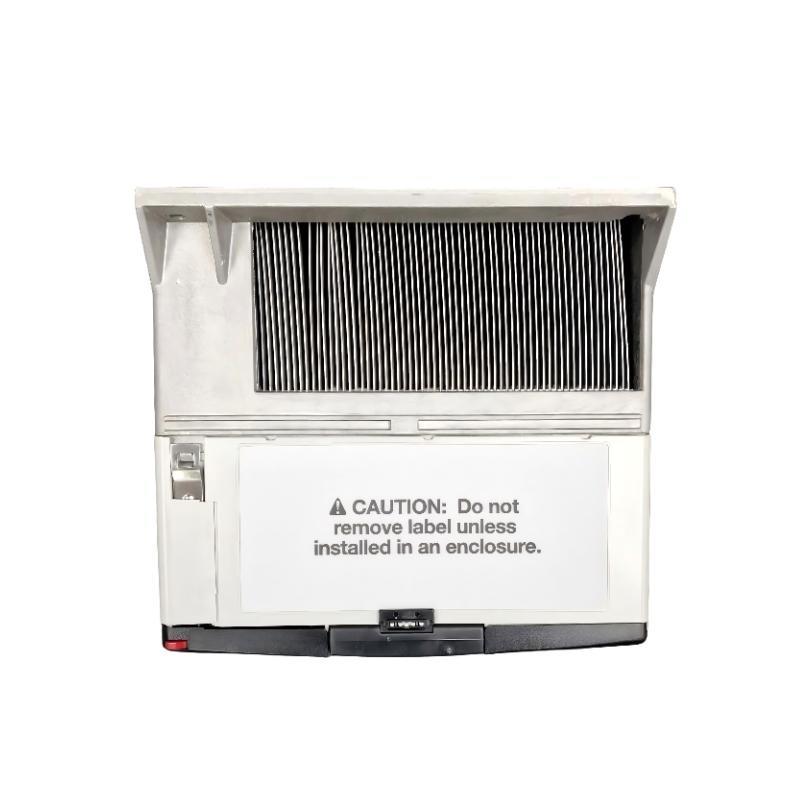

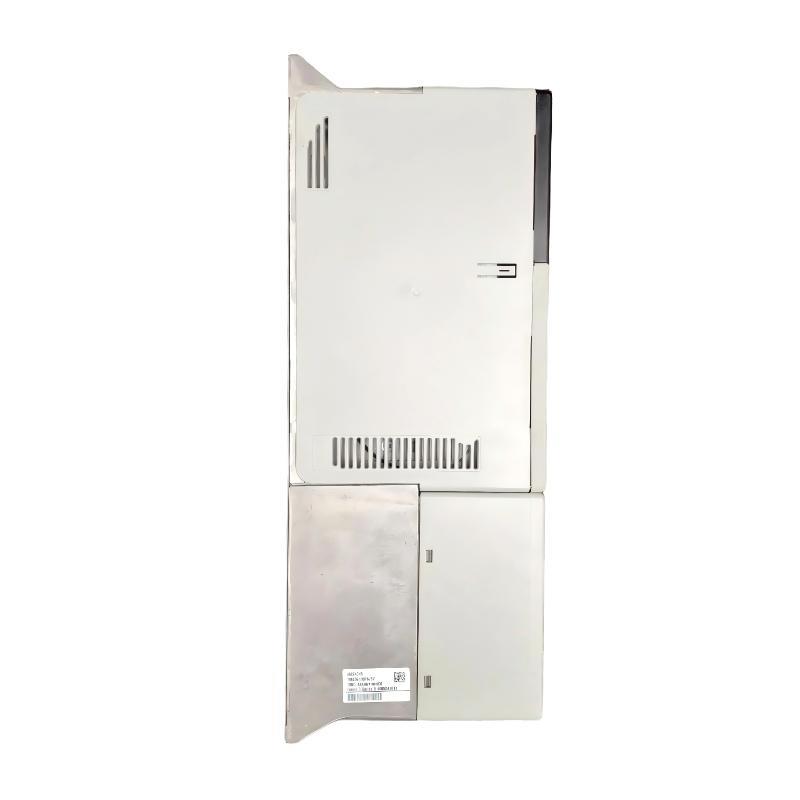

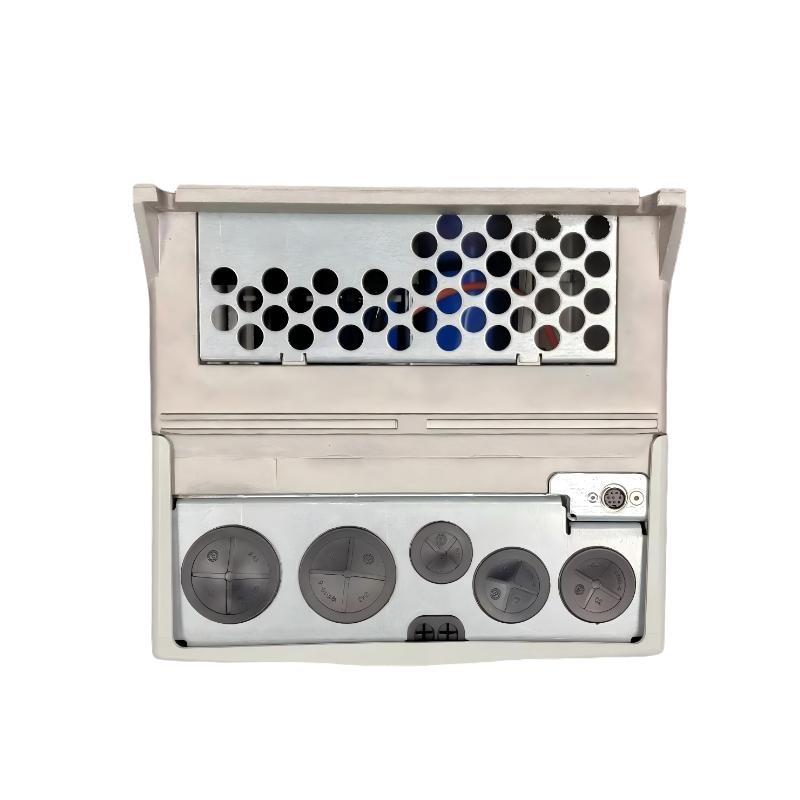

The Allen Bradley 20BC043A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable frequency drive designed to deliver precise motor speed and torque control for demanding applications. This model is rated for 22 kW output and supports 400 VAC, 3-phase input, making it ideal for medium- to heavy-duty industrial motors.
The drive includes an integrated Brake IGBT for controlled deceleration, CE filter with common-mode choke for EMC compliance, and RS485 communication for networked integration. The FRAME 3 design and IP20 / NEMA Type 1 rating make it suitable for panel-mounted installations, while the HIM blank cover and manual interface allow simple commissioning and local operation.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | PowerFlex 700 AC Drive |
| モデル Number | 20BC043A0AYNANC0 |
| Input Voltage | 400 VAC, 3-phase, 50 Hz |
| Input Current | 43 A |
| Output Power | 22 kW |
| Output Voltage | 0–400 VAC, 3-phase |
| Control Type | Vector Control with 24 VDC I/O |
| Brake Function | Integrated Brake IGBT |
| Communication | RS485 |
| Filter / Choke | CE Filter / Common Mode Choke |
| Frame Size | Frame 3 |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Operator Interface | HIM Blank Cover, Manual |
| Operating Mode | Continuous duty |
| Cooling Method | Forced air with integrated fans |
| Protection Features | Overvoltage, undervoltage, overload, short-circuit, thermal protection |
| Mounting Type | Panel / Wall-mounted |
| Dimensions (W × H × D) | 517.5 × 200 × 222 mm |
| 重量 | 18.55 kg |
Product Applications
This PowerFlex 700 AC Drive is used in industrial systems requiring precise motor control, energy efficiency, and network integration.
Typical applications include:
-
Industrial pumps, fans, and compressors
-
Conveyors, hoists, and material handling equipment
-
Packaging, bottling, and production line machinery
-
HVAC and climate control systems
-
Process automation in chemical, oil, and gas industries
-
Any application requiring braking control and vector-based motor operation
The drive ensures smooth start/stop cycles, reduces mechanical wear, and enhances energy efficiency.
Product Advantages
• Precise Motor Control
Vector control with 24 VDC I/O allows accurate speed and torque regulation under variable loads.
• Integrated Brake IGBT
Enables controlled motor deceleration without external braking resistors, improving safety and process control.
• Networked Communication
RS485 interface allows integration with industrial automation networks for monitoring and control.
• EMC Compliance
CE filter and common-mode choke reduce electromagnetic interference and ensure compliance with industrial standards.
• Robust Industrial Design
FRAME 3 construction with IP20 / NEMA Type 1 rating ensures safe panel mounting and mechanical stability.
• Maintenance-Friendly
HIM blank cover and manual interface simplify commissioning and local operation.
• Energy Efficiency
Advanced vector control optimizes energy consumption and motor performance.
