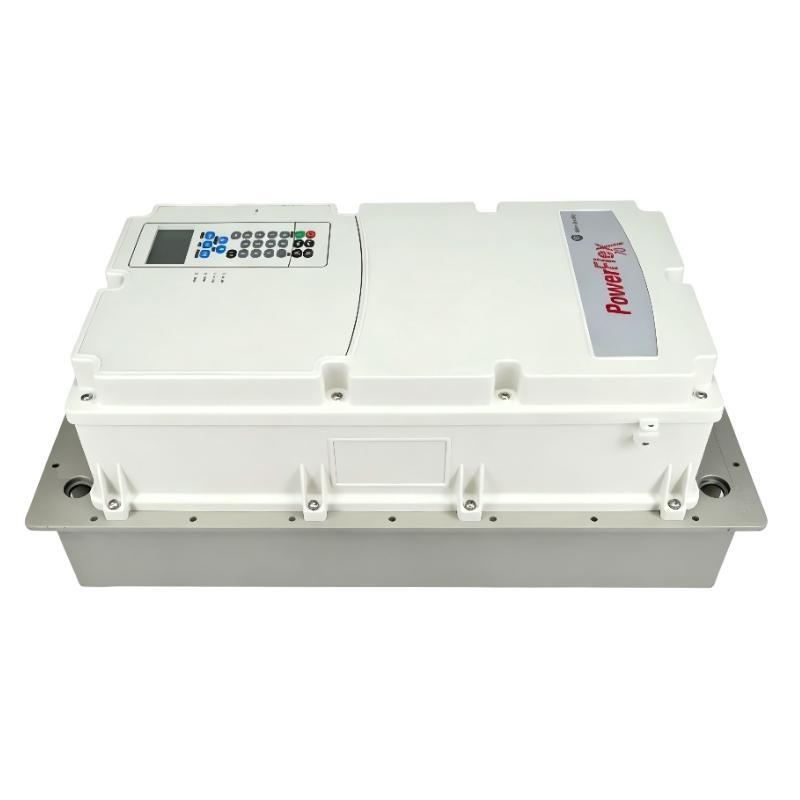

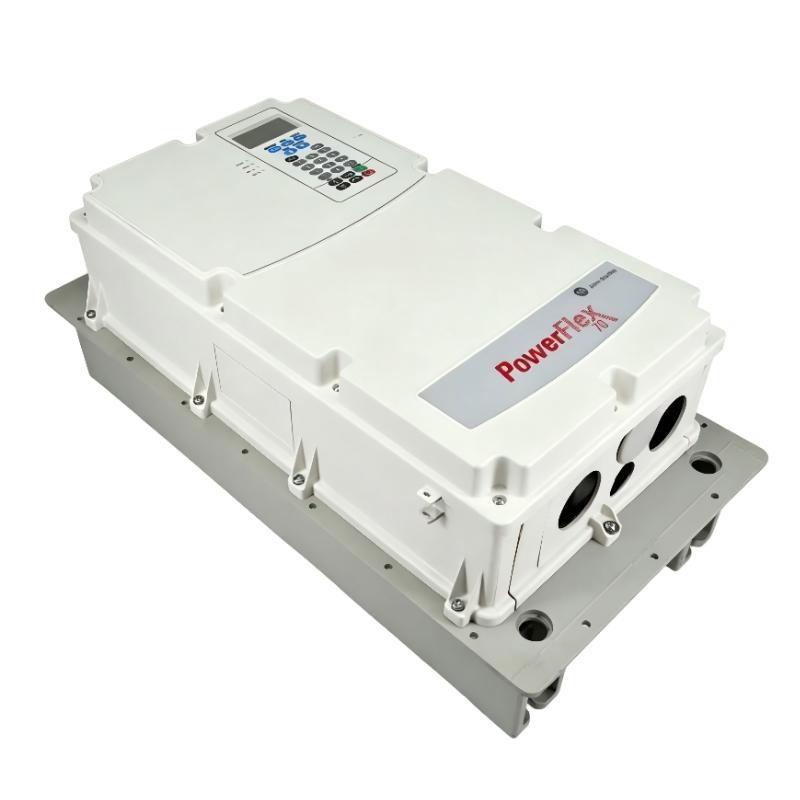

The Allen Bradley 20AD052C3AYNANC0 PowerFlex 70 AC Drive is a high-performance industrial variable frequency drive (VFD) designed for controlling large AC induction motors in harsh indoor environments. Part / the PowerFlex 70 series, this drive provides precise speed, torque, and braking control while /fering enhanced protection against dust, moisture, and industrial contaminants.
This model operates on three-phase power with a 52 Amp rating, supporting 40 HP for normal duty and 30 HP for heavy-duty motor applications. The drive is designed for wall or machine mounting and features a robust IP66/NEMA Type 4X/12 enclosure for indoor use. It includes conformal coating for added protection, a full numeric LCD display with keypad for manual control and configuration, and a pre-installed Brake IGBT for safe and controlled motor stopping. It does not include a drive-mounted brake resistor or communication module, allowing flexible system integration.
The 20AD052C3AYNANC0 is ideal for industrial machinery, pumps, fans, conveyors, and automated production lines that require high-power motor control in environments with higher exposure to dust or moisture.
製品仕様
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 20AD052C3AYNANC0 |
| Product Type | PowerFlex 70 AC Drive |
| Series | PowerFlex 70 |
| Motor Type | AC Induction Motor |
| Input Phase | 3 Phase |
| Current Rating | 52 Amps |
| Horsepower / Power Rating | 40 HP Normal Duty / 30 HP Heavy Duty |
| Mounting | Wall / Machine Mount |
| Protection | IP66 / NEMA Type 4X / 12 (Indoor Use) |
| Conformal Coating | Yes |
| Interface | LCD Display with Full Numeric Keypad |
| Brake IGBT | Installed |
| Drive-Mounted Brake Resistor | Not Included |
| Communication Module | Not Included |
| Enhanced Control | Yes |
| Feedback | None |
| Compliance | CE EMC Directive 89/336/EEC (Second Environment Filter) |
| Dimensions | 555.8 × 219.8 × 280.3 mm |
| 重量 | 18.6 kg |
Applications
• Industrial Machinery
Provides precise control for large pumps, fans, mixers, and conveyor systems.
• Material Handling and Conveyor Systems
サポートs smooth operation, accurate speed control, and reliable stopping in automated transport systems.
• Packaging and Production Lines
Ensures accurate motor performance for assembly, filling, and packaging machines.
• HVAC and Fluid Handling
Controls industrial fans, pumps, and blowers in indoor environments with dust or moisture exposure.
• Factory Automation
Integrates into production lines requiring high-power, reliable motor control with manual interface.
• Industrial Braking Applications
Built-in Brake IGBT ensures safe and controlled stopping / motors in heavy-duty operations.
Advantages
• High-Power Motor サポート
Handles 40 HP normal duty and 30 HP heavy-duty motor applications.
• Enhanced Environmental Protection
IP66/NEMA Type 4X/12 enclosure with conformal coating protects against dust, moisture, and contaminants.
• Full Numeric LCD Interface
Simplifies manual setup, monitoring, and parameter configuration.
• Pre-Installed Brake IGBT
Facilitates reliable motor stopping without external braking components.
• Enhanced Motor Control
Offers advanced acceleration, deceleration, and torque regulation.
• Flexible Mounting Options
Suitable for wall or machine mounting in indoor industrial environments.
