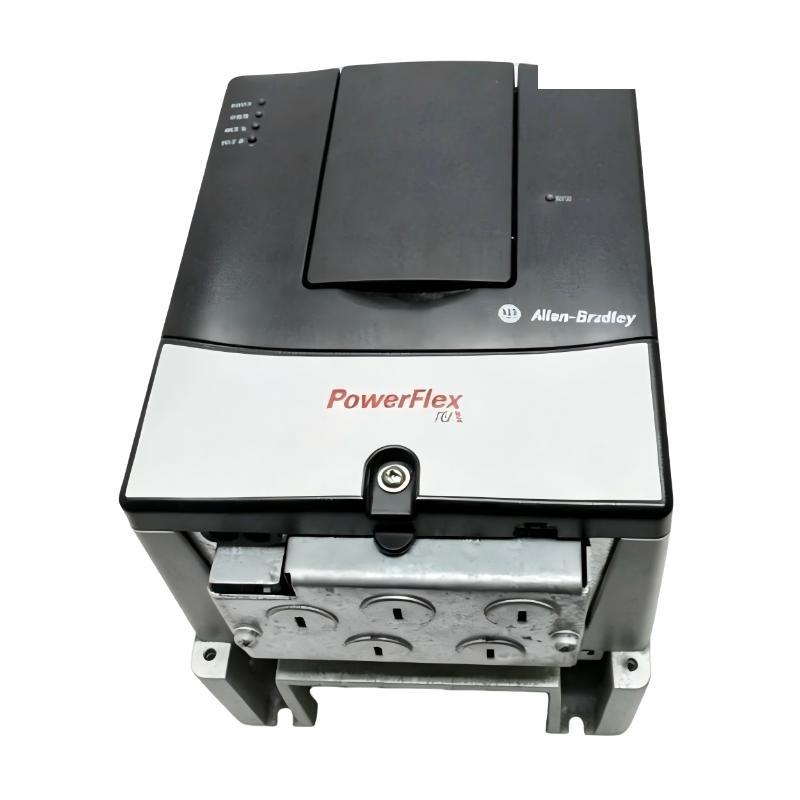

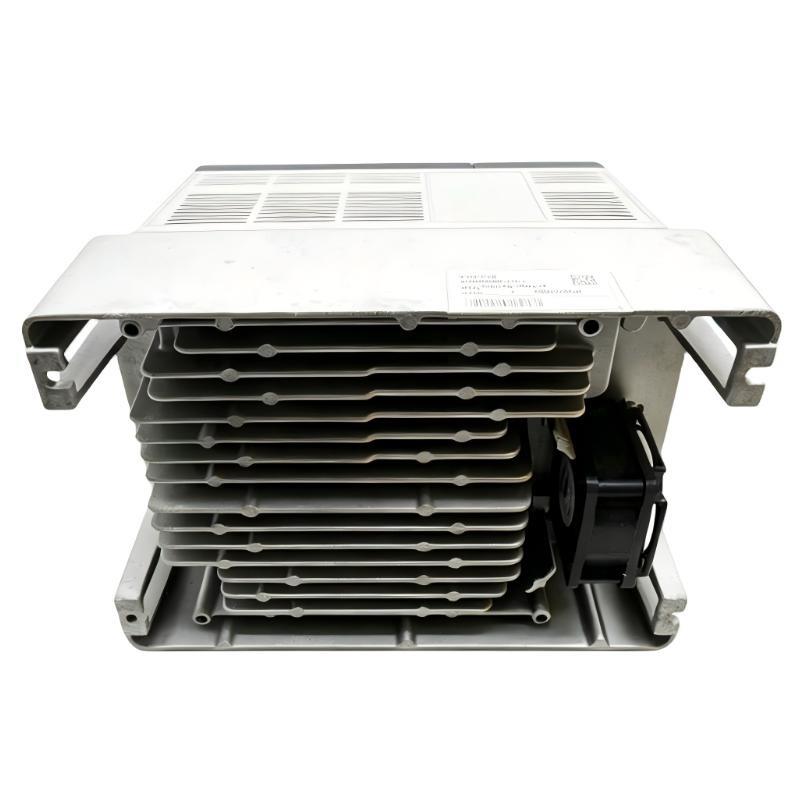

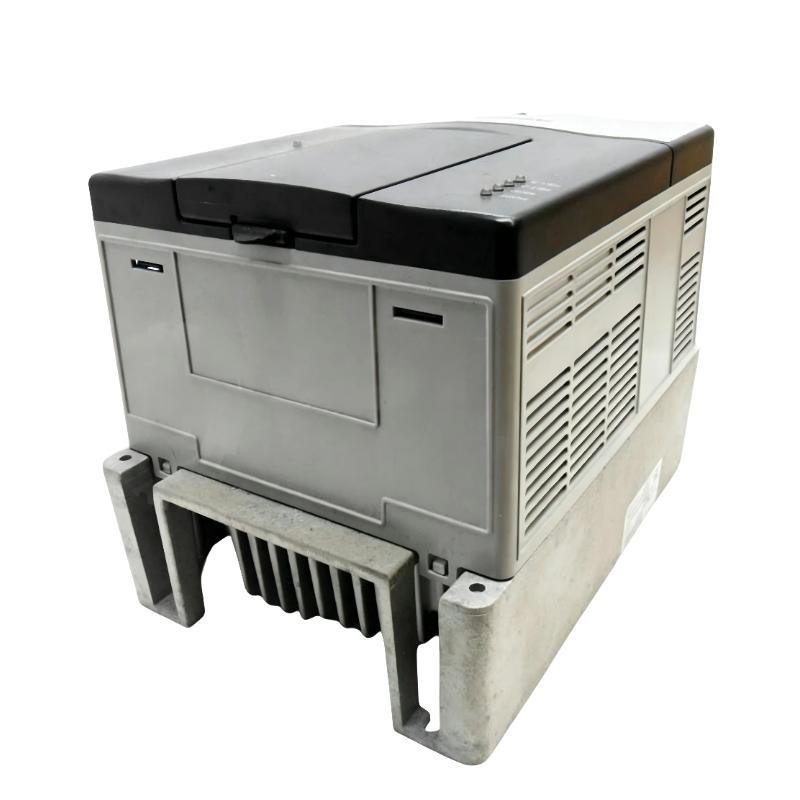

The Allen Bradley 20AB6P8A0AYNANC0 PowerFlex 70 AC Drive is a versatile industrial variable frequency drive (VFD) designed for controlling AC induction motors in a wide range / automation applications. As part / the PowerFlex 70 series, it delivers enhanced motor control capabilities while maintaining reliable performance for both normal and heavy-duty operations.
This model operates on 240 (208) VAC three-phase power and is rated at 6.8 Amps, supporting 2 HP for normal duty and 1.5 HP for heavy-duty motor loads. Designed for panel-mount installations, it features IP20/NEMA Type 1 protection, a pre-installed Brake IGBT for stopping control, and complies with CE EMC directive 89/336/EEC with a second environment filter. It comes without a HIM interface, drive-mounted brake resistor, or communication module, providing flexibility for system integrators who prefer custom configurations.
The PowerFlex 70 is suitable for conveyor systems, pumps, fans, and general industrial motor control where precise speed and torque control are required. Its enhanced control features make it an ideal solution for improving efficiency, reducing energy consumption, and achieving smooth motor operation in factory automation environments.
製品仕様
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 20AB6P8A0AYNANC0 |
| Product Type | PowerFlex 70 AC Drive |
| Series | PowerFlex 70 |
| Motor Type | AC Induction Motor |
| Input Voltage | 240 (208) VAC |
| Input Phase | 3 Phase |
| Current Rating | 6.8 Amps |
| Horsepower | 2 HP Normal Duty / 1.5 HP Heavy Duty |
| Mounting | Panel Mount |
| Protection | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Drive-Mounted Brake Resistor | Not Included |
| HIM (Human Interface Module) | Not Included (Blank Plate) |
| Communication Module | Not Included |
| Enhanced Control | Yes |
| Feedback | None |
| Compliance | CE EMC Directive 89/336/EEC (Second Environment Filter) |
| Dimensions | 234.6 × 171.7 × 179.8 mm |
| 重量 | 3.6 kg |
Applications
• Conveyor Systems
Provides precise speed and torque control for industrial conveyor operations.
• Pumps and Fans
Controls motor speed to improve energy efficiency and reduce mechanical wear.
• Material Handling Equipment
サポートs smooth start/stop operation and dynamic load handling in automated systems.
• General Industrial Motor Control
Suitable for HVAC, mixers, and machinery requiring controlled AC motor operation.
• Factory Automation Lines
Integrates into production lines requiring stable motor performance and enhanced control.
• Energy-Efficient Industrial Systems
Helps reduce energy consumption through precise motor speed regulation.
Advantages
• Enhanced Motor Control
Provides smooth acceleration, deceleration, and dynamic torque control.
• Flexible Panel-Mount Design
Compact IP20/NEMA Type 1 enclosure allows easy integration into control panels.
• Pre-Installed Brake IGBT
Simplifies braking operations without additional components.
• CE EMC Compliance
Equipped with second environment filter for industrial electromagnetic compatibility.
• Energy Efficiency
Reduces motor energy consumption and mechanical stress during operation.
• Customizable Installation
Allows optional communication modules, HIM, and brake resistor if required by system design.
