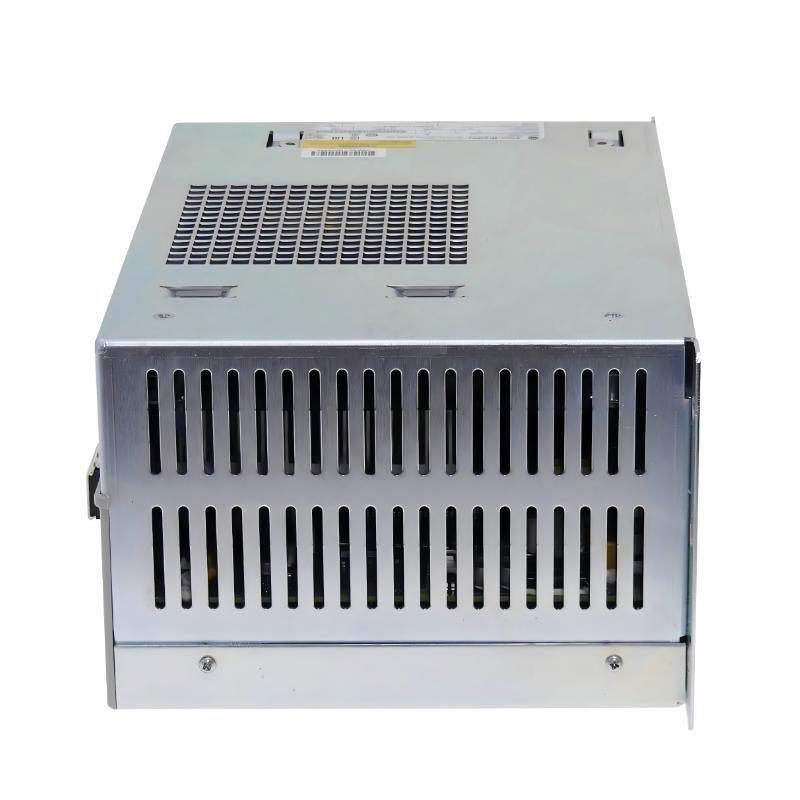

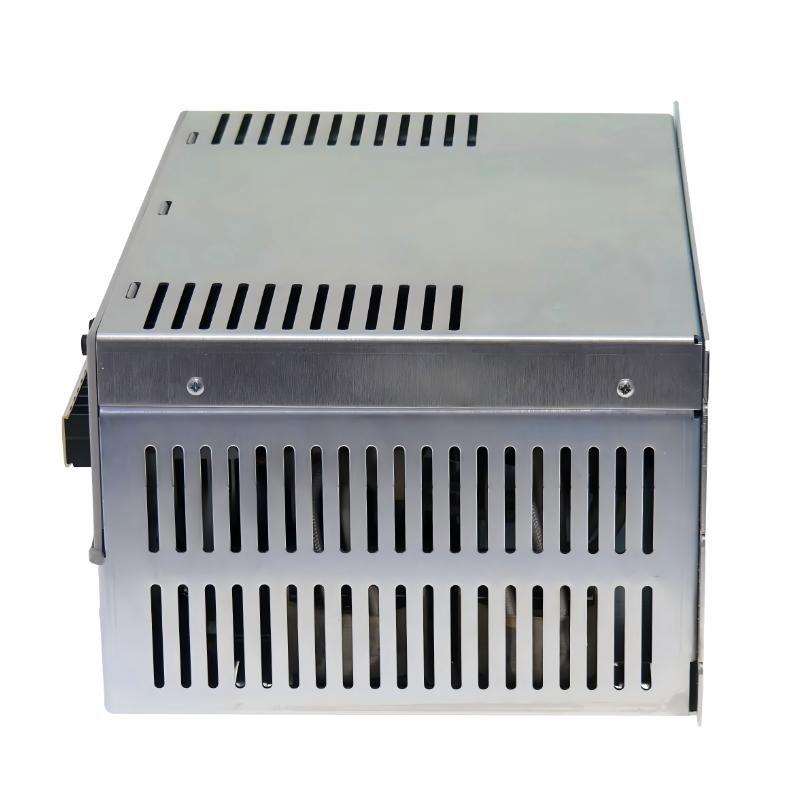

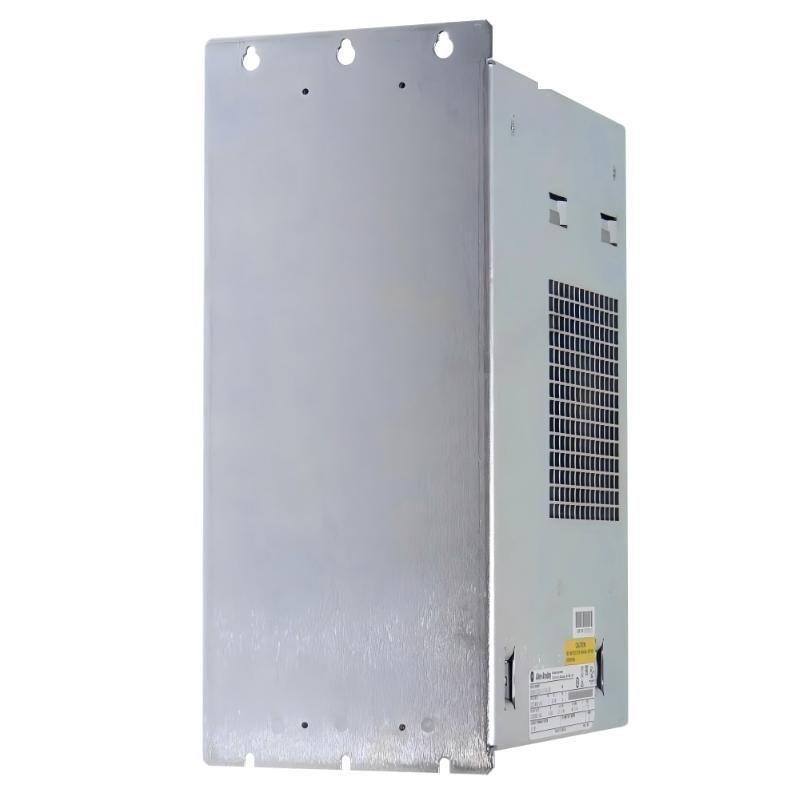

The Allen Bradley 2098-DSD-HV100-SE Ultra3000 Digital Servo Drive is a high-power motion control solution designed for demanding industrial automation systems requiring high torque, precision positioning, and stable multi-axis synchronization. As part / the Ultra3000 high-voltage series, this servo drive integrates advanced digital control technology with SERCOS communication to deliver deterministic, real-time motion performance across complex automation architectures.
With a 10 kW power class and support for high continuous and peak current output, this model is engineered for heavy-duty applications such as CNC machining centers, large robotic systems, and industrial processing equipment. It operates on a 230/460V AC input and provides 23A continuous output current with 46A peak capability, ensuring strong dynamic response under load variations. Its robust design and high reliability make it suitable for continuous industrial operation where precision and power are both critical.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | 2098-DSD-HV100-SE |
| Series | Ultra3000 |
| Type | High Voltage Digital Servo Drive |
| Communication | SERCOS Interface |
| Input Voltage | 230/460V AC |
| Frequency | 50/60 Hz |
| Control Supply Voltage | 12/24 VDC |
| Power Rating | 10 kW |
| Continuous Output Current | 23 A |
| Peak Output Current | 46 A |
| Control Modes | Position, Velocity, Torque |
| Motor Compatibility | Allen-Bradley Servo Motors |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Cooling Method | Forced Air Cooling |
| Environmental Rating | IP20 |
| Dimensions | 360.7 × 151.6 × 242.2 mm |
| 重量 | 10.44 kg |
Applications
• Heavy-duty CNC machining systems, providing stable high-torque control for cutting, milling, and precision manufacturing operations.
• Industrial robotics, supporting coordinated motion in large robotic arms used in welding, assembly, and material handling.
• Automated production lines, ensuring synchronized multi-axis motion for high-speed manufacturing processes.
• Material handling systems, including large conveyor networks requiring strong and stable servo control.
• Metal processing and forming equipment, where high peak torque and continuous performance are essential for production stability.
Advantages
• High power capability (10 kW class) supports demanding industrial automation and heavy-load operations.
• High dynamic response (46A peak current) ensures strong acceleration and load-handling performance.
• SERCOS communication interface provides deterministic, high-speed synchronization across multi-axis systems.
• Flexible input voltage (230/460V AC) allows global industrial deployment.
• Robust industrial-grade design ensures long-term stability in harsh operating environments.
• Advanced servo control technology delivers precise motion, smooth operation, and consistent positioning accuracy.
