製品紹介

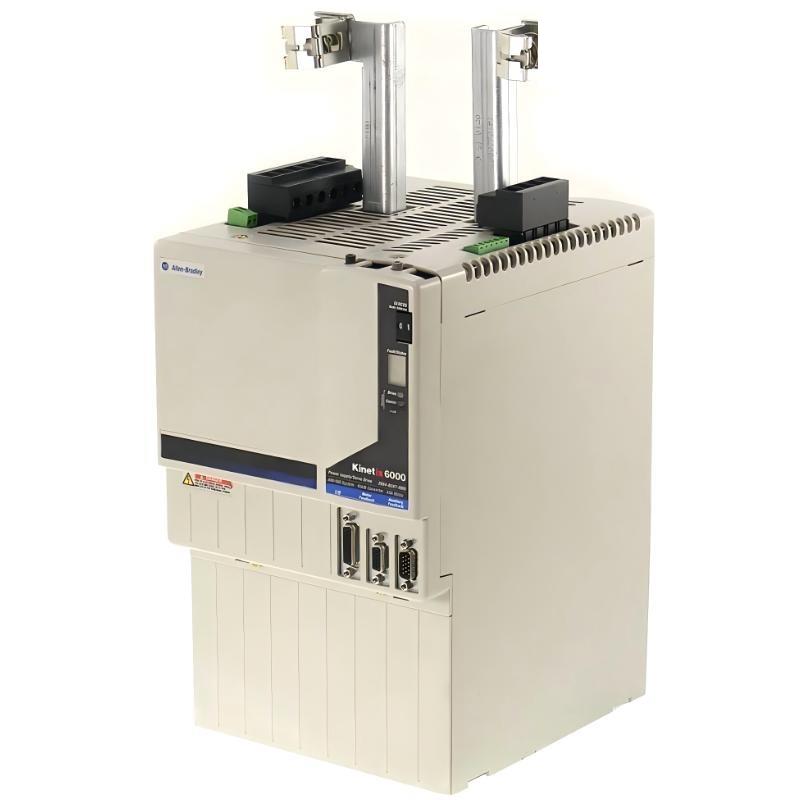

The Allen-Bradley 2094-BC07-M05 Kinetix integrated axis module is a high-power motion control solution designed for demanding industrial applications within the Kinetix 6000 servo drive platform. This module integrates both converter and inverter functions into a single 台, enabling efficient control / high-capacity servo motors in complex automation systems.
Designed to operate on 360/480 VAC input power, the module delivers a powerful 45 kW converter output and a 22 kW inverter output. It is particularly suited for applications requiring high torque, rapid acceleration, and precise motion coordination across multiple axes.
Unlike some variants in the series, this model does not include a Safe Torque-Off (STO) feature, making it more suitable for systems where safety functions are handled externally or through other system components. Its robust construction and high-performance capabilities make it ideal for heavy-duty industrial environments.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 2094-BC07-M05 |
| Product Type | Integrated Axis Module |
| Series | Kinetix 6000 |
| Input Voltage | 360 / 480 VAC |
| Converter Power | 45 kW |
| Converter Current | 68 A |
| Inverter Power | 22 kW |
| Inverter Current | 49 A |
| Safety Feature | Not included (No STO) |
| Function | Integrated converter and inverter |
| Application Type | High-power servo motion control |
| Control Capability | Multi-axis coordinated control |
| Installation Type | Panel-mounted |
| Design Type | Integrated high-capacity module |
| Cooling Method | Forced air cooling |
| Dimensions | 375 x 196 x 249 mm |
| 重量 | 10.1 kg |
Applications
• Heavy-Duty Motion Systems – Handles large loads and high inertia applications with stable performance.
• Metal Processing Equipment – サポートs high torque requirements in cutting, rolling, and forming processes.
• Large Conveyor Systems – Ensures reliable and continuous operation in material transport systems.
• Industrial Press Machines – Delivers powerful and controlled motion output.
• Automated Production Lines – Coordinates multiple high-power axes for synchronized operation.
• Robotics and Gantry Systems – Provides strong and responsive motion control for large-scale systems.
Advantages
• High Power Output – サポートs demanding industrial applications requiring strong motor performance.
• Integrated Architecture – Combines converter and inverter, reducing system complexity.
• Optimized for Kinetix 6000 – Ensures seamless compatibility with existing motion systems.
• Robust Industrial Design – Built for continuous operation in harsh environments.
• Efficient System Layout – Reduces wiring and installation effort.
• Flexible Safety Integration – Allows external safety system design due to absence / STO.
• Reliable Performance – Maintains stable and precise motion control under heavy loads.
