製品紹介

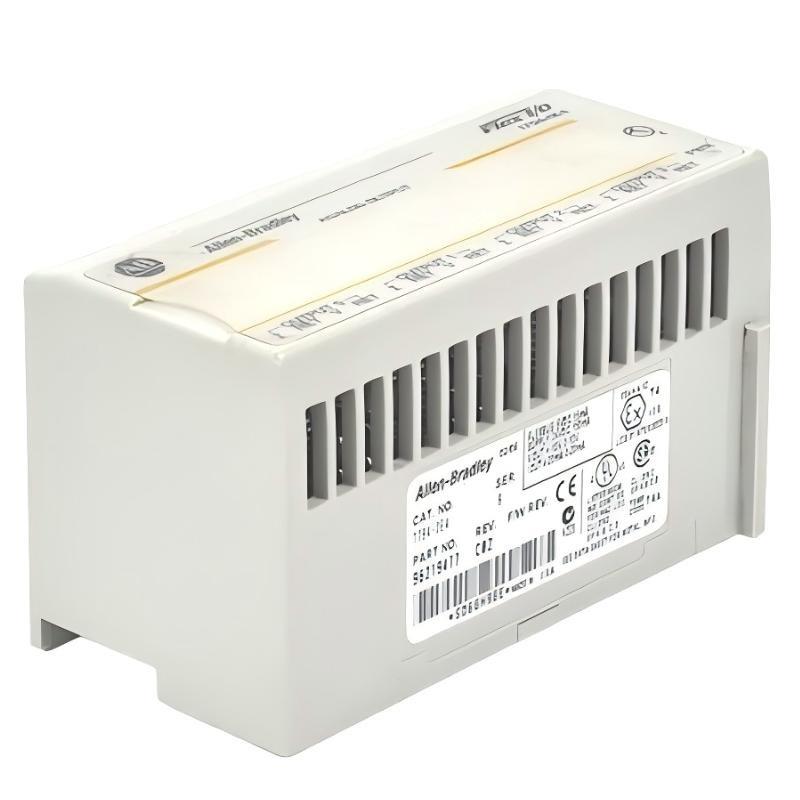

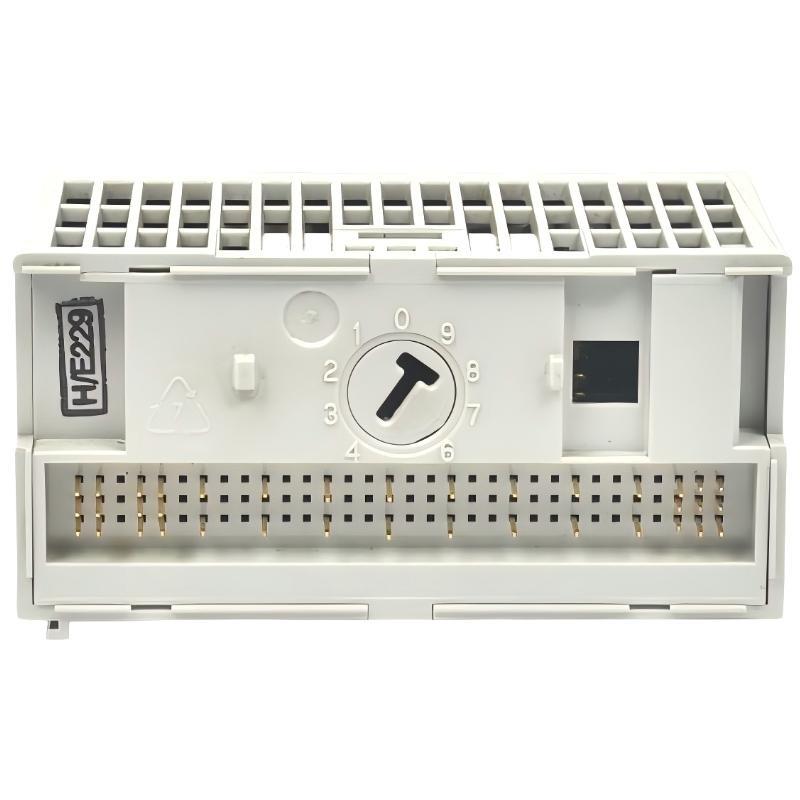

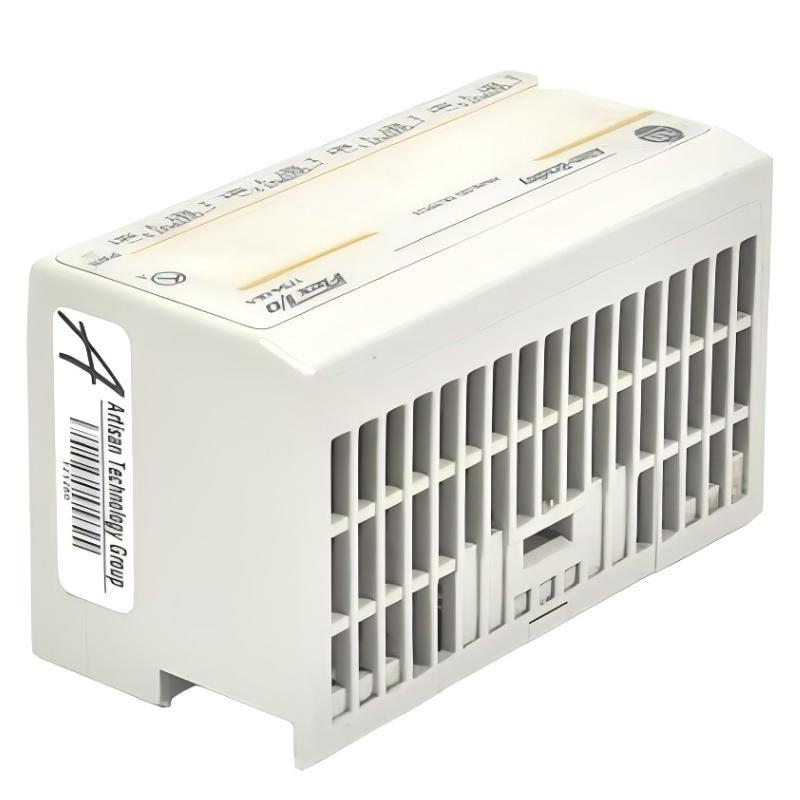

The Allen-Bradley 1794-OE4 FLEX I/O Analog Output Module is a precision analog output module designed for industrial control systems requiring accurate and stable signal transmission. As part / the FLEX I/O series from Rockwell Automation, it provides reliable 4–20 mA current outputs for interfacing with field devices such as control valves, actuators, and signal converters.
This module features 4 single-ended analog output channels, allowing independent control / multiple process variables. It is well suited for distributed I/O systems where analog signals need to be transmitted over long distances with minimal interference.
Designed for flexibility and ease / integration, the 1794-OE4 supports DIN rail mounting and uses screw terminal connections for secure wiring. Its compact structure and robust performance make it a dependable solution for both process and machine control applications.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | Analog Output Module |
| Series | FLEX I/O |
| メーカー | Rockwell Automation |
| モデル Number | 1794-OE4 |
| Number / Channels | 4 Outputs |
| Output Type | Analog (Current) |
| Signal Range | 4–20 mA |
| Channel Configuration | Single-Ended |
| Power Supply | 24 VDC |
| Output Resolution | High-resolution analog control |
| Accuracy | Industrial-grade precision output |
| Isolation | Channel-to-backplane isolation |
| Wiring Method | Screw Connection |
| Mounting Method | DIN Rail Mount |
| Housing Type | Open Style |
| Ingress Protection | IP20 |
| Response Time | Fast analog update rate |
| Dimensions | 97 x 46 x 53 mm |
| 重量 | 0.11 kg |
Applications
● Used in process control systems for regulating devices such as control valves and variable speed drives
● Ideal for analog signal transmission in industries like oil & gas, chemical processing, and power generation
● Applied in distributed I/O architectures, reducing signal wiring distance and improving system flexibility
● Suitable for automation systems requiring precise current output control
● Commonly integrated into PLC-based systems such as ControlLogix and CompactLogix
● Used in machine automation where analog control / actuators is required
Advantages
● Accurate 4–20 mA output signals ensure reliable control / field devices
● 4 independent channels allow simultaneous control / multiple process variables
● Stable analog performance minimizes signal drift and improves control accuracy
● Screw terminal connections provide secure and reliable wiring
● Compact modular design enables flexible installation in distributed systems
● Seamless integration with FLEX I/O platform reduces engineering complexity
● Industrial-grade reliability ensures long-term stable operation
