製品紹介

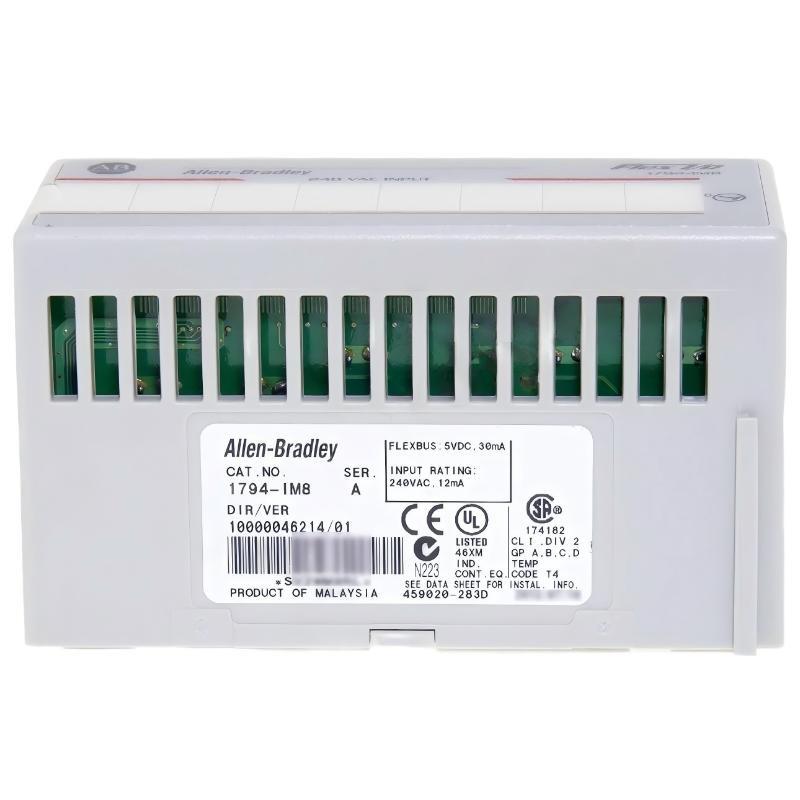

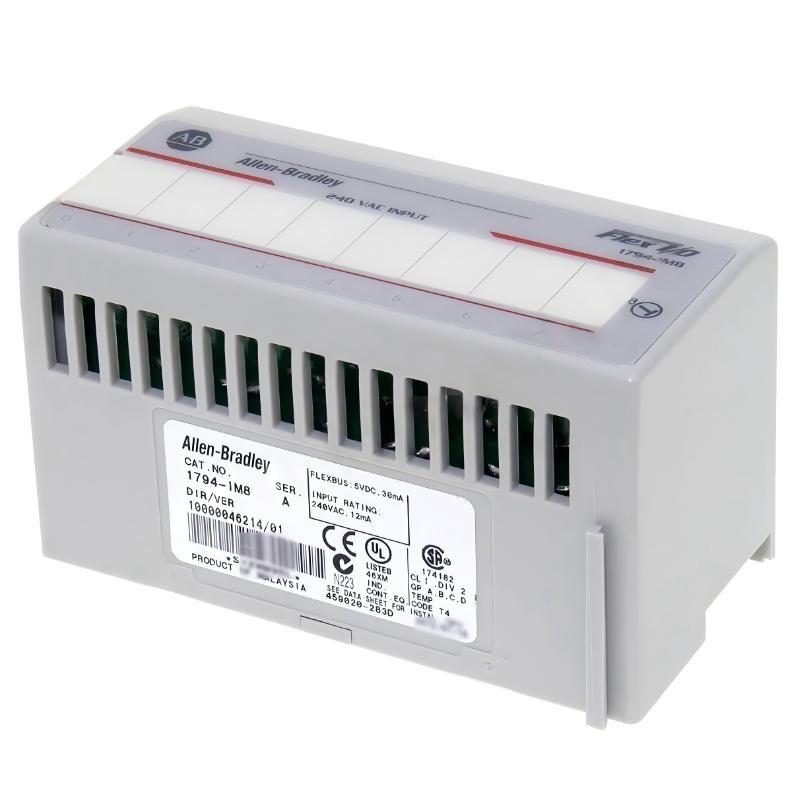

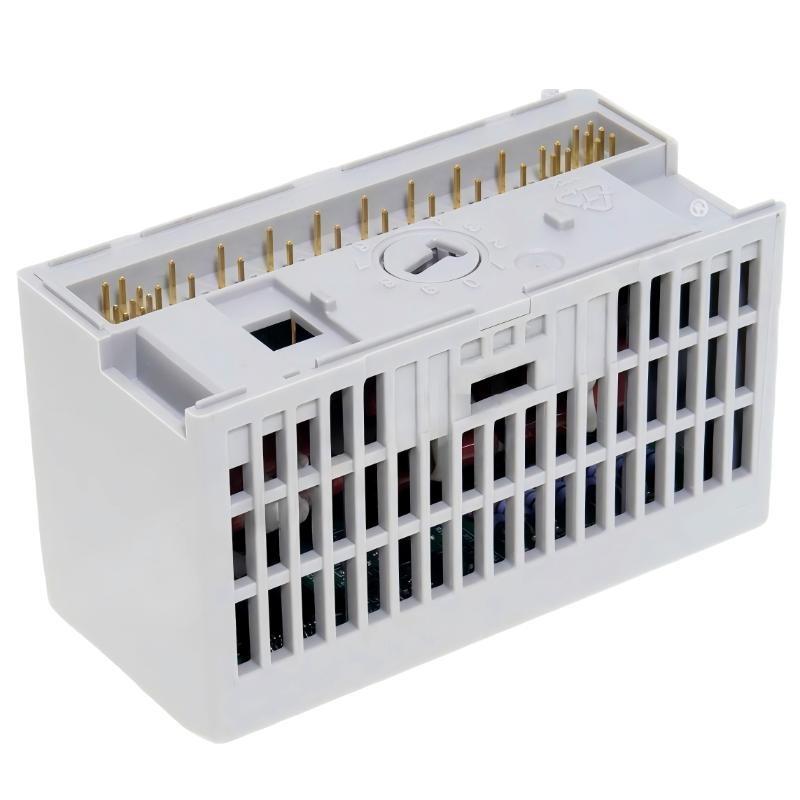

The Allen-Bradley 1794-IM8 FLEX I/O AC Digital Input Module is a compact and reliable discrete input module designed for monitoring high-voltage AC signals in industrial automation systems. As part / the FLEX I/O family from Rockwell Automation, this module is built to support distributed I/O architectures with flexibility, stability, and efficient performance.
With 8 input points supporting 240 VAC signals, the 1794-IM8 is ideal for interfacing with AC-powered field devices such as switches, relays, and contactors. Its open-style construction allows efficient heat dissipation, while DIN rail mounting ensures quick and convenient installation in control panels.
This module is engineered to provide accurate and stable AC signal detection, making it a dependable solution for industrial environments where high-voltage discrete inputs are required.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | 1794-IM8 |
| ブランド | Allen-Bradley |
| Series | FLEX I/O |
| Module Type | AC Digital Input Module |
| Signal Type | Discrete |
| Input Type | AC Input |
| Number / Inputs | 8 Points |
| Rated Voltage | 240 VAC |
| Frequency Range | Typical industrial AC frequency |
| Mounting Type | DIN Mount |
| Construction | Open Style |
| Protection Rating | IP20 |
| Communication | FLEX I/O Backplane Communication |
| Isolation | Electrical isolation between field and system |
| Performance | Stable AC signal detection |
| Dimensions | 94 × 46 × 53 mm |
| 重量 | 0.1 kg |
Applications
• Industrial Control Systems – Used for monitoring AC digital signals from switches, relays, and contact devices.
• Manufacturing Equipment – Enables real-time detection / machine states in automated production lines.
• Power Distribution Systems – Suitable for AC signal acquisition in electrical control panels.
• Process Automation – サポートs reliable input monitoring in industries such as chemical, oil & gas, and utilities.
• Distributed I/O Systems – Ideal for remote AC signal collection, improving flexibility and reducing wiring complexity.
Advantages
• High Voltage Input Capability – サポートs 240 VAC signals, suitable for industrial AC applications.
• Compact Design – Provides 8 input channels in a space-saving module, ideal for limited panel space.
• Reliable Performance – Ensures accurate and stable AC signal detection in demanding environments.
• Easy Installation – DIN rail mounting allows quick and efficient setup.
• Flexible System Integration – Fully compatible with FLEX I/O systems for modular automation solutions.
• Industrial Durability – Designed for continuous operation in industrial environments.
