Product Introduction

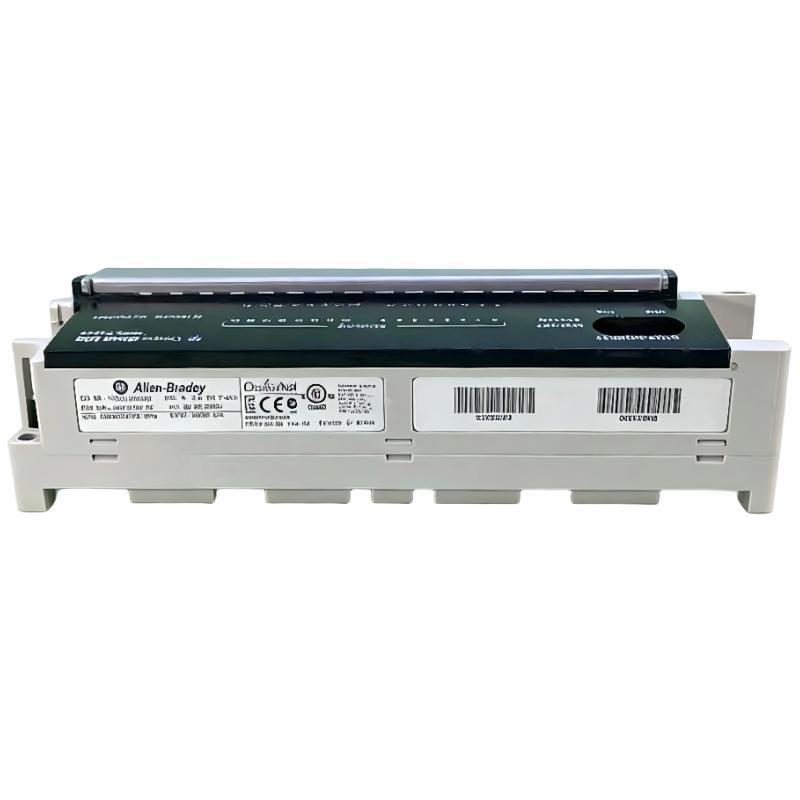

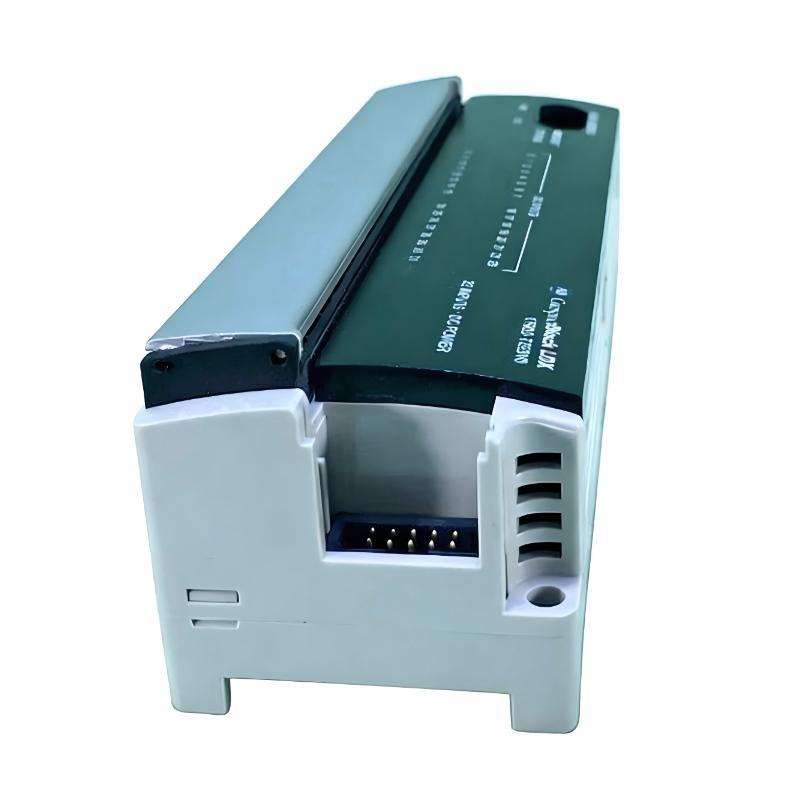

The Allen-Bradley 1790D-T32BV0 DeviceNet LDX I/O Universal Input Base Module is a compact distributed I/O module designed for industrial automation systems that utilize DeviceNet communication. Developed by Rockwell Automation under the Allen-Bradley product family, this module belongs to the CompactBlock LDX series and is intended to provide efficient signal acquisition at the machine level.
The module integrates 32 universal digital input channels in a compact housing, allowing a large number / field devices to be connected within a limited panel space. It operates with a 24 VDC power supply, which aligns with standard industrial control systems and ensures stable operation in typical automation environments.
Designed for distributed I/O architecture, the 1790D-T32BV0 allows sensors and switches to be connected close to the equipment being monitored. This approach helps reduce long wiring runs and simplifies installation inside machine control panels. With its compact construction and integrated terminal connections, the module provides a practical solution for digital signal acquisition in modern factory automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product モデル | Allen-Bradley 1790D-T32BV0 |
| Product Type | DeviceNet LDX I/O Universal Input Base Module |
| Digital Inputs | 32 Universal Inputs |
| Communication Protocol | DeviceNet |
| Supply Voltage | 24 VDC |
| Signal Type | Digital Input |
| Input Configuration | Universal industrial input |
| Mounting Type | Panel Mount |

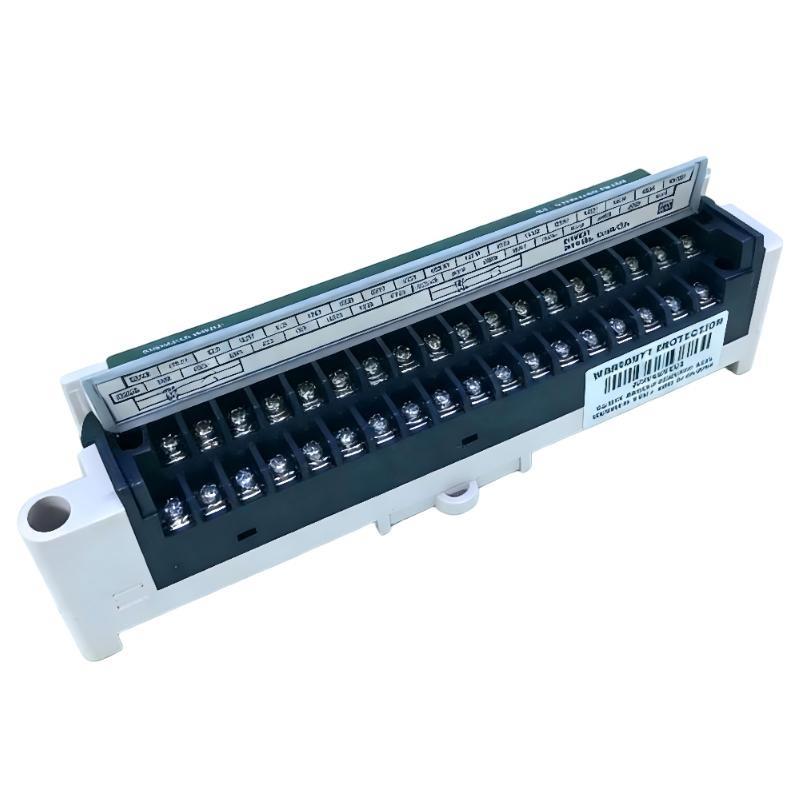

| Wiring Method | Integrated terminal connections |
| Enclosure Rating | IP20 |
| Industrial Network Compatibility | DeviceNet distributed I/O systems |
| Application Environment | Industrial automation and machine control |
| Dimensions | 176 × 42 × 52 mm |
| 重量 | 0.3 kg |
Applications
• Automated Machinery Control
Used to collect digital signals from sensors and switches in automated machines.
• Packaging and Assembly Lines
Monitors product detection sensors and operational signals from assembly equipment.
• Material Handling Systems
Captures input signals from conveyors, position switches, and detection devices.
• Distributed I/O Networks
Provides field-level signal acquisition within DeviceNet automation architectures.
• OEM Industrial Equipment
Installed in custom machine panels to simplify field wiring and sensor connections.
• Factory Monitoring Systems
Reads equipment status signals such as valve positions, safety switches, and machine feedback.
Advantages
• High Input Capacity
Provides up to 32 digital input channels in a single compact module.
• DeviceNet Network Integration
Designed to operate within DeviceNet distributed control systems for reliable field communication.
• Compact Installation Structure
Slim mechanical design allows installation inside small control cabinets or machine panels.
• Reduced Field Wiring Complexity
Distributed I/O architecture reduces long cable runs between sensors and controllers.
• Stable Industrial Performance
Designed for continuous operation in demanding manufacturing environments.
• Flexible Machine Integration
Suitable for many types / automation equipment and industrial control applications.
