製品紹介

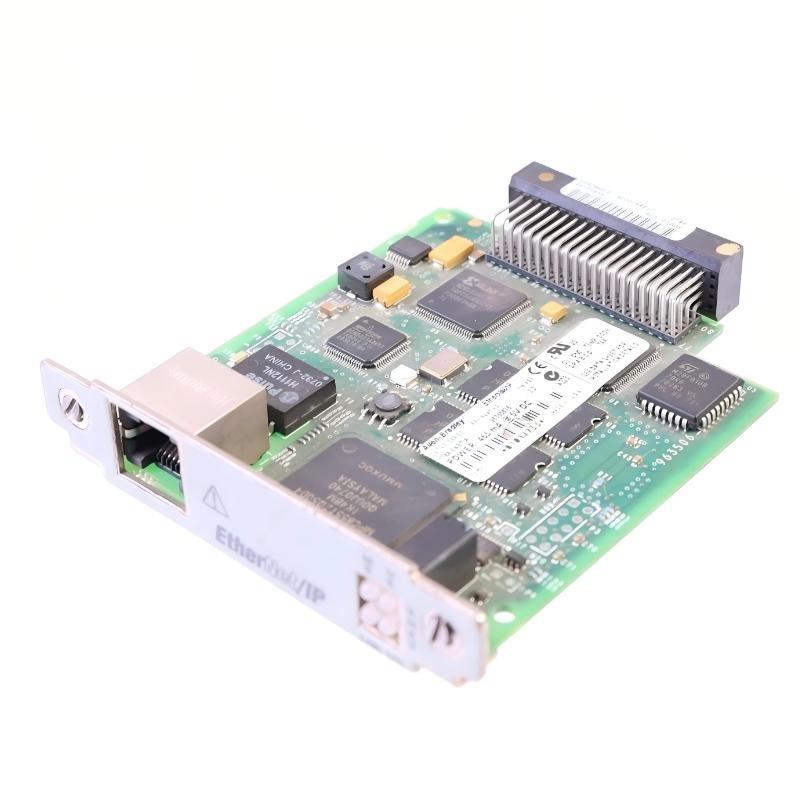

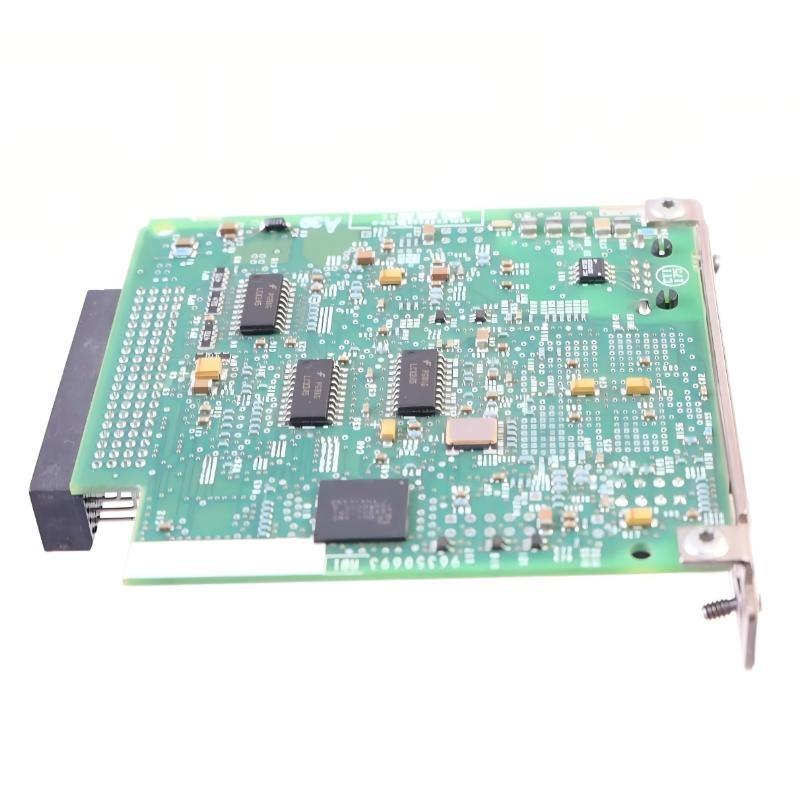

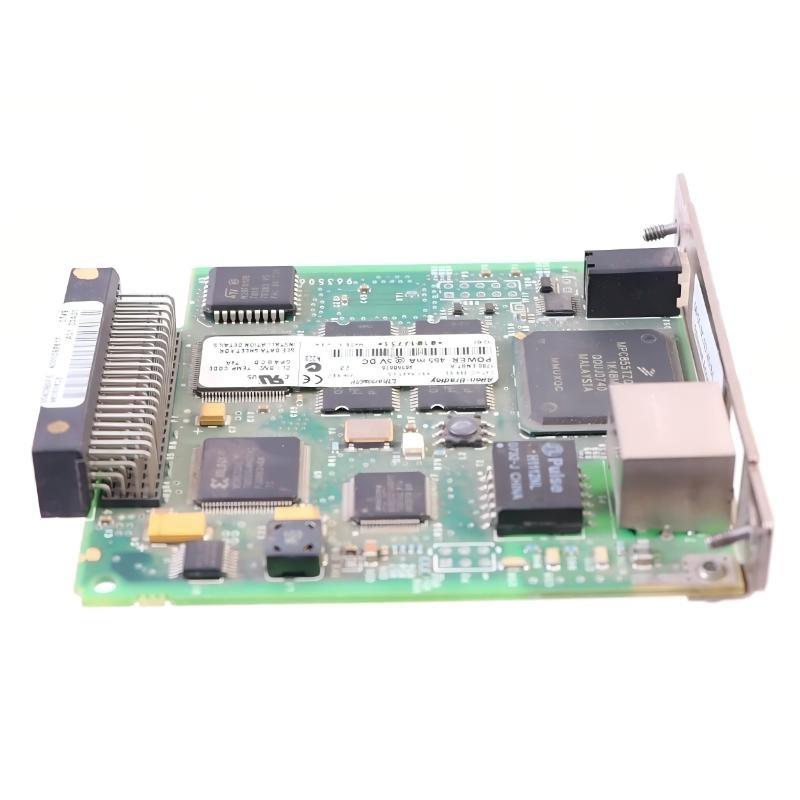

The Allen-Bradley 1788-ENBT is an EtherNet/IP communication daughtercard designed to provide high-speed network connectivity for CompactLogix and MicroLogix controllers. It allows industrial automation systems to interface with Ethernet networks for data exchange, remote monitoring, and integration with higher-level control systems such as SCADA or MES.
The daughtercard is engineered for modular installation, adding EtherNet/IP communication capability to compatible controllers. It supports full-duplex Ethernet communication, network diagnostics, and secure data transfer. The 1788-ENBT enables seamless integration with Allen-Bradley and third-party devices that support EtherNet/IP protocols, ensuring reliable and deterministic communication in industrial environments.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | 1788-ENBT |
| Product Type | EtherNet/IP Communication Daughtercard |
| Communication Protocol | EtherNet/IP |
| Connector Type | RJ45 |
| Data Rate | 10/100 Mbps |
| Duplex Mode | Full-duplex and half-duplex support |
| Network Topology | Star, daisy chain, or linear segments with switches |
| IP Configuration | Static IP, DHCP, BOOTP |
| Diagnostic サポート | Link/activity LEDs, error counters, network status monitoring |
| Mounting | Controller slot installation (daughtercard) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Dimensions | 100 × 25× 80 mm |
| 重量 | 0.1 kg |
| Security | サポートs standard EtherNet/IP network security measures |
| Reliability | Industrial-grade design for continuous operation |
Product Applications
-
Adding EtherNet/IP connectivity to CompactLogix and MicroLogix controllers
-
Real-time data communication between PLCs and SCADA/MES systems
-
Integration with human-machine interfaces (HMIs) and operator panels over Ethernet
-
Industrial automation networks requiring high-speed, deterministic communication
-
Remote monitoring, diagnostics, and control / industrial processes
-
Interfacing PLCs with other Allen-Bradley or third-party devices on EtherNet/IP networks
-
サポートing factory-wide Ethernet networks for coordinated control and data logging
Product Advantages
-
High-Speed Communication: サポートs 10/100 Mbps full-duplex communication for rapid data transfer.
-
Seamless Integration: Fully compatible with Allen-Bradley controllers and EtherNet/IP-enabled devices.
-
Network Diagnostics: Built-in LEDs and error counters help quickly identify network issues.
-
Flexible IP Configuration: サポートs static IP, DHCP, and BOOTP for easy network setup.
-
Modular Design: Daughtercard form factor allows simple installation into existing controller slots.
-
Robust Industrial Design: Operates reliably in industrial environments with temperature fluctuations and electrical noise.
-
Scalable Networking: サポートs various Ethernet topologies including star, daisy-chain, and linear configurations.
