製品紹介

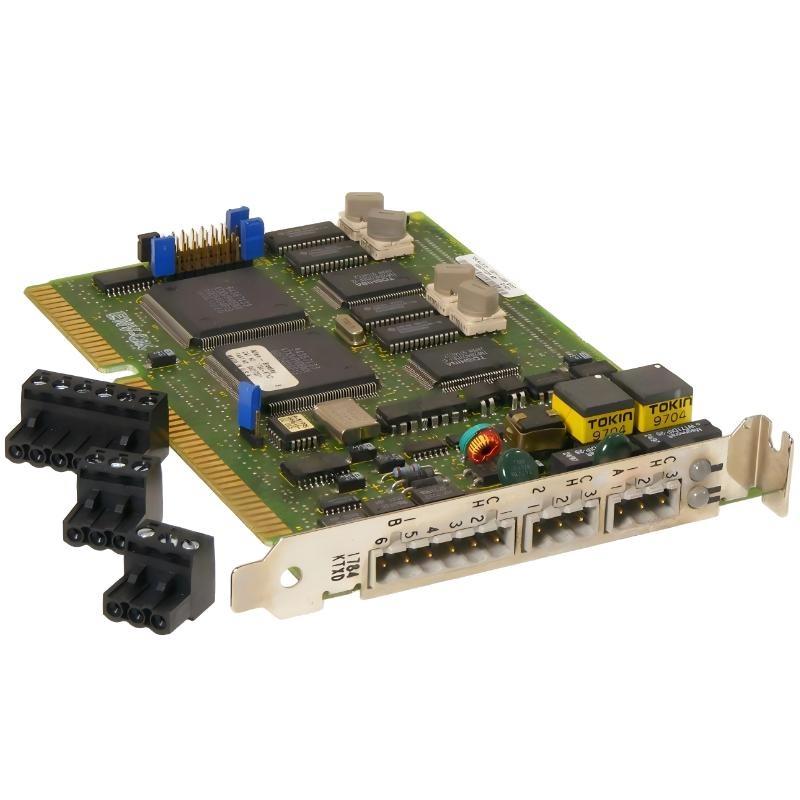

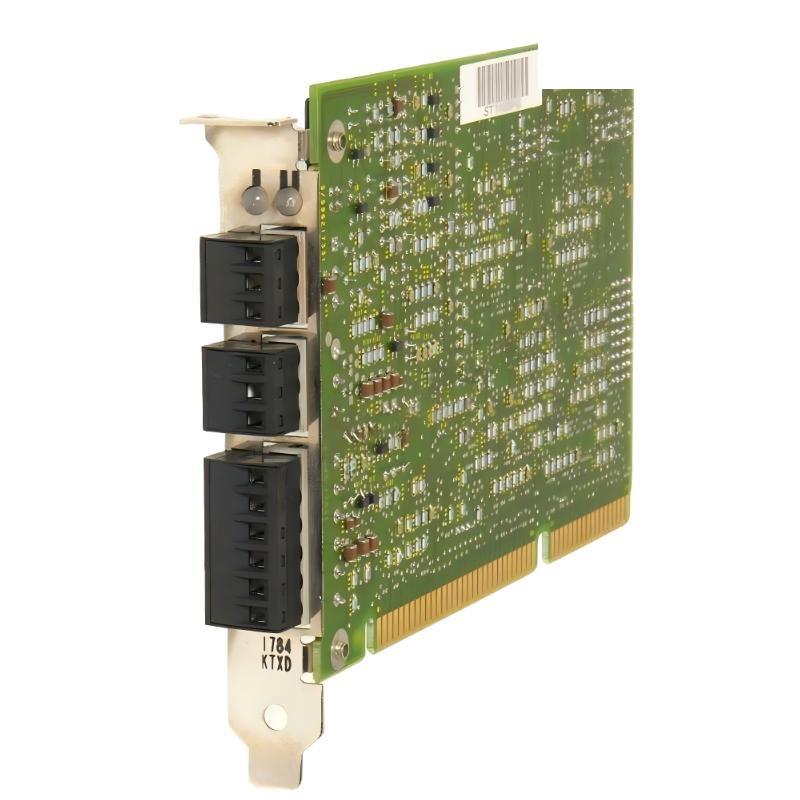

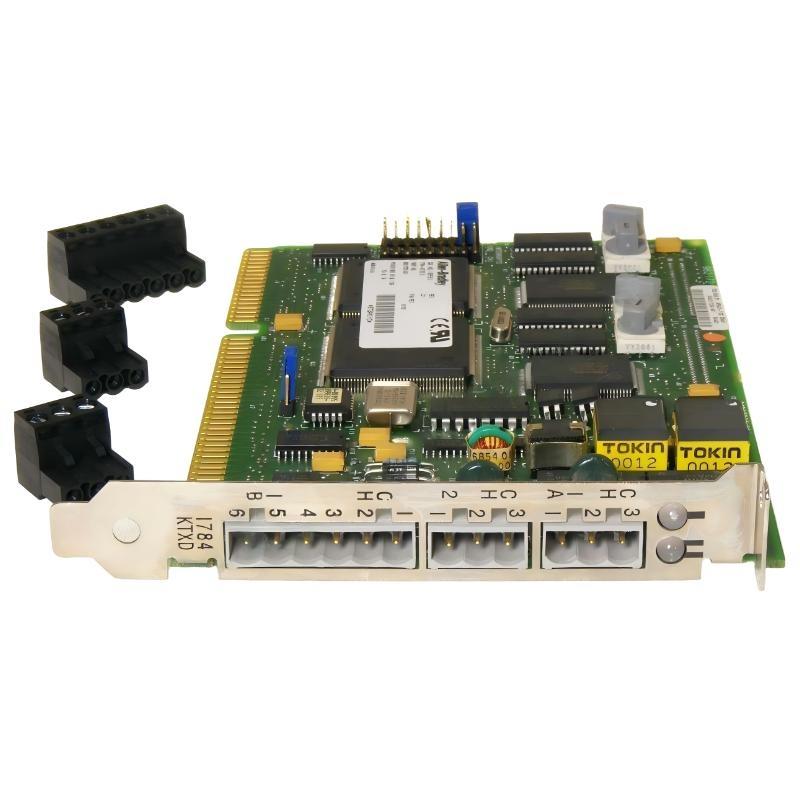

The Allen-Bradley 1784-KTXD Communication Interface Card is an industrial PC interface module designed to provide reliable connectivity between a computer and Allen-Bradley PLC networks. サポートing multiple legacy communication protocols such as DH+, DH-485, and Remote I/O (RIO), it enables direct interaction with PLC systems for programming, monitoring, and diagnostics.
This card features a dual-channel design, allowing simultaneous communication across different networks or devices. It also functions as a Remote I/O scanner, enabling the host PC to actively control and monitor distributed I/O systems in real time.
Built on a 16-bit ISA/EISA architecture, the 1784-KTXD is intended for industrial computers used in legacy automation environments. Its compact, open-style design ensures easy installation and stable performance in control cabinets and industrial workstations.
製品仕様
| Parameter | Value |
|---|---|
| Product Type | Communication Interface Card |
| モデル Number | 1784-KTXD |
| Bus Interface | ISA / EISA (16-bit) |
| Communication Protocols | DH+, DH-485, Remote I/O (RIO) |
| Channel Configuration | 2-channel communication |
| Remote I/O Function | Acts as Remote I/O Scanner |
| Function | PC-to-PLC communication and network access |
| PLC Compatibility | PLC-2, PLC-3, and compatible systems |
| Installation Type | Open-style, mountable |
| Application Area | Industrial automation and legacy system integration |
| Communication Mode | Real-time data exchange |
| Dimensions | 165 × 20 × 107 mm |
| 重量 | 0.14 kg |
Applications
• PLC programming and diagnostics
Enables direct PC communication with PLC systems for configuration, monitoring, and troubleshooting.
• Remote I/O control systems
Acts as a scanner to manage distributed I/O racks in real-time industrial applications.
• Industrial network integration
サポートs communication across DH+, DH-485, and RIO networks.
• Legacy system maintenance
Provides essential connectivity for servicing and upgrading older Allen-Bradley systems.
• Data acquisition and monitoring
Facilitates continuous data exchange between PC systems and industrial controllers.
Advantages
• Multi-protocol support
Compatible with DH+, DH-485, and RIO for broad legacy system integration.
• Dual-channel capability
Allows simultaneous communication with multiple networks or devices.
• Remote I/O scanner functionality
Enables the PC to function as a controller for distributed I/O systems.
• Stable industrial communication
Designed for reliable operation in noisy and demanding environments.
• Compact and lightweight design
Easy to install in industrial PCs with limited space availability.
• Efficient system maintenance tool
Simplifies diagnostics and troubleshooting / legacy automation systems.
