製品紹介

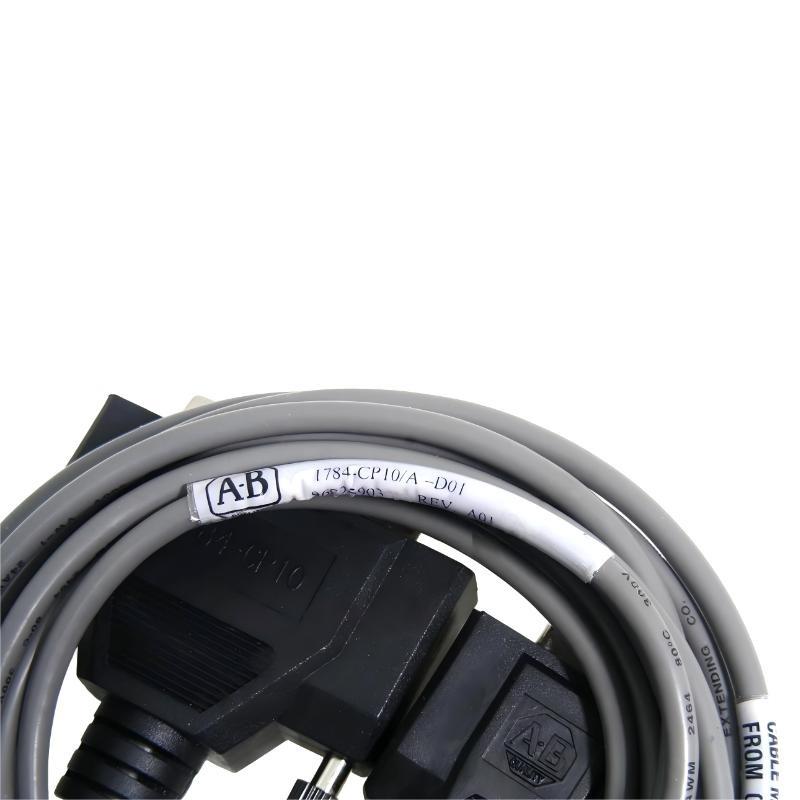

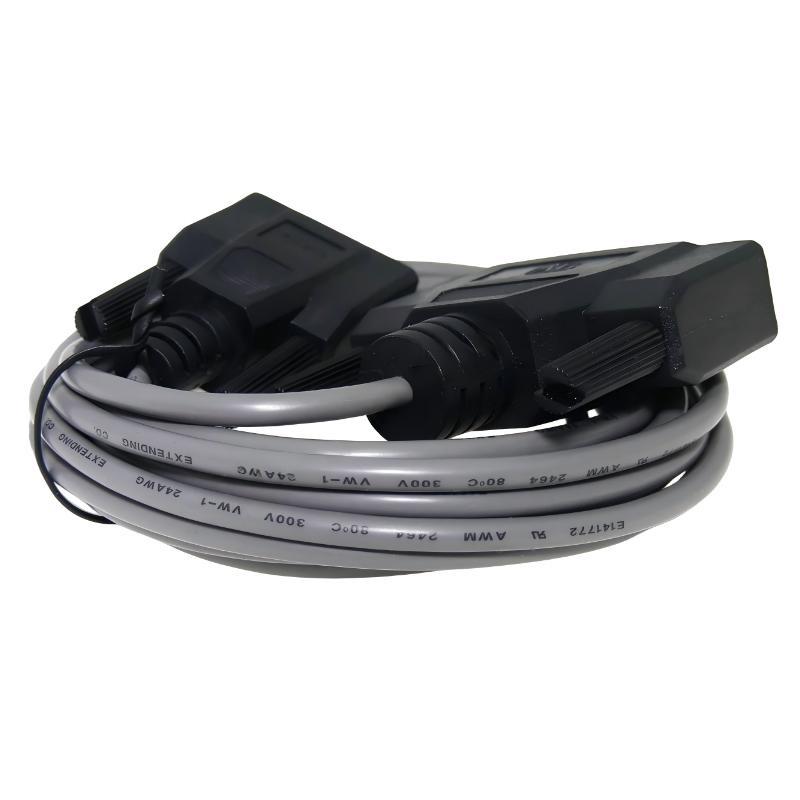

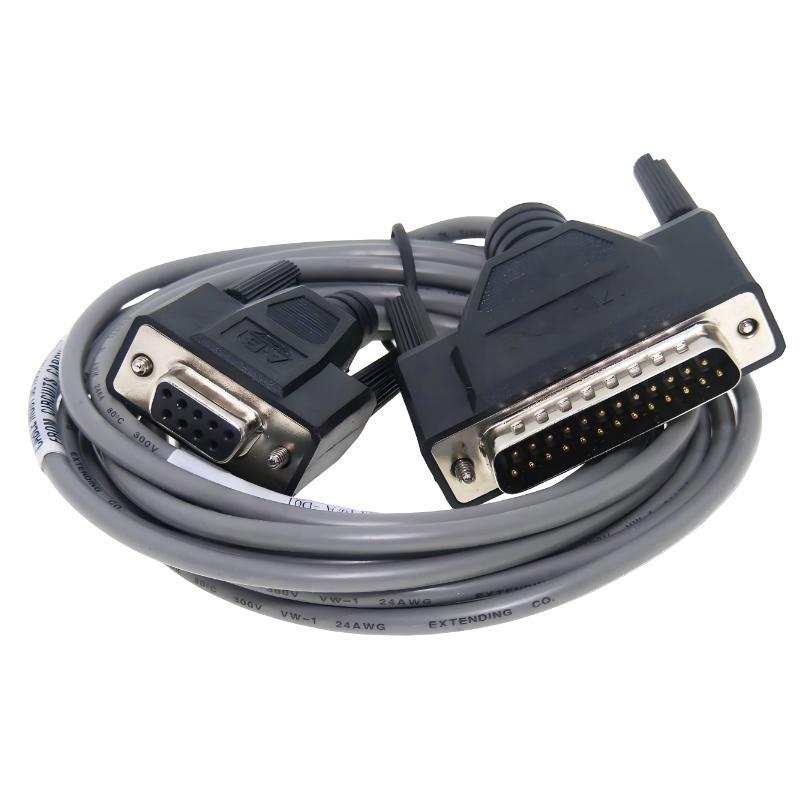

The Allen-Bradley 1784-CP10 Cable Assembly is a serial communication cable designed for connecting IBM-compatible computers to PLC-5 controllers. It provides a reliable interface between a standard 9-pin serial port (DB9) on a PC and a 25-pin serial port (DB25) on the PLC system, enabling configuration, programming, and diagnostics.
This cable is commonly used in industrial automation environments where direct serial communication is required for controller setup or maintenance. It ensures stable data transmission between engineering workstations and PLC hardware, supporting efficient commissioning and troubleshooting processes.
Built with industrial-grade shielding and durable connectors, the 1784-CP10 is designed to minimize signal interference and maintain reliable communication in electrically noisy environments typical / industrial plants.
製品仕様
| Parameter | Value |
|---|---|
| Product Type | Cable Assembly |
| モデル Number | 1784-CP10 |
| Function | Serial communication cable for PLC programming |
| Connection Type (PC Side) | 9-pin serial port (DB9) |
| Connection Type (PLC Side) | 25-pin serial port (DB25) |
| Compatible Systems | PLC-5 controllers |
| Application | Programming, configuration, diagnostics |
| Shielding | Industrial-grade signal shielding |
| Communication Type | Serial communication |
| Cable Length | 10 meters |
| Environmental Resistance | EMI resistant for industrial use |
| 配送 重量 | 3 kg |
Applications
• PLC programming and configuration
Used to connect engineering PCs to PLC-5 controllers for system setup and programming tasks.
• Industrial troubleshooting
Enables direct communication for diagnostics, fault analysis, and system debugging.
• System maintenance operations
サポートs field engineers in performing on-site controller adjustments and updates.
• Commissioning / automation systems
Facilitates initial setup / PLC systems during machine installation and startup.
• Legacy system integration
Used in older industrial networks requiring serial-based communication interfaces.
Advantages
• Reliable serial communication
Ensures stable data transfer between PC and PLC for programming and diagnostics.
• Industrial-grade shielding
Reduces electromagnetic interference in noisy factory environments.
• Direct PLC-5 compatibility
Specifically designed for seamless connection with PLC-5 controller systems.
• Simple plug-and-play operation
No complex configuration required for basic communication setup.
• Durable construction
Built for repeated use in industrial maintenance and commissioning tasks.
• Flexible installation range
Long cable length supports remote or cabinet-mounted PLC access.
