Product Introduction

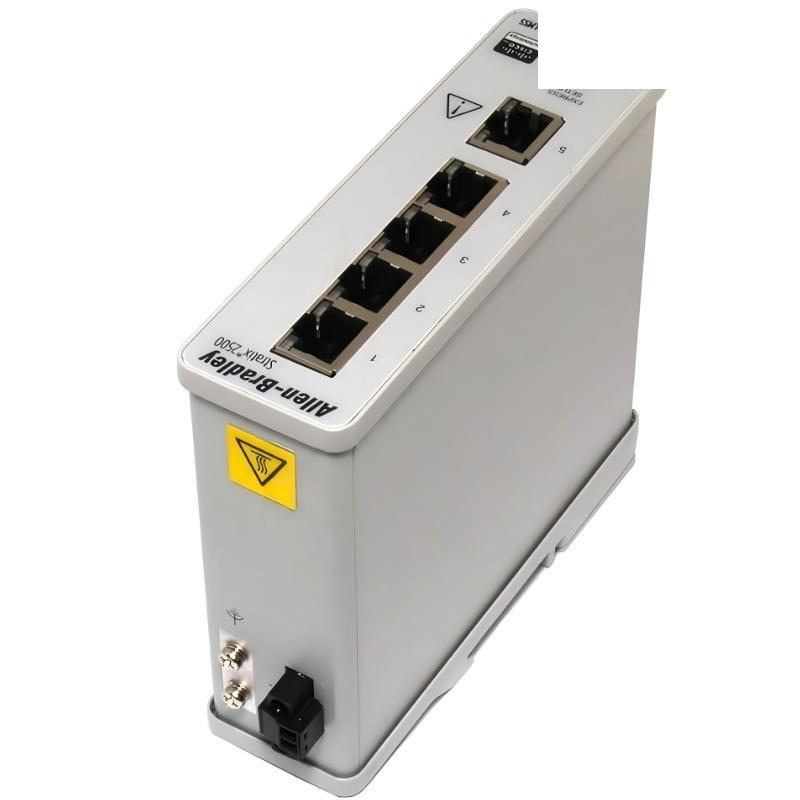

The Allen-Bradley 1783-LMS5 Stratix 2500 Lightly Managed EtherNet Switch is an industrial Ethernet switch designed to provide reliable communication for machine-level automation networks. It belongs to the Allen-Bradley Stratix 2500 Industrial Ethernet Switch Series, which is optimized for small industrial networks requiring simple management features and dependable connectivity.

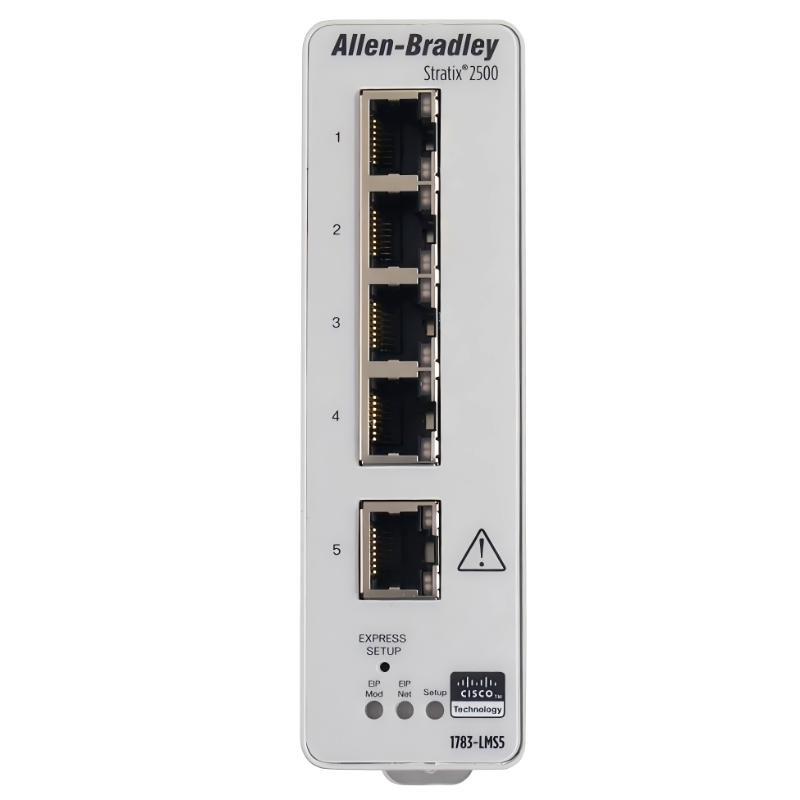

The switch provides five Fast Ethernet copper ports, enabling communication between PLCs, HMIs, drives, and other industrial Ethernet devices. With lightly managed functionality, the device /fers basic network management capabilities while maintaining a simplified configuration process suitable for machine builders and system integrators.
Designed for industrial environments, the 1783-LMS5 supports DIN rail mounting and a rugged IP30 enclosure, allowing easy installation in control cabinets and automation panels. Its compact design and reliable Ethernet performance make it well suited for industrial machines, small automation systems, and distributed control networks.
Product Specifications
| Parameter | Specification |
|---|---|
| モデル | 1783-LMS5 |
| ブランド | Allen-Bradley |
| Product Type | Lightly Managed Industrial Ethernet Switch |
| Series | Stratix 2500 |
| Total Ethernet Ports | 5 |
| Port Type | Fast Ethernet Copper RJ45 |
| Ethernet Speed | 10/100 Mbps |
| Power Supply | 12–24 VDC |
| Mounting Method | DIN Rail Mount |
| Enclosure Rating | IP30 |
| Application Type | Industrial Ethernet communication |
| Dimensions | 144.8 × 38.1 × 115 mm |
| 重量 | 1.35 kg |
Applications
• Machine-level automation networks
Provides communication between PLCs, drives, HMIs, and industrial devices within machine systems.
• Industrial control cabinet networking
Installed inside automation panels to manage Ethernet connections between automation components.
• Small industrial networks
サポートs communication in compact automation systems and equipment cells.
• Manufacturing equipment connectivity
Connects devices within packaging machines, conveyors, and automated production equipment.
• Industrial EtherNet/IP communication
Facilitates data exchange between EtherNet/IP-enabled controllers and field devices.
Advantages
• Compact five-port Ethernet design
Provides five RJ45 Fast Ethernet ports for connecting multiple automation devices.
• Lightly managed network functionality
Offers essential network management features while maintaining simple configuration.
• Industrial DIN rail mounting
Allows quick installation within industrial control cabinets and automation panels.
• Reliable industrial Ethernet performance
Ensures stable communication between networked automation devices.
• Wide industrial power compatibility
Operates using 12–24 VDC, compatible with standard industrial power systems.
• Rugged enclosure construction
IP30-rated housing supports operation in industrial environments.
