Overview – Precision and Connectivity for PLC-5 I/O Systems

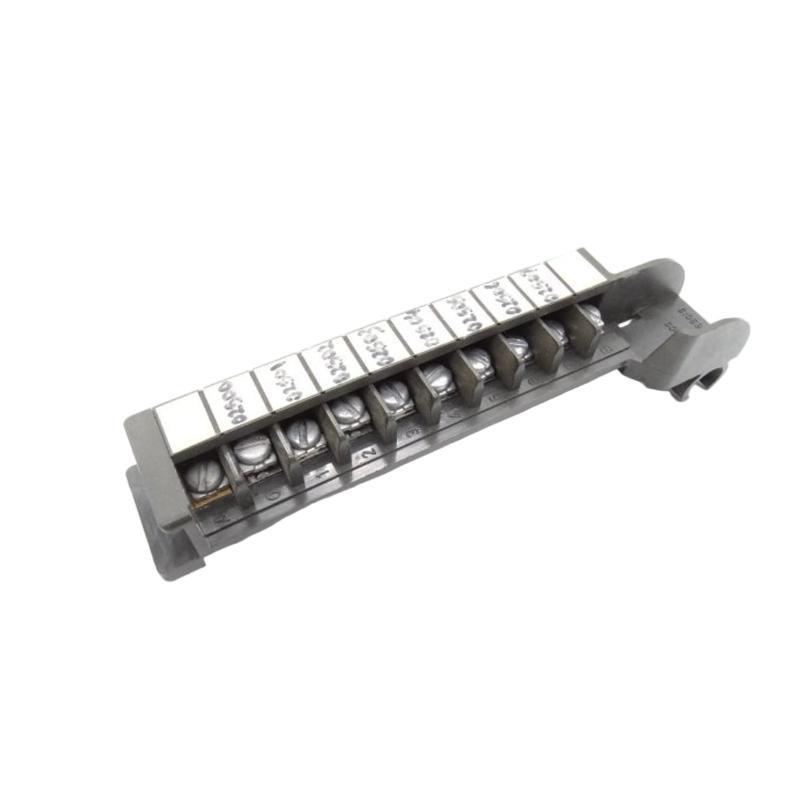

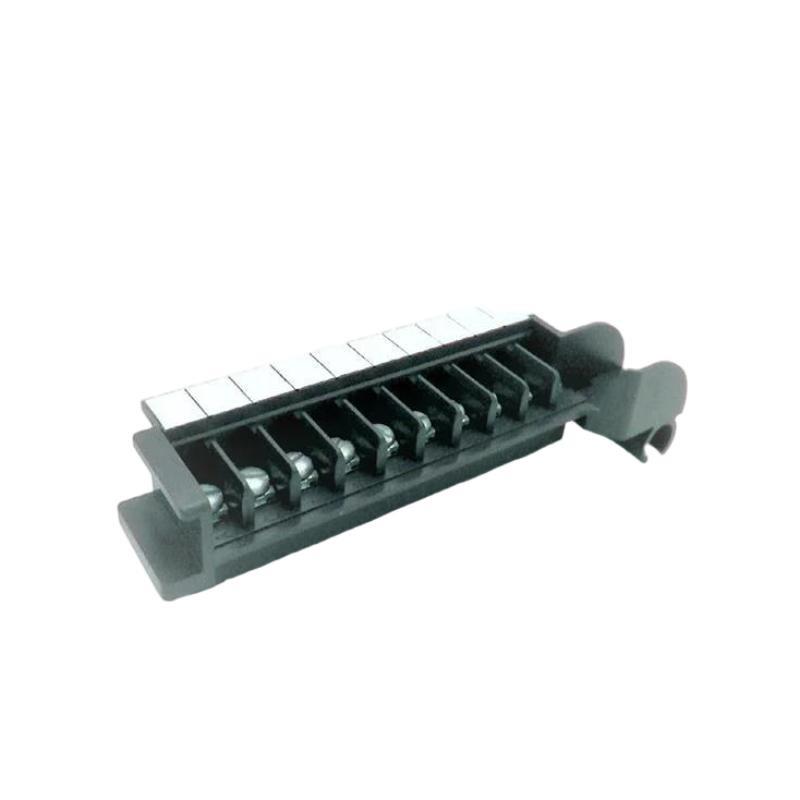

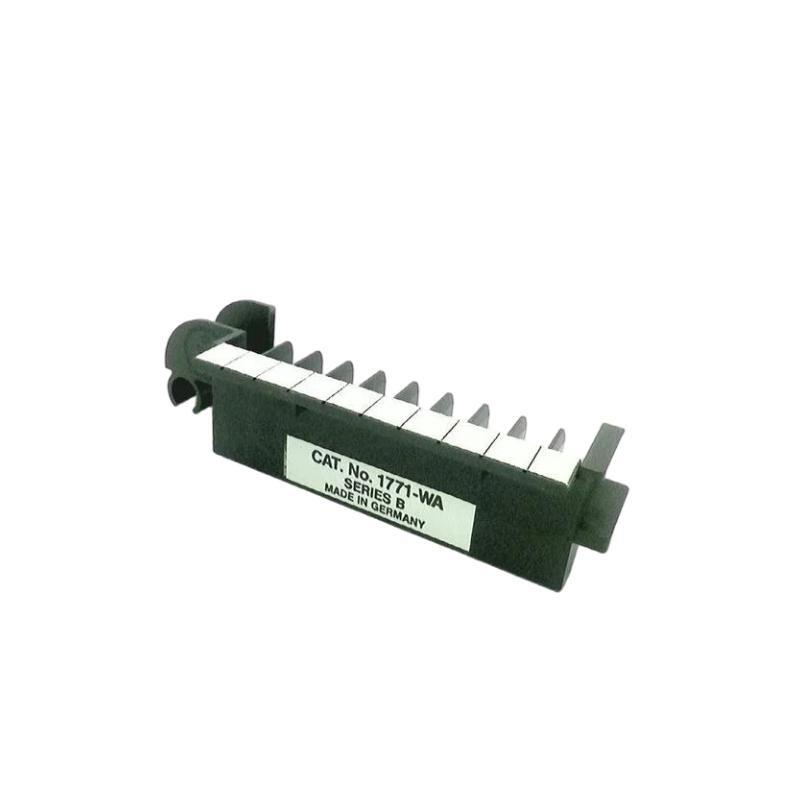

The Allen Bradley 1771-WA Terminal Wiring Arm is an essential component in the PLC-5 I/O chassis ecosystem, designed to simplify the connection between field wiring and I/O modules. Acting as a removable interface, it allows for quick maintenance, testing, and module replacement without disturbing existing wiring — a key advantage in large-scale automation setups where uptime is critical.
Engineered for reliability and ease / installation, the 1771-WA provides solid terminal connections that maintain electrical integrity in high-vibration or industrial environments. It is a passive mechanical interface but plays a vital role in the durability and maintainability / Allen Bradley PLC systems.
Technical Data and Specifications
| Parameter | Details |
|---|---|
| メーカー | Allen Bradley / Rockwell Automation |
| Series | PLC-5 / 1771 Series |
| Module Type | Terminal Wiring Arm |
| Catalog Number | 1771-WA |
| Primary Function | Field wiring termination and connection interface for 1771 I/O modules |
| Connection Type | Screw-clamp terminals |
| Number / Terminals | 40 contacts (20 pairs) |
| Wire Size サポートed | 22–14 AWG solid or stranded wire |
| Recommended Torque | 0.68 Nm (6 lb-in) |
| Mounting Method | Direct attachment to compatible 1771 I/O modules |
| Material | Industrial-grade thermoplastic |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 130 mm × 35 mm × 90 mm (5.1 in × 1.4 in × 3.5 in) |
| 重量 | 0.2 kg (0.44 lb) |
| Certifications | UL, CE, CSA, and RoHS Compliant |
Applications in Industrial Systems
The 1771-WA is primarily used in control cabinets and I/O panels where structured wiring and serviceability are paramount. Typical applications include:
-
PLC-5 I/O rack installations for process or discrete control systems
-
Machine control panels requiring modular and serviceable wiring
-
Power distribution cabinets interfacing with analog or digital I/O modules
-
Testing and commissioning setups, where quick disconnect functionality is beneficial
-
Maintenance-intensive systems, such as production lines with frequent module replacements
The removable wiring arm design allows engineers to swap or inspect modules without disconnecting field wires — drastically reducing downtime during maintenance.
Advantages and Key Features
-
Quick Module Replacement: Enables I/O module removal without rewiring, minimizing downtime.
-
Secure Connection Design: Screw-clamp terminals ensure stable, vibration-resistant electrical contact.
-
Ease / Installation: Clear labeling and guided alignment simplify wiring setup.
-
Durability: Resistant to industrial conditions including temperature fluctuations and dust exposure.
-
Compatibility: Works seamlessly with multiple 1771-series I/O modules.
-
Compact Design: 保存s space in control cabinets and allows dense wiring configurations.
-
Cost-Efficient Maintenance: サポートs modular replacement without costly rewiring labor.
-
Test Accessibility: Allows quick voltage or signal checks at terminal points.
