製品紹介

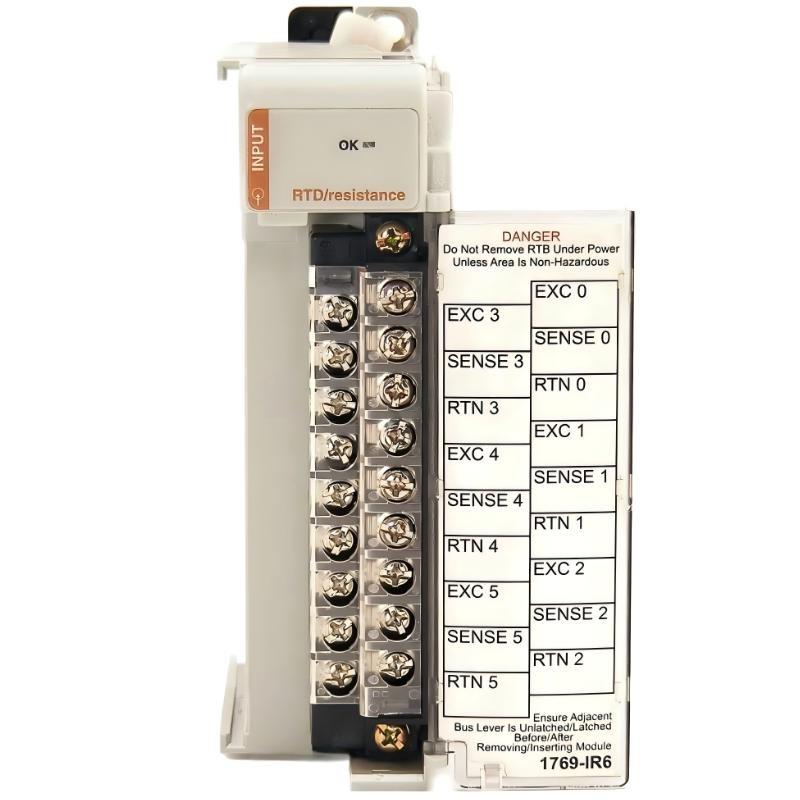

The Allen Bradley 1769-IR6 CompactLogix 6 Channel RTD/Resistance Input Module is a specialized analog input module designed for precise temperature and resistance measurement in industrial automation systems. Manufactured by Allen Bradley, this module enables CompactLogix controllers to receive signals from RTD sensors and resistance-based devices used in process monitoring applications.
The 1769-IR6 module provides six input channels capable / connecting to resistance temperature detectors (RTDs) or other resistance measurement devices. It converts resistance signals into digital data that can be processed by the CompactLogix PLC for accurate temperature monitoring, control, and diagnostics. This capability makes the module suitable for applications where temperature stability and precise measurement are critical.
Designed for integration with CompactLogix PLC platforms, the module /fers reliable performance within industrial environments. Its compact design simplifies installation within control panels while maintaining strong signal accuracy and stability. The module is commonly used in manufacturing processes, energy systems, and environmental monitoring applications that rely on RTD sensors.
With its ability to handle multiple RTD inputs simultaneously, the 1769-IR6 module improves system efficiency by allowing centralized temperature monitoring and integration into automated control systems.
製品仕様
| Parameter | Value |
|---|---|
| Product モデル | 1769-IR6 |
| メーカー | Allen Bradley |
| Product Type | RTD / Resistance Input Module |
| Number / Channels | 6 |
| Input Type | RTD and resistance sensors |
| Operating Temperature | 0 to 60 °C |
| System Compatibility | CompactLogix PLC systems |
| Mounting Method | DIN rail or CompactLogix backplane installation |
| Dimensions | 118 × 35 × 87 mm |
| 重量 | 0.276 kg |
Applications
• Industrial temperature monitoring systems using RTD sensors.
• Manufacturing processes requiring accurate temperature measurement and control.
• Power generation facilities monitoring equipment and environmental temperatures.
• Chemical and petrochemical plants where precise temperature monitoring is critical.
• Food and beverage processing ensuring stable temperature conditions.
• Water treatment systems monitoring environmental and process temperatures.
• Integration with CompactLogix PLC platforms for automated process control.
Advantages
• Six RTD/resistance input channels allowing multi-point temperature monitoring.
• High measurement accuracy suitable for industrial temperature control systems.
• Compatible with RTD and resistance sensors widely used in industrial processes.
• Reliable performance in industrial environments within standard operating temperatures.
• Compact modular design optimizing control cabinet space.
• Seamless integration with CompactLogix PLC systems.
• サポートs centralized temperature monitoring in automated control architectures.
• Improves process efficiency through accurate temperature feedback.
