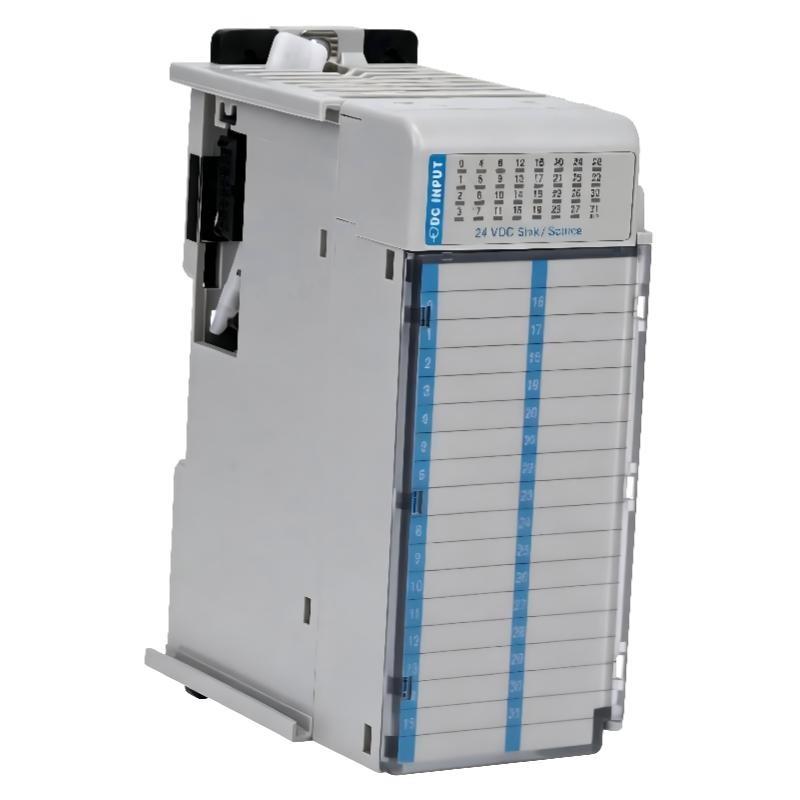

The Allen Bradley 1769-IQ32K CompactLogix 32 Point DC Sink/Source Input Module is a high-density discrete input module designed for CompactLogix control systems, providing efficient and reliable acquisition / multiple digital signals in industrial automation environments. As a variant / the standard IQ32 series, the “K” version typically incorporates enhanced protection features, making it suitable for more demanding operating conditions.
With 32 DC input channels and support for both sinking and sourcing configurations, this module /fers excellent flexibility when interfacing with a wide range / industrial sensors and switching devices. Its ability to handle a 10–30 VDC input range ensures compatibility with standard field devices used in automation systems.
The inclusion / conformal coating improves resistance to moisture, dust, and corrosive elements, while integrated LED indicators provide clear real-time status monitoring for each input channel. This combination makes it a reliable solution for high-density input applications in harsh industrial environments.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | 1769-IQ32K |
| Product Series | CompactLogix |
| Module Type | Discrete DC Input Module |
| Number / Inputs | 32 points |
| Input Voltage Range | 10–30 VDC |
| Input Type | Sinking / Sourcing compatible |
| Signal Type | Digital DC input |
| Indicators | LED indicators per channel |
| Mounting Type | DIN rail |
| Protection | Conformal coating |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 118 × 52.5 × 87 mm |
| 重量 | 0.44 kg |
Applications
● High-density automation systems requiring large-scale digital signal acquisition in limited panel space
● Manufacturing lines and assembly systems using multiple sensors and discrete input devices
● Machine control panels where flexible sinking/sourcing wiring configurations are necessary
● Industrial environments with high humidity or contaminants requiring enhanced protection
● Process monitoring systems for accurate ON/OFF status detection across multiple input channels
Advantages
● 32-point high-density input design reduces hardware footprint and system cost
● Flexible sinking and sourcing compatibility simplifies integration with various field devices
● Wide input voltage range (10–30 VDC) ensures compatibility with standard industrial sensors
● Conformal coating protection enhances durability in harsh and corrosive environments
● LED status indicators provide fast and clear diagnostics for each input channel
● Compact DIN rail mounting enables easy installation and efficient panel layout
● Reliable signal detection performance supports stable and continuous industrial operation
