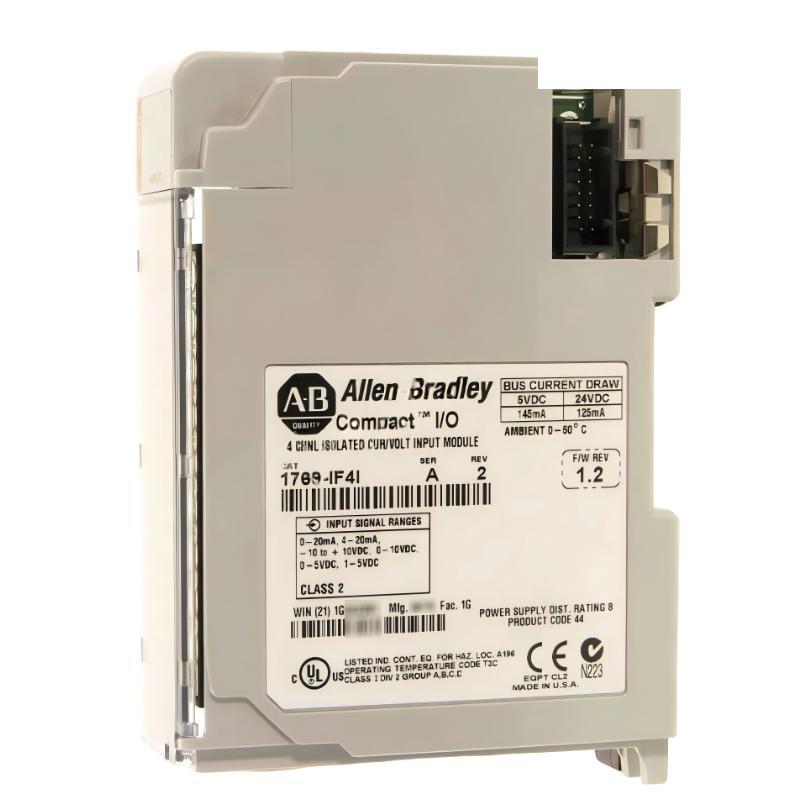

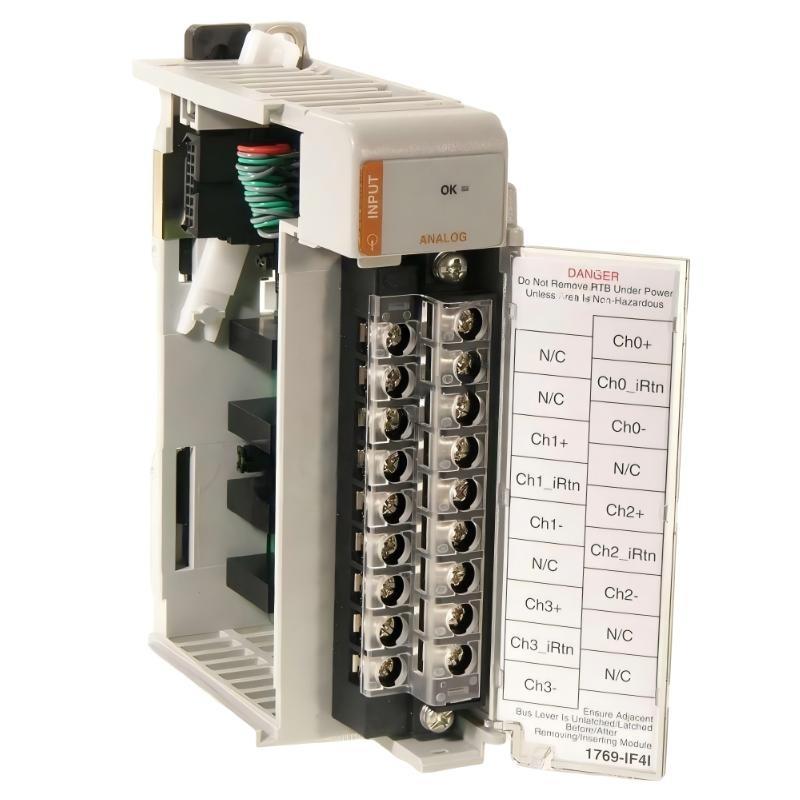

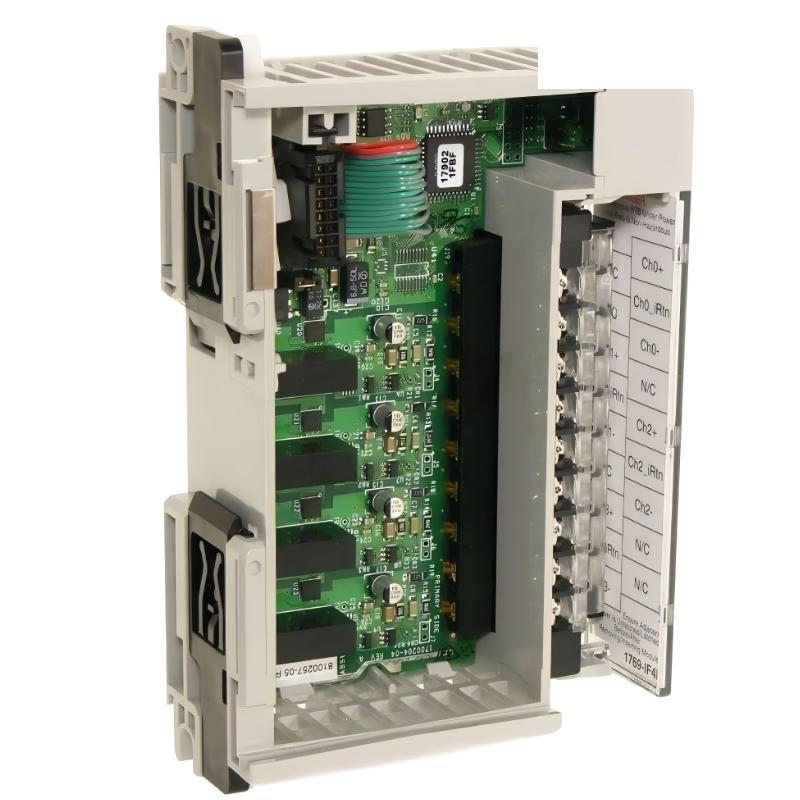

The Allen Bradley 1769-IF4I CompactLogix 4 Channel Analog Current/Voltage Input Module is a high-performance analog input device designed for industrial automation and control systems. Manufactured by Allen Bradley, this module allows CompactLogix controllers to interface with field devices that provide analog current (0–20 mA) or voltage signals, delivering precise process data for monitoring and control.
The 1769-IF4I module features 14-bit resolution, ensuring high-accuracy conversion / analog signals into digital data for CompactLogix PLCs. Its four-channel design enables simultaneous measurement / multiple process variables such as temperature, pressure, flow, and level. The module is engineered for robust performance in industrial environments, providing reliable signal acquisition, minimal noise interference, and fast response for real-time monitoring and control.
Designed for integration with Allen Bradley CompactLogix systems, the 1769-IF4I supports a wide range / industrial applications, including manufacturing automation, process control, and machine monitoring. Its compact form factor allows easy installation in control panels, optimizing space utilization while delivering consistent and reliable performance.
製品仕様
| Parameter | Value |
|---|---|
| Product モデル | 1769-IF4I |
| メーカー | Allen Bradley |
| Product Type | CompactLogix Analog Input Module |
| Function | Converts analog current or voltage signals to digital data for PLCs |
| Channel Count | 4 channels |
| Input Types | 0–20 mA current, 0–10 V voltage |
| Resolution | 14-bit analog-to-digital conversion |
| Power Supply | 24 VDC |
| Integration | Allen Bradley CompactLogix PLC systems |
| Mounting Method | DIN rail or backplane mounting in CompactLogix chassis |
| Dimensions | 118 × 35 × 87 mm |
| 重量 | 0.3 kg |
Applications
• Industrial process control systems for monitoring temperature, pressure, flow, or level from analog sensors.
• Automated manufacturing lines requiring high-accuracy analog input data for real-time control loops.
• Machine monitoring and diagnostics to track motor currents, actuator positions, and process variables.
• Water and wastewater treatment plants for analog measurement / process variables.
• Chemical, petrochemical, and energy facilities for process control and safety monitoring.
• Integration with CompactLogix PLC systems for automation and industrial control applications.
• Predictive maintenance programs using analog input data to detect early mechanical or process faults.
Advantages
• High-accuracy 14-bit resolution for precise analog measurements.
• Four-channel input allows simultaneous monitoring / multiple process variables.
• サポートs both current and voltage signals for versatile field device compatibility.
• Compact, modular design for easy installation in control panels.
• Reliable analog-to-digital conversion with robust noise imm台y in industrial environments.
• Seamless integration with CompactLogix PLC systems for automation and process control.
• Enhanced process monitoring for real-time control and data acquisition.
• Low maintenance and long-term reliability for industrial applications.
