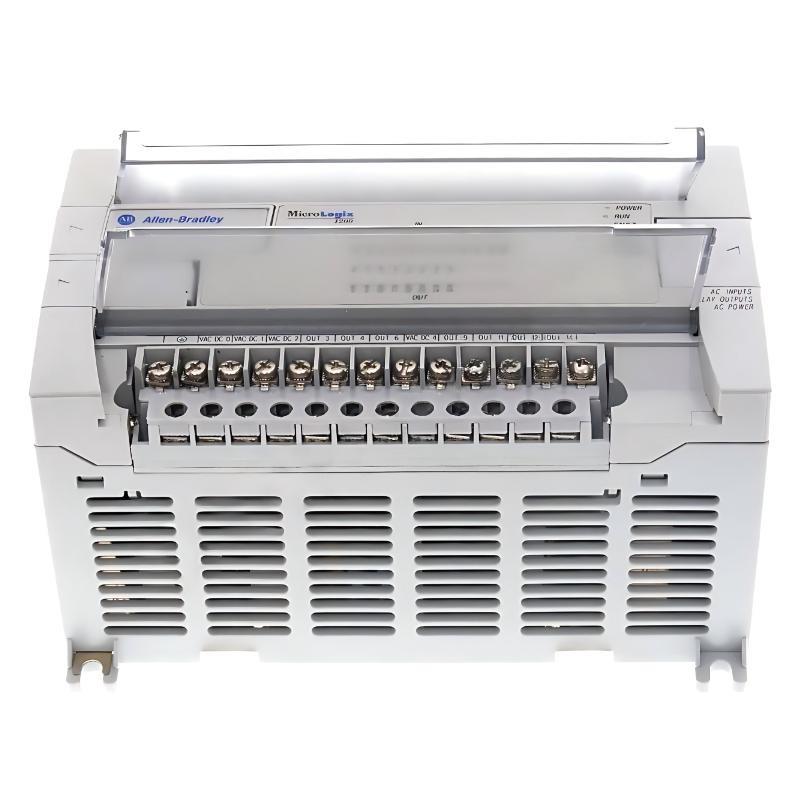

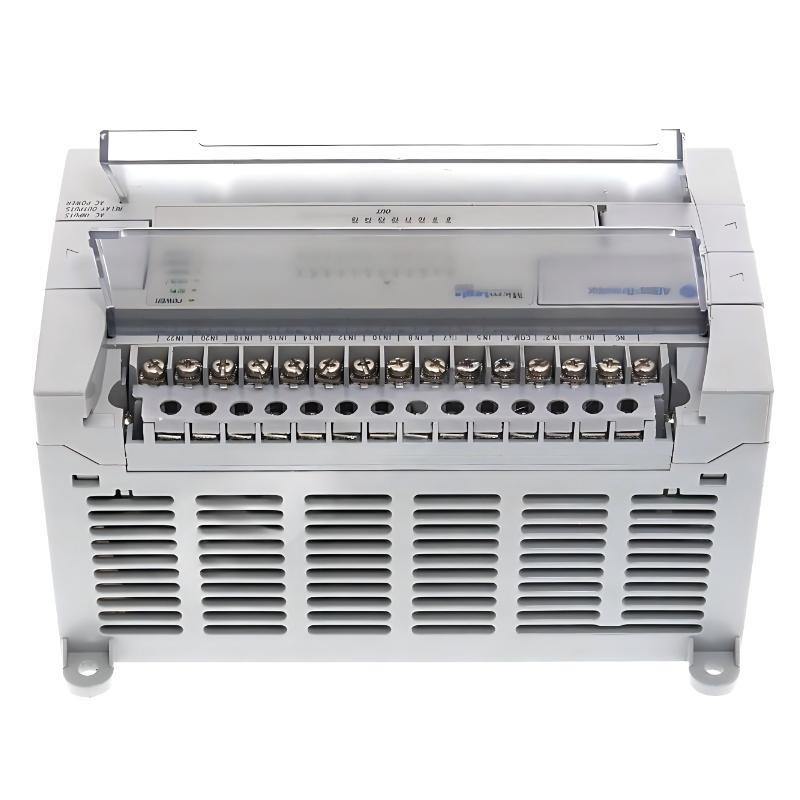

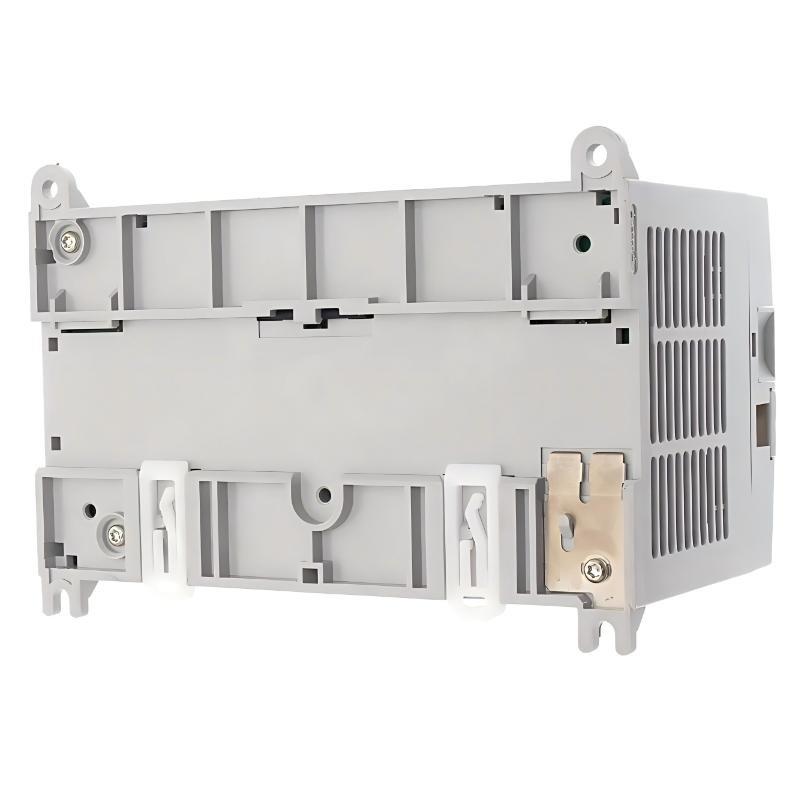

The Allen-Bradley 1762-L40AWA is a high-capacity MicroLogix 1200 programmable logic controller designed for larger small-to-medium automation systems requiring extensive discrete I/O. With a total / 40 onboard I/O points, this controller provides a reliable and scalable solution for applications that demand higher input and output density.
Powered by a 120/240 VAC supply, the 1762-L40AWA is well-suited for industrial environments where AC power is readily available. It features 24 digital inputs rated at 120 VAC, making it ideal for direct connection to AC field devices such as switches, sensors, and pushbuttons without the need for additional signal conversion.
On the output side, the controller includes 16 relay outputs, /fering flexible control / both AC and DC loads. Relay outputs are particularly advantageous in applications where different voltage types or higher current switching is required.
As part / the MicroLogix 1200 series, this controller supports modular expansion, enabling users to increase I/O capacity or add analog functionality as system requirements grow. Its robust design, combined with high I/O count and AC operation, makes the 1762-L40AWA a practical choice for demanding industrial automation tasks.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | 1762-L40AWA Programmable Controller |
| ブランド | Allen-Bradley |
| Series | MicroLogix 1200 |
| Controller Type | Programmable Logic Controller (PLC) |
| Total I/O Points | 40 Points |
| Power Supply | 120/240 VAC |
| Digital Inputs | 24 x 120 VAC Inputs |
| Output Type | Relay Outputs |
| Digital Outputs | 16 Outputs |
| Communication Port | Programming Port (HMI compatible) |
| Mounting | DIN Rail |
| Application Environment | Industrial automation systems |
| Dimensions | 160 × 87 × 90 mm |
| 重量 | 1.1 kg |
Applications
• Large Machine Control Systems
Suitable for equipment requiring a high number / AC inputs and relay outputs, such as packaging lines and production machinery.
• Factory Automation
Handles multiple field signals in centralized control panels, reducing the need for additional modules.
• Building Automation Systems
Ideal for HVAC and facility systems operating with AC-based input devices.
• Material Handling Systems
Used in conveyors and sorting systems with numerous sensors and actuators.
• OEM Equipment
Preferred for machines requiring high I/O density in a compact controller platform.
Advantages
• High I/O Capacity
40 onboard I/O points reduce the need for expansion modules in many applications.
• Direct AC Input Compatibility
24 VAC inputs allow direct wiring / AC field devices, simplifying system design.
• Flexible Relay Outputs
Relay outputs support both AC and DC loads, enhancing application versatility.
• Reliable AC Power Operation
Operates directly from standard industrial AC power supplies.
• Expandable System Architecture
サポートs MicroLogix expansion modules for additional functionality.
• Compact Yet Powerful Design
Provides high performance while maintaining a space-saving footprint.
