Overview

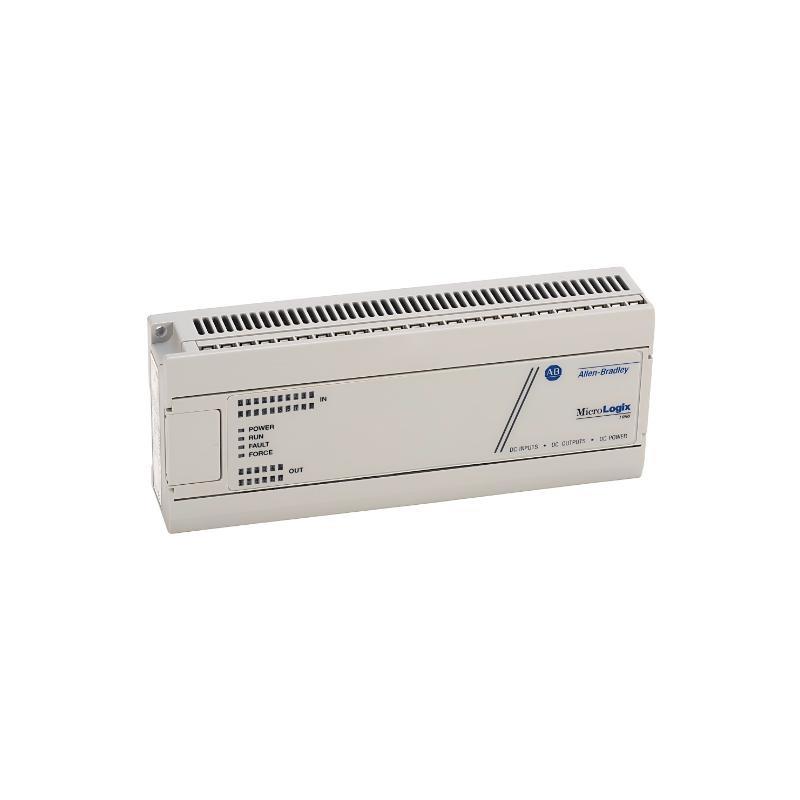

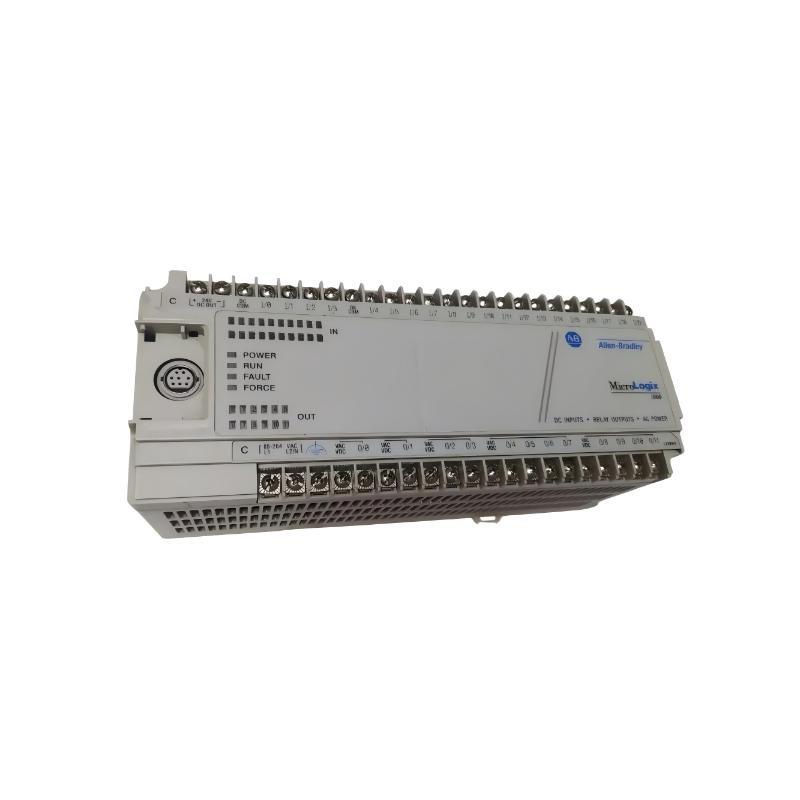

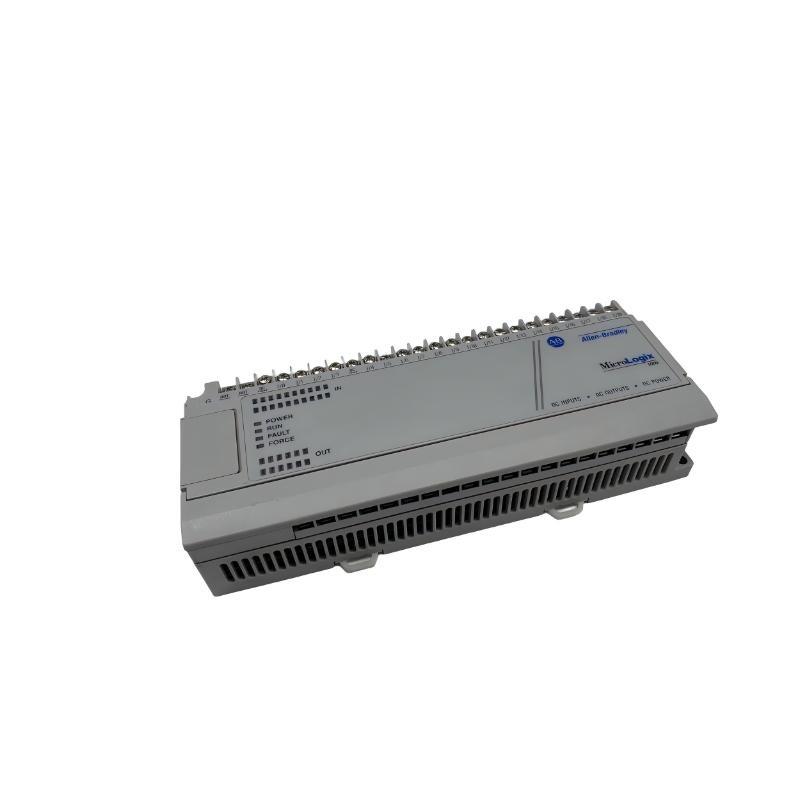

The Allen Bradley 1761-L32BBB is a compact, standalone MicroLogix 1000 CPU module designed for small to medium-scale automation systems that require cost-effective control, robust performance, and easy programming. This controller delivers consistent operation in machine automation, packaging, and process control environments. It integrates digital I/O, high-speed counters, and serial communication into a single, space-efficient 台.
Technical Data
| Parameter | Specification | 説明 |
|---|---|---|
| Module Type | MicroLogix 1000 CPU Module | Compact programmable logic controller |
| I/O Capacity | 32 total (20 digital inputs, 12 digital outputs) | Fixed I/O configuration |
| Input Voltage | 24 VDC | Standard logic input voltage |
| Output Type | Relay | サポートs AC and DC load switching |
| Communication Port | RS-232 / RS-485 combo port | DF1, DH-485, Modbus RTU support |
| Program Memory | 1 KB user memory | For ladder logic and data storage |
| Data Memory | 590 words | For bit, integer, and timer/counter data |
| Instruction Speed | 1.5 µs per basic instruction | Fast logic execution |
| Power Supply | 24 VDC | Built-in power supply 台 |
| Expansion | Not expandable | Fixed compact controller |
| Mounting | DIN rail or panel mount | Flexible installation |
| Operating Temperature | 0 °C to +55 °C | Industrial range |
| Storage Temperature | -40 °C to +85 °C | Non-operational range |
| Relative Humidity | 5%–95% non-condensing | Environmental tolerance |
| Dimensions (H × W × D) | 90 mm × 175 mm × 75 mm (3.54″ × 6.89″ × 2.95″) | Compact housing |
| 重量 | 0.68 kg (1.5 lb) | Lightweight industrial 台 |
Implementation Scenarios
The 1761-L32BBB controller is widely used in automation environments that demand stability and simplicity:
-
Standalone equipment automation (conveyors, labeling machines, and small assembly systems).
-
Basic process control in HVAC, packaging, or water treatment systems.
-
Low-cost OEM solutions requiring embedded logic capability.
-
Educational and prototyping setups for PLC programming training.
-
Remote I/O replacement in small distributed systems.
Strengths and Highlights
-
Integrated I/O and Power Supply: Eliminates the need for external modules.
-
Compact Footprint: Ideal for small panels or limited space installations.
-
Relay Outputs: Flexible switching for both AC and DC loads.
-
High Execution Speed: Rapid logic scan time ensures precise control.
-
Reliable Communication: Dual RS-232/RS-485 port supports multiple industrial protocols.
-
Ease / Programming: Fully compatible with RSLogix Micro s/tware.
-
Durable Design: Withstands industrial temperature and vibration conditions.
-
Proven Reliability: Built on Rockwell Automation’s robust MicroLogix platform.
-
Plug-and-Play Deployment: Quick start-up and minimal configuration needed.
-
優良 Value: Combines performance, reliability, and affordability.
