製品紹介

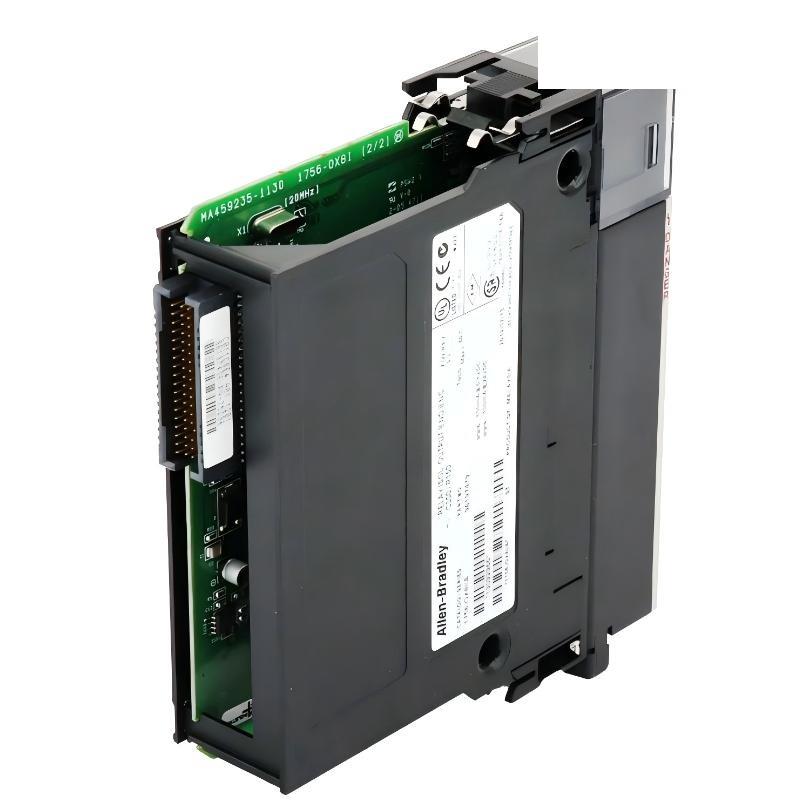

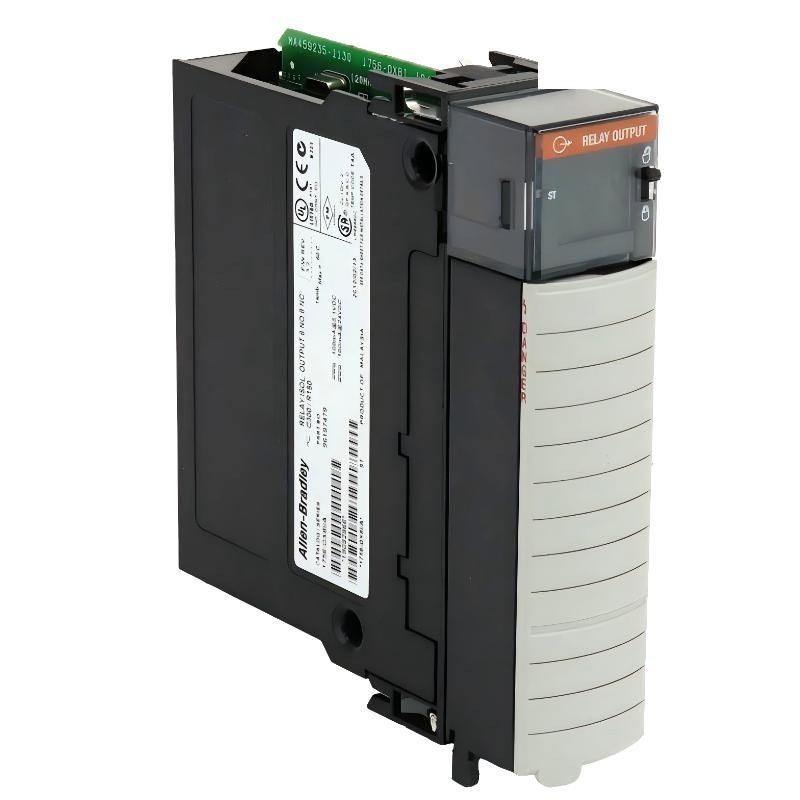

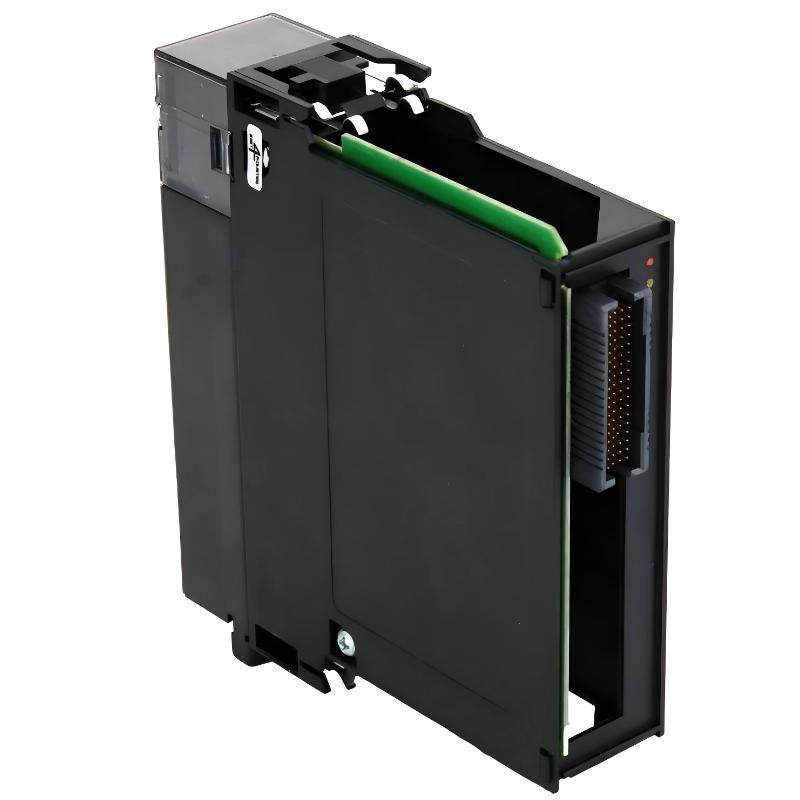

The Allen-Bradley 1756-OX8I is a ControlLogix digital relay output module engineered for applications requiring electrically isolated relay outputs, versatile voltage compatibility, and robust industrial performance. As part / the ControlLogix I/O family, this module provides reliable control / DC and AC devices while protecting the controller from electrical disturbances on the field side.
The 1756-OX8I features individually isolated channels, allowing flexible wiring / mixed-voltage devices in industrial automation systems. Its design supports both DC and AC loads, making it suitable for process control, factory automation, and systems that demand high reliability and flexibility.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | ControlLogix Digital Relay Output Module |
| Output Type | Digital Relay Output |
| Number / Outputs | 8 channels |
| Output Configuration | Individually isolated relay outputs |
| Rated Voltage | 5–125 VDC / 125–240 VAC |
| Power Dissipation (max) | 3.1 W @ 60 °C |
| Thermal Dissipation | 10.57 BTU/h |
| Operating Temperature | 0–60 °C |
| Non-Operating Temperature | -40 °C |
| Signal Switching | Mechanical relay outputs for DC/AC loads |
| Chassis Compatibility | ControlLogix chassis |
| Control Platform | ControlLogix automation system |
| Industrial Rating | Designed for industrial control environments |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.4 kg |
Applications
• Used for control / DC and AC devices such as solenoids, contactors, indicator lights, and small motors
• Suitable for industrial automation systems where electrical isolation is required between field devices and the controller
• Applied in process control, packaging, material handling, and assembly lines requiring flexible load control
• Commonly used in systems with mixed-voltage devices, thanks to individually isolated relay outputs
• Ideal for applications demanding high reliability, easy maintenance, and robust thermal management
Advantages
• Individually isolated channels provide protection against electrical faults and allow flexible wiring / mixed loads
• Wide voltage compatibility (5–125 VDC / 125–240 VAC) supports a broad range / industrial devices
• Reliable mechanical relay outputs /fer deterministic switching for both DC and AC applications
• Low power and thermal dissipation reduce cabinet heating and improve overall system longevity
• Seamless ControlLogix integration allows easy configuration, monitoring, and diagnostics
• Designed for stable operation in demanding industrial environments
