製品紹介

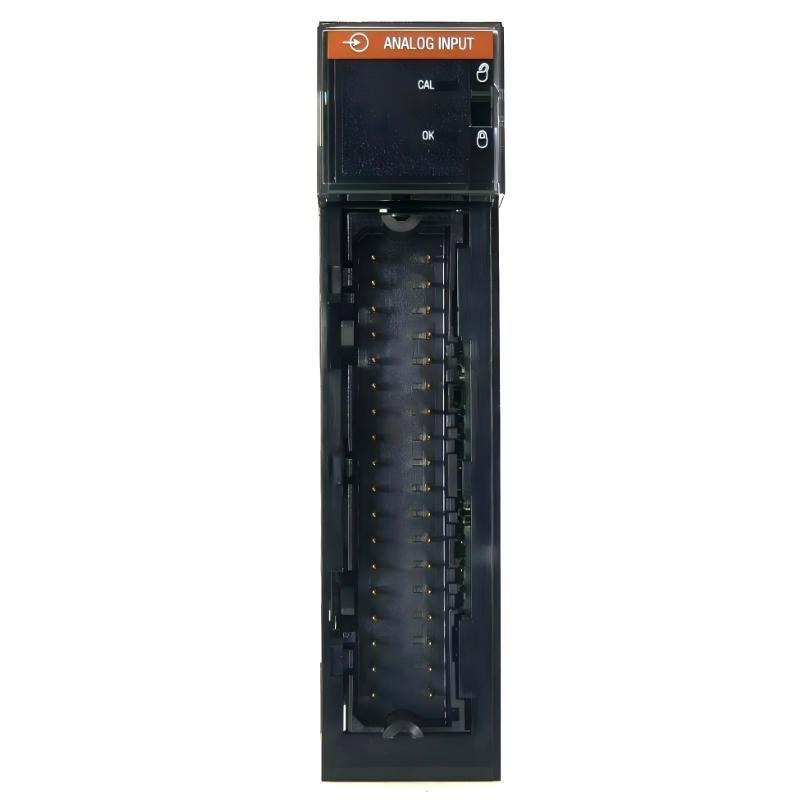

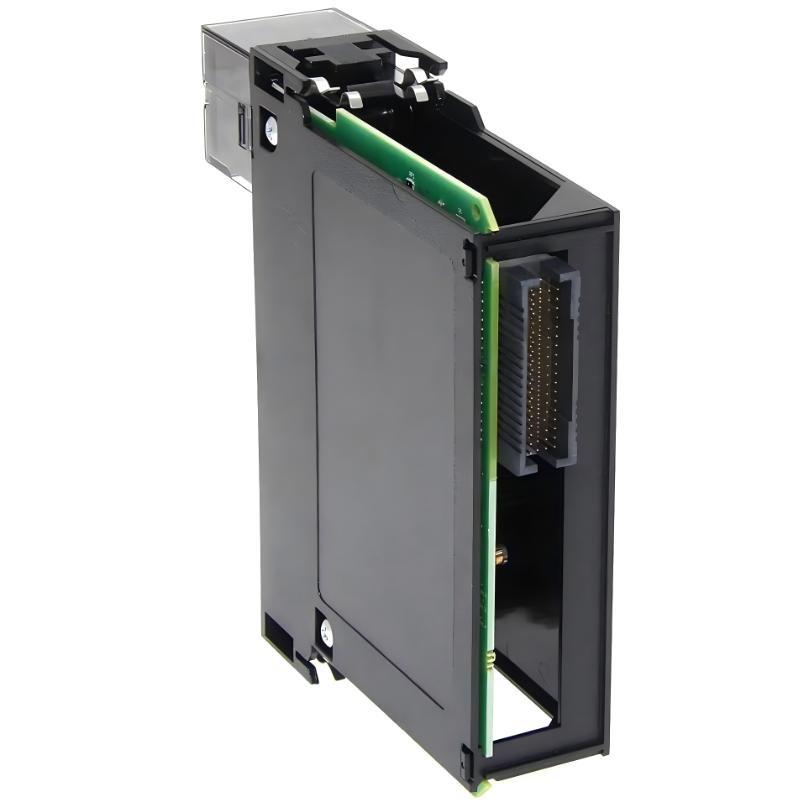

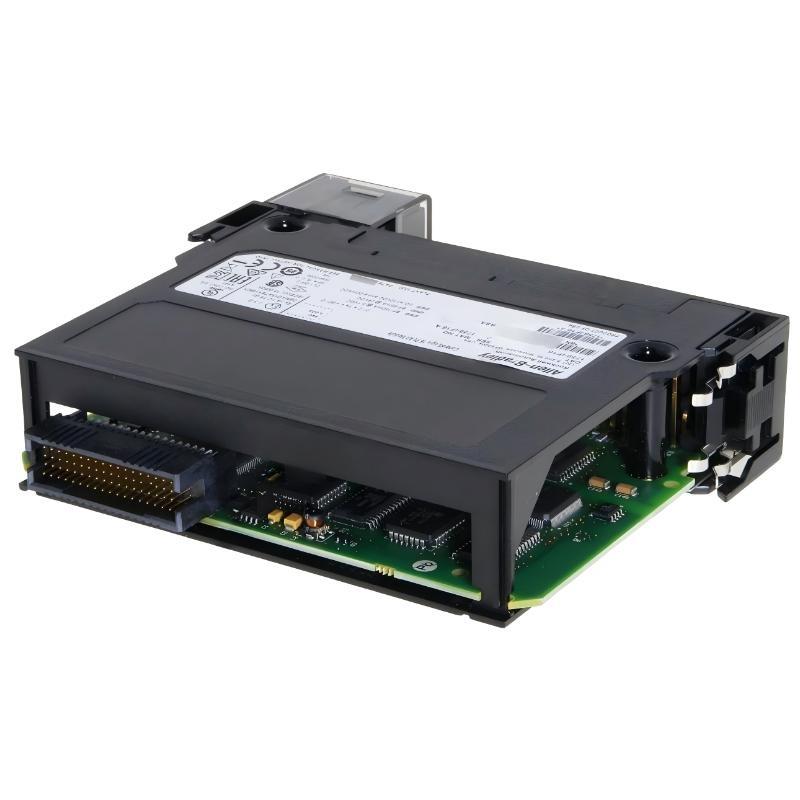

The Allen Bradley 1756-IF16 ControlLogix Analog Input Module is a 16-point analog input module designed for precise acquisition / process signals within ControlLogix automation systems. サポートing 16 single-ended, 8 differential, and 4 high-speed differential inputs, it provides versatile analog monitoring for current-based signals (4–20 mA).
The module features 16-bit resolution for high-accuracy measurement and a low input current requirement, ensuring reliable data acquisition while minimizing power consumption. It is suitable for industrial environments with operating temperatures ranging from 0 to 60 °C.
製品仕様
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| メーカー | Allen Bradley |
| Series | ControlLogix |
| モデル / 型番 | 1756-IF16 |
| Number / Input Points | 16 |
| Input Signal Type | 4–20 mA |
| Input Configuration | 16 Single-Ended, 8 Differential, 4 High-Speed Differential |
| Resolution | 16-Bit |
| Input Current | 4–20 mA |
| Backplane Current | 120 mA @ 5.1 VDC / 0 mA @ 24 VDC |
| Operating Temperature Range | 0–60 °C |
| Mounting Type | Chassis mount |
| Control Platform | ControlLogix backplane |
| Industrial Application Level | Precision analog signal acquisition |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| 重量 | 0.322 kg |
Applications
• Process Signal Acquisition
Monitors 4–20 mA analog signals from sensors, transmitters, and control devices.
• Industrial Automation
Captures high-precision analog input data for process control and monitoring systems.
• High-Speed Differential Measurement
サポートs high-speed differential inputs for dynamic measurement applications.
• Distributed I/O Architectures
Integrates with other ControlLogix modules for comprehensive analog monitoring.
• Diagnostics and System Monitoring
Provides real-time measurement for system verification, calibration, and predictive maintenance.
• Precision Process Control
Ensures accurate data for feedback loops in industrial control systems.
Advantages
• High Accuracy 16-Bit Resolution
Ensures precise measurement / analog signals.
• Versatile Input Configurations
サポートs single-ended, differential, and high-speed differential inputs for diverse applications.
• Low Input Current
Minimizes power usage while maintaining reliable data acquisition.
• Seamless ControlLogix Integration
Directly mounts in the ControlLogix chassis and communicates via the backplane.
• Industrial Reliability
Designed for continuous operation in industrial environments.
• Real-Time System Monitoring
Provides accurate analog data for diagnostics, control, and feedback loops.
