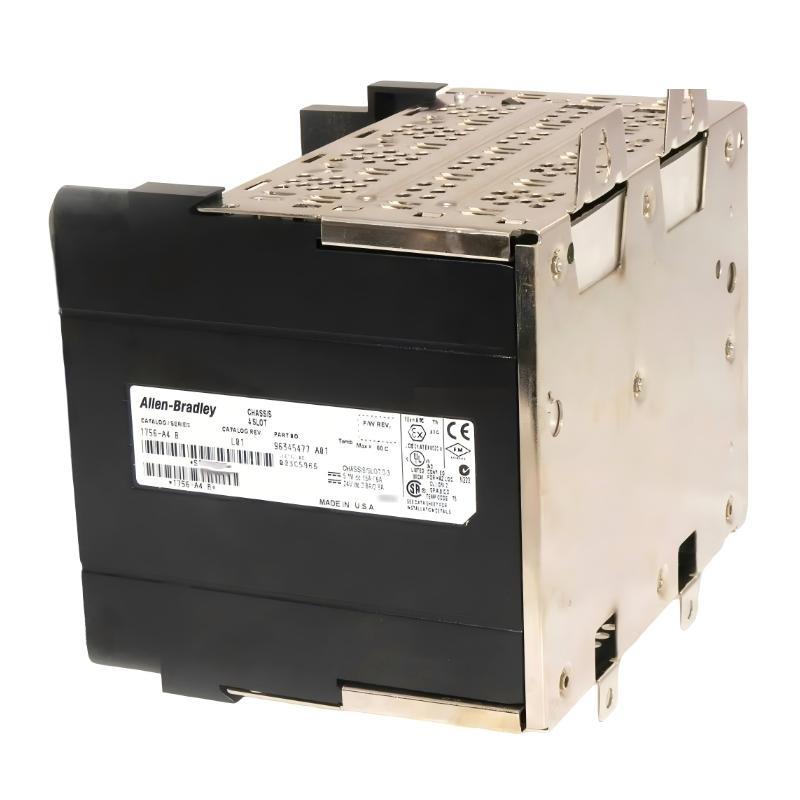

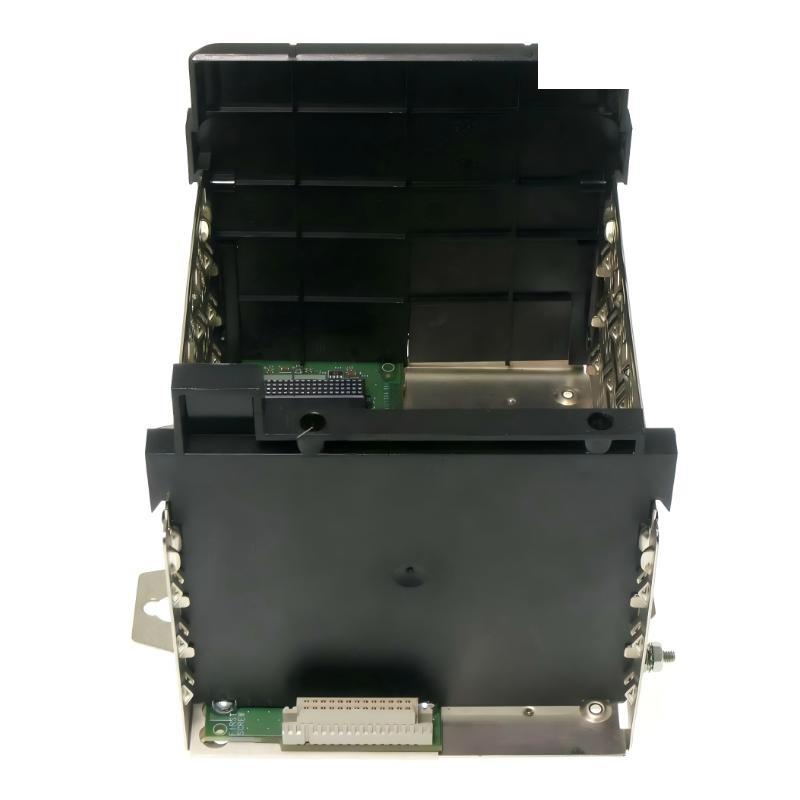

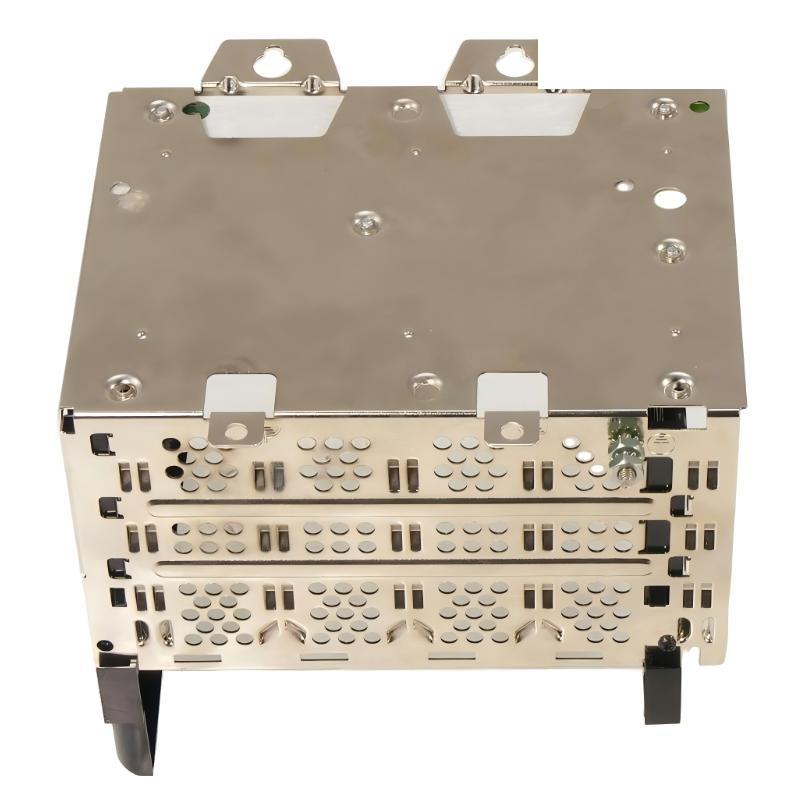

The Allen-Bradley 1756-A4 is a ControlLogix 4-slot chassis designed for compact automation systems where space efficiency, reliable backplane communication, and flexible module installation are essential. It serves as the mechanical and electrical foundation for ControlLogix controllers, I/O modules, and communication modules in small to medium-sized control architectures.
The 1756-A4 chassis is well suited for applications requiring low slot count, panel-mounted installation, and stable power distribution. Its compact footprint makes it ideal for control cabinets with limited space while still delivering the performance and reliability expected from the ControlLogix platform.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | ControlLogix Chassis |
| Number / Slots | 4 slots |
| Chassis Function | Mechanical mounting and backplane communication |
| Mounting Method | Back panel mount |
| Power Consumption | 1.8 W |
| Thermal Dissipation | 6.1 BTU/hr |
| Operating Temperature | 0–60 °C |
| Control Platform | ControlLogix automation system |
| Industrial Rating | Designed for continuous industrial operation |
| System Compatibility | ControlLogix controllers and modules |
| Chassis Orientation | Vertical or horizontal panel mounting |
| Dimensions | 508 × 203 × 508 cm |
| 重量 | 0.75 kg |
Applications
• Used in compact ControlLogix systems for small automation cells and localized control panels
• Suitable for machine-level control where a limited number / I/O and communication modules are required
• Applied in packaging machines, material handling 台s, and standalone equipment
• Commonly implemented in OEM-built control panels with strict space constraints
• Ideal for distributed automation architectures requiring multiple small ControlLogix nodes
Advantages
• 4-slot compact design minimizes cabinet space requirements
• Stable backplane communication ensures reliable data exchange between installed modules
• Low power consumption helps reduce overall system energy usage
• Panel-mount construction allows flexible installation in industrial enclosures
• Full compatibility with ControlLogix modules supports scalable system design
• Designed for reliable operation in standard industrial temperature ranges
