製品紹介

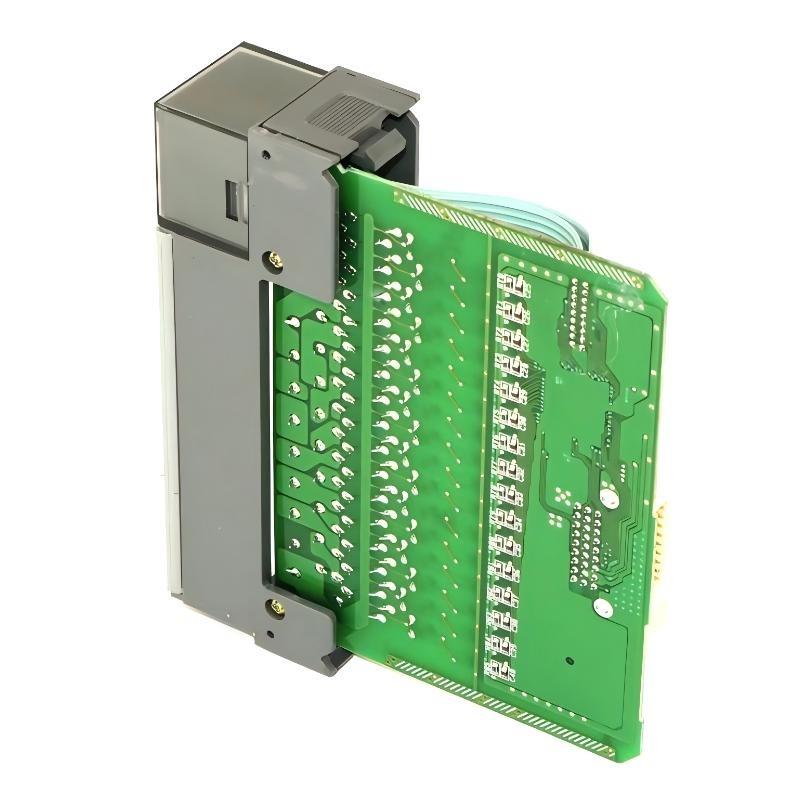

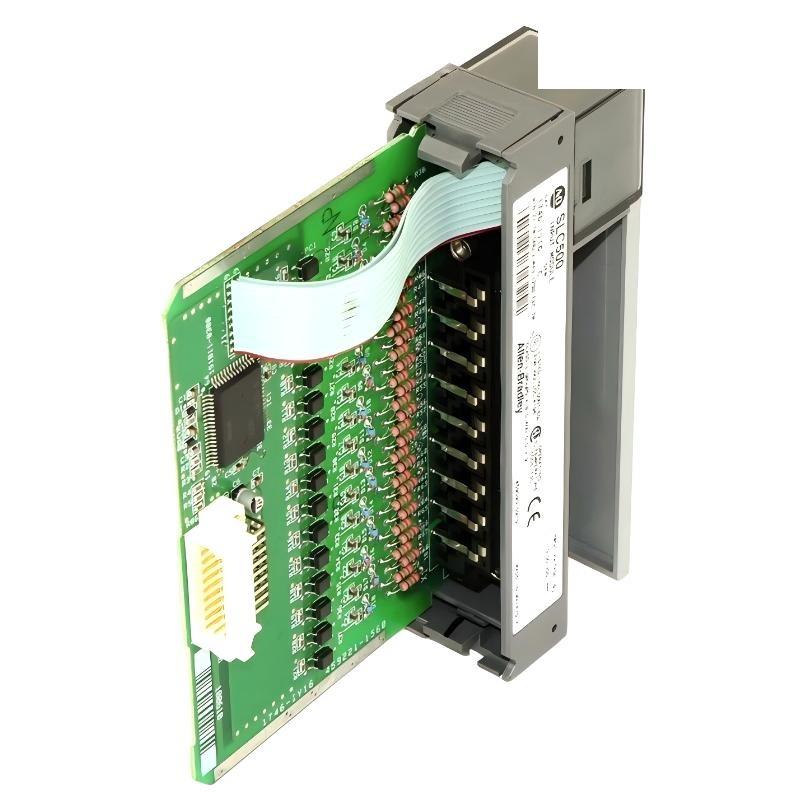

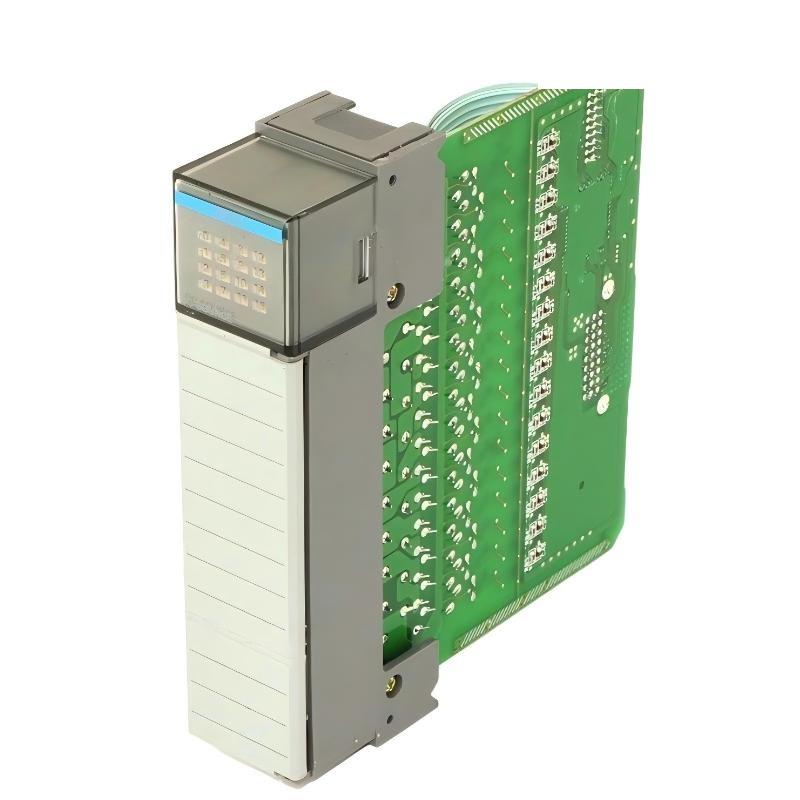

The Allen Bradley 1746-IV16 Digital Input Module is an industrial-grade module designed for the SLC I/O series. It provides 16 sinking DC inputs for 10–30 V DC devices, allowing the PLC to monitor the status / switches, sensors, and other field devices.
The module is engineered for reliable operation in industrial environments, with a maximum input current / 85 mA per point and low backplane current load / 5 V DC, reducing stress on the PLC backplane. The IV16 module ensures accurate signal detection, fast response, and seamless integration into SLC 500 racks for easy installation and system expansion.
Its compact design, combined with robust industrial-grade construction, makes the 1746-IV16 ideal for process automation, manufacturing systems, and other control applications requiring precise digital input monitoring.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | Digital Input Module |
| モデル Number | 1746-IV16 |
| メーカー | Allen Bradley |
| Series | SLC I/O |
| Number / Inputs | 16 |
| Input Type | Sinking DC inputs |
| Input Voltage | 10–30 V DC |
| Input Current | 85 mA per point |
| Backplane Current Load | 5 V DC |
| Mounting Method | SLC 500 rack mount |
| Operating Environment | Industrial control panels, automation systems |
| Isolation | Electrical isolation between inputs and PLC backplane |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.249 kg |
Applications
• Monitoring 16 DC inputs from switches, sensors, pushbuttons, and other devices
• Integration with SLC I/O PLC systems for process and machine automation
• Used in manufacturing lines, material handling, and assembly systems
• Expansion / existing PLC input capacity with precise digital signal detection
• Industrial control systems where stable and accurate input monitoring is required
Advantages
• Accurate sinking DC input detection, ensuring reliable PLC monitoring
• Low backplane current load minimizes stress on the PLC system
• Electrical isolation protects the PLC from voltage spikes and noise
• Compact and modular design allows multiple modules in SLC 500 racks
• High reliability for continuous operation, suitable for industrial duty cycles
• Fast and precise input monitoring, ideal for time-sensitive applications
