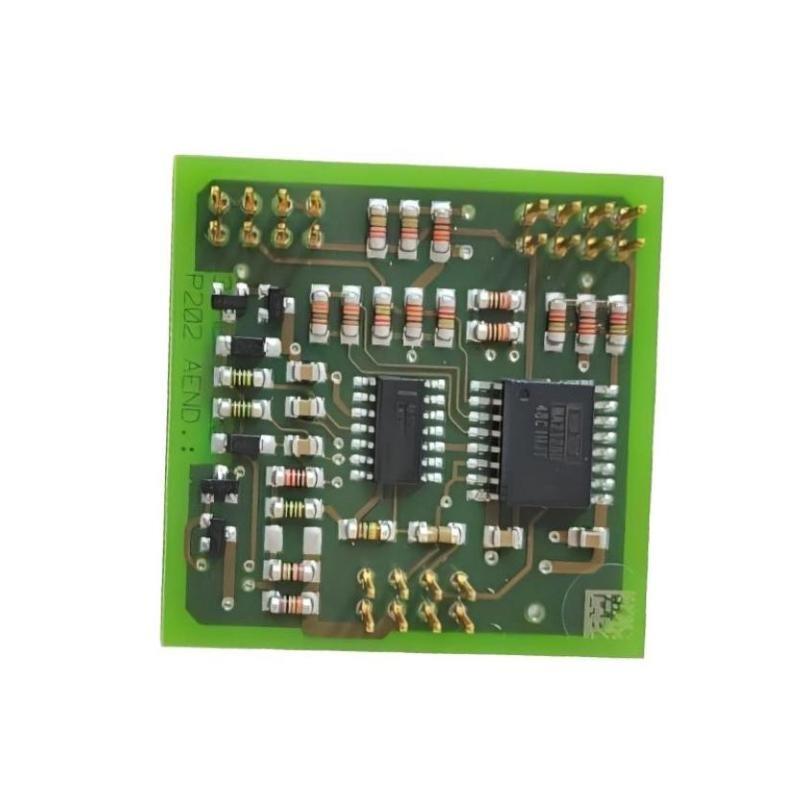

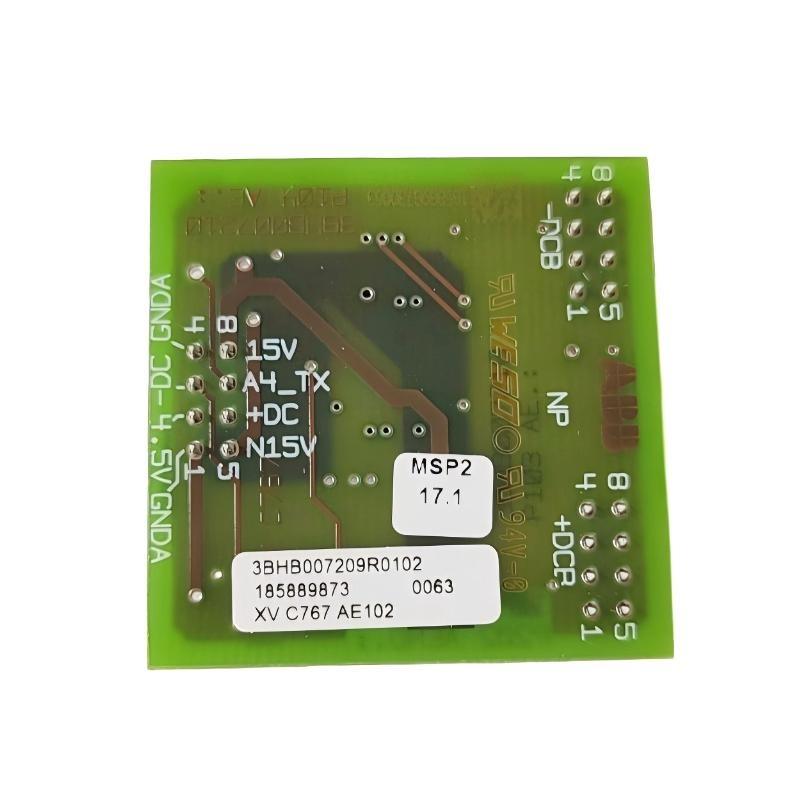

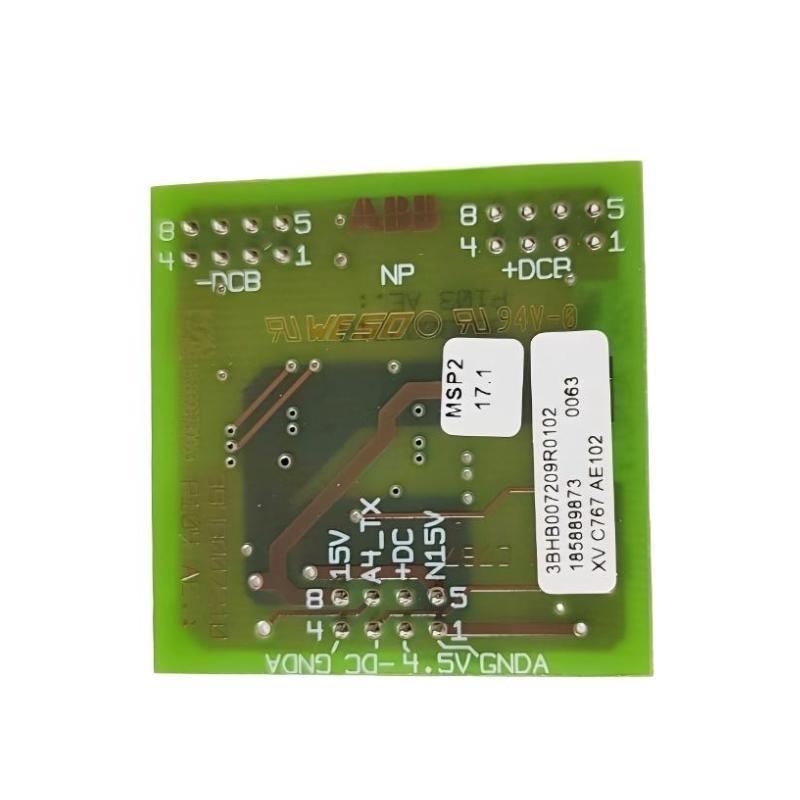

ABB XV C767 AE102 3BHB007209R0102 Current Measuring Instrument

製品紹介

The ABB XV C767 AE102 3BHB007209R0102 Current Measuring Instrument is a precision current sensing module developed by ABB for use in advanced industrial drive and converter systems. Designed to provide accurate, stable, and isolated current feedback, this module ensures optimal control performance in motor drives, converters, and high-power industrial systems.

As part / ABB’s modular control and monitoring architecture, the XV C767 AE102 measures both AC and DC current in demanding applications. Its high-speed analog front end, combined with robust electrical isolation and low noise design, allows for precise current feedback under varying load conditions. The 台 plays a crucial role in power regulation, drive control loops, fault detection, and system diagnostics, ensuring both efficiency and safety in operation.

This model is typically found in ABB ACS series medium-voltage drives, DC link monitoring systems, and energy conversion platforms, /fering high linearity, low drift, and superior reliability under industrial environments where electromagnetic interference and thermal stress are common.

Technical Specifications

Product Applications

The ABB XV C767 AE102 is used across a broad range / industrial power control and monitoring environments where precise current measurement is essential for real-time control and system safety.

Main application areas include:

• Medium-Voltage Drives: Provides high-accuracy current feedback for closed-loop torque and speed control in ABB’s ACS6000 and MEGADRIVE-LCI systems.

• Converters and Inverters: Monitors current flow within AC/DC and DC/AC conversion circuits to ensure proper load balance.

• Industrial Automation: サポートs current-controlled actuators, motorized valves, and process equipment for efficient operation.

• Power Distribution Panels: Detects and transmits real-time current data for protection and monitoring systems.

• Renewable Energy Systems: Used in power converters for wind and solar generation to ensure balanced phase control.

• Testing & Simulation Systems: Provides high-speed, linear current measurement for research and industrial test benches.

Its high signal bandwidth and isolation make it ideal for applications requiring fast current feedback, particularly in dynamic load environments or systems with high switching frequencies.

Product Advantages

• Exceptional Measurement Accuracy: Provides ±0.15% full-scale precision, maintaining system stability even in transient conditions.

• Wide Operating Range: サポートs both AC and DC measurement up to 400 A peak, ensuring flexibility across different drive systems.

• High Electrical Isolation: 4000 Vrms isolation ensures safety and protects control circuits from power disturbances.

• Fast Dynamic Response: Sub-2 µs response allows real-time current tracking for fast control loops.

• 優良 Linearity: Maintains linearity across the entire range, reducing calibration complexity.

• Low Temperature Drift: <80 ppm/°C ensures stable operation across varying thermal conditions.

• Built-in Protection: Integrated overcurrent, reverse polarity, and thermal protections enhance reliability.

• High Noise Imm台y: Shielded design and differential output ensure stable operation in EMI-heavy environments.

• Modular Integration: Fully compatible with ABB’s medium-voltage and high-power drive platforms.

• Maintenance-Free Operation: Factory calibration and rugged design reduce the need for periodic servicing.

よくある質問

1. What is the nominal current range supported by the XV C767 AE102?
   It supports ±150 A nominal current, with peaks up to 400 A.

2. Can it measure both AC and DC currents?
   Yes, it supports bipolar current measurement for both AC and DC applications.

3. What type / output does the device provide?
   The module provides a ±10 V voltage or 4–20 mA current output, proportional to the measured current.

4. Is the 台 electrically isolated from the control circuit?
   Yes, it features 4000 Vrms galvanic isolation between input and output circuits.

5. How fast does the instrument respond to current changes?
   The response time is less than 1.8 microseconds, suitable for real-time control feedback.

6. Does the module include overcurrent protection?
   Yes, it is equipped with overcurrent and thermal protection circuits for safe operation.

7. What type / filtering does it use to handle noise?
   It employs a low-pass active filter and differential signal transmission, minimizing EMI influence.

8. Is calibration required before installation?
   No, it is factory-calibrated and ready to use; however, manual fine-tuning is possible.

9. What kind / power supply does it require?
   It operates on a 24 VDC supply, with an acceptable range between 18–30 VDC.

10. Can multiple XV C767 AE102 台s be used in multi-phase systems?
    Yes, multiple 台s can be installed for three-phase current monitoring or redundant measurement configurations.
