製品紹介

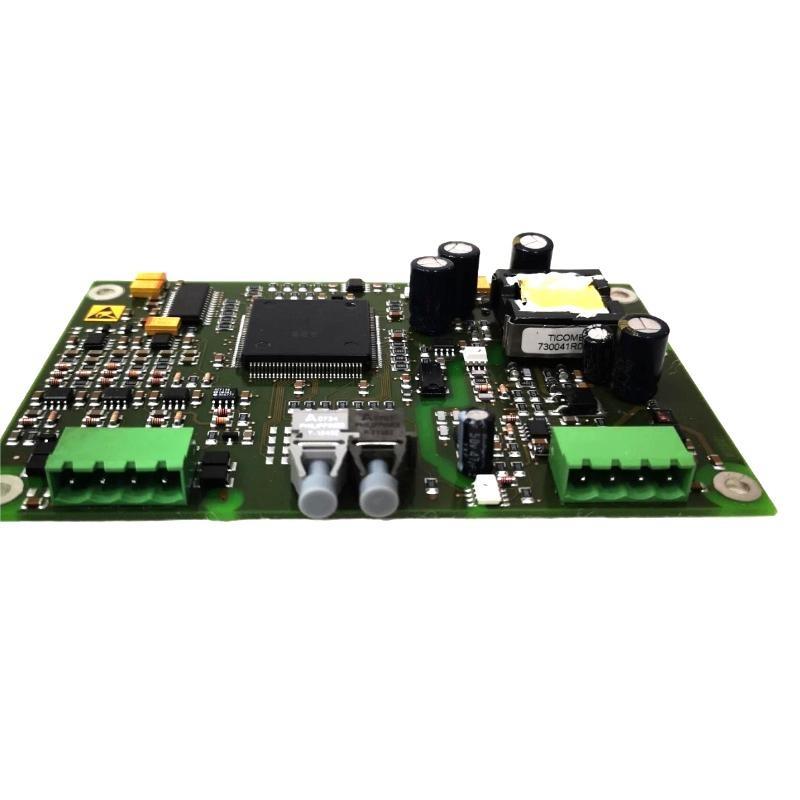

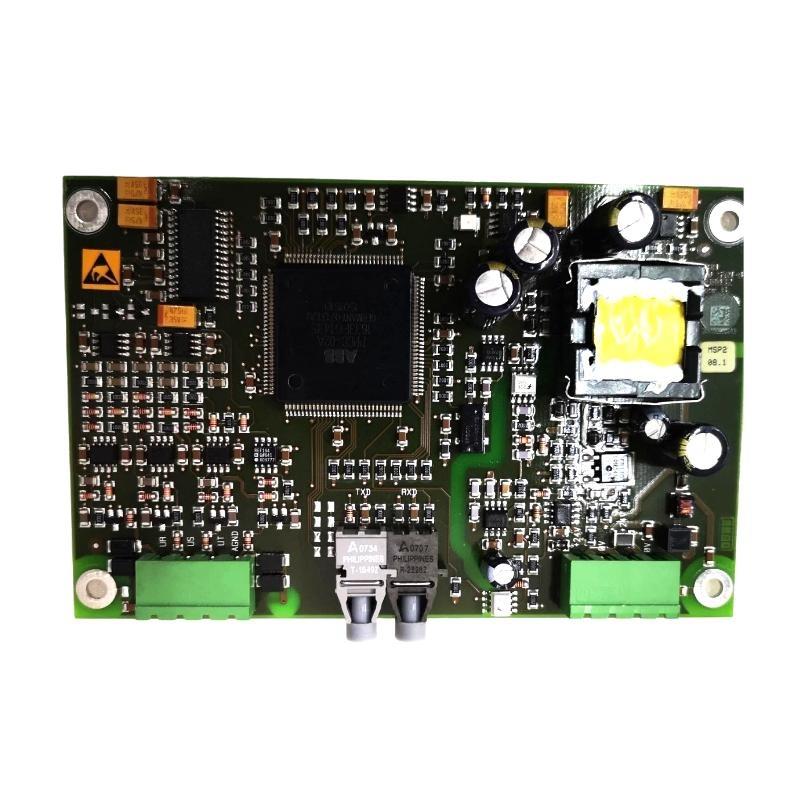

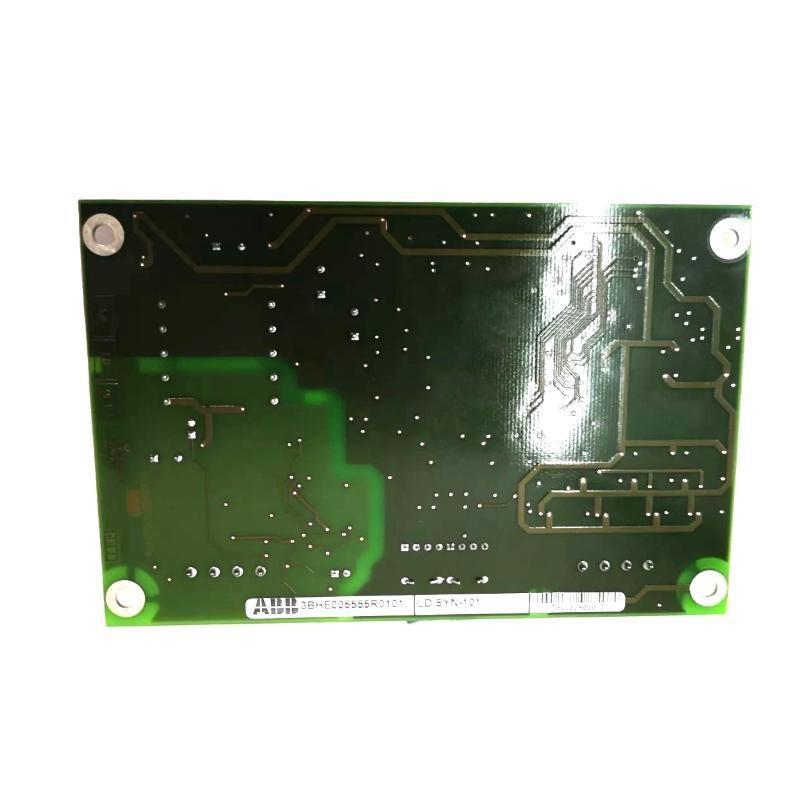

The ABB UA C375 AE103 (3BHB006621R0103) is a specialized industrial-grade Printed Circuit Board (PCB) used in high-performance drive control systems. Developed as part / ABB’s extensive automation portfolio, this board plays a critical role in ensuring the seamless processing, monitoring, and transmission / electrical signals within drive modules and system controllers.
The UA C375 AE103 board is specifically engineered to handle complex logic and I/O functions and is known for its robust design, precision processing capability, and long-term operational stability. Widely implemented across power conversion systems, it serves as a core module in medium-voltage drives and converter applications, supporting high-speed real-time data flow essential for industrial automation.
製品仕様
| Parameter | Details |
|---|---|
| Product Name | UA C375 AE103 |
| 型番 | 3BHB006621R0103 |
| Product Type | Industrial PC Board |
| Main Function | Signal processing, communication, and control integration |
| Application Platform | Medium-voltage drive systems, converter modules |
| Processor Type | Embedded industrial processor |
| I/O Interfaces | Multiple digital and analog signal ports |
| Bus Interface | Backplane system interface |
| Operating Voltage | 24V DC (typical logic voltage) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% – 95% RH, non-condensing |
| Shock/Vibration Resistance | Industrial-grade compliant (IEC 60068-2) |
| Cooling Method | Natural air convection |
| Mounting | Embedded into drive rack or internal control cabinet |
| Dimensions (L x W x H) | 220 × 160 × 25 mm |
| 重量 | 0.6 kg |
| Protection Standard | IP20 |
| Certifications | CE, RoHS, ISO9001, UL compliant |
Product Applications
The ABB UA C375 AE103 PC Board is integrated into medium-voltage drive systems, control cabinets, and converter assemblies used across a range / industrial applications. Its precision and reliability make it suitable for:
-
Heavy Industry Drives: Used in steel mills, cement plants, and rolling systems.
-
Energy Sector: Integrated into power generation and utility converter stations.
-
Marine Propulsion Systems: Controls medium-voltage drives for marine propulsion and thruster systems.
-
Pulp and Paper Industry: Applied in drive cabinets powering continuous production lines.
-
Oil & Gas Processing: Ensures safe and continuous operation / large compressors and pumps.
-
Water Treatment Plants: Part / motor drive systems in municipal water distribution networks.
Product Advantages
-
Precision Signal Processing: Optimized for real-time data transmission and response.
-
Reliable Hardware Construction: Designed for industrial-grade operation under harsh environments.
-
High Integration: Combines processing, monitoring, and interface functionality on a single board.
-
Extended Lifecycle: Built with ABB’s industrial component quality for long-term deployment.
-
Thermal Resilience: Withstands wide temperature fluctuations in enclosed systems.
-
Plug-and-Play Integration: Simplifies installation and replacement in ABB drives and converters.
-
Diagnostic Capabilities: Allows integration with ABB system diagnostics for predictive maintenance.
-
Reduced Downtime: Enhances system availability by providing stable signal flow in control chains.
-
Modular Architecture: Compatible with various ABB drive families and easy to upgrade.
-
Global Compliance: Certified for use in international installations with CE, RoHS, and UL standards.
よくある質問 (FAQ)
-
What type / control functions does the UA C375 AE103 board support in drive systems?
The board manages key tasks such as signal conditioning, real-time data exchange between subsystems, and control coordination for motor speed and torque regulation. -
Can this board interface with both digital and analog I/O signals?
Yes, it handles a combination / digital pulses, control logic inputs, and analog feedback signals, making it suitable for complex industrial environments. -
How does the board handle power loss or unexpected shutdowns?
The system includes embedded logic to safely halt operations and retain error logs, ensuring the drive can restart with minimal disruption once power is restored. -
Is the UA C375 AE103 board programmable, or is it fixed-function?
The board operates with preloaded firmware but allows for parameter configuration and updates using ABB’s engineering tools, depending on the system design. -
Does this board support redundancy in critical systems?
Yes, it can be deployed in redundant control systems where operational continuity is essential, such as in energy production or safety-critical drives. -
What diagnostic features are built into the UA C375 AE103?
The board includes real-time error detection for voltage irregularities, signal faults, temperature issues, and communication failures. -
How does the board contribute to motor control accuracy?
It processes encoder and current feedback in real-time, allowing precise regulation / motor torque, speed, and synchronization across multi-motor systems. -
What are the common failure modes / this board in the field?
While the board is highly reliable, potential issues include connector fatigue, component wear from extended use, or thermal stress in poorly ventilated enclosures. -
Can this board be upgraded in-system without removing the full drive 台?
Yes, in most cases it can be accessed and replaced directly within the control cabinet, /ten without removing adjacent hardware. -
How does this board communicate with other ABB modules in the same rack?
It uses a backplane bus system to exchange high-speed data with I/O boards, power interface 台s, and communication modules for synchronized operation.
Related モデルs (Same Series or Functionality)
| モデル | 説明 | Function |
|---|---|---|
| UA C375 AE102 3BHB006620R0102 | Earlier variant used in similar drive systems | Drive control and signal processing |
| RDIO-01 3BHB005243R0101 | I/O communication board for ABB drives | Remote digital input/output |
| PCD235A101 3BHE020216R0101 | Drive system controller PCB | Power control logic board |
| AINT-14 3BSE008513R1 | Analog Input Board for control systems | Analog signal acquisition |
| REF610A 1MRK001216-AB | Protection and control board | Power system protection |
| DCS500 3ADT315000R1001 | DC drive control board | Industrial DC drive module board |
Popular ABB モデルs (Same ブランド)
| モデル | 説明 | カテゴリー |
|---|---|---|
| PM864AK01 | AC 800M High-performance Controller | Automation Controller |
| CI871K01 | Ethernet/IP Communication Interface Module | Communication Module |
| AI845 | Analog Input Module (16 channels) | I/O Module |
| DO880 | Digital Output Module (16 channel, relay output) | Output Module |
| TU850 | Redundant Field Terminal ユニット | Terminal Base ユニット |
| 3BHE022293R0101 | Power Supply ユニット for Industrial Control | Power Supply Module |
