Product 説明

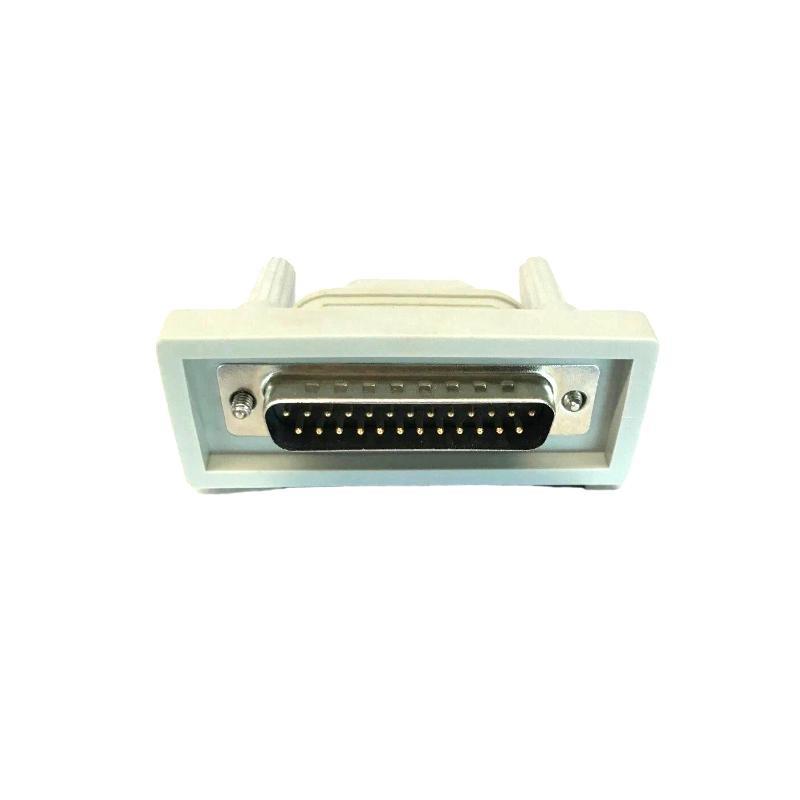

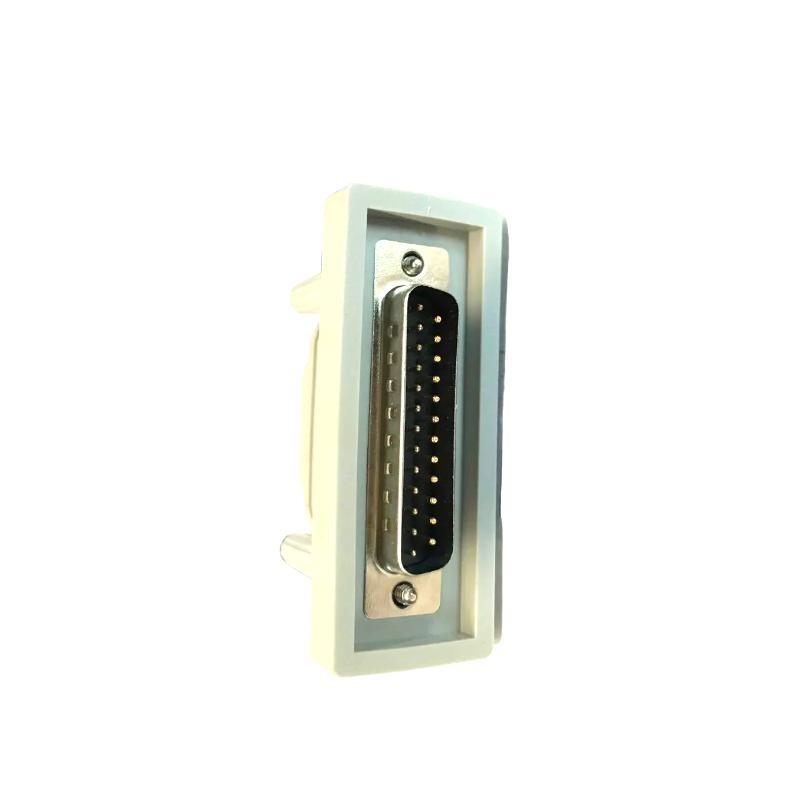

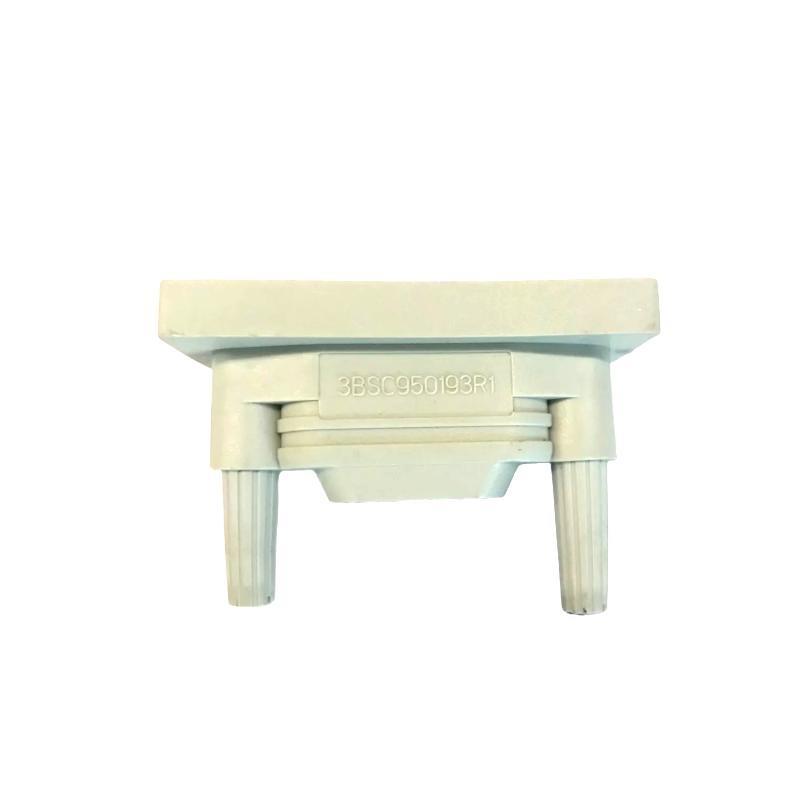

ABB TB850 3BSC950193R1 is a CEX-Bus Terminator used in the AC 800M controller environment within the System 800xA automation platform. It is specifically designed to terminate the CEX-Bus on the last 台 in the communication chain to ensure signal integrity and prevent reflections.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product Name | CEX-Bus Terminator |
| モデル Number | TB850 |
| ABB Order Code | 3BSC950193R1 |
| Used With | AC 800M Processor ユニットs |
| Bus Type | CEX-Bus (Controller Extension Bus) |
| Installation Position | 最後へ position on CEX-Bus chain |
| Protection Class | IP20 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Dimensions (W x H x D) | 55 × 16 × 50 mm |
| 重量 | 0.04 kg |
Applications
-
Industrial automation networks using ABB AC 800M controllers
-
Redundant and non-redundant system configurations in System 800xA
-
Suitable for process industries such as oil & gas, power, chemicals, and manufacturing
-
Ensures proper communication on the CEX-Bus by terminating the last node
Product Advantages
-
Essential for System Stability: Prevents bus reflection and communication errors
-
Compact Design: Easy to install in tight panel spaces
-
High Compatibility: Seamless integration with all AC 800M processor 台s
-
Reliable Operation: Operates in harsh industrial environments with high reliability
-
No Configuration Needed: Simple plug-and-play design
-
サポートs Redundancy: Used in both single and dual CPU configurations
FAQ (よくある質問)
Q1: What is the primary function / the TB850?
A1: It terminates the CEX-Bus to maintain signal integrity in the AC 800M controller setup.
Q2: Is TB850 mandatory in every installation?
A2: Yes, it must be installed at the end / the CEX-Bus chain for correct system operation.
Q3: Can TB850 be reused if removed?
A3: Yes, it can be reused as long as it is undamaged.
Q4: Does TB850 require power?
A4: No, it is a passive terminator and requires no external power.
Q5: Where should the TB850 be installed?
A5: On the last 台 / the CEX-Bus in the communication chain.
Q6: Is the TB850 suitable for hazardous environments?
A6: It complies with general industrial standards, but check system certifications for hazardous zones.
Q7: Can I use TB850 with third-party systems?
A7: No, it is designed specifically for ABB AC 800M-based systems.
Q8: What is the enclosure rating / the TB850?
A8: It has an IP20 protection class.
Q9: What happens if TB850 is not installed?
A9: Communication on the CEX-Bus may fail due to signal reflections.
Q10: Is TB850 included in CPU packages?
A10: Yes, it is typically included in AC 800M controller kits like PM861, PM864, etc.
