Product Overview

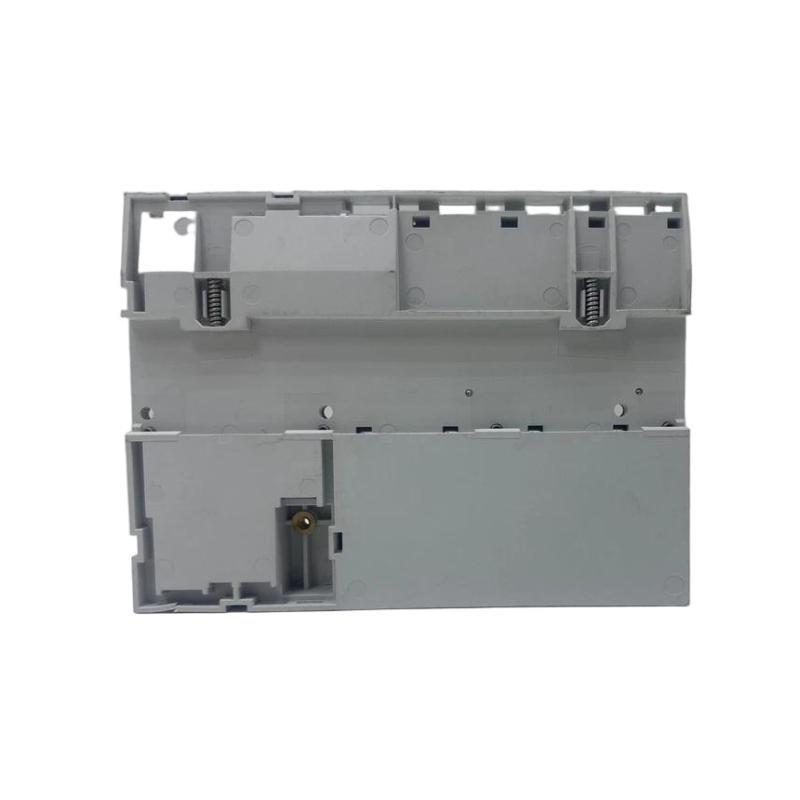

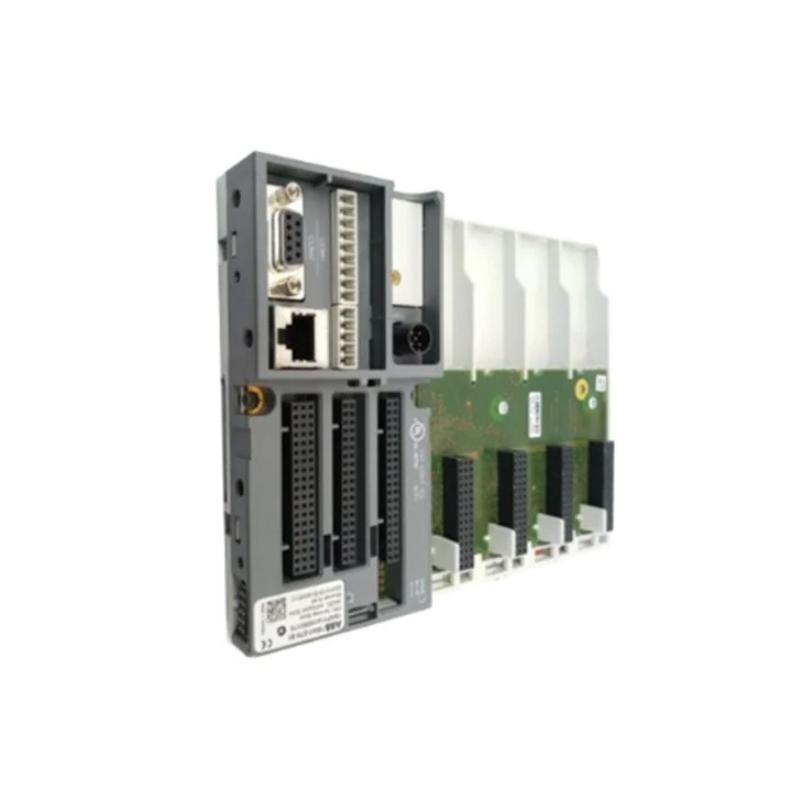

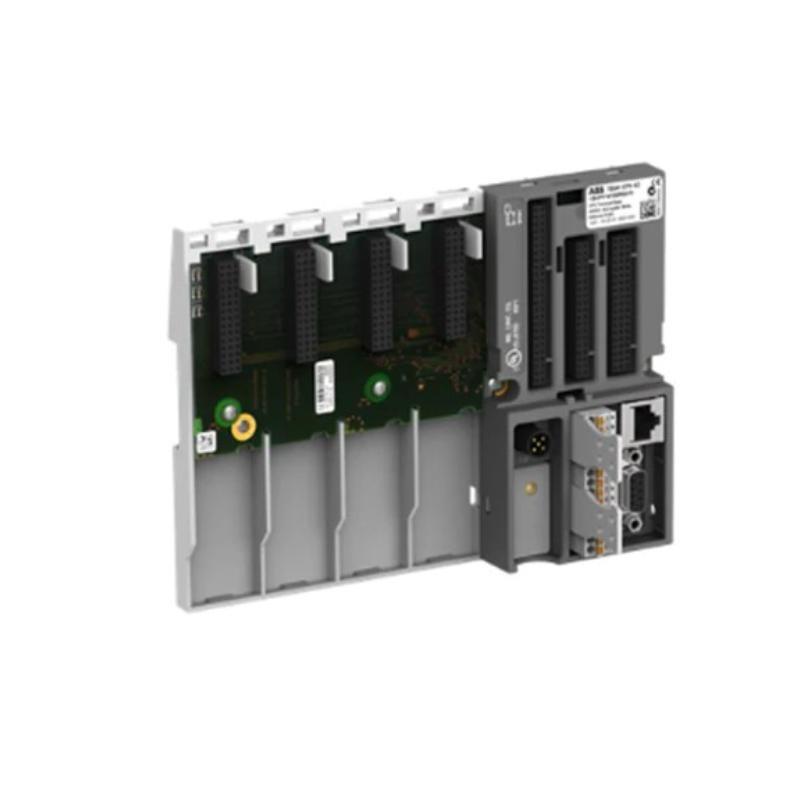

The ABB TB541-ETH (1SAP114100R0170) is a terminal base 台 specifically designed for the AC500 series / Programmable Logic Controllers (PLCs). It serves as the physical mounting and electrical connection platform for I/O modules, communication modules, and interface components.
As part / the AC500-eCo and AC500-XC platforms, the TB541-ETH enables Ethernet-based communication, provides mechanical support, and facilitates easy wiring and module replacement. It simplifies installation, increases system reliability, and enhances modular scalability by /fering a standardized base for consistent module deployment.
Key Features
-
Designed for Ethernet-connected I/O systems
-
Acts as mechanical mount and electrical connector for AC500 modules
-
Compatible with AC500-eCo and AC500-XC controller families
-
Provides power and signal distribution to connected modules
-
Plug-and-play installation for minimal downtime
-
Simplifies replacement and maintenance / modules
-
Durable construction suitable for industrial environments
-
Standardized dimensions for efficient panel design
-
サポートs high-density wiring and structured cable routing
-
Fully integrated with ABB’s automation ecosystem
Technical Specifications
| Specification | Details |
|---|---|
| モデル | TB541-ETH |
| 型番 | 1SAP114100R0170 |
| Function | Terminal Base / Mounting Plate |
| Compatibility | AC500-eCo, AC500-XC series I/O and communication modules |
| Communication サポート | Ethernet fieldbus (via connected module) |
| Wiring Interface | Spring or screw terminal (depends on module) |
| Power Distribution | Supplies I/O power to connected modules |
| Mounting Type | DIN rail mountable (standard 35 mm DIN rail) |
| Housing Material | High-impact industrial polymer |
| Color | Grey / black |
| Dimensions | 28 x 135 x 179.5mm |
| 重量 | 0.24 kg |
| Operating Temperature | -25°C to +60°C (-13°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Protection Class | IP20 (when mounted inside control cabinet) |
| Standards Compliance | CE, RoHS, UL |
Industry Applications
-
Factory automation and machine control systems
-
Material handling and logistics systems
-
Food and beverage processing automation
-
Water and wastewater treatment plants
-
Building automation systems
-
Packaging machines and conveyor systems
-
OEM control panel integration
-
Renewable energy systems (e.g., wind, solar controls)
Product Advantages
-
Easy modular assembly: simplifies system expansion and maintenance
-
Reliable power and signal distribution for connected I/O modules
-
DIN-rail installation reduces wiring time and panel space requirements
-
Designed for harsh industrial environments with high temperature and vibration resistance
-
Compact and standardized dimensions ensure consistency in control panel design
-
サポートs high-speed Ethernet-based I/O communication
-
Reduces downtime with plug-and-play module replacement
-
Fully tested for compatibility with ABB’s AC500 automation architecture
-
Minimizes wiring errors through clear labeling and interface design
-
Long service life with minimal maintenance requirements
よくある質問 (FAQ)
-
What PLC series is the TB541-ETH compatible with?
It is compatible with ABB’s AC500-eCo and AC500-XC series. -
Does this 台 include Ethernet communication ports?
No, Ethernet communication is provided by the module installed on top (e.g., CPU or communication module). -
Can I mount this base on a DIN rail?
Yes, it is DIN rail mountable (35 mm standard). -
What modules can be mounted on the TB541-ETH?
Various I/O, CPU, and communication modules from the AC500 family. -
Does it distribute power to the I/O modules?
Yes, it delivers 24 V DC power to the connected module stack. -
Is the terminal type spring or screw?
It depends on the module being used; the base provides mechanical/electrical connections. -
Can this base be used in outdoor applications?
No, it’s IP20 rated and intended for use within control cabinets. -
What is the physical size / the base?
Approx. 45 mm wide, 100 mm tall, and 75 mm deep. -
Is the TB541-ETH RoHS compliant?
Yes, it fully complies with RoHS directives. -
Can this terminal base be reused when replacing modules?
Yes, modules can be replaced without removing the terminal base.
Related ABB Terminal Bases and Modules
| モデル Number | 説明 |
|---|---|
| TB511 | Standard terminal base for AC500 modules |
| TB521 | Compact base for analog modules |
| TB521-ETH | Terminal base with Ethernet I/O module support |
| TB544 | Terminal base with extended features |
| TB562 | Base 台 for high-density digital I/O modules |
| TB560 | Base for relay output modules |
Popular ABB Automation and I/O 製品
| モデル Number | 説明 |
|---|---|
| PM556-TP-ETH | AC500-eCo PLC with Ethernet port |
| CI541-DP | PROFIBUS DP communication interface module |
| DO880-2 | Digital Output Module for AC500 systems |
| AI810-2 | Analog Input Module |
| TU810V1 | Terminal ユニット for I/O modules |
| PM860K01 | High-speed CPU 台 for AC 800M series |
