Product Overview

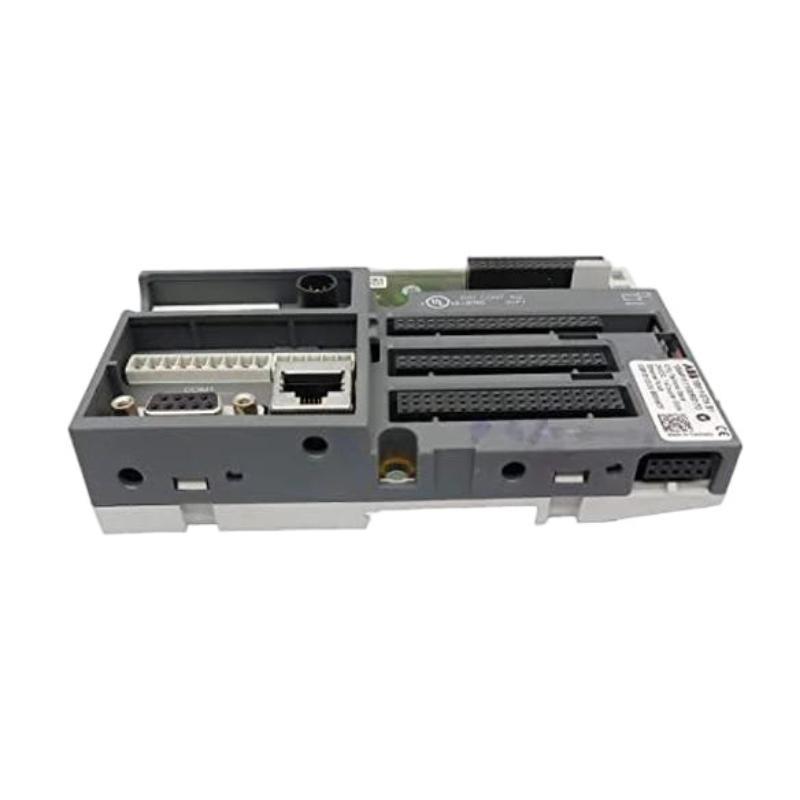

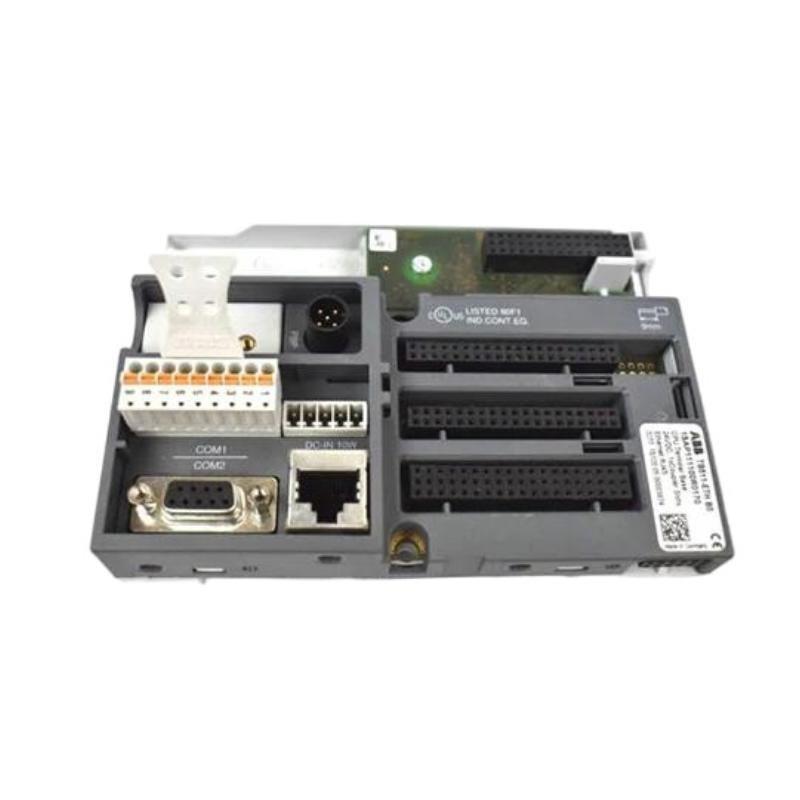

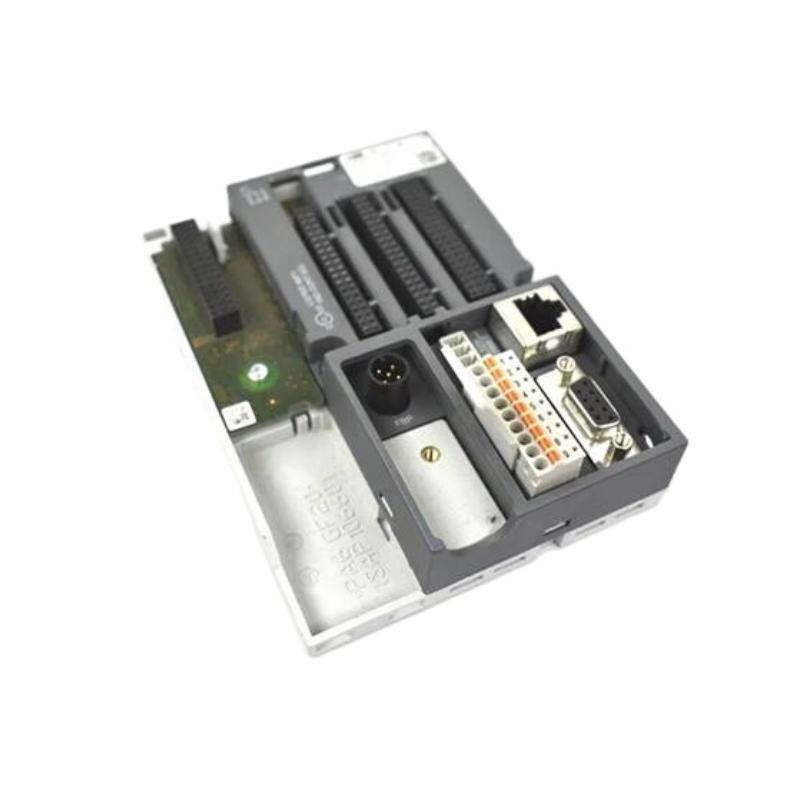

The ABB TB511-ETH-XC (1SAP311100R0270) is an advanced terminal base with integrated Ethernet connectivity designed for use in extreme environmental conditions. It is part / ABB’s AC500-XC (eXtreme 状態) automation system, which enhances reliability and performance in applications subject to high humidity, dust, corrosive gases, vibration, or extended temperature ranges.
Serving as a connection and communication interface between the AC500-XC CPU and I/O modules, the TB511-ETH-XC enables robust and secure data transmission via Ethernet. Its hardened design and field-ready configuration make it especially suitable for use in rugged industrial sectors, including oil & gas, mining, marine, and transportation.
Key Features
-
Integrated Ethernet communication interface for AC500-XC systems
-
Designed for harsh environments: high humidity, vibration, corrosive gases
-
Part / ABB’s eXtreme 状態s (XC) range
-
サポートs Modbus TCP, UDP, HTTP protocols
-
Designed for use with PM5xx-XC CPU modules
-
Easy connection to I/O modules and field wiring
-
Compact form factor for space-constrained panels
-
DIN rail mounting with secure latching mechanism
-
Conformal coating for PCB protection against corrosion
-
-40°C to +70°C wide operating temperature
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Ethernet Terminal Base (XC series) |
| モデル Number | TB511-ETH-XC |
| Order Code | 1SAP311100R0270 |
| Ethernet Ports | 1 x RJ45, 10/100 Mbps |
| サポートed Protocols | Modbus TCP, UDP, HTTP |
| System Compatibility | AC500-XC (PM5xx-XC CPUs, S500-XC I/Os) |
| Power Supply Input | Supplied via backplane/CPU |
| Environmental Rating | Extreme 状態s (XC), Conformal Coated |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Vibration Resistance | IEC 60068-2-6 (10–150 Hz) |
| Shock Resistance | IEC 60068-2-27 (15 g, 11 ms) |
| EMC Compliance | IEC/EN 61000-6-2, 61000-6-4 |
| Dimensions | 28 x 135 x 95.5mm |
| 重量 | 0.164 kg |
| Mounting Type | DIN rail (35 mm) |
| Ingress Protection | IP20 (when installed in cabinet) |
| Certifications | CE, UL, RoHS, DNV, ATEX compliant (when system approved) |
Industry Applications
The TB511-ETH-XC is designed for mission-critical systems in extreme environments:
-
Oil & Gas Platforms – Drilling control, compressor stations, and pipeline monitoring
-
Mining and Quarrying – Conveyor automation, ventilation, and safety systems
-
Marine and Offshore – Ballast systems, propulsion control, and navigation integration
-
Railway Infrastructure – Tunnel ventilation, signaling, and environmental monitoring
-
Steel and Metal Industries – Furnace control, rolling mill automation
-
Wind and Solar Power Plants – Harsh outdoor installations requiring ruggedized control
Product Advantages
-
Extreme Reliability: Withstands wide temperature swings, corrosion, vibration
-
Integrated Ethernet: Seamless data communication with field and supervisory systems
-
Compact Design: 保存s panel space while integrating multiple connection functions
-
ABB Quality: Part / the trusted AC500-XC platform for long-term industrial deployment
-
Easy Installation: Simplifies wiring through DIN rail and modular bus system
-
Future-Ready: Compatible with evolving AC500 platforms and remote access standards
-
Reduced Downtime: Rugged design minimizes failure risk in harsh operating conditions
-
Global Certification: Accepted for marine, /fshore, and hazardous environments
よくある質問 (FAQ)
-
Q: What makes the TB511-ETH-XC different from the standard TB511-ETH?
A: The XC version is designed for extreme environmental conditions and includes conformal coating and wider temperature and vibration tolerance. -
Q: Can this terminal base be used with standard (non-XC) AC500 CPUs?
A: It is recommended for use with PM5xx-XC CPUs to ensure environmental compatibility and reliability. -
Q: What Ethernet protocols are supported?
A: It supports Modbus TCP, UDP, and HTTP. -
Q: Does this 台 require an external power supply?
A: No, it is powered through the AC500 backplane/CPU 台. -
Q: Can I use this in a marine-certified application?
A: Yes, it meets DNV and ATEX certifications when used as part / an approved system. -
Q: What kind / wiring terminals does it support?
A: It connects to ABB S500-XC I/O modules via the standard backplane terminal system. -
Q: Is the RJ45 port industrial-grade?
A: Yes, it’s designed for industrial environments and supports standard Ethernet cabling. -
Q: How is it protected from corrosion?
A: The PCB is conformally coated, providing protection from humidity and corrosive gases. -
Q: What is the maximum cable length supported for Ethernet?
A: As per standard Ethernet, up to 100 meters with CAT5e or higher cabling. -
Q: Is this terminal base hot-swappable?
A: No, the system must be powered down before replacing or modifying modules.
Related Modules
| モデル Number | 説明 |
|---|---|
| TB511-ETH 1SAP250100R0001 | Standard Ethernet Terminal Base (non-XC) |
| CI581-CN 1SAP111600R0271 | CANopen Communication Interface Module |
| CI511 1SAP250000R0001 | Serial Communication Module (RS-232/RS-485) |
| PM5630-XC 1SAP112000R0271 | Compact CPU for AC500-XC platform |
| TU520V2 1SAP212000R0001 | I/O Module Terminal ユニット for AC500 |
| S500-XC DI524 1SAP250400R0001 | XC Digital Input Module |
Popular ABB Automation & XC Series モデルs
| モデル Number | 説明 |
|---|---|
| PM564-XC 1SAP112200R0271 | AC500-XC CPU with Ethernet, RTC, and 128 kB memory |
| DO524-XC 1SAP250600R0001 | XC Digital Output Module, 16 DO (24 VDC) |
| DI524-XC 1SAP250400R0001 | XC Digital Input Module, 16 DI |
| AI523-XC 1SAP250200R0001 | XC Analog Input Module, 8 AI (0–10 V/4–20 mA) |
| AO523-XC 1SAP250300R0001 | XC Analog Output Module, 8 AO |
| PM592-ETH-XC 1SAP129300R0270 | High-performance CPU for AC500-XC with Ethernet support |
